CDM BMW M60 M62 Performance Oil Cooler & Filter Relocation Kit
Here we have the CDMSport oil cooler kit to suit BMW M60 M62 V8 Engines. The kit relocates that bulgy filter housing to anywhere you choose making it ideal for engine bay tidy up or engine swaps.
The kit includes everything you need to get your engine oil temperatures reduced in yourV8, something these engines suffer with, especially when turbocharged or drifting!
This aids engine longevity and reliability allowing you to push harder at the track without worrying about your engine oil.

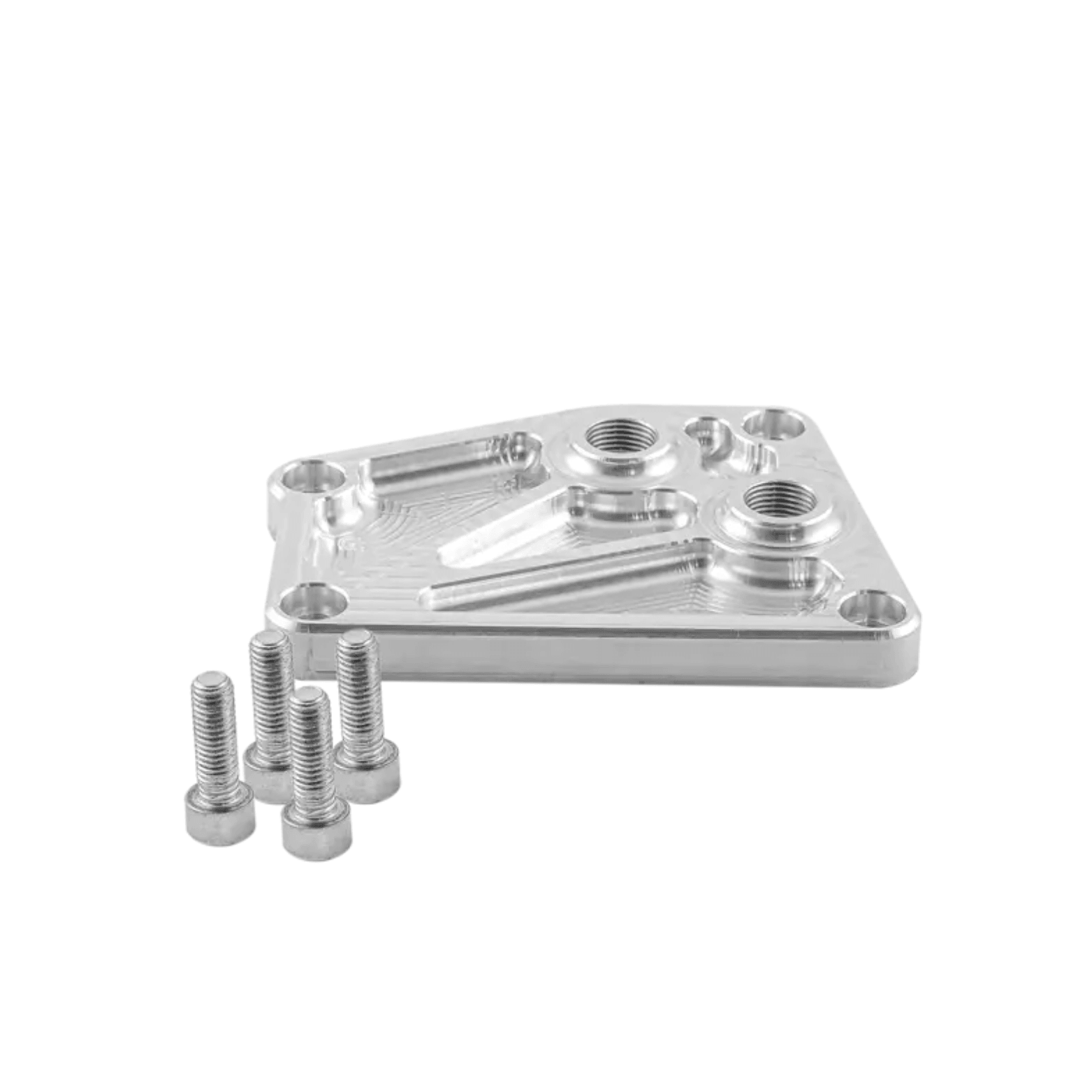

PMC Relocator
Billet PMC Engine filter AN relocator by PMC allows you to remove that awful lump of cast alloy from your engine block saving space and weight where it matters.

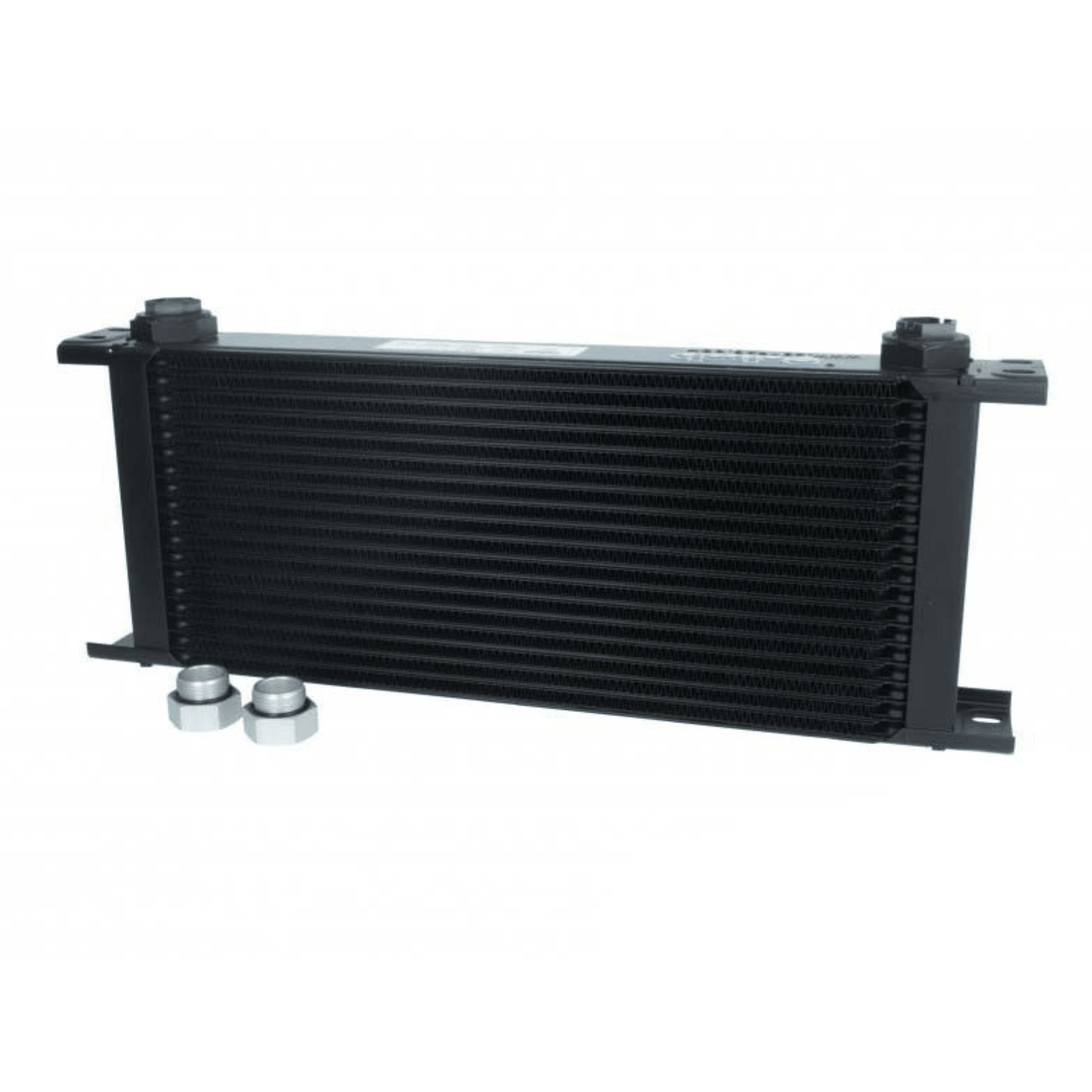

Hurricane 30 row oil cooler 330mm
Black universal aluminium oil cooler from Hurricane motorsport.
- Fully aluminium for the best heat conducting properties
- Low pressure drop across the inlet and outlet
- Durable core
- Robust construction
- Black Design
- Flexible mounting
- M22x1.5 connections with female thread
- Adapters are available as Full Flow
- Quality from Hurricane Motorsport
Technical info
Heigth: 230mm + fittings
Width: 330mm incl brackets
Core Width: 283mm incl. end plates
Width CC between connections: 242mm
Width CC between mounting holes: 310mm
Thickness: 51mm
Connections: M22x1,5 female thread
Material: 6061 Aluminum (T6061)
Weight: ~1,95kg
Oil capacity: ~0,60 liter
Max working pressure: 10bar
Colour: Black

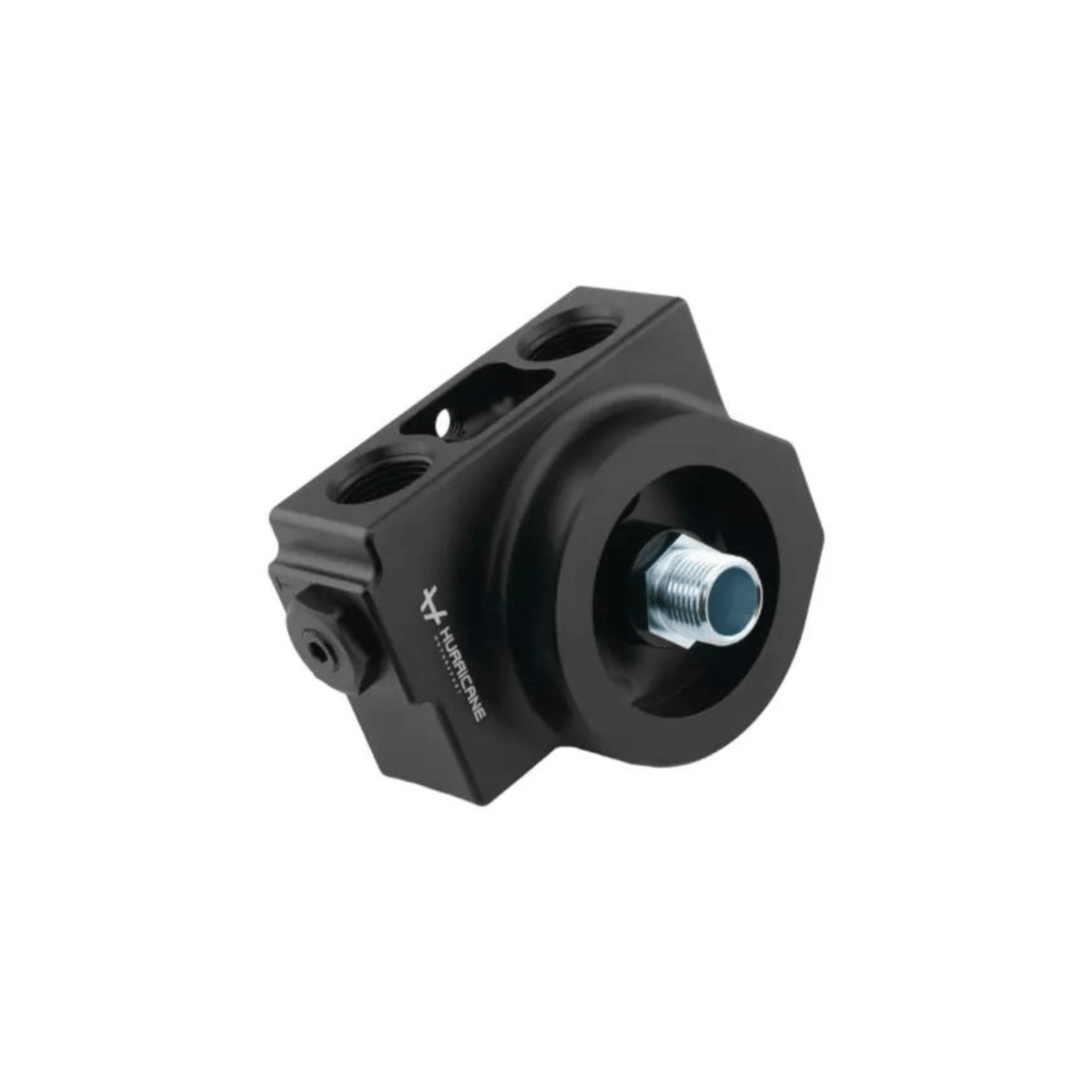

Hurricane Remote oil filter bracket with thermostat
Perfect for use with oil coolers. This unit and thermostat in Billet Aluminum combines Oil filter and thermostat in one compact unit. This also saves space and removes splices from extra pipes and hoses.
Thermostat
The built-in Hurricane thermostat keeps the engine oil temperature at (82°C) 180°F.
Start to open: 70°C (158°F)
Fully open: 82°C (180°F)
Hurricane Remote oil filter bracket with thermostat spec
- Billet 6061 aluminum
- Black anodized
- Built-in 82°C Hurricane thermostat
- 4x -AN10 ORB ports
- 2x 1/8” NPT sensor ports - One of these can be used as a turbo oil feed!
- 3/4"-16 filter thread (Large oil filter with internal bypass recommended)
Filter o-ring CC
MAX: 74mm
MIN: 56mm
To use this product, an oil filter relocator sandwich adapter must be installed on the engine that replaces the original oil filter and routes the oil to the Hurricane oil filter relocator with thermostat.

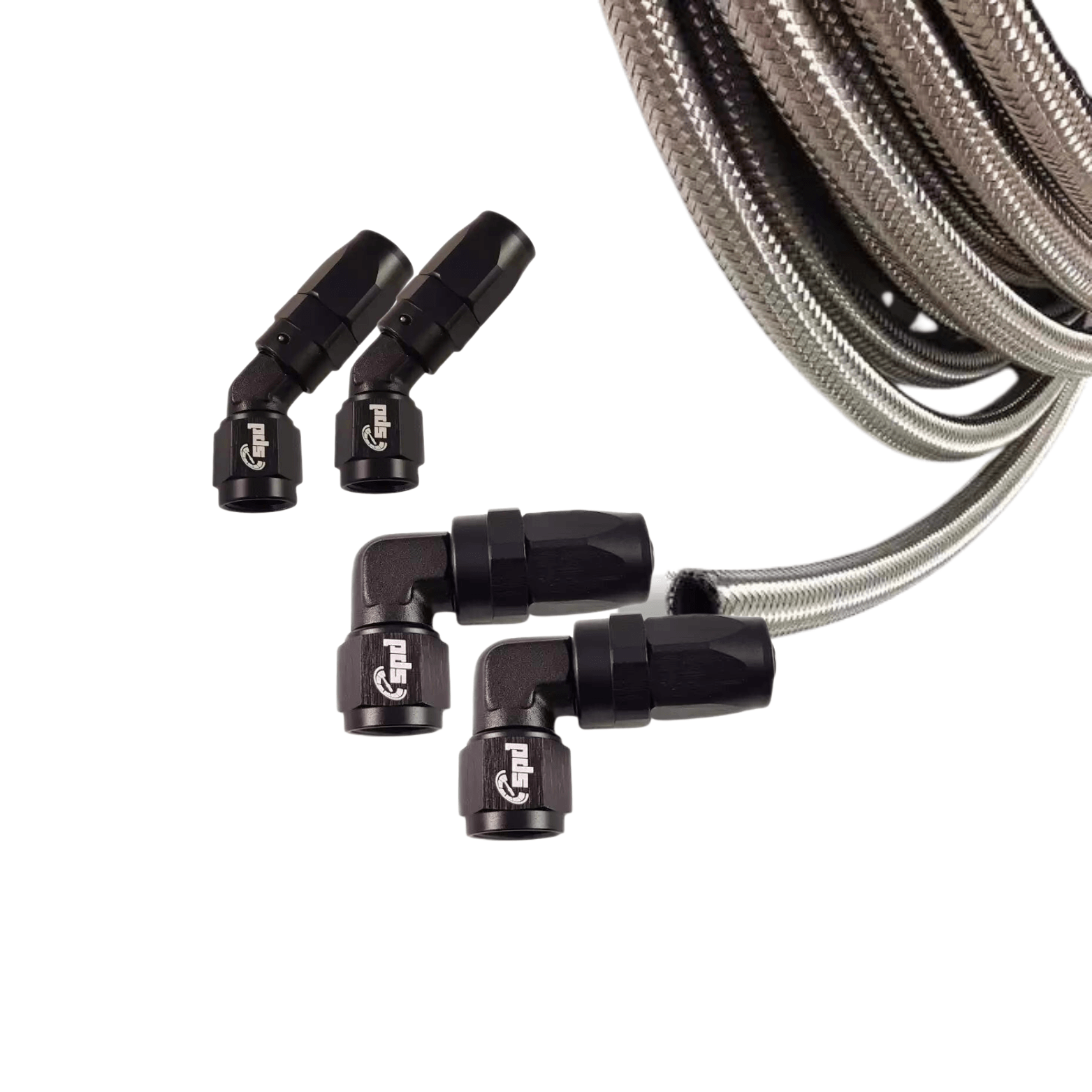

AN10 Lines & Fittings
The kit is supplied with all the oil lines and fittings required for the install. These can come Pre Assembled at 2M lengths or unassembled to allow you the perfect fitment. Assemble is super easy and full instruction is provided.
Bosch Combine Pressure Temperature Sensor & 1/8NPT Adaptor
This kit can come with a combined Oil pressure and temperature sensor to allow you to keep an eye on those temps and pressure. We stand by this sensor and use it in all our own builds.
Thread: M10x1.0
Bosch part no: 0261230340
Alternatively Bosch no: 0261230482
pin2: Pressure signal out (0.5V = 0bar, 4.5V = 10bar)
pin3: +5V sensor supply
pin4: Sensor GND
pin5: Temperature signal out (0.5V = -40 deg C, 4.5V = 140 deg C)
Turbocharged Applications
This kit is ideal for use in a turbocharged application. You can utilise one 1/8NPT port as a turbo oil feed by selecting a 1/8NPT TO AN4 Adaptor from the complementary products list!
