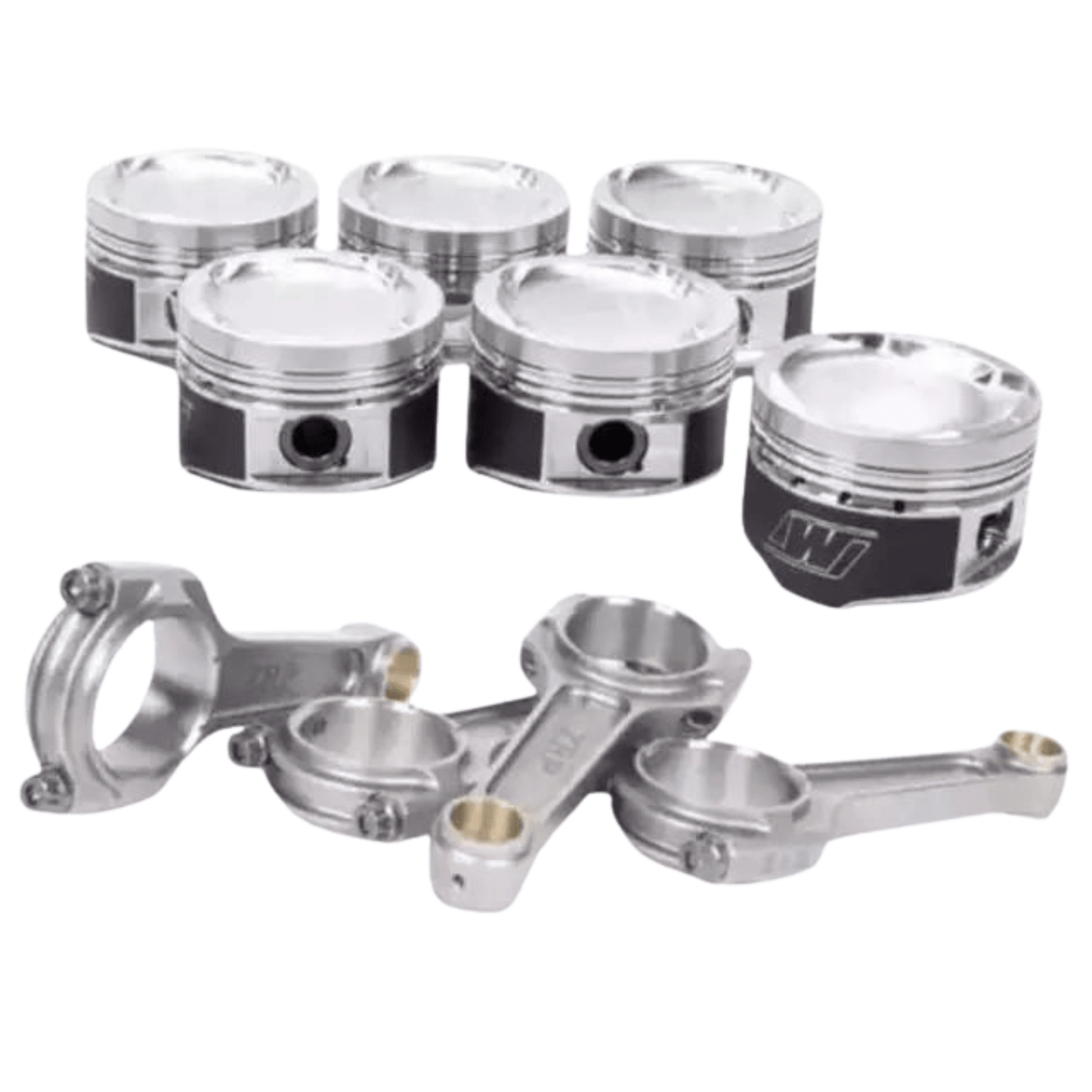

Wiseco Toyota 2JZ Forged Engine Kit ZRP Rods & Wiseco Pistons 86mm 9.5:1

Wiseco Toyota 2JZ Forged Engine Kit ZRP Rods & Wiseco Pistons 86mm 9.5:1

£1,749.99 GBP
£2,050.00 GBP £1,749.99 GBP
Sale Sold out
Tax included.

Wiseco/ZRP Pistons+Connecting Rods Toyota Supra 2JZ (9.5:1) Heavy Duty (86mm)

Toyota 2JZGTE 3.0L 24V • Supra 1993-98 • HD2 Asymmetric Skirt w/ Lateral Gas Ports • .200” Wall Pins

Kit Part #: K677M86AP
Bore mm / Inch: 86.00 / 3.386
Over-size: Std.
Stroke: 3.386, 86mm
Rod: 5.590, 142mm
Comp Ht: 1.338, 34mm
Head cc’s: 45cc
Volume: -5.3cc
Gasket Thickness: .056, 1.42mm
Deck Clearance: .001, .02mm
Block Ht: 8.662, 219mm
Compression Ratio: 9.5
Pin Part # Included: S796 22mm - .866 x 2.250
Ringset Included: 8600XX
Avg: Wt: 365
Foot-note: 1
