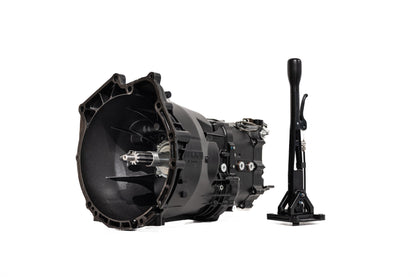

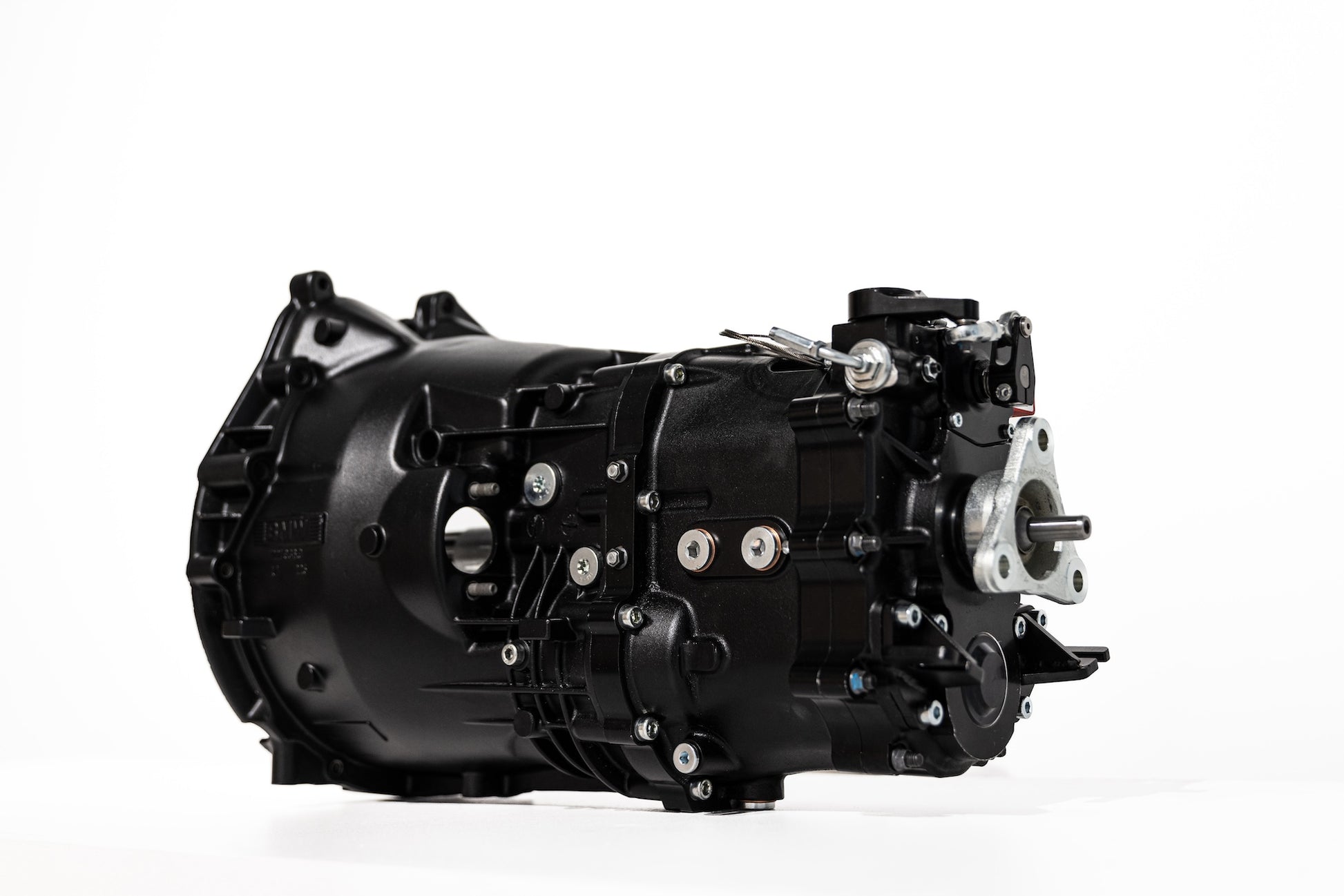

GearMotive ZF Sequential Gearbox

1 12

The GearMotive ZF Sequential Dogbox transmission is based on their well-known H-pattern Dogbox gearset. Their sequential transmission uses same type of gears and shafts, which have proven to work on various racing classes and being very famous product especially in Rally, Circuit and Drifting. The gearset is proven to work on over 1100Nm applications in Drifting and Drag racing.

£7,195.00 GBP
£7,195.00 GBP £7,195.00 GBP
Sale Sold out
Tax included.

  • Fast Delivery

  • Expert Support

  • Secure Payment

Pay In Instalments!

At checkout you can choose Klarna or Paypal Finance to help spread the cost!

Lightspeed Shipping & Easy Returns!

Crazy Fast Shipping

We pride ourselves in fast shipping and unparalleled after sales support.

All international orders will be delivered without import tax/duty as we have this all pre-paid for you. (this only applies to standard shipping methods. Some countries may charge import VAT on Express shipments)

We aim for same Day dispatch before 1PM on all in stock Items. But this isnt always possible during busy periods so please allow for next day dispatch when you are time sensitive.

If something you ordered is not in stock, we will email you and notify you of the new ETA.

UK & Ireland Delivery is usually next day delivery but can take 1-3 days.

Europe is 1-5 days.

Rest of world is 3-5 days.

Shipping times above are based on the express shipping option selected at checkout.

Hassle Free Returns

As car enthusiasts we understand the importance of flexibility on returns.

All stock items have a 30 day return period where you will be issued a full refund for the parts.

If you order the incorrect part, we will do our best to assist you in getting the correct part as soon as possible for as little money as possible. It happens, we have been there!

This is why we are one of the worlds leading aftermarket car parts brands. We are enthusiasts and we know what's important to our community CDMSport car enthusiasts!

View full details

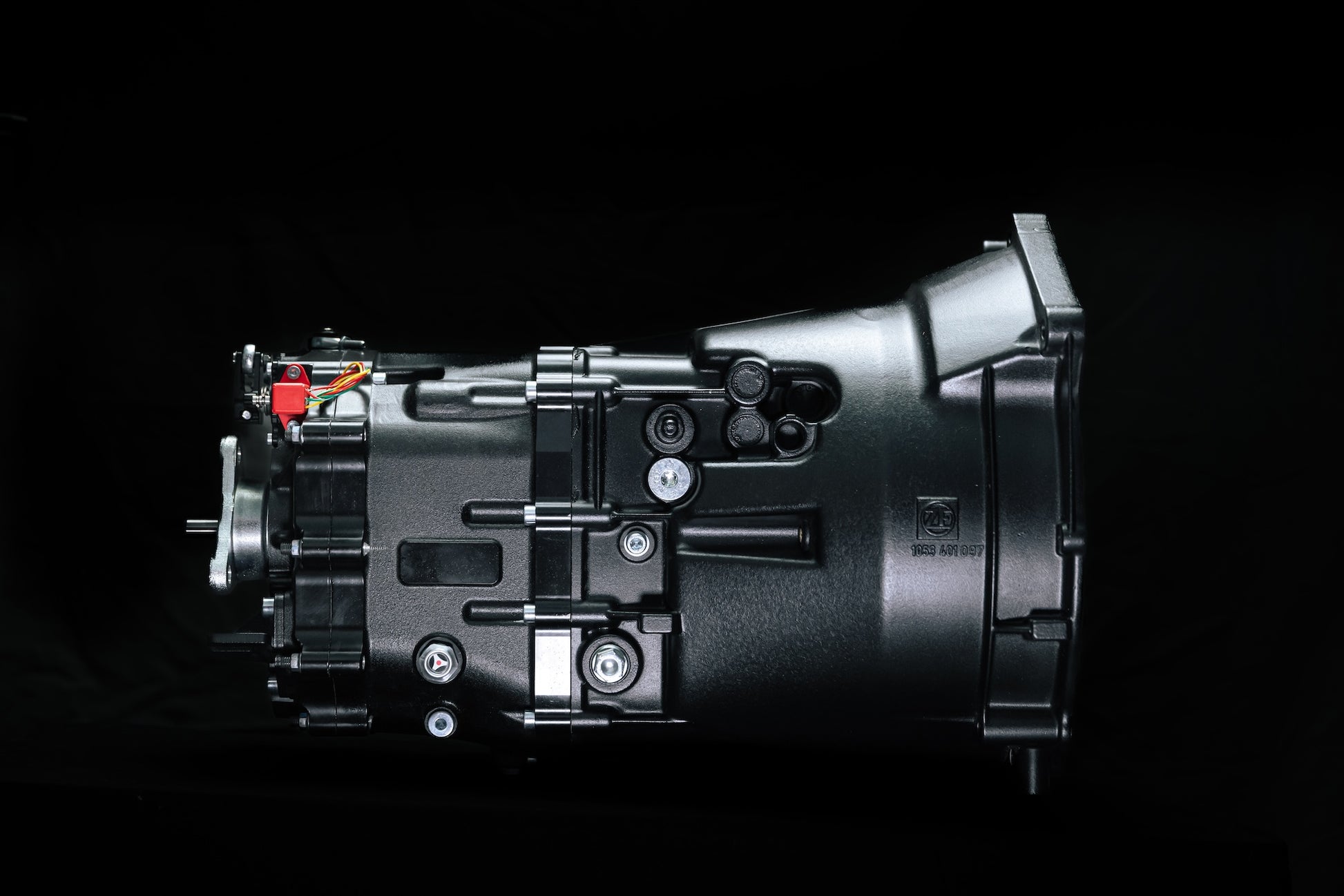

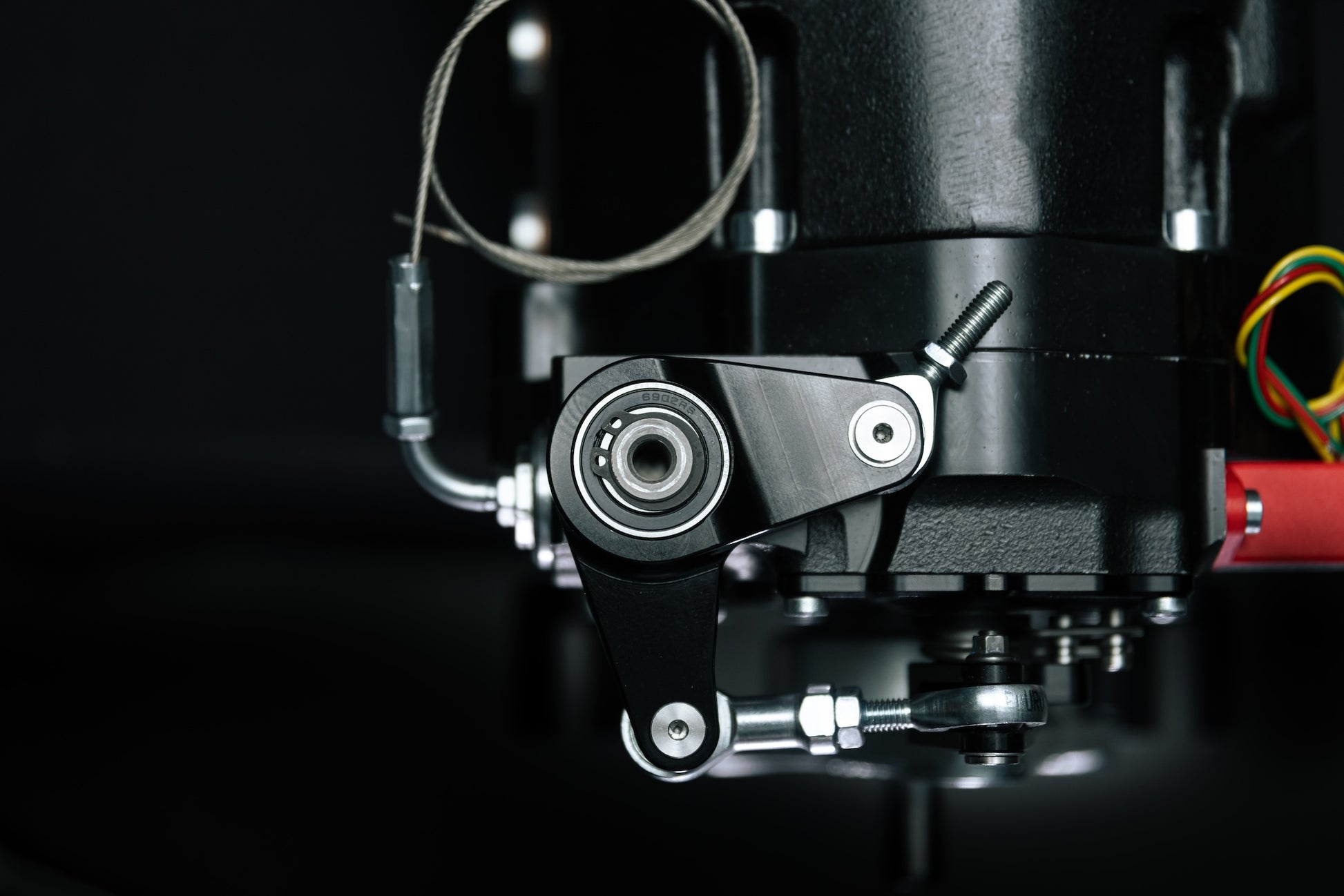

Same Great Gearsets, now sequential!

Now the famous Gearmotive gearset is combined with a Sequential shifting mechanisms and housing providing even faster and more flawless gear changes.

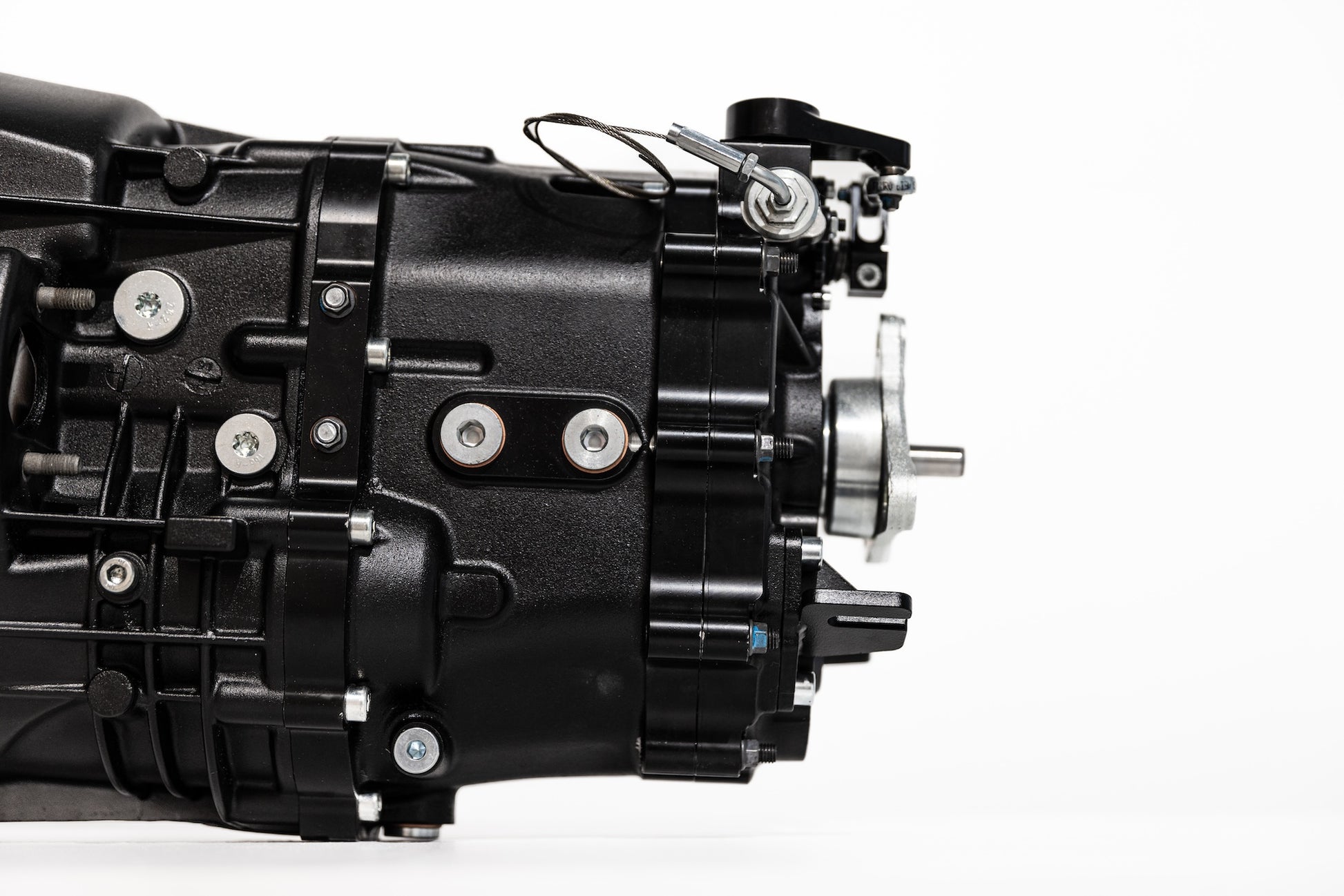

A BMW ZF bell housing is mated with our custom manufactured rear housing, which measures to same dimensions as a ZF stock rear housing.

GearMotive ZF Sequential can be bolt-on to replace original BMW ZF S5D transmission. If you run the Gearmotive output flange adaptor, the box will measure the same as a GS5-39DZ making it a direct swap in that application.

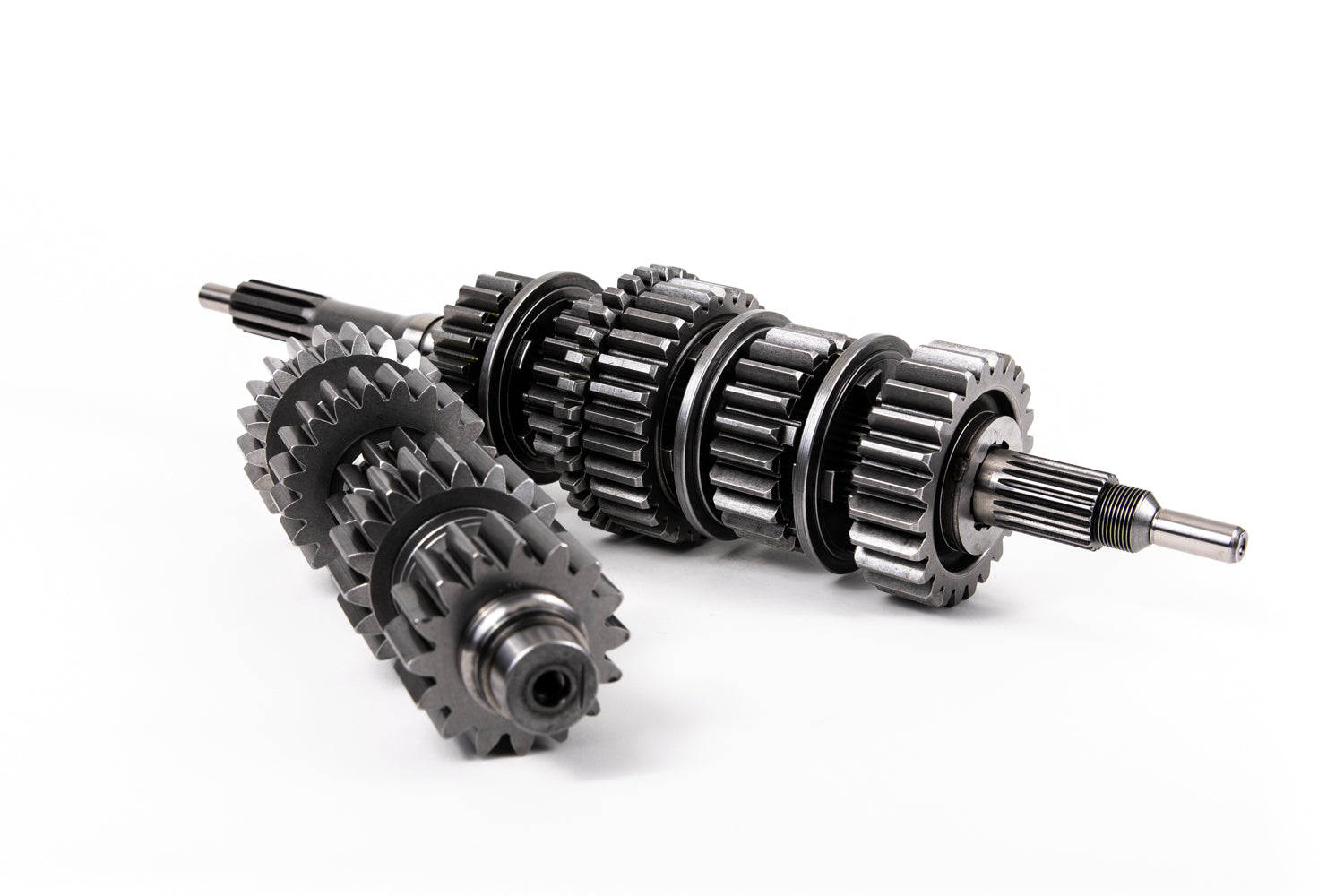

Gearset 1 - Rally/Circuit/Hillclimb

  • Long 1st gear, smaller drop between gears
  • Gear ratios 1-5: 2.23, 1.71, 1.38, 1.16, 1.00

Gearset 2 Drift/Drag/Rallycross

  • Longish 1st gear, bigger drop between gears
  • Gear ratios 1-5: 2.73, 1.83, 1.42, 1.16, 1.00

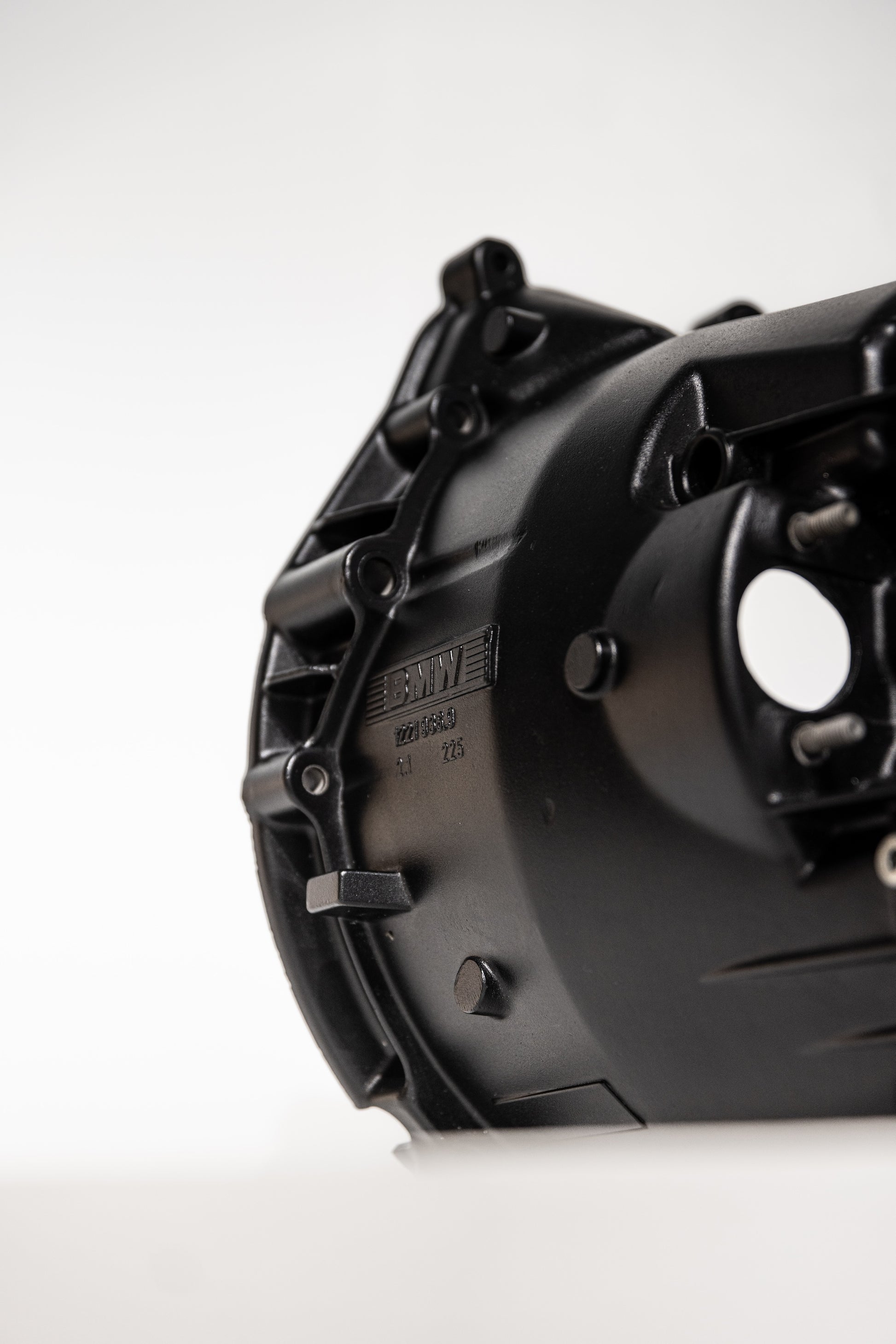

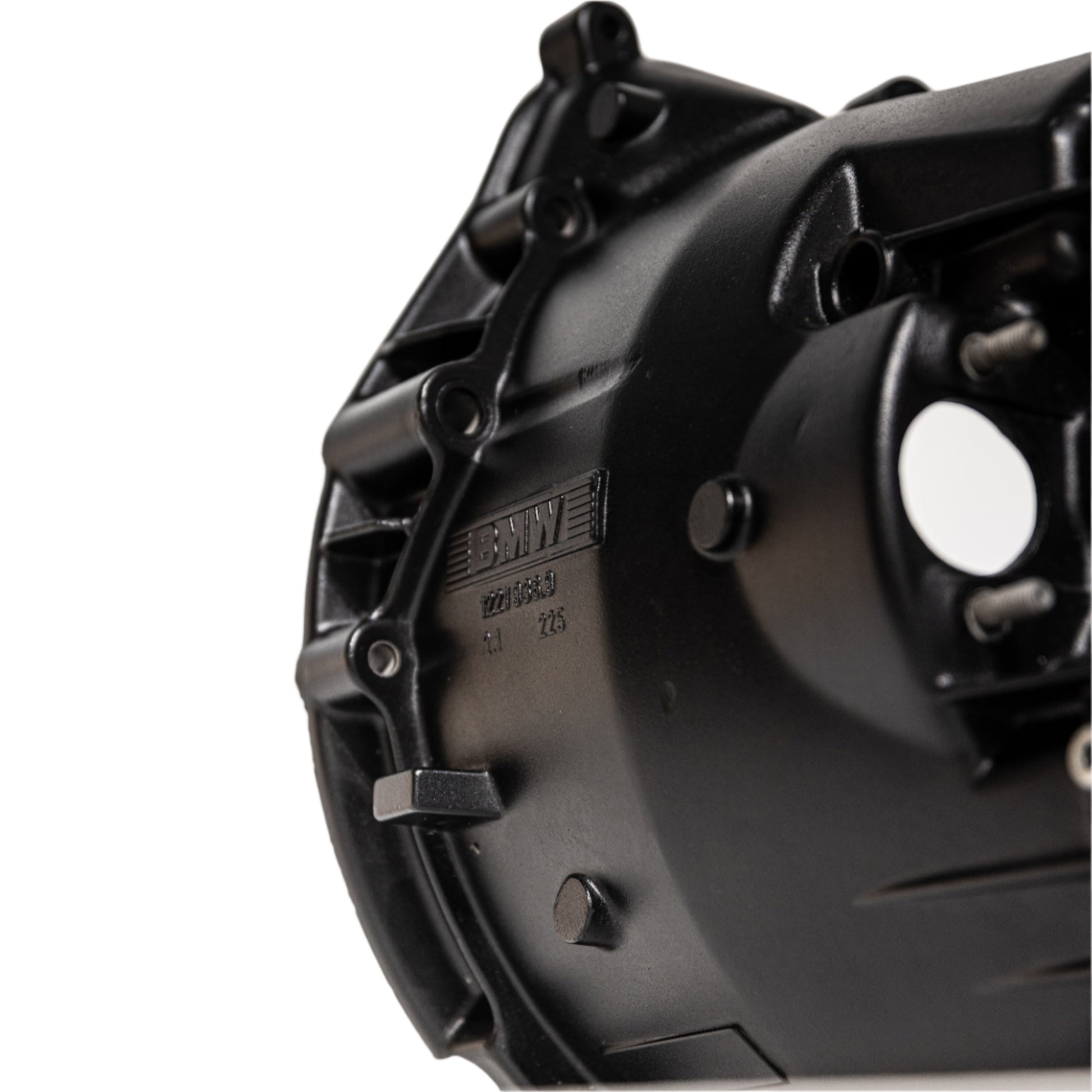

GearMotive Bell-Housing

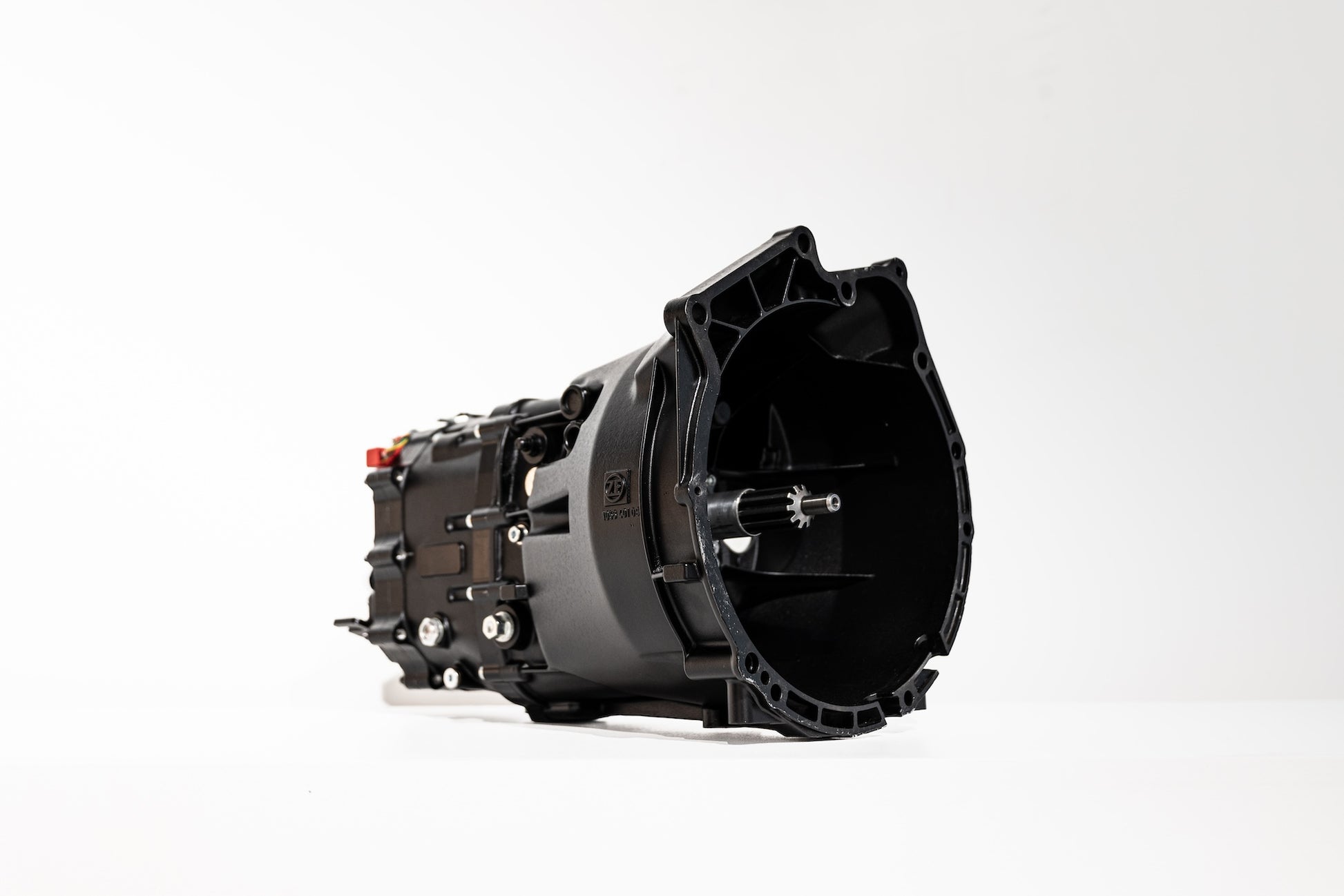

The ZF Sequential requires ZF S5D model bell housing to fit it into the engine.

The ZF Sequential is designed so the bell housing is part of the gearset and oil space.

This has allowed for the gearbox to be super small and is a bolt on to replace S5D stock box or existing GearMotive ZF dogboxes.

You can purchase a GearMotive bellhousing or send your own bellhousing to them for assembly.

Gearbox Adaptors are available from us directly.
OEM Fitment - Direct Swap
Gearbox Adaptors Available For All Engines
In House Modification & Assembly
Bolt On Hydraulic Slave Cylinder Solutions
Light weight

£295.00 GBP
£295.00 GBP £295.00 GBP
Sale Sold out
Tax included.
View full details

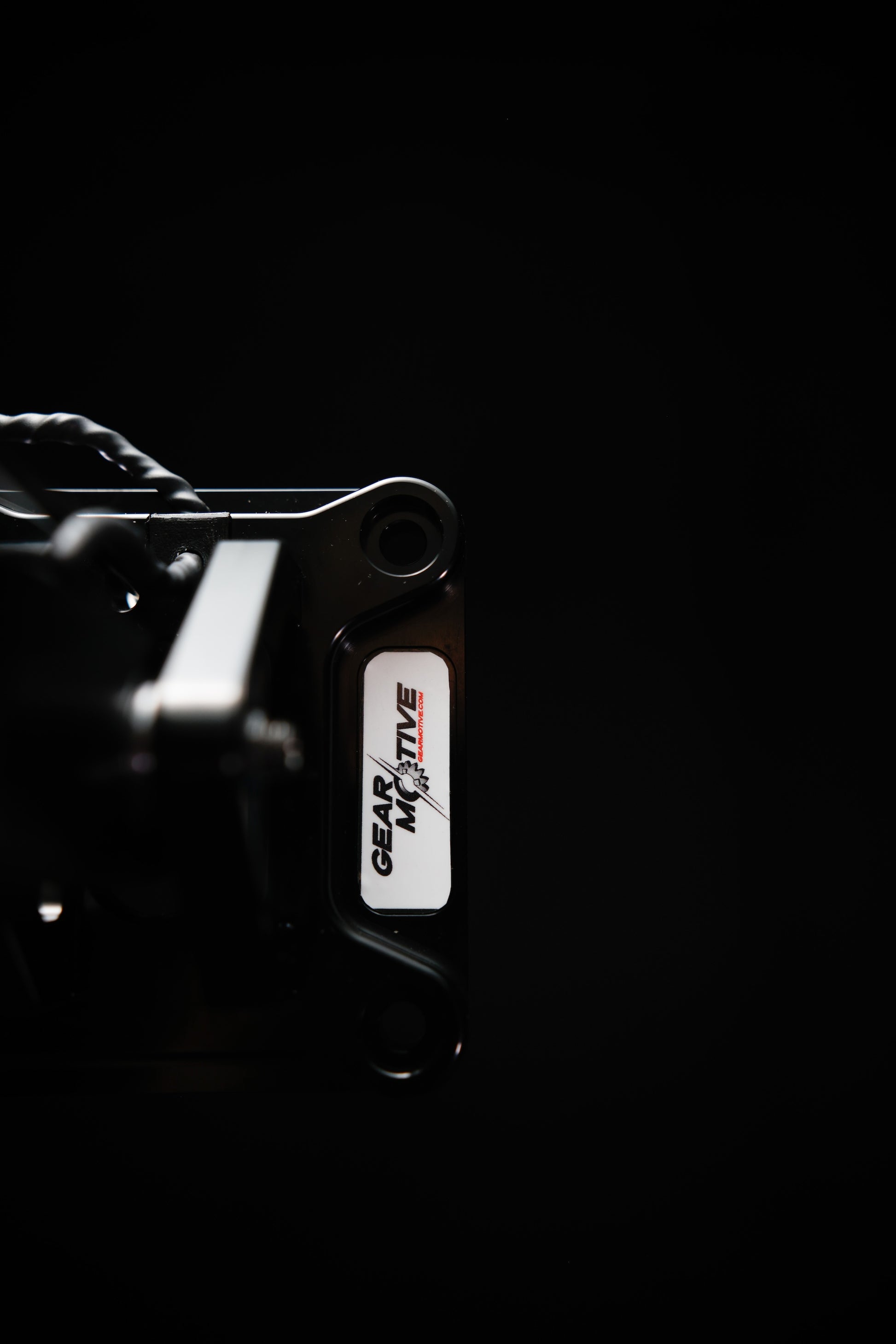

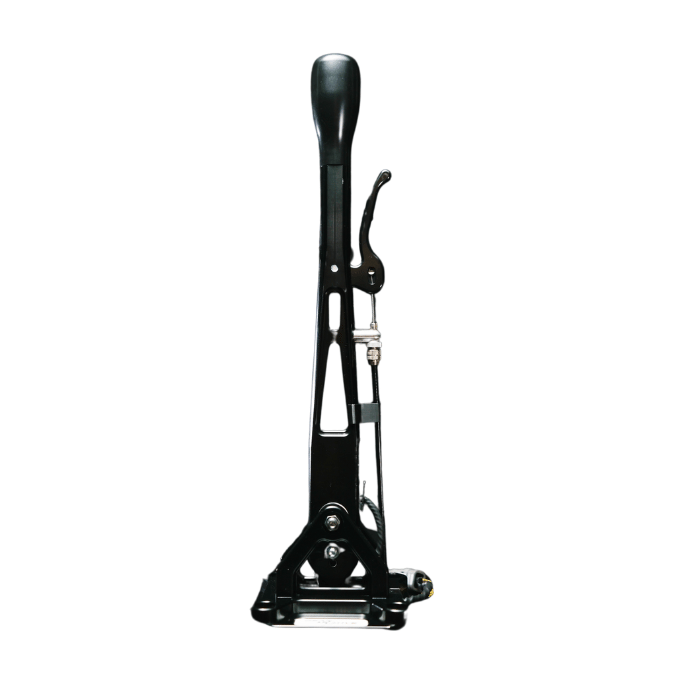

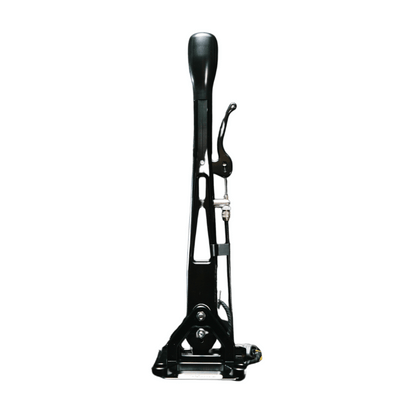

GearMotive ZF Sequential Shifter

Billet Aluminium, Flat Shift & More

The GearMotive Sequential shifter is self-centering, a very sleak black design, &made from high-quality aluminium material.

The shifter has integrated shifcut sensors, providing an option to use flat shifting as standard.

A reverse/neutral handle ensures you don't downshift out of the gearset when on the track!
Integrated shift cut option available
Handle for engaging N/R-gears
Self-centering
Billet manufactured from high-strength aluminium alloy
Light weight

£595.00 GBP
£595.00 GBP £595.00 GBP
Sale Sold out
Tax included.
View full details

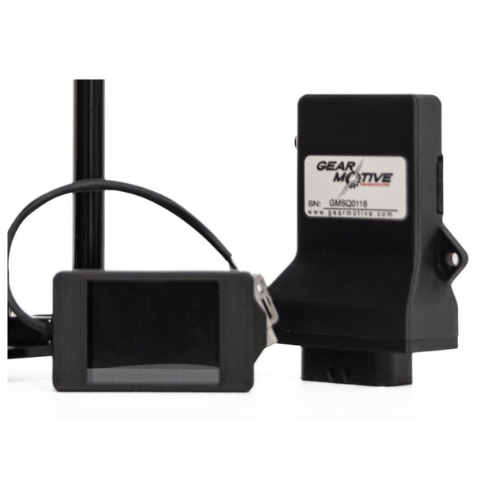

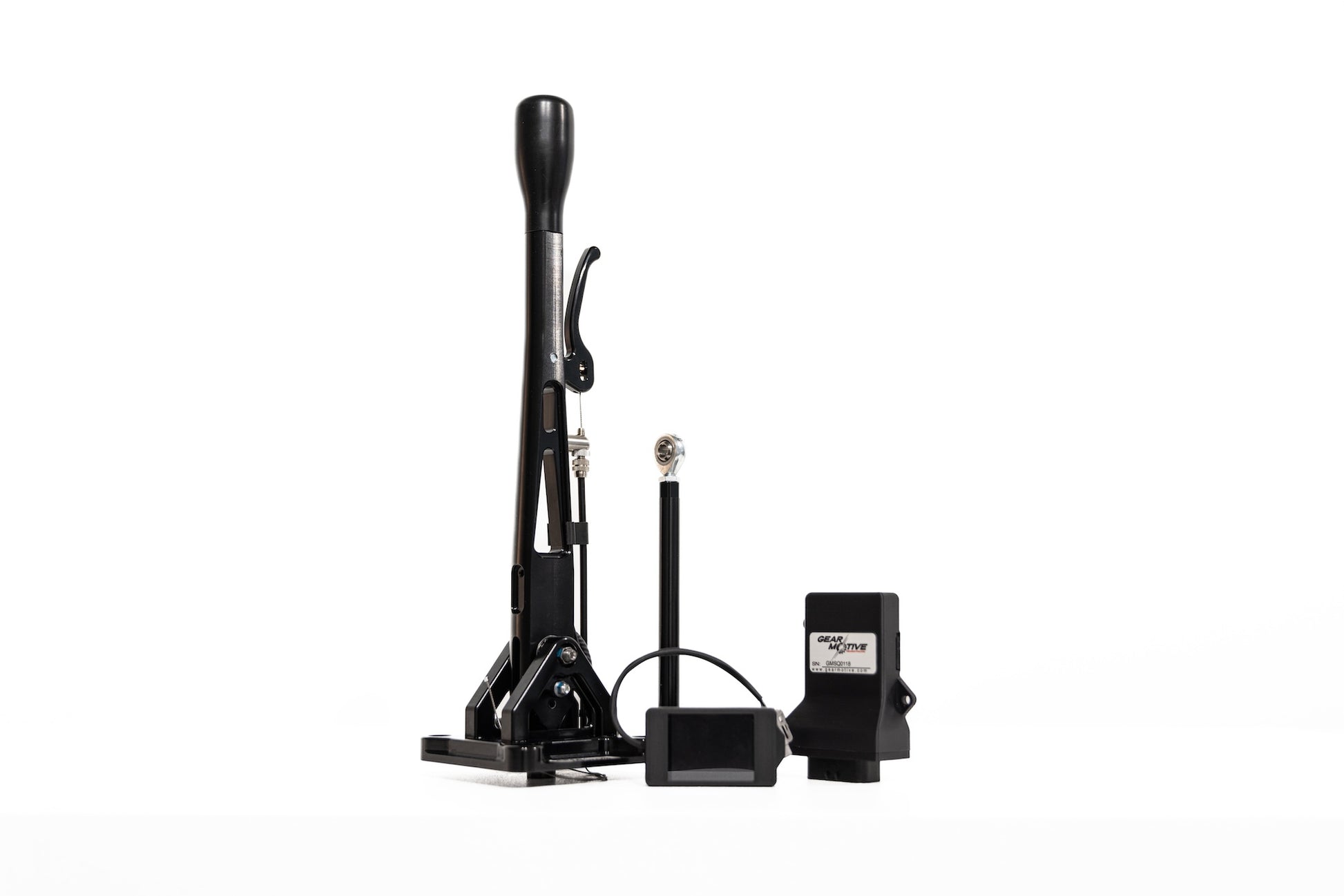

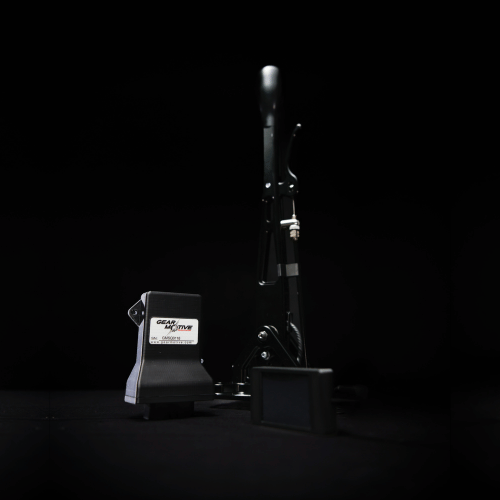

Gearmotive Shift Display Kit

The display shows the current gear position, and offers configuring options for gear position and shift cut adjusting

ECM is a control box combining the functions of display and shifter.
ECM can be also wired into the after market ECU for gear display or shift cut functionality

COMING SOON: ECM Will be able to control shift cut for stock ECUs

The kit is very easy to install with ready made wires and connectors.

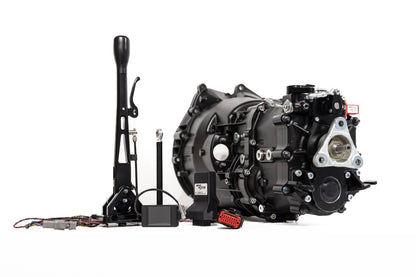

The Wiring kit combines Gearbox, Shifter, Display and ECM together
Plug & Play Wiring
Multi Colour Touch Screen Display
Aftermarket ECU Integration
Stock ECU Shift Cut Function

£395.00 GBP
£395.00 GBP £395.00 GBP
Sale Sold out
Tax included.
View full details

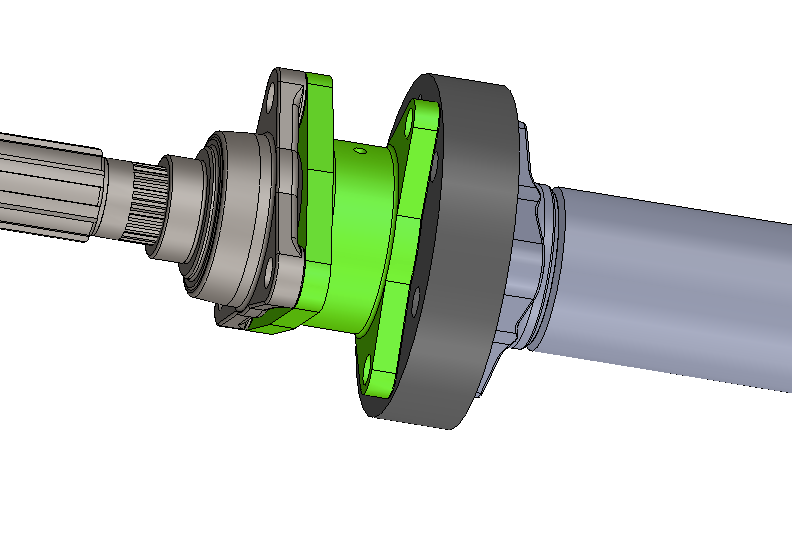

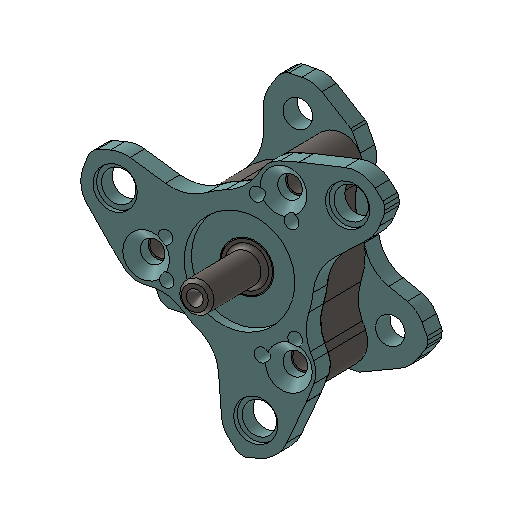

Prop Shaft Adaptor

The Gearmotive Prop Adaptor takes the output flange to your desired PCD.

Without the flange adaptor the gearbox is the same size as S5D petrol box, with the adaptor its the same size as the GS5-39DZ Diesel gearbox.

CDMSport have a range of upgraded Donuts to suit high horsepower applications.

The output flange as standard has a 78mm PCD. The adaptor is available to go to 78mm, 96mm, 105mm, 110mm.
Bolt On
Upgraded Donuts Available
High Quality Material
Supplied Hardware

£295.00 GBP
£295.00 GBP £295.00 GBP
Sale Sold out
Tax included.
View full details

Contact us for all enquiries
