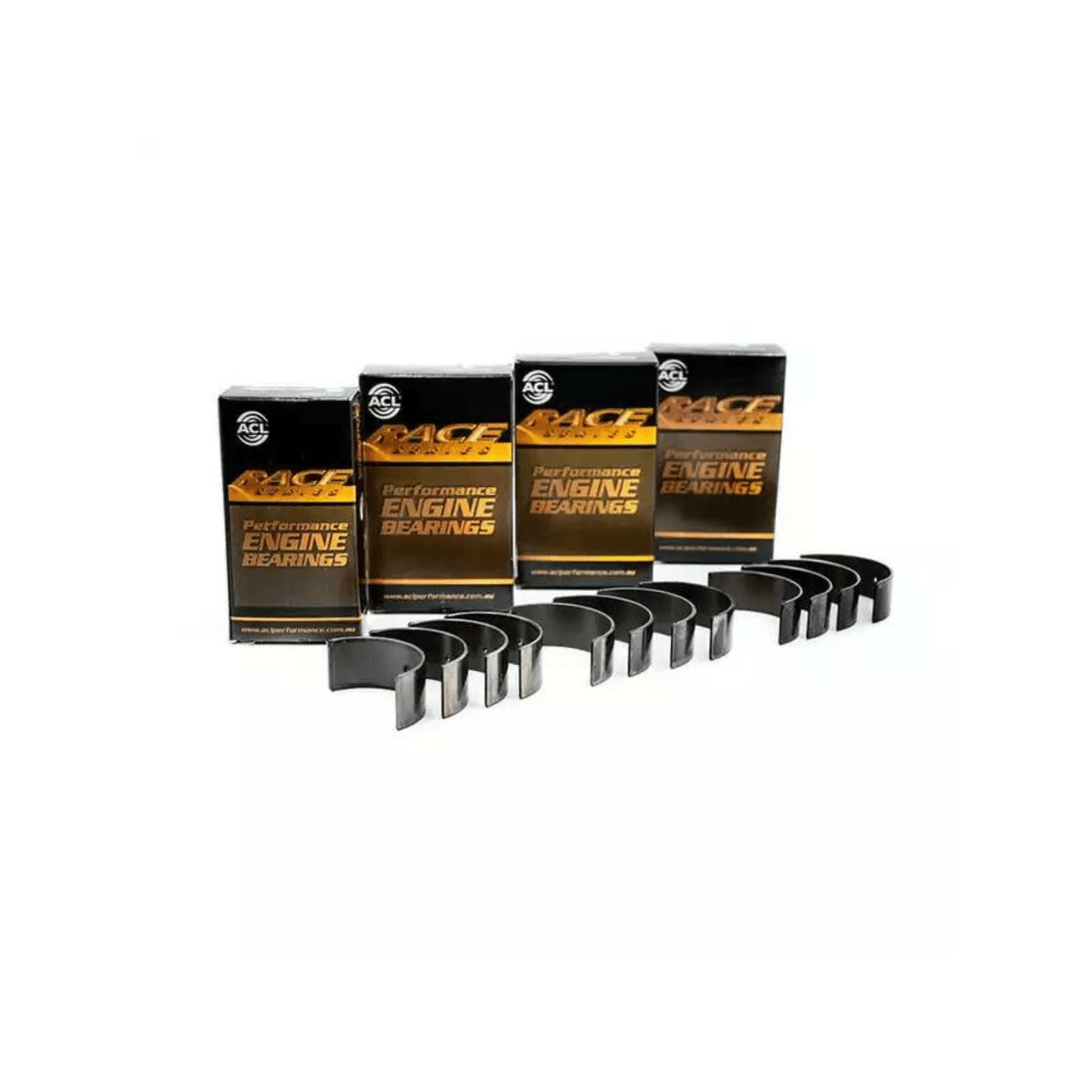

ACL Race Bearings Toyota 1JZ Conrod Bearings (STANDARD)
ACL Race Bearings Toyota 1JZ Conrod Bearings (STANDARD)
Pay In Instalments!
Pay In Instalments!
At checkout you can choose Klarna or Paypal Finance to help spread the cost!
Lightspeed Shipping & Easy Returns!
Lightspeed Shipping & Easy Returns!
Crazy Fast Shipping
We pride ourselves in fast shipping and unparalleled after sales support.
All international orders will be delivered without import tax/duty as we have this all pre-paid for you.
We aim for same Day dispatch before 3PM on all in stock Items.
If something you ordered is not in stock, we will email you and notify you of the new ETA.
UK & Ireland Delivery is 24hour.
Europe is 1-4 days.
Rest of world is 3-5 days.
Shipping times above are based on the express shipping option selected at checkout.
Hassle Free Returns
As car enthusiasts we understand the importance of flexibility on returns.
All stock items have a 30 day return period where you will be issued a full refund for the parts.
If you order the incorrect part, we will do our best to assist you in getting the correct part as soon as possible for as little money as possible. It happens, we have been there!
This is why we are one of the worlds leading aftermarket car parts brands. We are enthusiasts and we know what's important to our community CDMSport car enthusiasts!
Will It Fit My Pride & Joy?
Will It Fit My Pride & Joy?
If you are unsure if something fits or which option is best for your application, that blue chat box on the bottom right hand side will direct you to one of our amazingly talented team members who are more than happy to discuss your car!
Be careful, the passion might take over and they'll ask for pictures of your build!
We at CDMSport are veterans when it comes to car knowledge.
We have our own race team, workshop and everyone here is a genuine experienced petrol head!
In addition to everyone on the team having fantastic overall knowledge & experience, we have dedicated specialists for your questions on the more technical stuff such as engine components or electronics.
ACL bearings are used for tuning and engine upgrades where you want better quality with higher bearing capacity than normal standard bearings.
Improvements of material, dynamic thickness, heat conduction, oil grooves and oil distribution are some of the points that make ACL one of the leading bearing manufacturers.
Bearing data
Part number: 6B8100H
Bearing size: STD
Bearing half type: Identical halves
Bearing material: F781
Technical data (mm)
Max overall length: 19.3
Max shaft size: 52
Max tunnel size: 55.042
Max vertical oil clearance: 0.065
Max wall at crown: 1.506
Min shaft size: 51.981
Min tunnel size: 55.024
Min vertical oil clearance: 0.012
Technical data (in)
Max overall length: 0.759841007
Max shaft size: 2.047240019
Max tunnel size: 2.16700356
Max vertical oil clearance: 0.00255905
Max wall at crown: 0.059291221
Min shaft size: 2.046491989
Min tunnel size: 2.1662949
Min vertical oil clearance: 0.00047244
Engine code
1JZ-GE / 1JZ-GTE
Application
Toyota 1JZ-GE 2492cc Inline6 DOHC 4v
Toyota 1JZ-GTE 2492cc Inline6 DOHC 4v Twin Turbo
