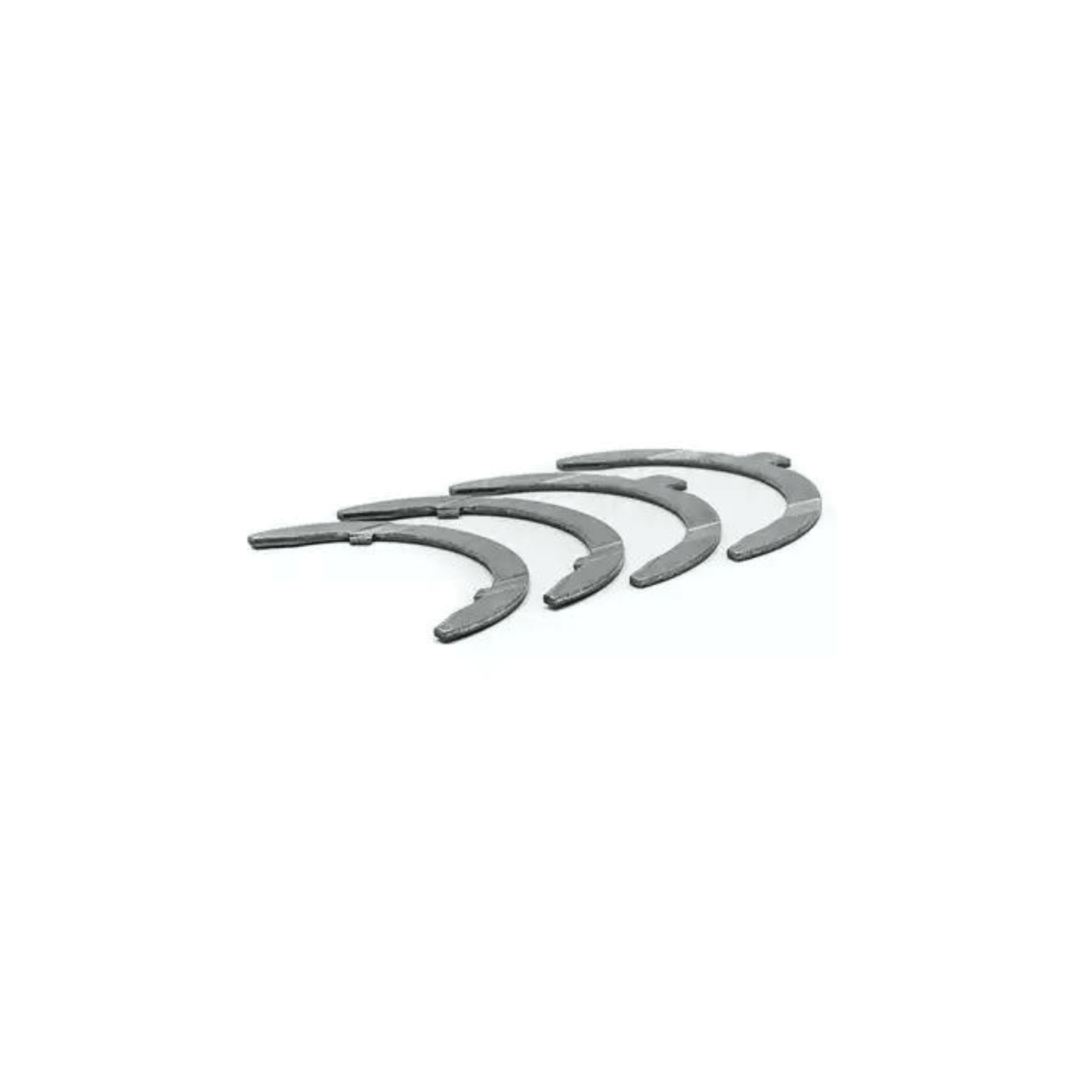

ACL Race Bearings Toyota 2JZ Thrust Bearings (Standard)

ACL Race Bearings Toyota 2JZ Thrust Bearings (Standard)

Regular price £36.00 GBP
Regular price £40.00 GBP Sale price £36.00 GBP
Sale Sold out
Tax included.

ACL bearings are used for tuning and engine upgrades where you want better quality with higher bearing capacity than normal standard bearings.

Improvements of material, dynamic thickness, heat conduction, oil grooves and oil distribution are some of the points that make ACL one of the leading bearing manufacturers.

Bearing data

Part number: 2T8103
Bearing size: STD
Bearing half type: Upper & lower
Bearing material: F817

Technical data (mm)

Max overall length: 1.97
Max shaft size: 67.6
Max tunnel size: 81.6
Max vertical oil clearance: 0.08
Max wall at crown: 1.98
Min shaft size: 67.35
Min tunnel size: 81.35
Min vertical oil clearance: 0.022

Technical data (in)

Max overall length: 0.0776
Max shaft size: 2.6614
Max tunnel size: 3.2126
Max vertical oil clearance: 0.0031496
Max wall at crown: 0.077952601
Min shaft size: 2.6516
Min tunnel size: 3.2027
Min vertical oil clearance: 0.00086614

Engine code


Toyota 2JZ-GE 2997cc Inline6 DOHC 4v
Toyota 2JZ-GTE 2997cc Inline6 DOHC 4v Twin Turbo
