Anderson Steel Speed BMW E36 E46 - 1JZ 2JZ Engine Swap Mounts

Anderson Steel Speed BMW E36 E46 - 1JZ 2JZ Engine Swap Mounts

Regular price £240.00 GBP
Regular price Sale price £240.00 GBP
Sale Sold out
Tax included.

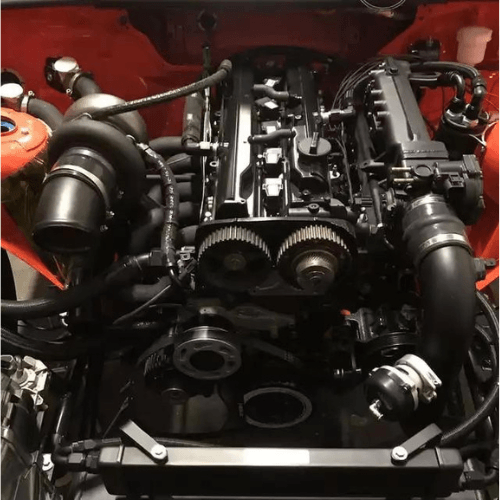

Top quality rigid engine mounts to fit a 1JZ or 2JZ engine in your BMW E36 or E46.

These Engine mounts fit perfectly and can handle all the power you possibly can produce.

Engine mounts are manufactured to fit engines with an oil pan located rear of the engine.

The bolt pattern is made to fit 1JZ and 2JZ GE and GTE.

The 1JZ and 2JZ engines need one straightforward modification to fit in the E36 or E46.

  • Make room between the front trail beam and the engine oil pan by cutting and welding the corners or just hammer it in a few millimeters. The extra space needed is just for engine and chassi flex to avoid engine and front beam interference. The modification is only needed for the oil pan corners.

Mounting hardware included

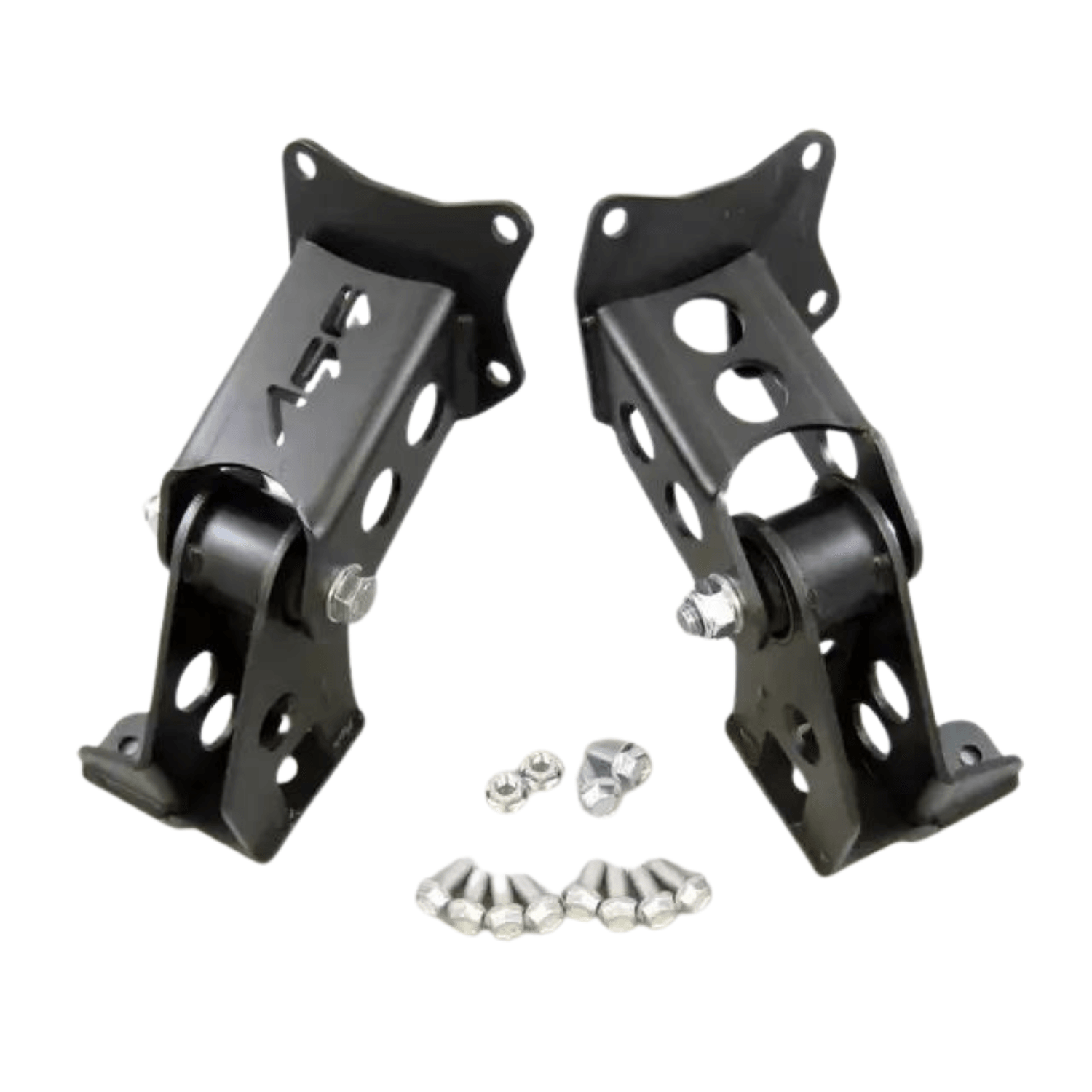

A set of engine mounts include:

  • Zinc iron chromated and black-passivated 5mm High strength steel brackets
  • Rigid bushings made from the most suitable material

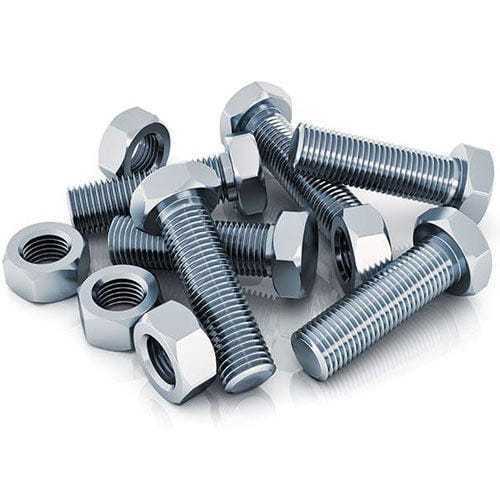

  • All screws and nuts needed for proper installation
