SPD Baffled Fuel Cell kit 600BHP

SPD Baffled Fuel Cell kit 600BHP

Regular price £940.00 GBP
Regular price £1,049.99 GBP Sale price £940.00 GBP
Sale Sold out
Tax included.

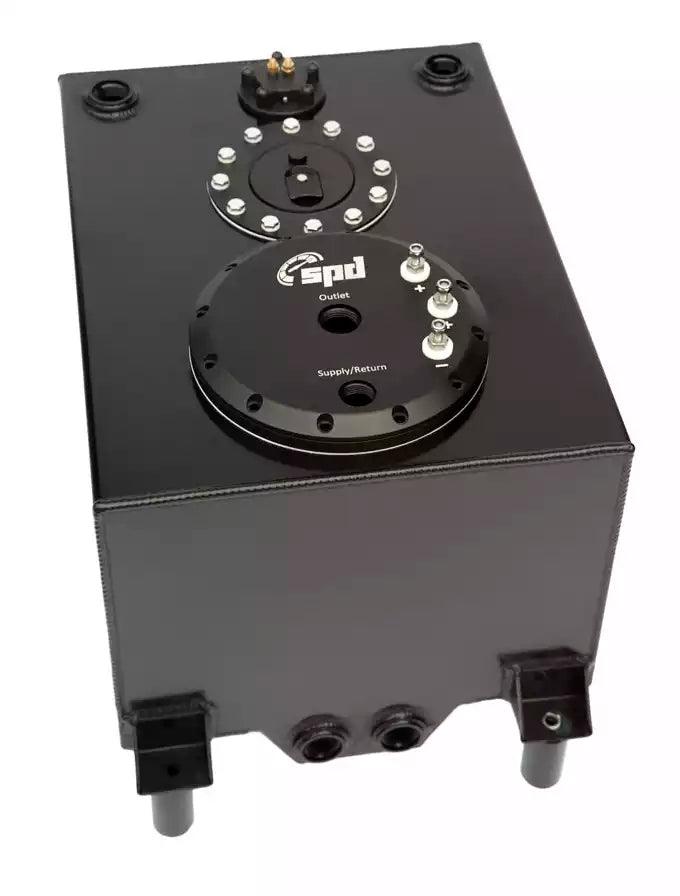

This is a greatly improved design of a classic fuel cell. This fuel cell contains no foam but is instead built up with baffles and gaps that form a well-functioning catch tank function and is reliable for anyone driving on ethanol. This fuel cell is built in 3mm aluminum which makes it very strong and eliminates the risk of cracking.

This all in one fuel cell kit includes everything from pumps to fittings to make your car reliably feed fuel for any engine up to 600bhp. Simply mount it in the car and plumb your lines!

The entire tank is adapted to accept ethanol. All gaskets are made of PTFE and other materials are made of stainless steel or anodized aluminum.

This version is for internal pumps. The same fuel cell is used for external pumps but in this version you have all the extra accessories for in-tank fuel pumps.

The fuel cell has 2 outputs for external fuel pumps who can be plugged with supplied plugs.

This kit includes dual pumps capable for 600BHP applications.

The tank is prepared for level sensor.

All holes for the fuel pump hanger, fuel cap and level sensors can be plugged.

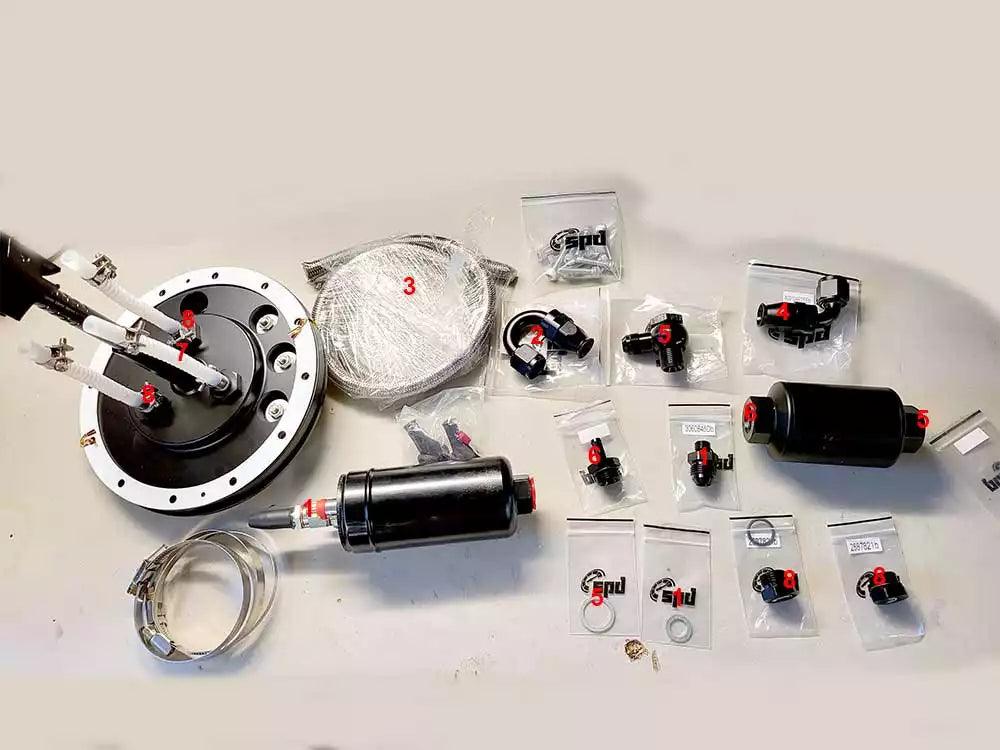

Supplied accessories:

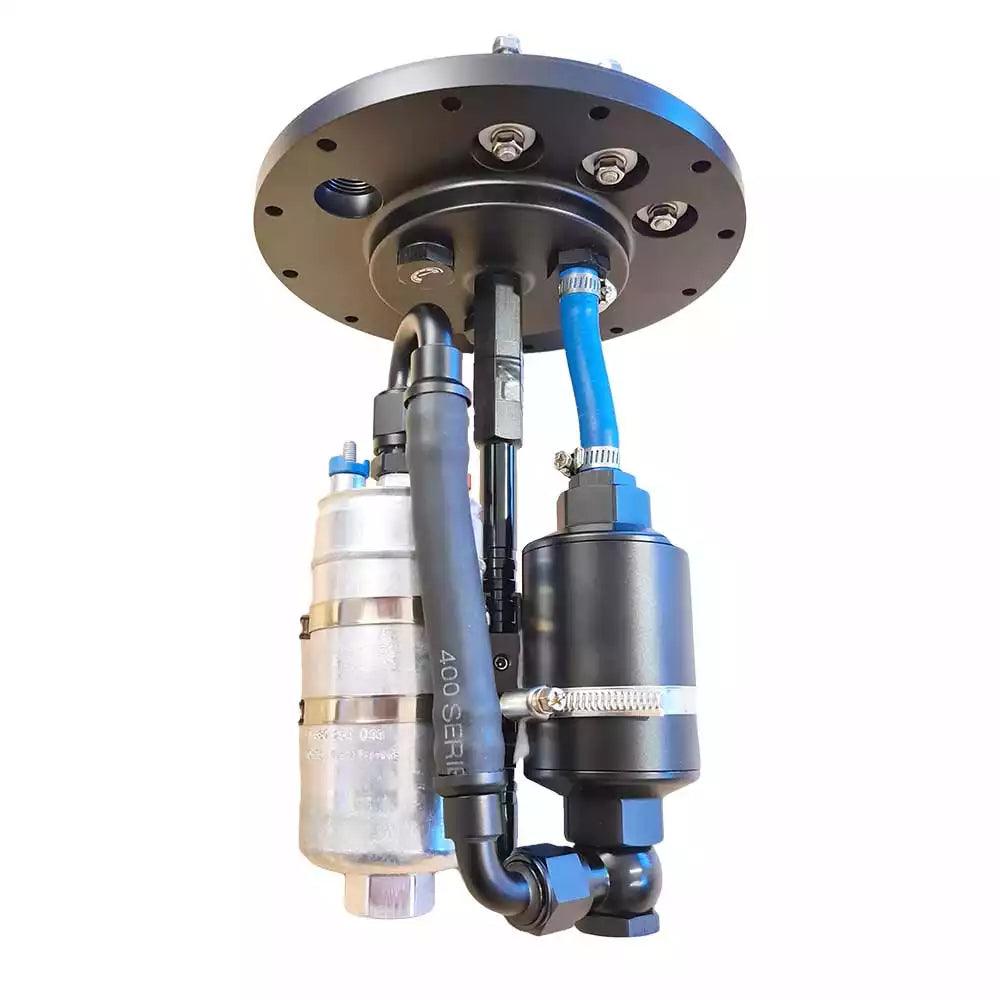

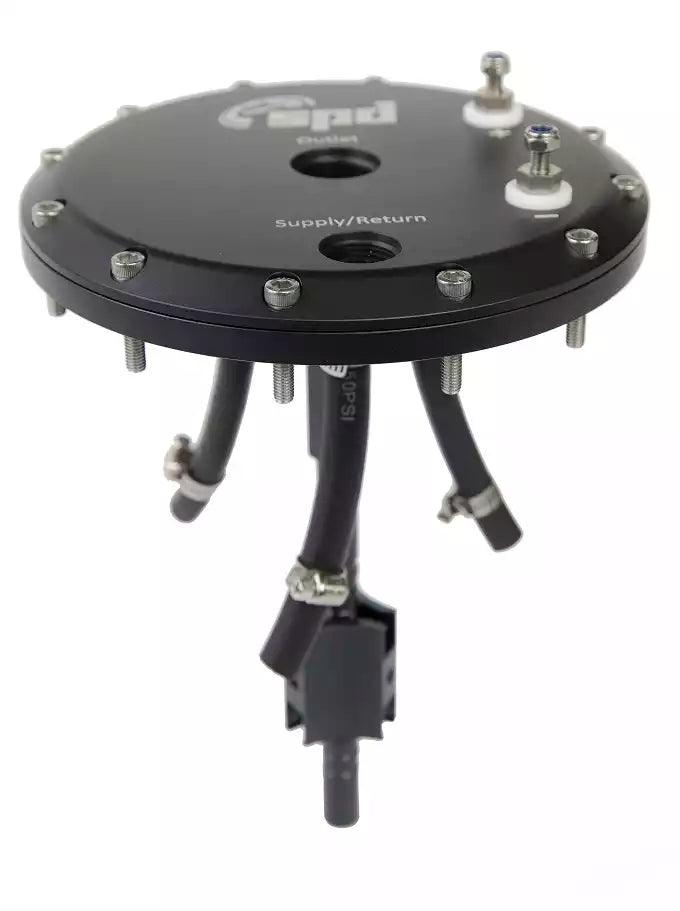

Complete fuel pump hanger and accessories.
Fuel cap
Level sensor 0-90ohm.
Adapters from the fuel pump bracket to fuel pumps (8mm).
Stainless steel hose clips.
Cover plates.
Spacers for lifting the tank from the floor.
Fuel hose for in tank usage. (Made for in tank usage, capable of gasoline, diesel and ethanol)

Specifications:
- Strong construction, 3mm material.
- Anodized outside and inside.
- Up to 3 internal pumps.

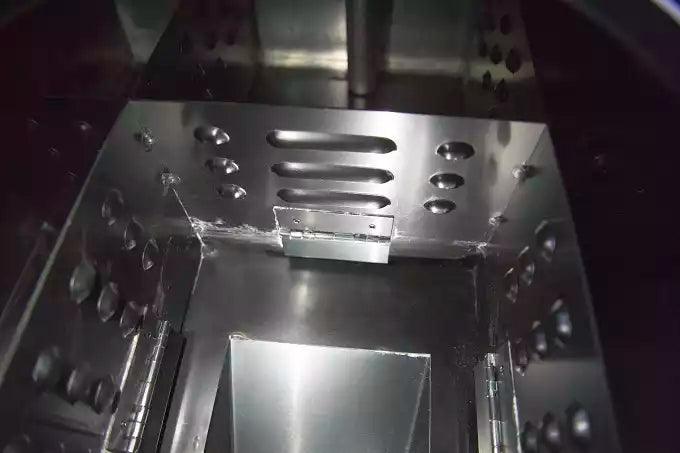

- Built-in catch tank function.
- Supports external pumps as well.
- No messy foam.
- Volume 40L.
-Measurement with spacers: 540x340x315
-Measurement without spacers: 540x340x260
(Height is 260mm+50mm with bottom connections, total 310mm. Measurements without fuel pump habnger)
- Connections to pump hanger, 1xAN12 output, 1xAN10 return.
- External fuel pump connections 2xAN12.
- 2xAN12 connections on top.
- Internal roll over valve on top (optional)
