1 / 5CDM · Oil cooler kit
CDM RB20 RB25 RB26 Performance oil cooler kit
Includes taxes, duties, and fees globally.
Or 3 interest-free payments of £116.66
★★★★★ Verified
“Ordered at 9am, received at 9am the following day. A company that do as they say, and actually deliver in 24hrs.”
James, verified customer, Jan 2025
Check it fits before you buy
Send us your chassis code and we will confirm before you spend anything.
Ships today
In-stock parts ordered before 1pm are dispatched the same day.
We all get it wrong sometimes
Nobody is perfect. You can order the wrong thing and so can we. Whatever the issue, we put it right fast. Unsure? Email us and we will check the specs against your car.
We build these cars
Our team build and race in the motorsport and tuning scene, and our founder competes in pro drift in his own E46.
Full details
Here we have the CDMSport oil cooler kit to suit any model which uses a RB engine.
The kit includes everything you need to get your engine oil temperatures reduced in your cars engine.
This aids engine longevity and reliability allowing you to push harder at the track without worrying about your engine oil.
You will need to cut your hose to length and install the fittings to suit as it varies from chassis to chassis. This process is super simple and instructions are provided.

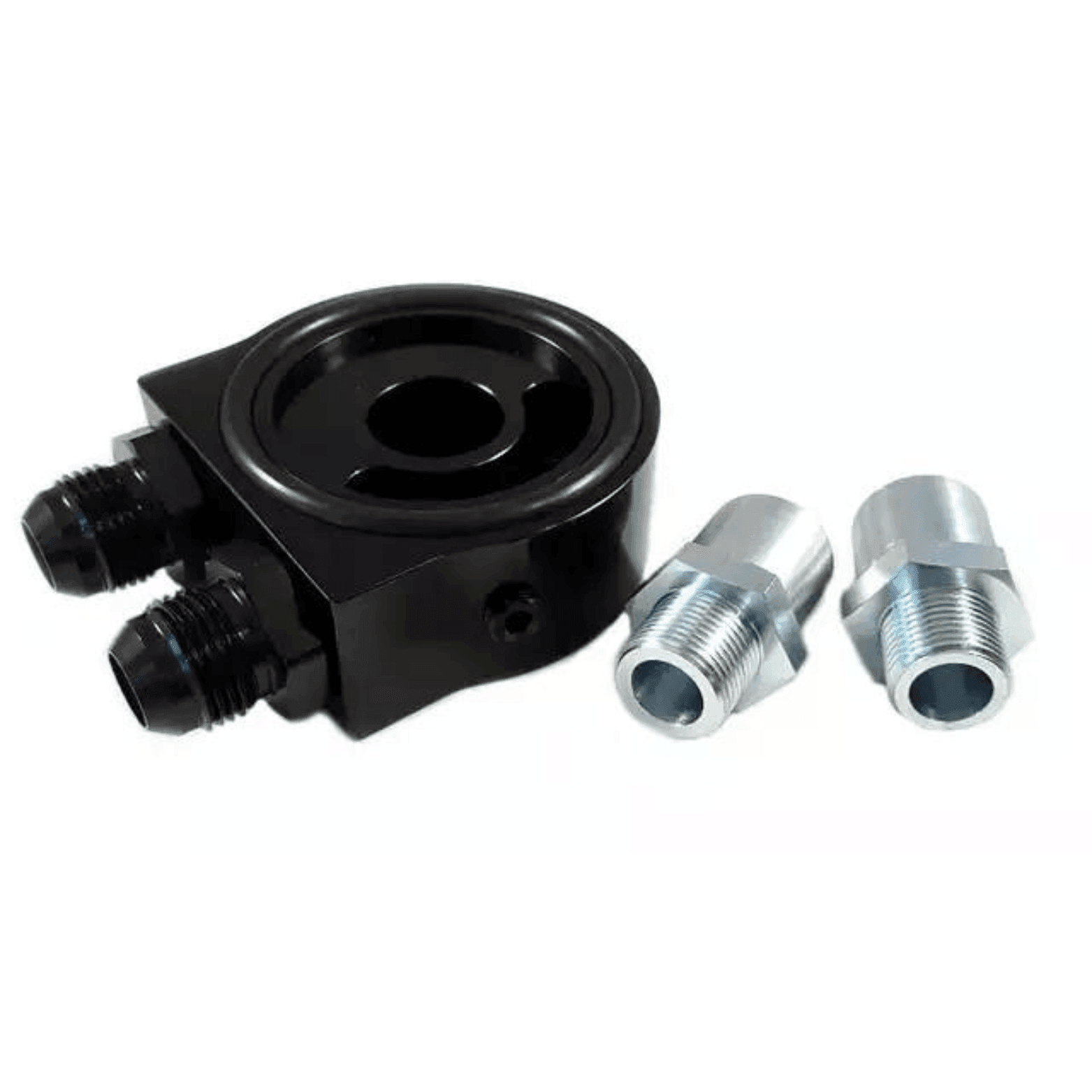

Thermostatic Oil filter Sandwich plate
The sandwich adapter fits between the oil filter and the engine block. This sandwich adapter has a much higher quality than the traditional ones in the market. It comes with bigger internal channels to get a better flow through the sandwich adapter without any restriction.
Two 1/8 -27 NPT input female connections for sensors. Recommended sensor is Bosch combined Oil pressure & Temperature.
Two different threads against the original oil filter housing, M20 1.5 and 3/4 thread
Fits all common oil filter housings.
Measurements:
80x80mm
32mm thick

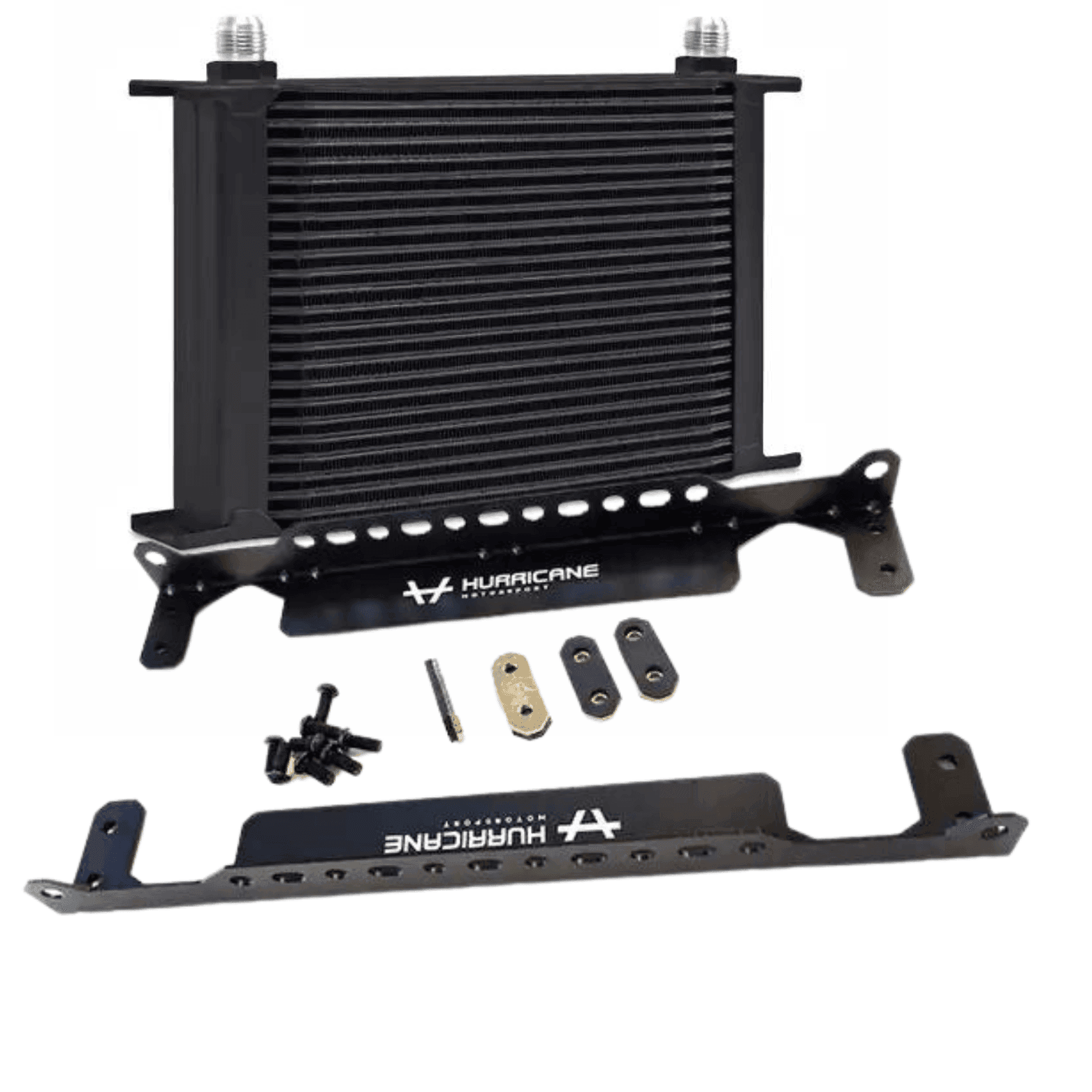

Oil Cooler
Hurricane 19 row oil cooler 255mm
Black universal aluminum oil cooler from Hurricane motorsport.
- Fully aluminum for the best heat conducting properties
- Low pressure drop across the inlet and outlet
- Durable core
- Robust construction
- Black Design
- Flexible mounting
- M22x1.5 connections with female thread
- Adapters are available as Full Flow
- Quality from Hurricane Motorsport
Technical info
Heigth: 147mm + fittings
Width: 255mm incl brackets
Core Width: 208mm incl. end plates
Width CC between connections: 175mm
Width CC between mounting holes: 235mm
Thickness: 51mm
Connections: M22x1,5 female thread
Material: 6061 Aluminum (T6061)
Weight: ~0,5 kg
Oil capacity: ~0,32 liter
Max working pressure: 10bar
Colour: Black
Each oil cooler is pressure tested separately to ensure high quality.
Fits
All models which use an M20 or 3/4" Oil filter.

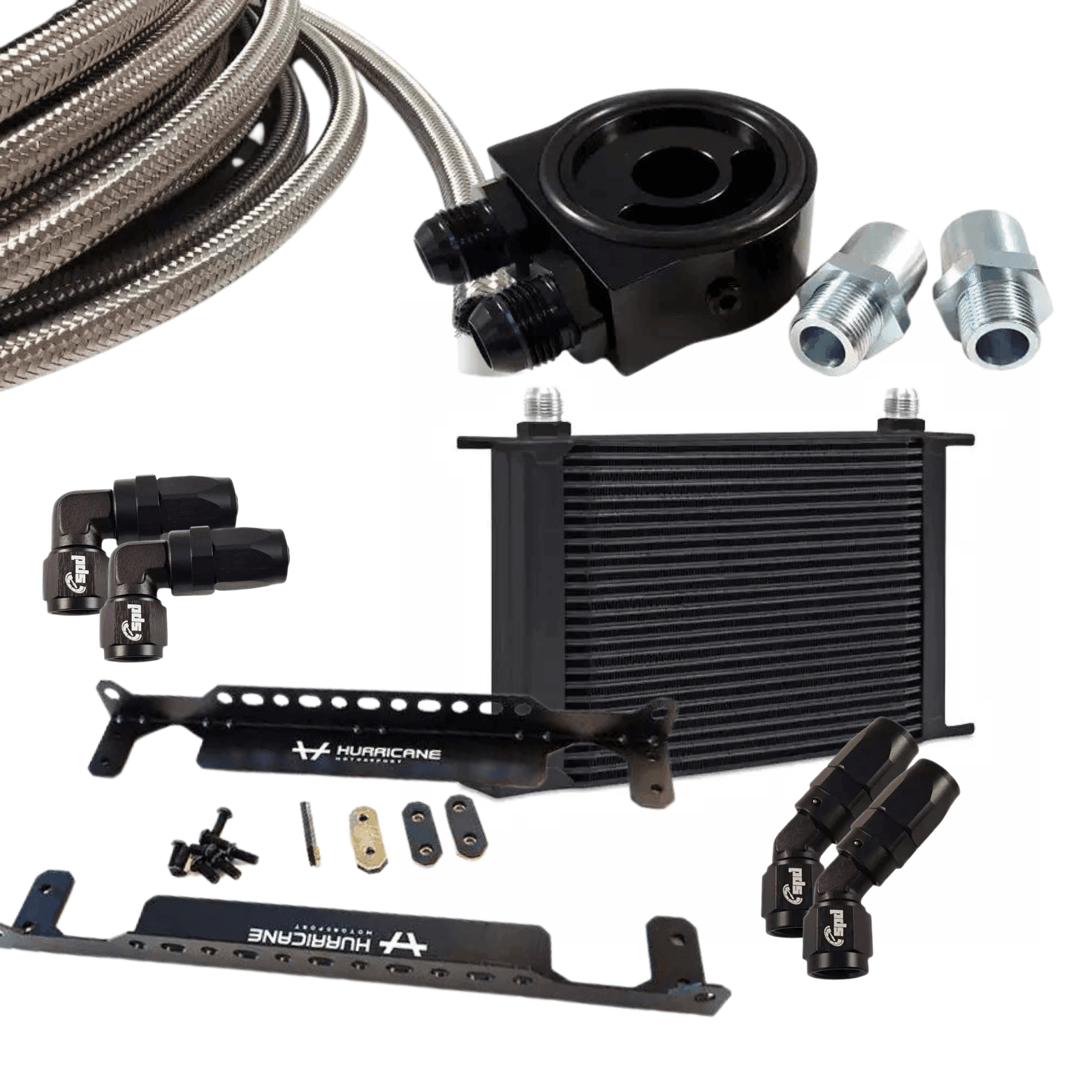

Included
-Sandwich plate

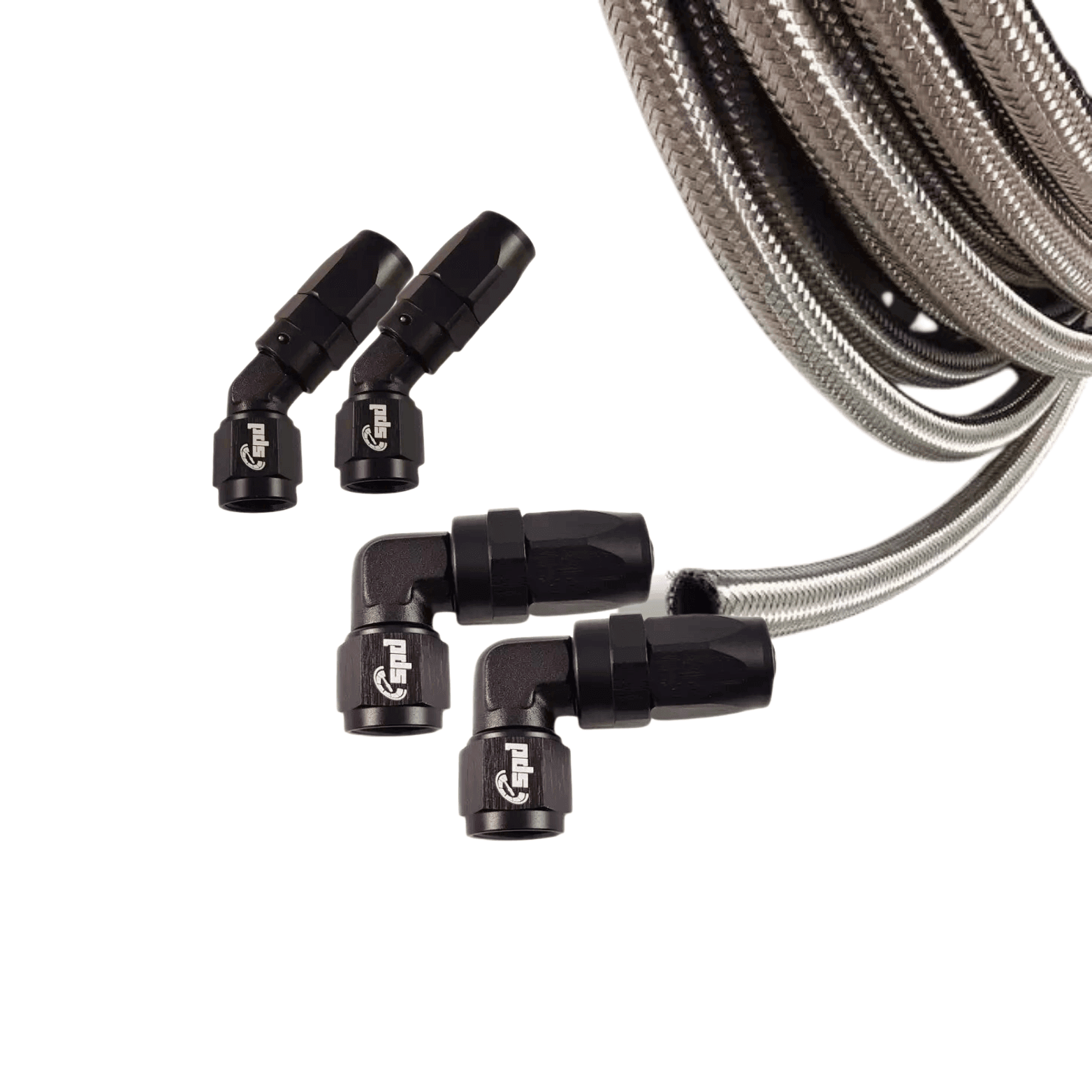

-AN10 HOSE 4M
-AN10 90 DEGREE FITTIGNS X2
-AN10 40 DEGREE FITTINGS X2
-19 ROW OIL COOLER

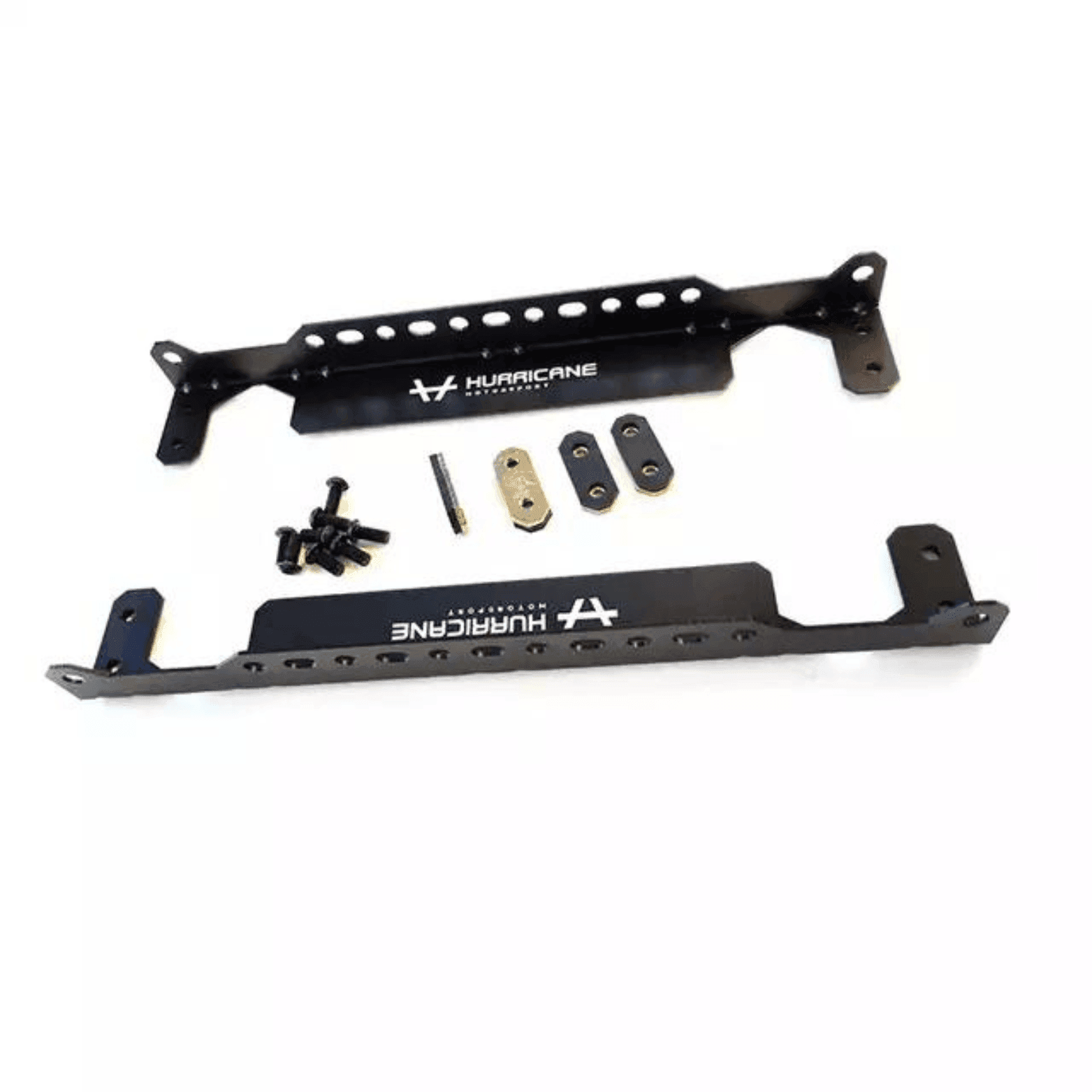

-OIL COOLER MOUNTING BRACKETS
-HARDWARE
