CNC71 BMW E80 / E82 / E90 / E92 Steering Angle Lock Kit - Full
Includes taxes, duties, and fees globally.
Or 3 interest-free payments of £253.00
★★★★★ Verified
“Ordered at 9am, received at 9am the following day. A company that do as they say, and actually deliver in 24hrs.”
James, verified customer, Jan 2025
Check it fits before you buy
Send us your chassis code and we will confirm before you spend anything.
Ships today
In-stock parts ordered before 1pm are dispatched the same day.
We all get it wrong sometimes
Nobody is perfect. You can order the wrong thing and so can we. Whatever the issue, we put it right fast. Unsure? Email us and we will check the specs against your car.
We build these cars
Our team build and race in the motorsport and tuning scene, and our founder competes in pro drift in his own E46.
Full details
CNC71 BMW E80 / E82 / E90 / E92 Steering Angle Lock Kit - Full
Complete kit increasing the steering angle for the BMW E9X/E8X series and massively improving geometry.
The set is based on original steering knuckle adapters, so installation is simple and does not require any interference with the braking system or vehicle body.

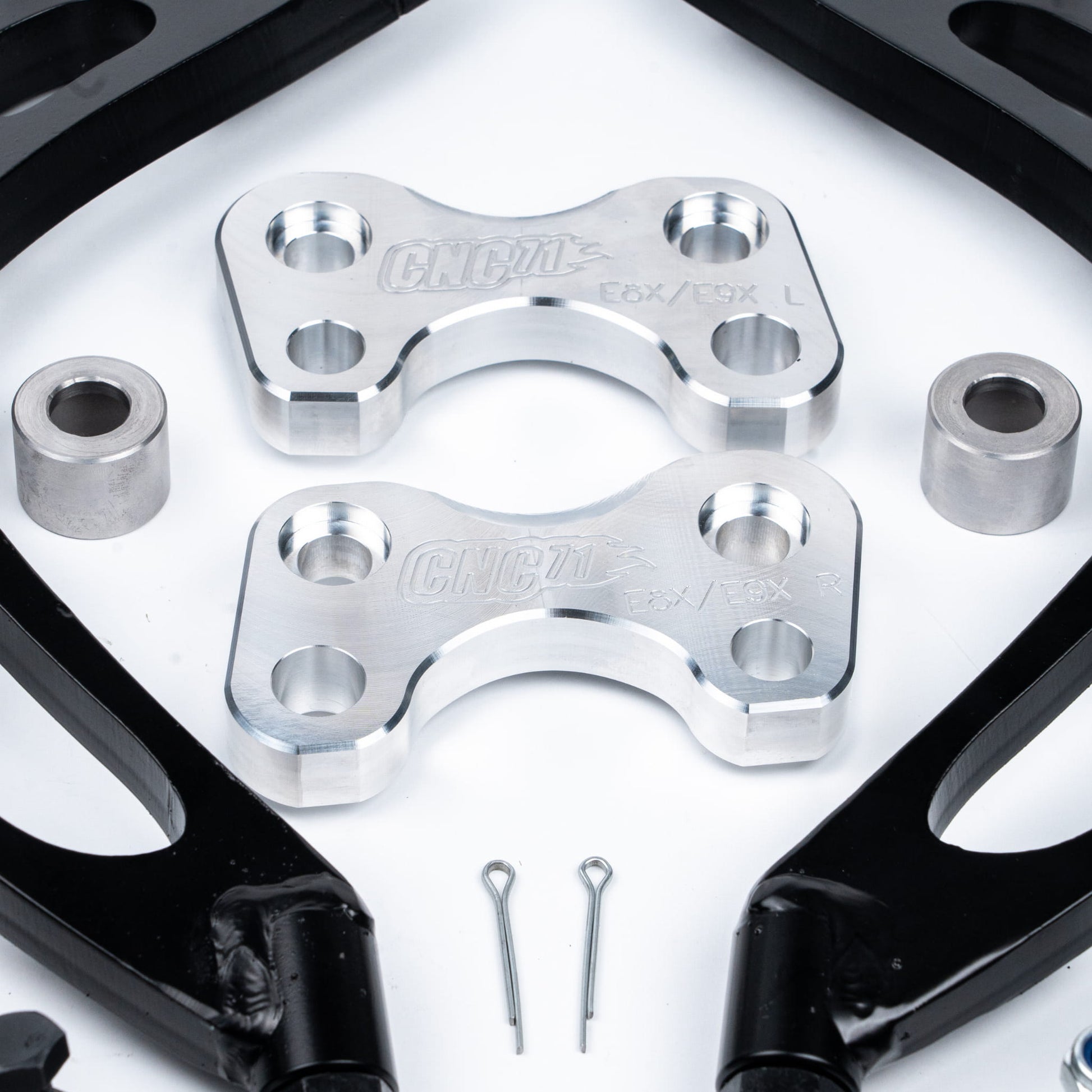

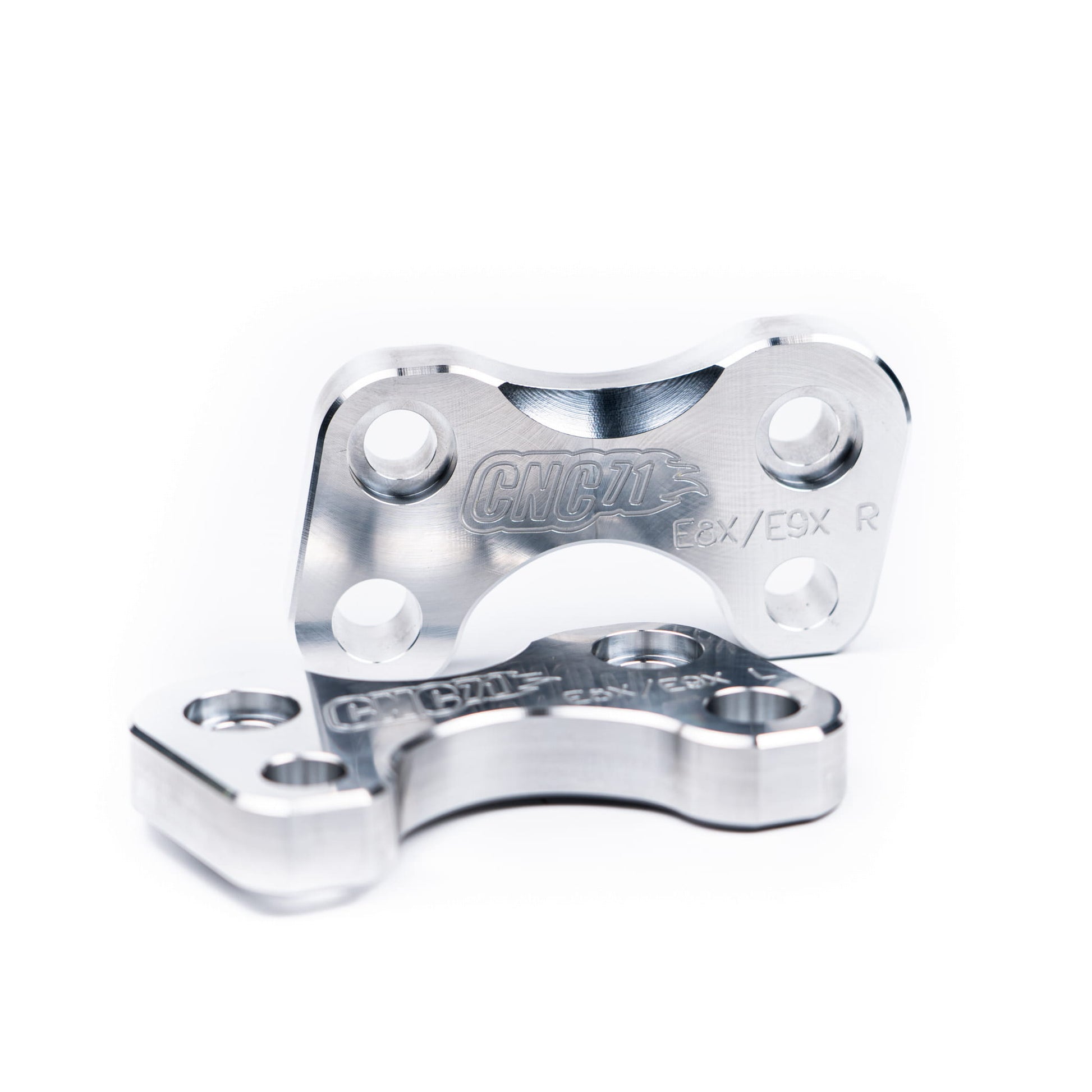

The adapters are milled on CNC machines, which gives high quality finish, 100% adapter fit to the steering knuckle and pin ends. The material from which the adapters are made is 7075 aluminium, which shows the strength of structural steel while maintaining lower weight.

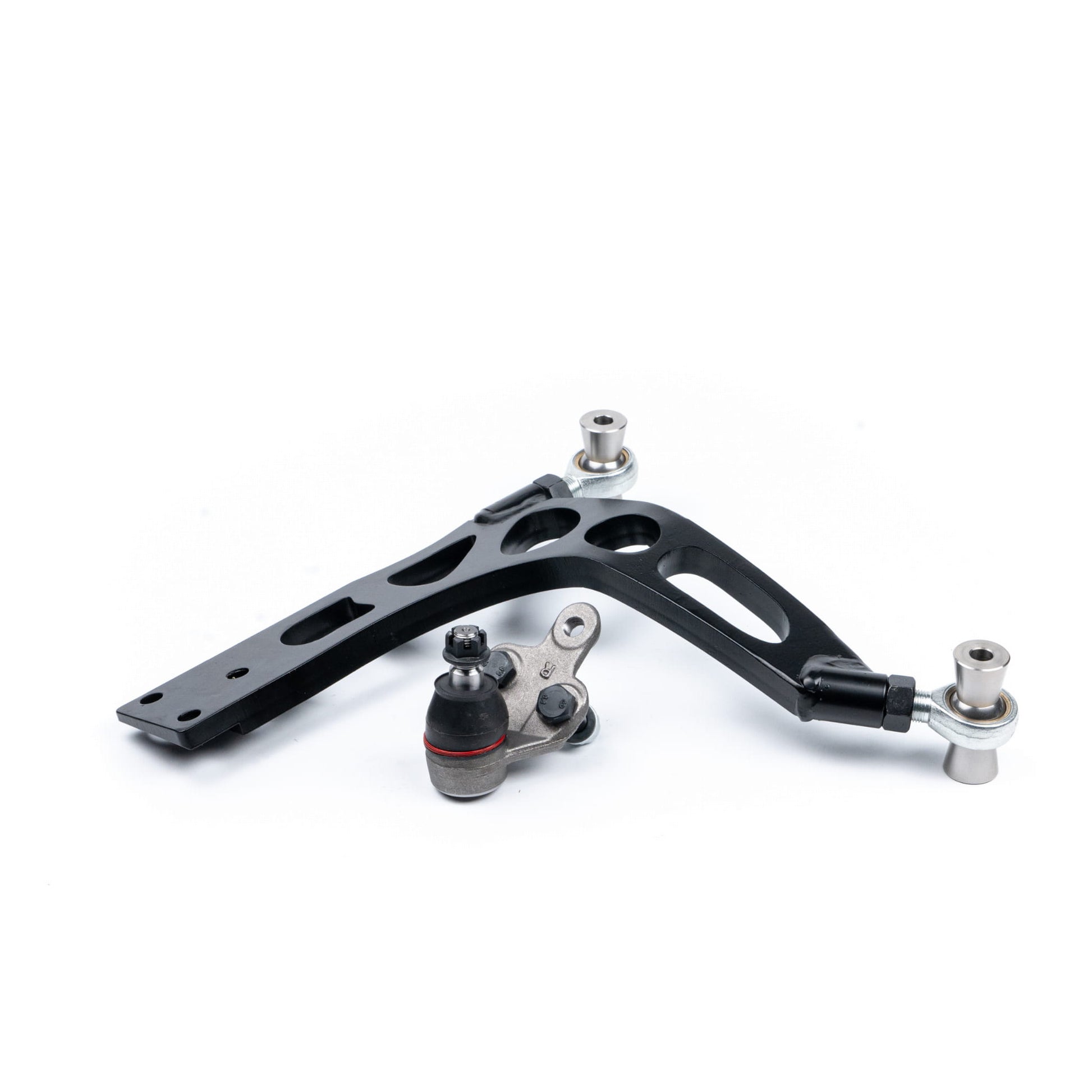

The swingarm is laser cut from structural steel and bent on a numerically controlled machine, equipped with uniball joints with conical mounting bushes.
In addition, the kit is equipped with high-quality wishbone pins and complete steering rods.
If you want to reduce the camber angle, which with standard adjustable mounts (Camber plates) will be around 8-9 degrees, buy our plates to the set, which have a wider range of settings. Thanks to this, the camber angle can be reduced to 4-5 degrees.
When installing the kit, there is no need to cut, weld or grind anything, everything is installed Plug & Play, the operation is fully reversible, the bodywork remains intact.
The set widens by 10 cm per side. You can get 60-63 degrees of turn.

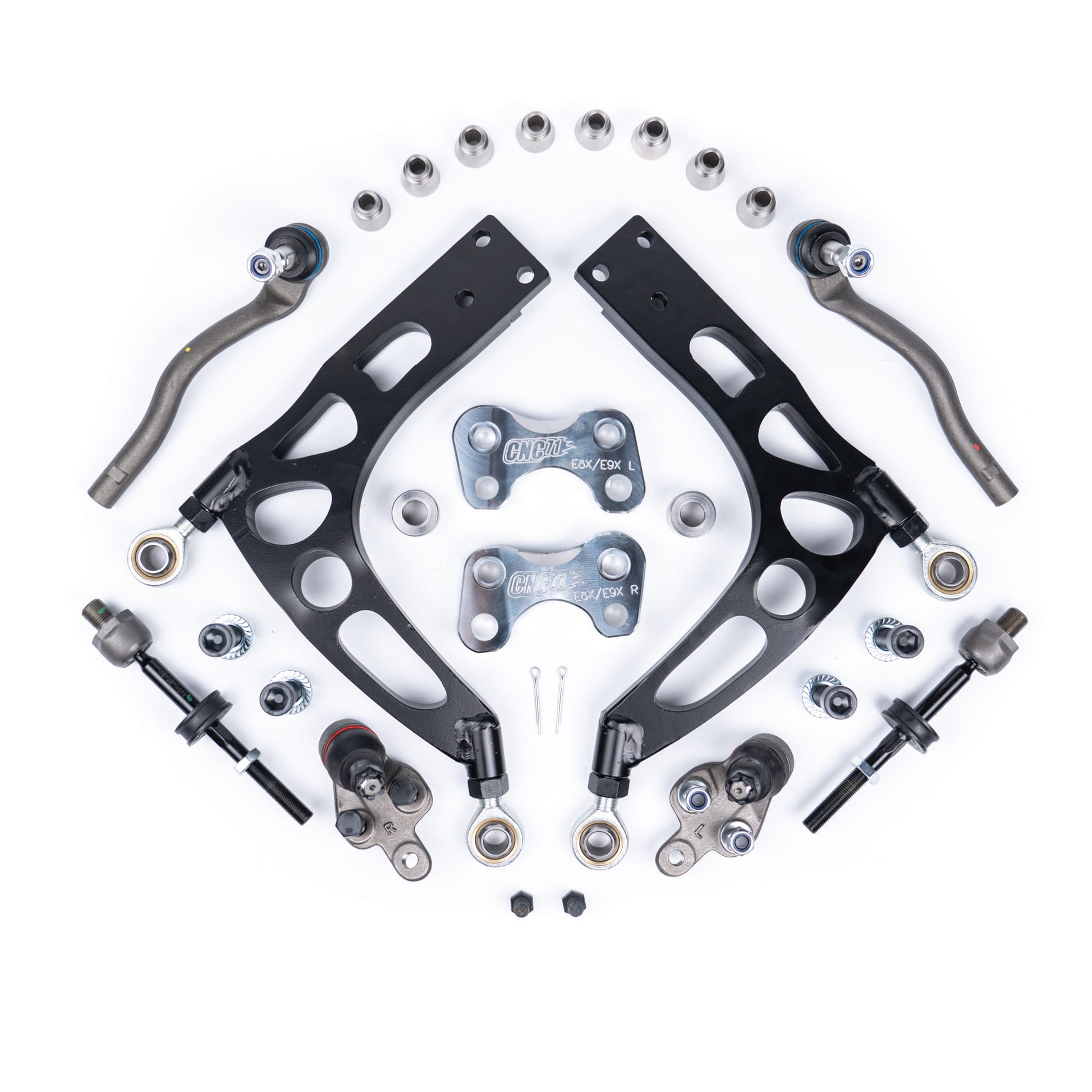

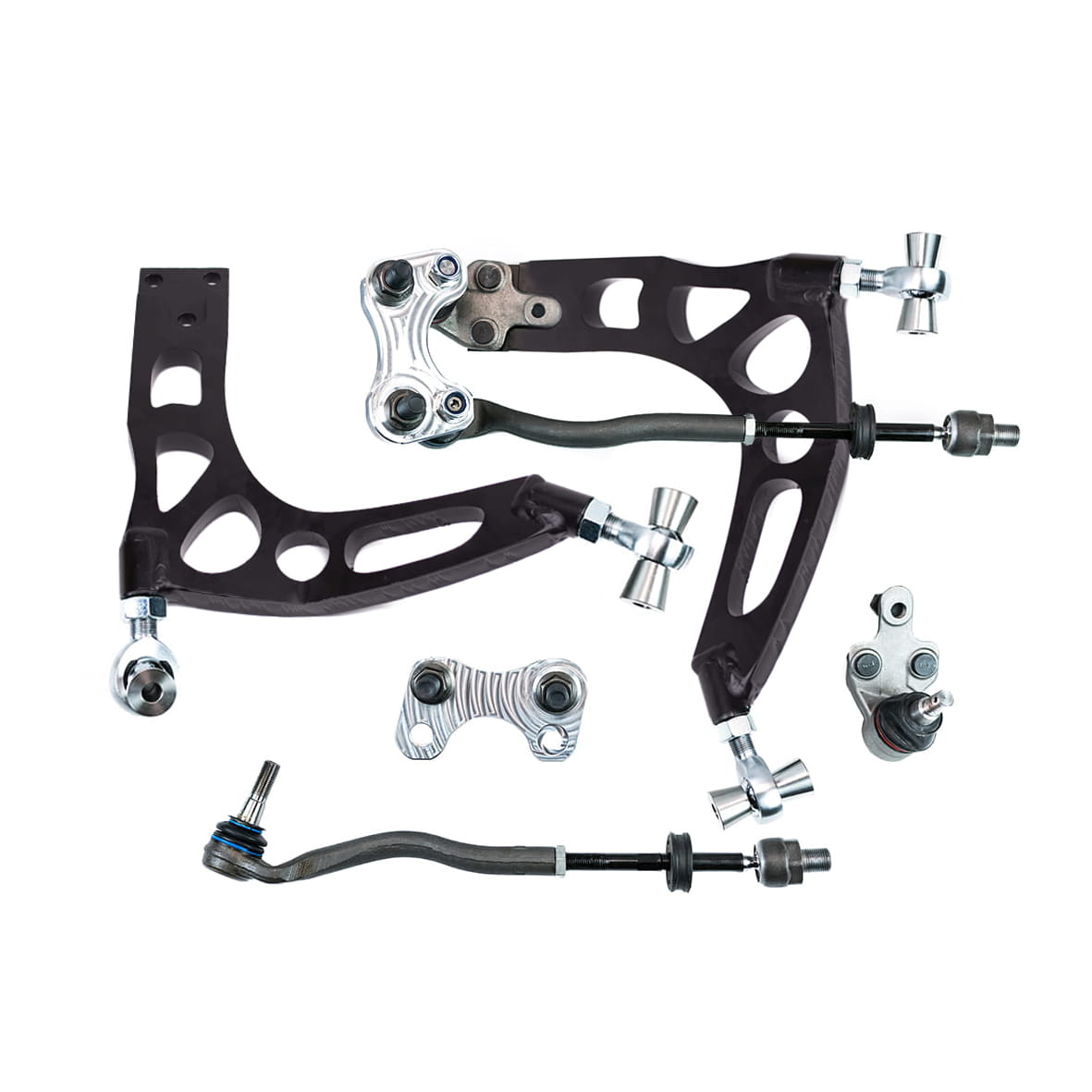

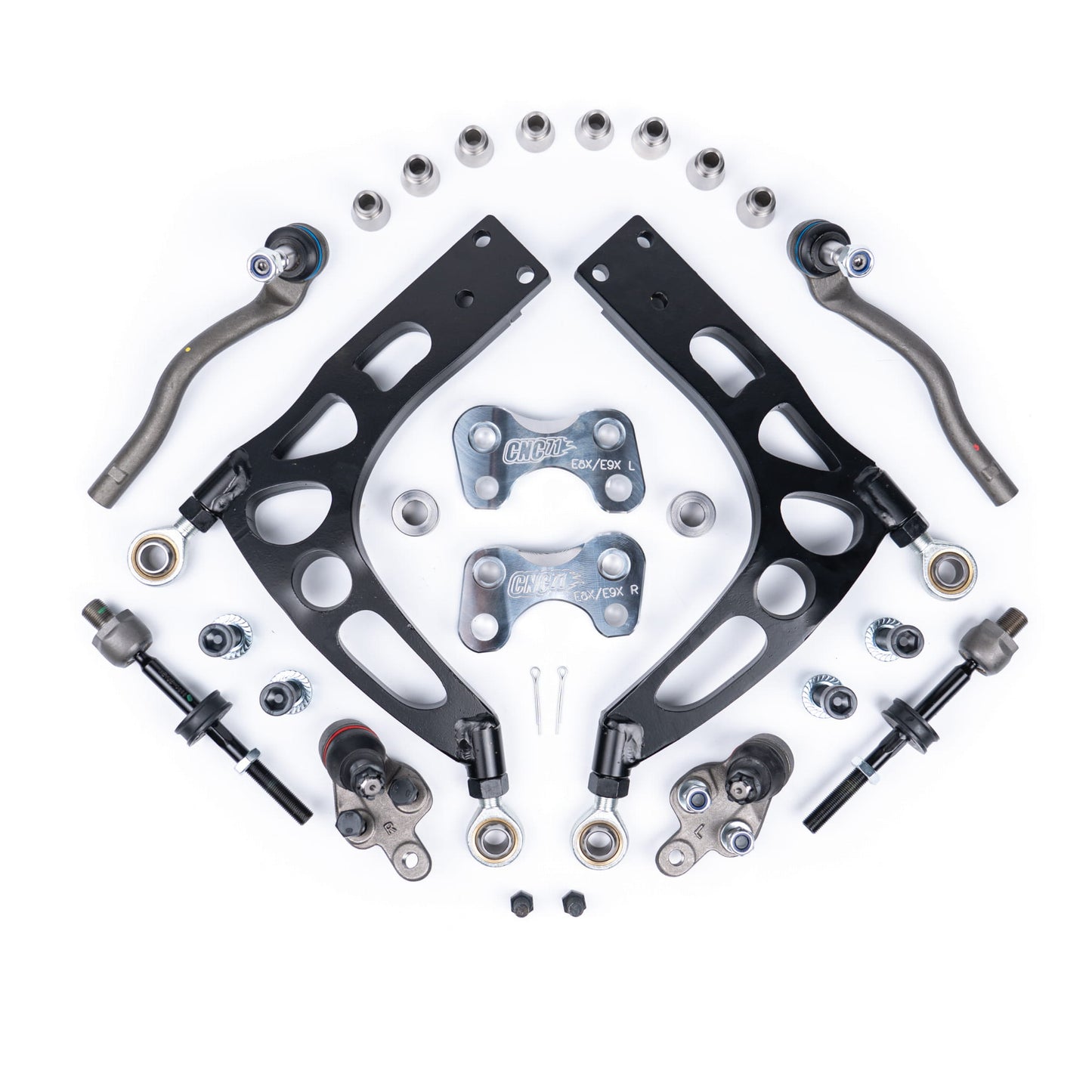

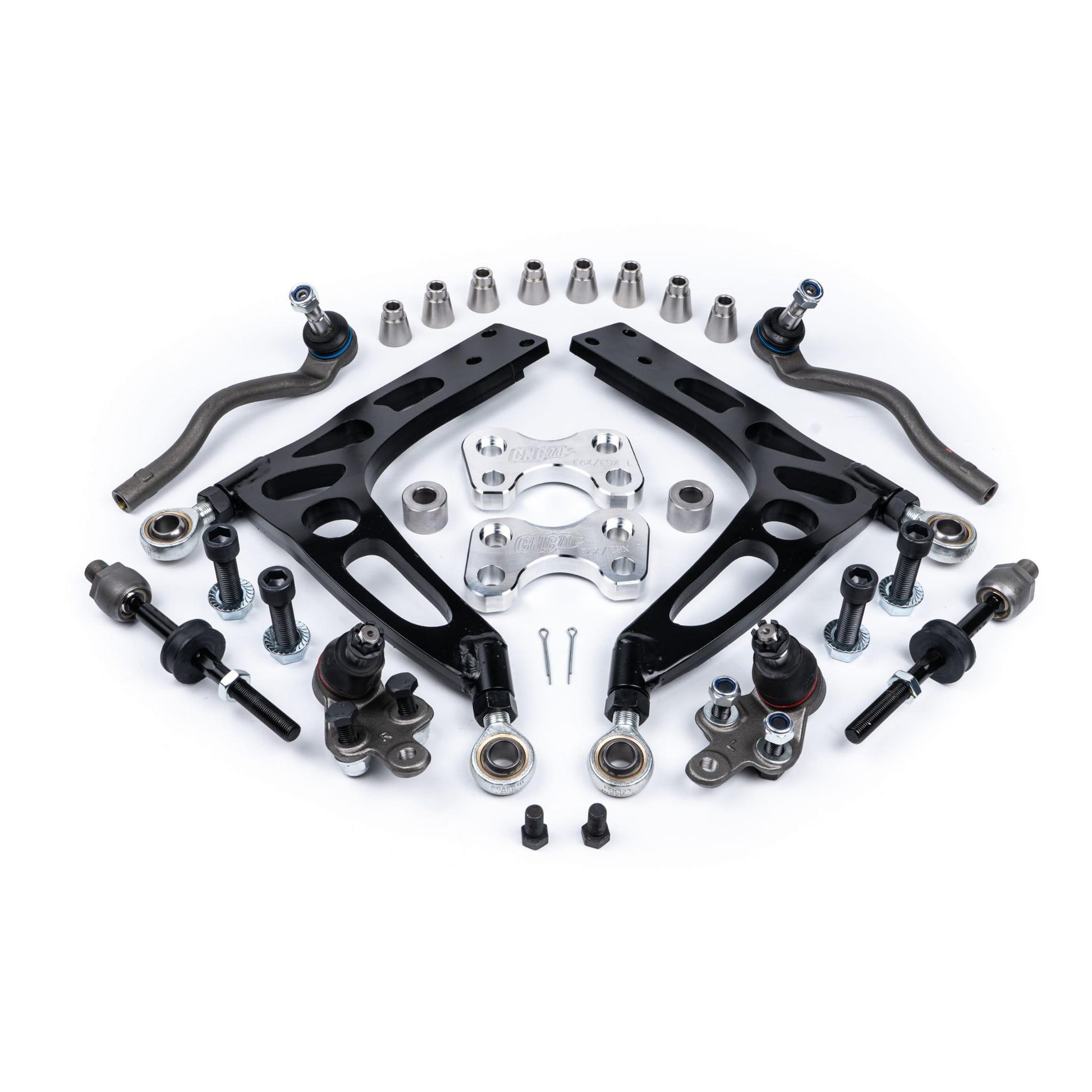

The BMW E8X/E9X series steering kit includes:
Front wishbone LEFT – 1 piece
RIGHT front wishbone – 1 piece
LEFT crossover adapter – 1 piece
RIGHT crossover adapter – 1 piece
mounting screws – 10 pieces
wishbone pins – 2 pcs

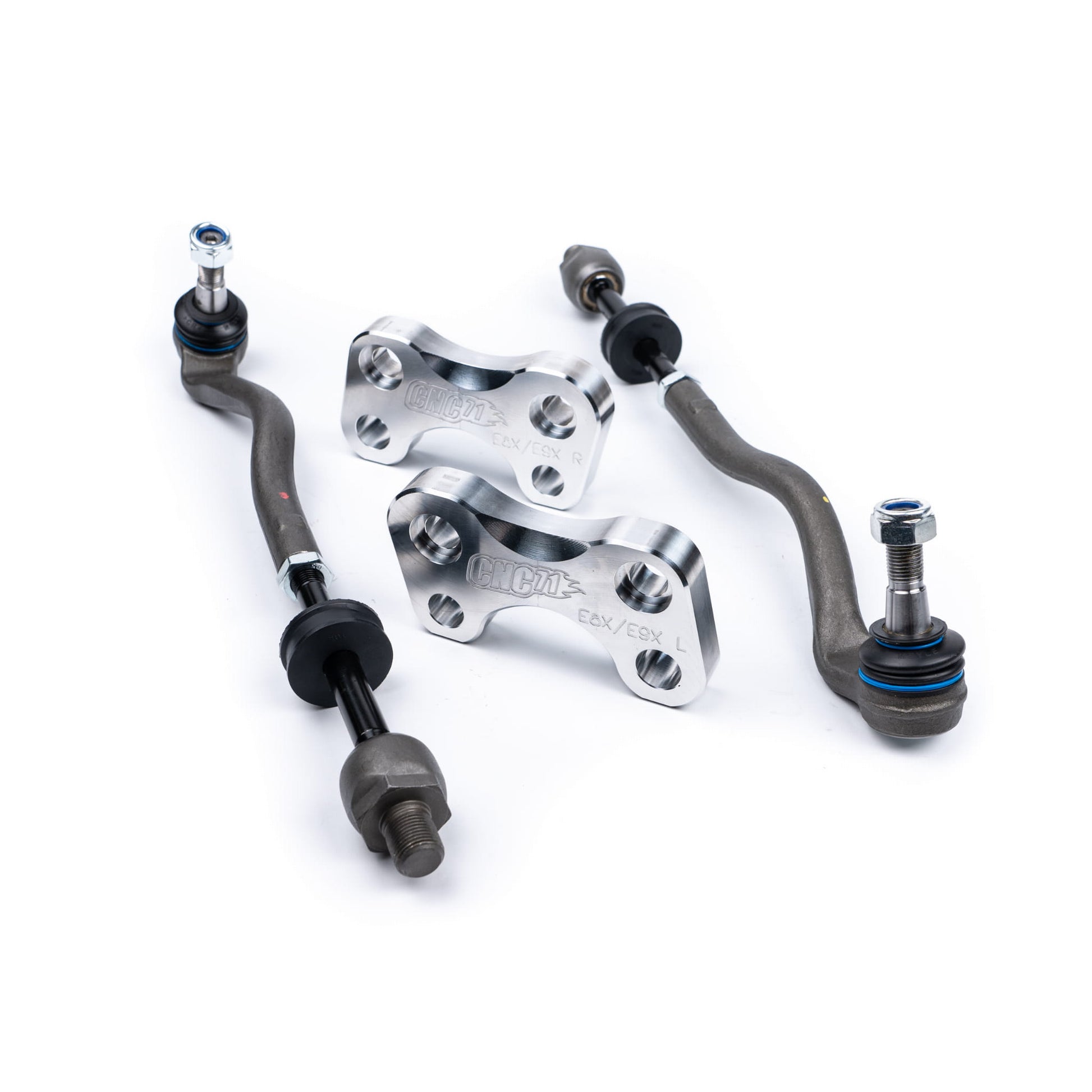

complete steering rods – 2 pcs
high quality uniballs with mounting sleeves – 4 pieces
uniball sleeves - 8 pieces
adapter pads - 2 pieces
Assembly instructions are included with the kit.
The kit requires the removal of the front sway bar from the vehicle and is intended for use during closed drifting events at secured facilities!
