Davies Craig Fan control
Davies Craig fan control with relays to suit electric fans Perfect for those of you who have not programmed the cooling fans into your ECU and want a simple but effective solution to control the fans.
The sensor, a temperature probe (air or coolant connection) detects the air/water temperature as it passes through the system. When the temperature reaches your upper limit the fans turn on. When the temperature reaches your lower limit, they turn off.
The cable length to the sensor is 320 cm in total (cable from switch 290 cm plus sensor connector 30 cm)
The switch can drive 1 or 2 fans and be used for 12 or 24 volt applications. (Note only 12v relays included).
It has an adjustable temperature range of 40ºC to 110ºC (104ºF to 230ºF) which can display Celsius or Fahrenheit.
Fan #1 starts when the temperature reaches the set temperature.
Fan #2 (if 2 is present) starts operation 10 seconds after fan #1 starts.
The fan(s) will operate until the temperature drops by 5°C below the set temperature.

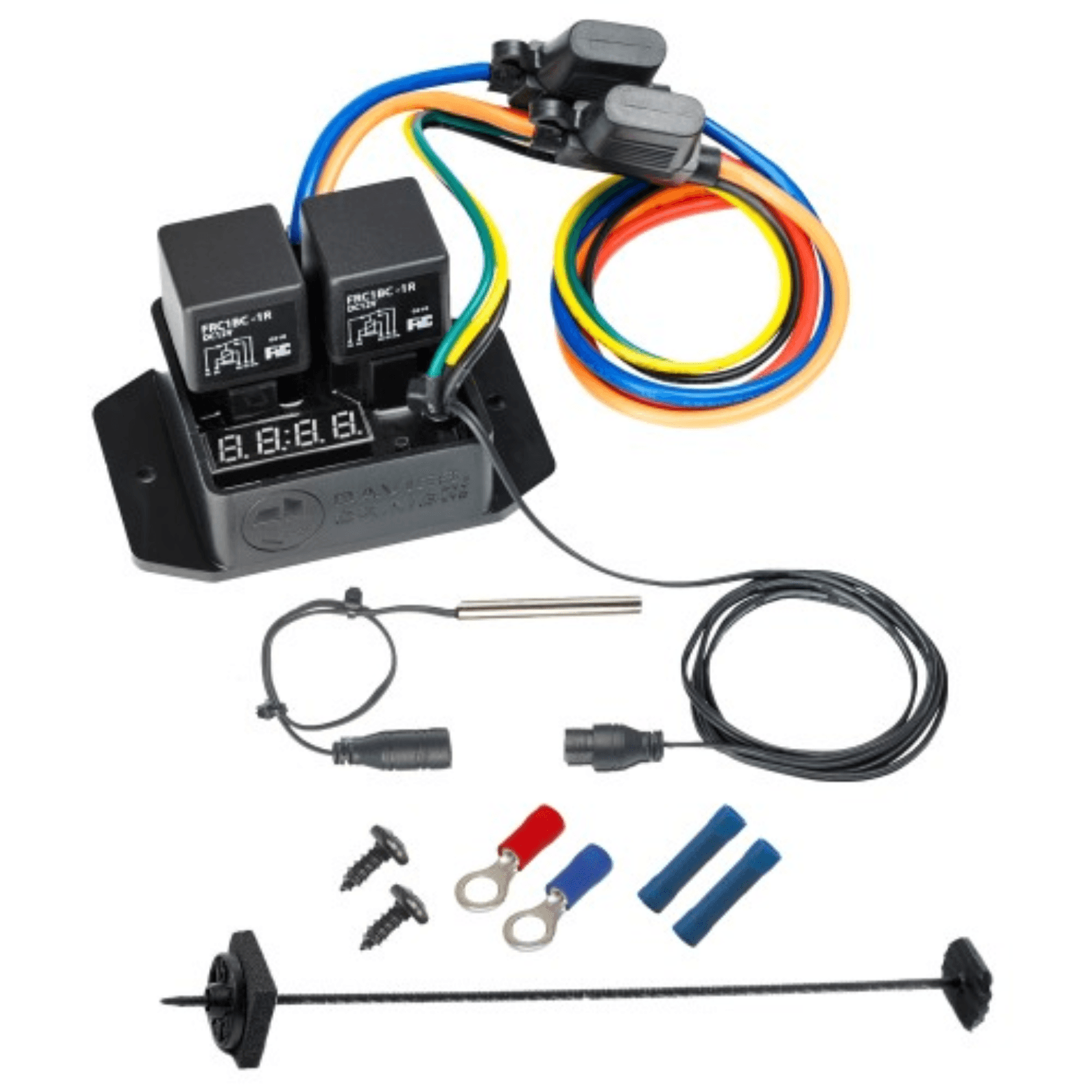

Included in the kit:
1x Digital fan switch IP66
1x Thermal sensor probe
1x Mounting kit for thermal sensor probe
1x Red 6 mm ring cable lug
1x Blue 6 mm ring cable lug
2x Blue cable joints
2x Self-tapping screws
1x Instructions
Specifications:
Max voltage: 12 to 27V (for 24V the relays must be changed, not included in the kit)
Max current: Rated at 30 amps per fan (max 40 amps per fan) Unit supplied with 2 x 30 amp fuses and 2 x 40 amp relays
Relay setting: Dual relay
Sensor cable length: 320 cm in total (cable from switch 290 cm plus sensor connector 30 cm)
Speed: Single speed, 10 seconds delay to start the second fan
Applications: Suitable for single and dual fan applications
Screen display: LED digital temp display, current temp + set temp
Temp Display: Celsius or Fahrenheit
Temperature settings: 40°c to 110°c (104°F to 230°F)
Temp setting: Push button
Circuit type: Pre-programmed microcontroller
Output Wires: Batt + Batt - IGN, AC Clutch, Fan #1, Fan #2 Thermistor Probe
Dimensions: 95x65x56 mm
Note: If you use this switch for use with the Davies Craig EWP, it will not vary the pump speed in response to motor temperature, but rather turn the pump on and off at your set temperature. For EWP control we recommend part number DC-8002 which can manage both EWP and your thermal fans.
