Davies Craig Fan Control Unit With Digital Display

Davies Craig Fan Control Unit With Digital Display

Regular price £89.00 GBP
Regular price £89.00 GBP Sale price £89.00 GBP
Sale Sold out
Tax included.

Pay In Instalments!

At checkout you can choose Klarna or Paypal Finance to help spread the cost!

Lightspeed Shipping & Easy Returns!

Crazy Fast Shipping

We pride ourselves in fast shipping and unparalleled after sales support.

All international orders will be delivered without import tax/duty as we have this all pre-paid for you.

We aim for same Day dispatch before 3PM on all in stock Items.

If something you ordered is not in stock, we will email you and notify you of the new ETA.

UK & Ireland Delivery is 24hour.

Europe is 1-4 days.

Rest of world is 3-5 days.

Shipping times above are based on the express shipping option selected at checkout.

Hassle Free Returns

As car enthusiasts we understand the importance of flexibility on returns.

All stock items have a 30 day return period where you will be issued a full refund for the parts.

If you order the incorrect part, we will do our best to assist you in getting the correct part as soon as possible for as little money as possible. It happens, we have been there!

This is why we are one of the worlds leading aftermarket car parts brands. We are enthusiasts and we know what's important to our community CDMSport car enthusiasts!

Will It Fit My Pride & Joy?

If you are unsure if something fits or which option is best for your application, that blue chat box on the bottom right hand side will direct you to one of our amazingly talented team members who are more than happy to discuss your car!

Be careful, the passion might take over and they'll ask for pictures of your build!

We at CDMSport are veterans when it comes to car knowledge.

We have our own race team, workshop and everyone here is a genuine experienced petrol head!

In addition to everyone on the team having fantastic overall knowledge & experience, we have dedicated specialists for your questions on the more technical stuff such as engine components or electronics.

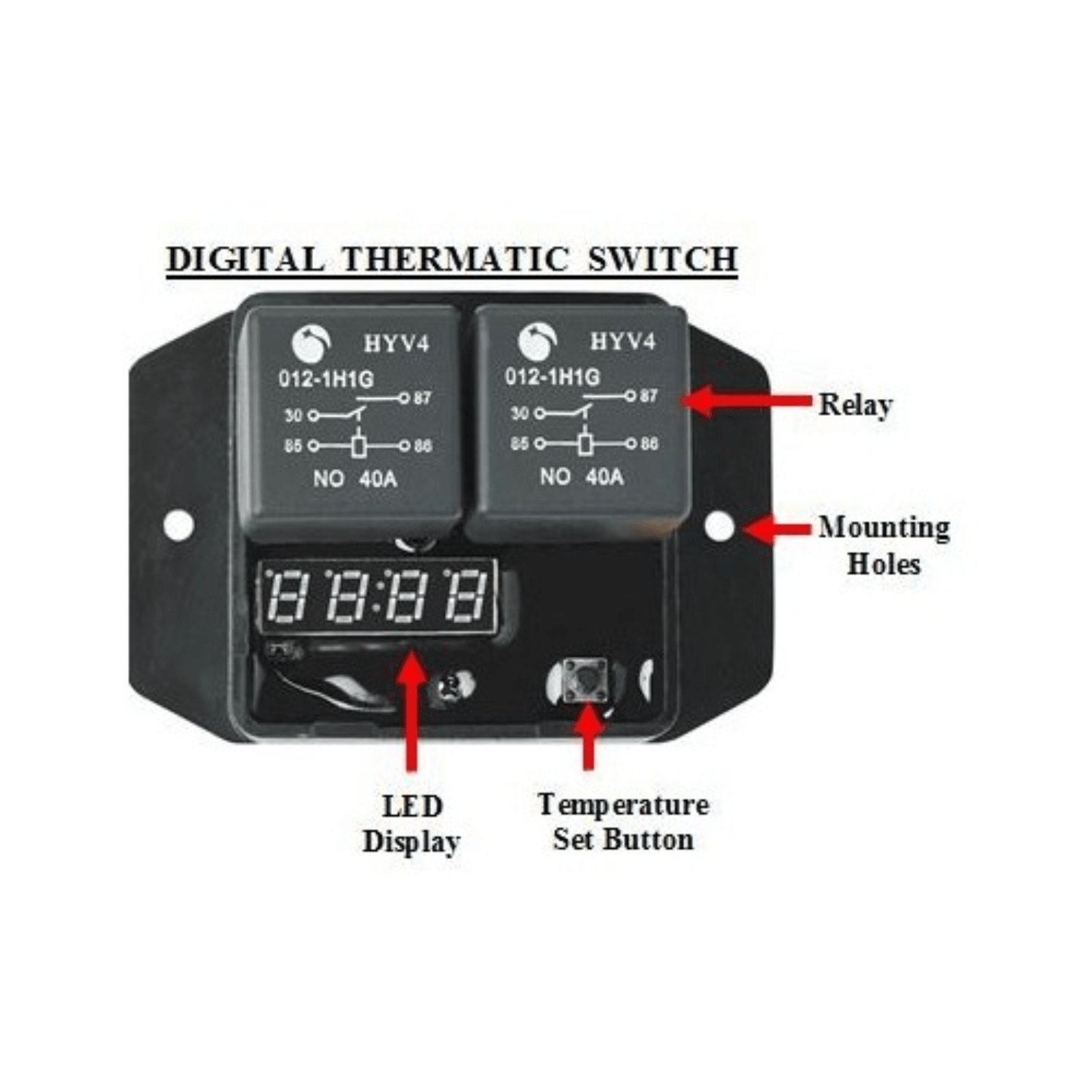

Davies Craig Fan control With Digital Display

Davies Craig fan control with relays to suit electric fans Perfect for those of you who have not programmed the cooling fans into your ECU and want a simple but effective solution to control the fans.

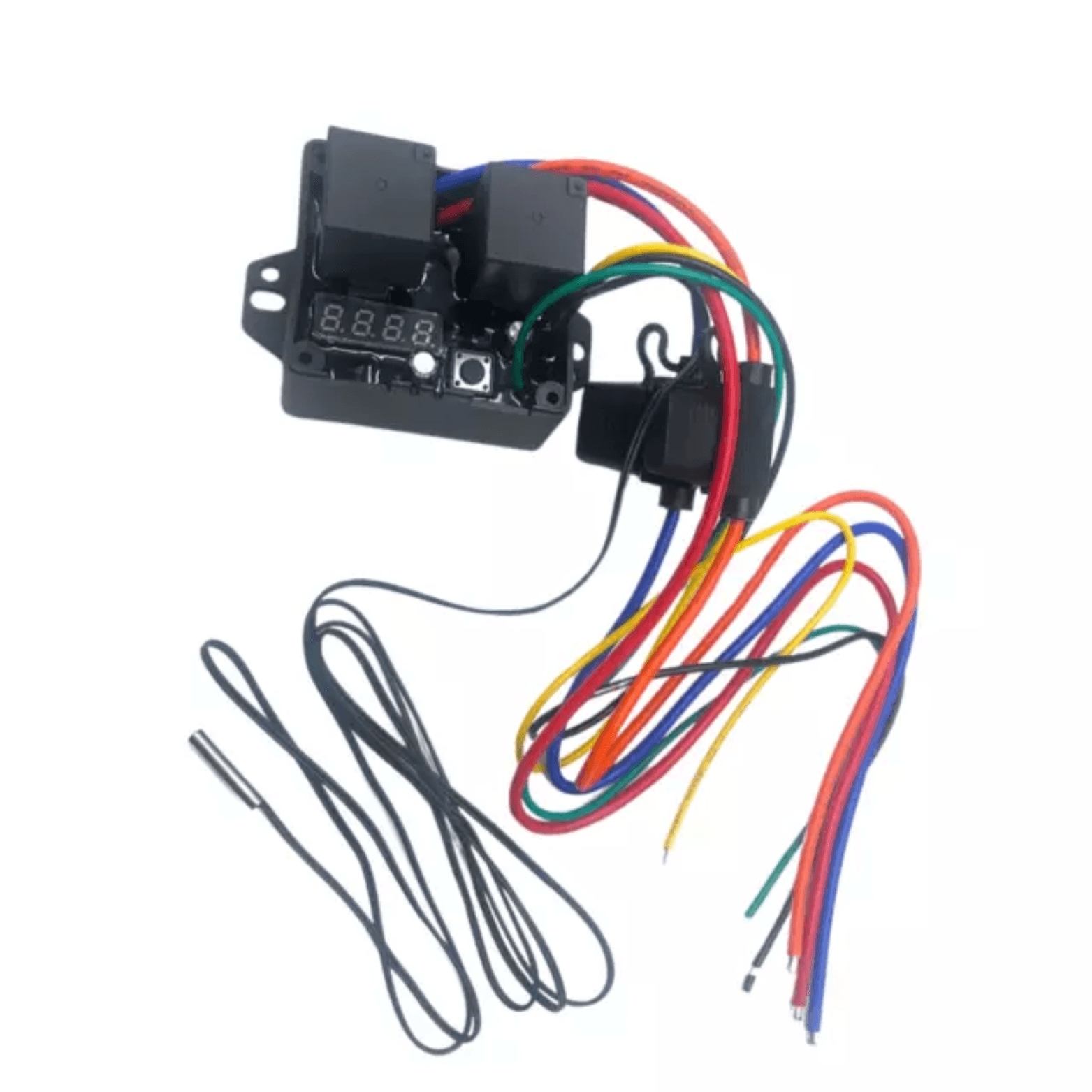

Included in the kit:
1x Digital fan switch IP66
1x Thermal sensor probe
1x Mounting kit for thermal sensor probe
1x Red 6 mm ring terminal
1x Blue 6 mm ring terminal
2x Blue cable splices
2x Self-tapping screws
1x Instructions

Specifications:
Max Voltage:
 12 to 27V (for 24V, relays need to be replaced, not included in the kit)
Max Current: Rated at 30 amps per fan (maximum 40 amps per fan). The unit comes with 2 x 30 amp fuses and 2 x 40 amp relays
Relay Configuration: Dual relay
Sensor Cable Length: 320 cm total (290 cm cable from switch plus 30 cm sensor contact)
Speed: Single speed, 10-second delay to start the second fan
Applications: Suitable for single and dual fan applications
Screen Display: LED digital temperature display, current temp + set temp
Temperature Display: Celsius or Fahrenheit
Temperature Settings: 40°C to 110°C (104°F to 230°F)
Temperature Setting: Push-button
Circuit Type: Pre-programmed microcontroller
Output Wires: Batt + Batt - IGN, AC coupling, fan #1, fan #2, thermistor probe
Dimensions: 95x65x56 mm

Note: If you are using this switch for use with a Davies Craig EWP, it will not vary the pump speed in response to engine temperature but rather turn the pump on and off at your set temperature. For EWP control, we recommend item number DC-8002, which can manage both the EWP and your thermal fans.
