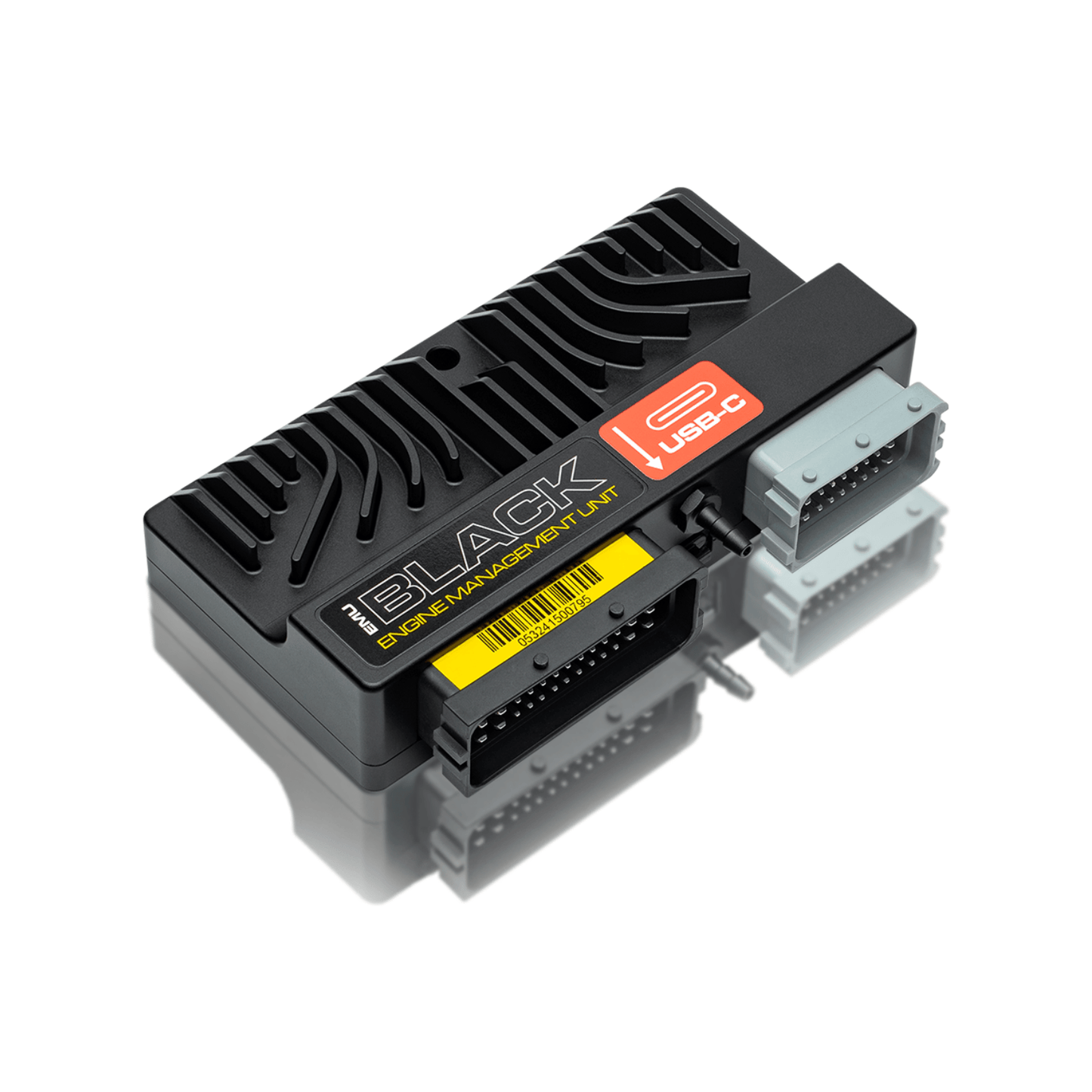

ECU Master EMU Black
ECU Master EMU Black is a highly advanced and modern engine management system that can control both 2-stroke and 4-stroke engines in sequential up to 6 cylinders or waste-fire up to 12 cylinders.
EMU Black has built-in support for CAN-BUS, EGT, DBW (E-Gas), sensors, broadband lambda and much more
ECU Master EMU is very stable and very easy to calibrate and navigate. In addition, updates are regularly updated with new features and improvements.
ENCLOSURE

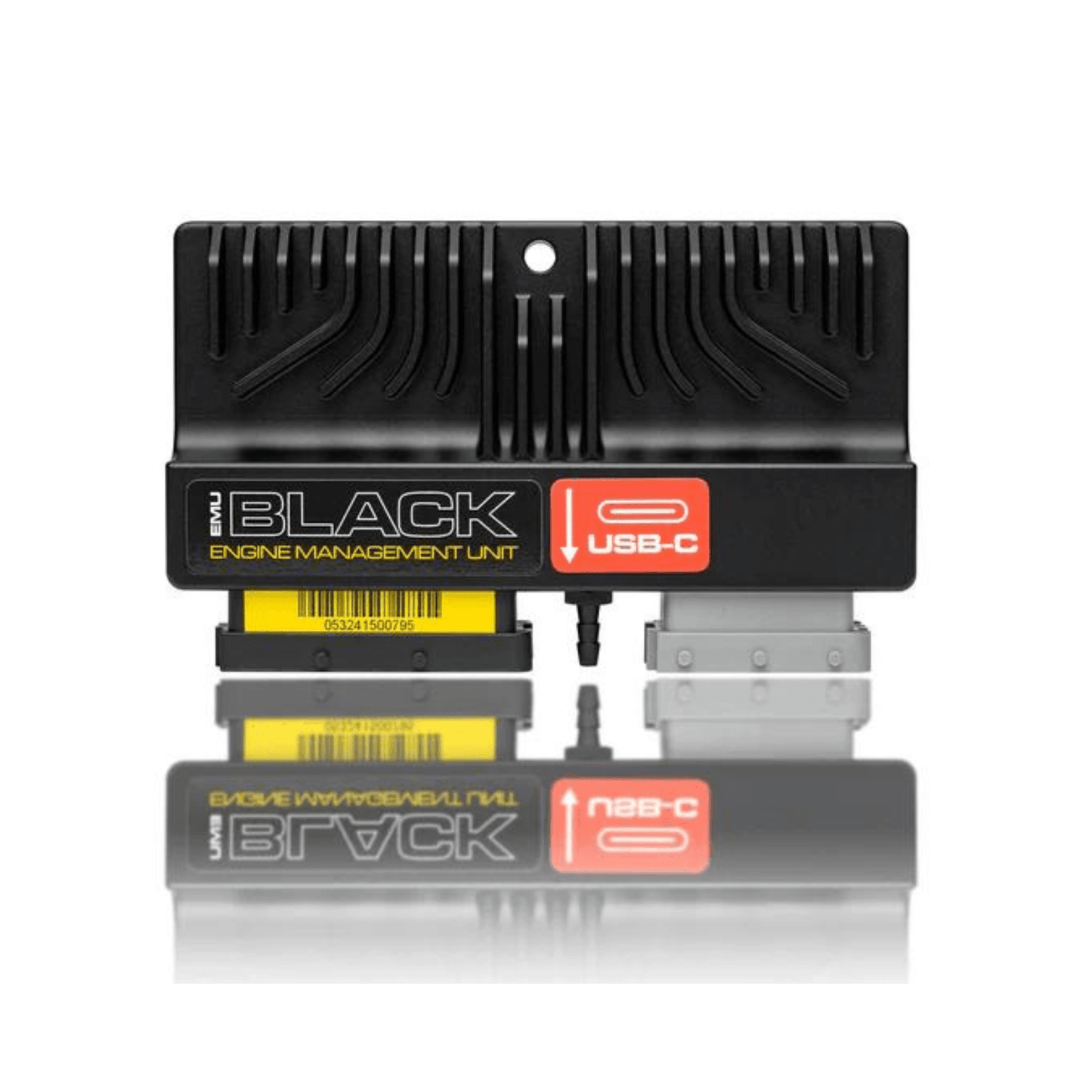

EMU BLACK bespoke enclosure is made from CNC machined aluminium. The enclosure design guarantee high immunity to mechanical damage, water resist (IP65) and very good heat conduction from electronic components.
Additional hole through the enclosure provides mounting point.
At the front of the enclosure there is a USB sealed connector for PC communication and MAP sensor connection tube.
PCB
EMU BLACK utilize 4 layers PCB board and most of components are SMD type (except connectors) and coated with special surface protecting the board and components from moist. Due to design, the device is extremely immune to the vibration.
Device is assembled according to IPC-S-815A standards on fully automated assembly line with optical inspection to ensure highest possible quality.
Carefully electronic components selection allows proper device operation in very wide temperature range (-40C to 105C) (AECQ-100 GRADE2)
ANALOGUE INPUTS
EMU BLACK has has two additional analogues inputs in comparison to regular EMU. In addition to this each analogue input has software selectable pullup / pulldown (4700Ohm). For CLT and IAT inputs the pullup resistor is 2200Ohm and could be disabled via software. That allows easy sharing temperature signals with OEM ECU when connected in parallel.
SWITCH INPUTS
EMU BLACK introduces 3 digital switch inputs that could be used for activating strategies by switching input to the sensor ground.
TRIGGER INPUTS
The input circuit for trigger inputs was redesigned. For each trigger input (Primary trigger, CAM#1, CAM#2 and VSS) pullup / pulldown could be selected (4700Ohm, 1000Ohm, 820Ohm) as well as analogue filter level (none, low, medium hall).
Primary trigger input could be HALL or VR (software selectable). For VR sensor the adaptive level could be changed (low, high).
For CAM#1 and CAM#2 inputs the reference voltage could be defined in separate 2D tables in function of RPM what greatly improves noise immunity for VR sensors (the higher RPM the higher trigger voltage threshold)
For VSS sensor VR or HALL sensor type could be selected.
FLEX FUEL INPUT
EMU BLACK introduces separate input for Flex Fuel sensor ( regular EMU uses CAM#2 or VSS input for this purpose).
IGNITION OUTPUTS
Ignition output circuit was redesigned especially the driver of active coils. EMU BLACK supports active and passive coils (software selectable). In comparison to regular EMU it is possible to drive 2 active coils from one ignition output. In addition to this when active coils are selected for connected passive coils no damage occurs.
H-BRIDGE
The stepper outputs of regular EMU were replaced by two state of the art bullet proof H-BRIDGEs with over 6A continuous current (1A for regular EMU). It allows to control stepper motors, electronic throttle, VANOS as well as any solenoid with current draw lower than 6A (low and high side drive possible)
DBW
Due to high current capability of built in H-BRIDGE, EMU BLACK is able to control directly electronic throttle (no external module required). Moreover the control strategy was improved (two times higher update rate, defined PWM frequency from 1000Hz to 8000Hz) to allow higher precision of throttle control. For safety reason the DBW strategy works on 2 separate processors and any malfunctioning in one of them causes throttle limp mode.
AUX OUTPUTS
All AUX outputs of EMU BLACK have built in fly-back circuit for precise control of solenoids (in regular EMU external diodes are required for PWM controlled solenoids).
WBO
Wideband oxygen sensor circuit was redesigned to support LSU 4.2 and LSU 4.9 Bosch sensors.
CAN BUS
EMU BLACK has built in CAN bus support (as well as separate serial communication) with software selectable 120Ohm terminator.
5V OUTPUTS
Regular EMU use the same internal voltage regulator for internal circuits and external sensors (+5V output). EMU BLACK introduces addition +5V regulator for 5V output. In addition to this there are two +5V output terminals for easier harness design.
FIXED 12V
EMU BLACK has new power scheme. The +12V is provided by fixed 12V input (it is used for powering the device and flyback circuit). The switched +12V is used to turn on and off the device.
ANALOG GROUNDS
EMU BLACK introduces 3 separate sensor ground terminals to allow easier harness design.
CONNECTORS
EMU BLACK uses 2 connectors (black and gray). The gray connector (24 ways) has the same pin layout as regular EMU. The black connector is replaced by 39 ways one. Due to smart pin layout it is very easy to repin regular EMU black connector to the new one.
SOFTWARE
EMU BLACK software is improved over the regular EMU. The configuration tree has now additional hierarchy level what makes navigation easier.

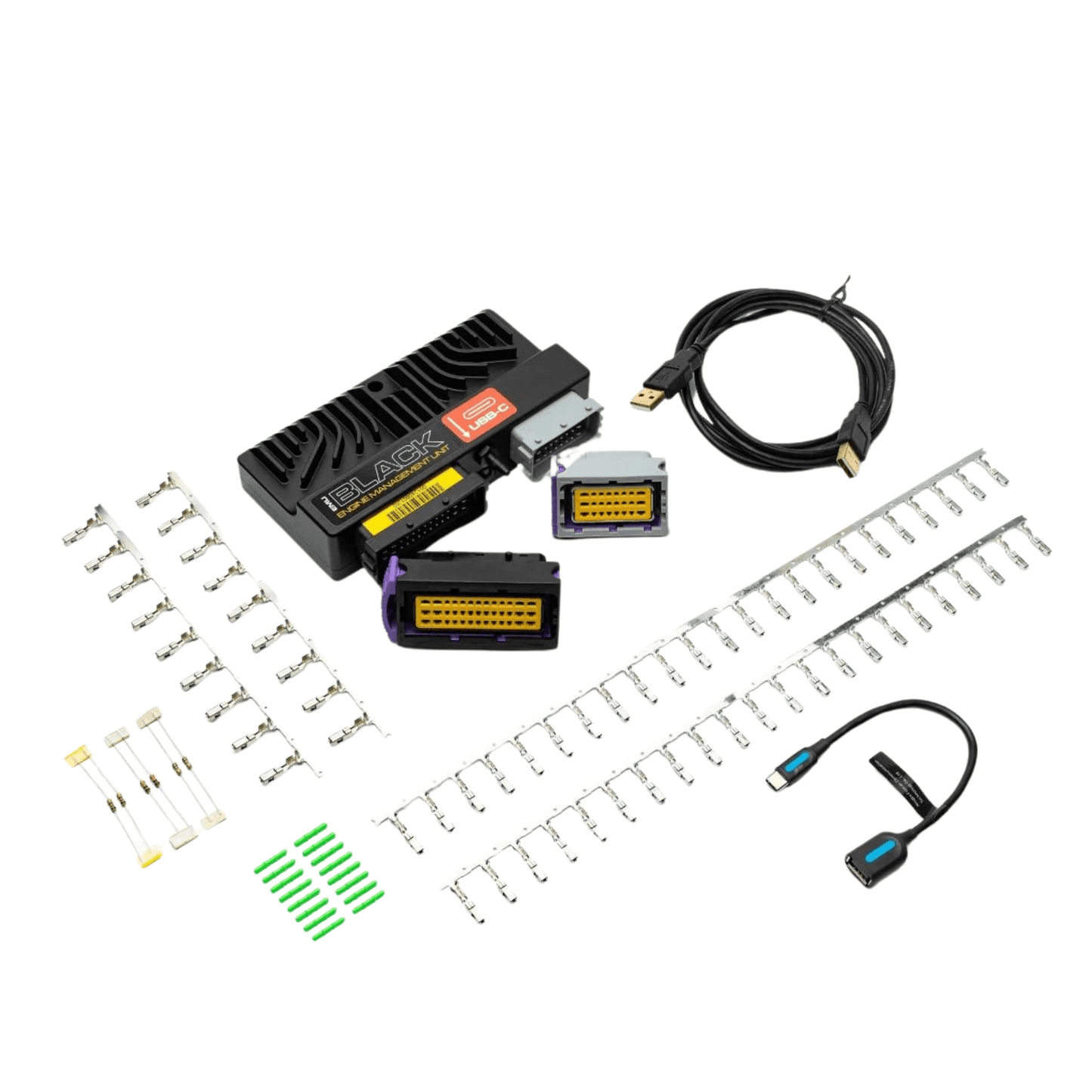

Contents
1x EMU BLACK unit
1x Warranty card
1x Pinout description
45x Sicma terminals 2.8mm
18x Sicma terminals 1.5mm
1x Set of green fillers (Connector empty pin sealant)
1x FCI connector 24 pin
1x FCI connector 39 pin
1x Set of resistor(2x2k, 2x10k, 2x120r)
1x USB cable A-A
1x USB-A Adapter -> USB-C
Tablet and Bluetooth support
If you are unsure which ECU is right for you, please message us, we specialise in motorsport electronics and wiring so you can be sure we know exactly what is right for you. It is super easy to overspend on an ECU or underspend and cost yourself a fortune in required add on accessories. Use the contact forum or chat box!
