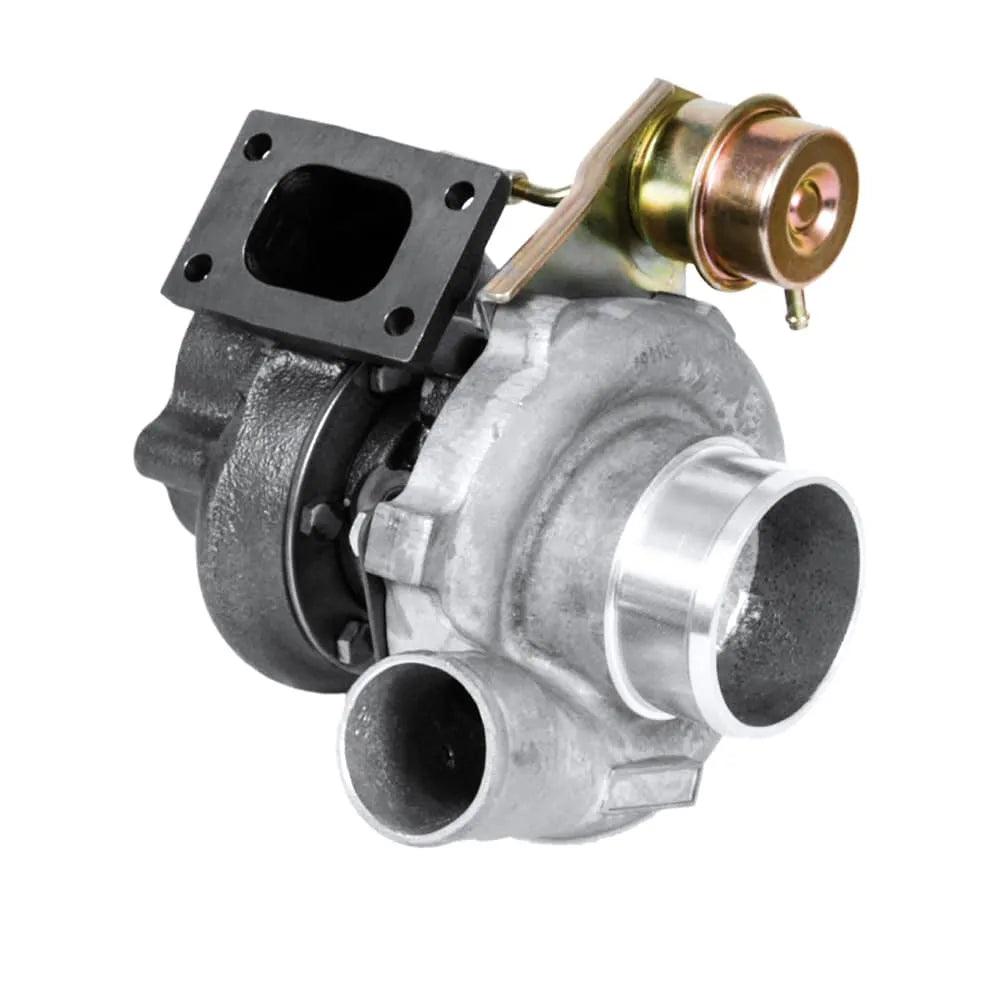

Garret GT28 GT2860rs Performance Turbocharger 0.64AR

Garret GT28 GT2860rs Performance Turbocharger 0.64AR

Regular price £1,039.99 GBP
Regular price £1,039.99 GBP Sale price £1,039.99 GBP
Sale Sold out
Tax included.

Product Description

Garrett GT Series Is The Name That Pioneered Turbo Technology, Boosting Drag Racing And Road Racing Teams To Break Hundreds Of World Records. The GT Series Lineup Is Offered In Both Journal And Ball Bearing Options, With Sizes Ranging From GT2052 To GT3582. Cast Compressor Wheels Feature Original GT Series Aerodynamics And Provide Maximum Durability And Longevity.

Key Features

  • Original GT Series Aerodynamics
  • 60MM Turbocharger Compressor Incuder
  • Internally Wastegated Turbine Housing
  • Sold As A Complete Turbo (Includes Turbine Kit & Actuator)
  • High Efficiency Ceramic Ball Bearing Cartridge

Maximum Allowable Turbocharger Speed143.971KRPM. The Use Of This Product Above Max Turbocharger Speed Is At The Owner's Risk, And Can Result In Damage And Premature Failure. To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed. Sensors Sold Separately.

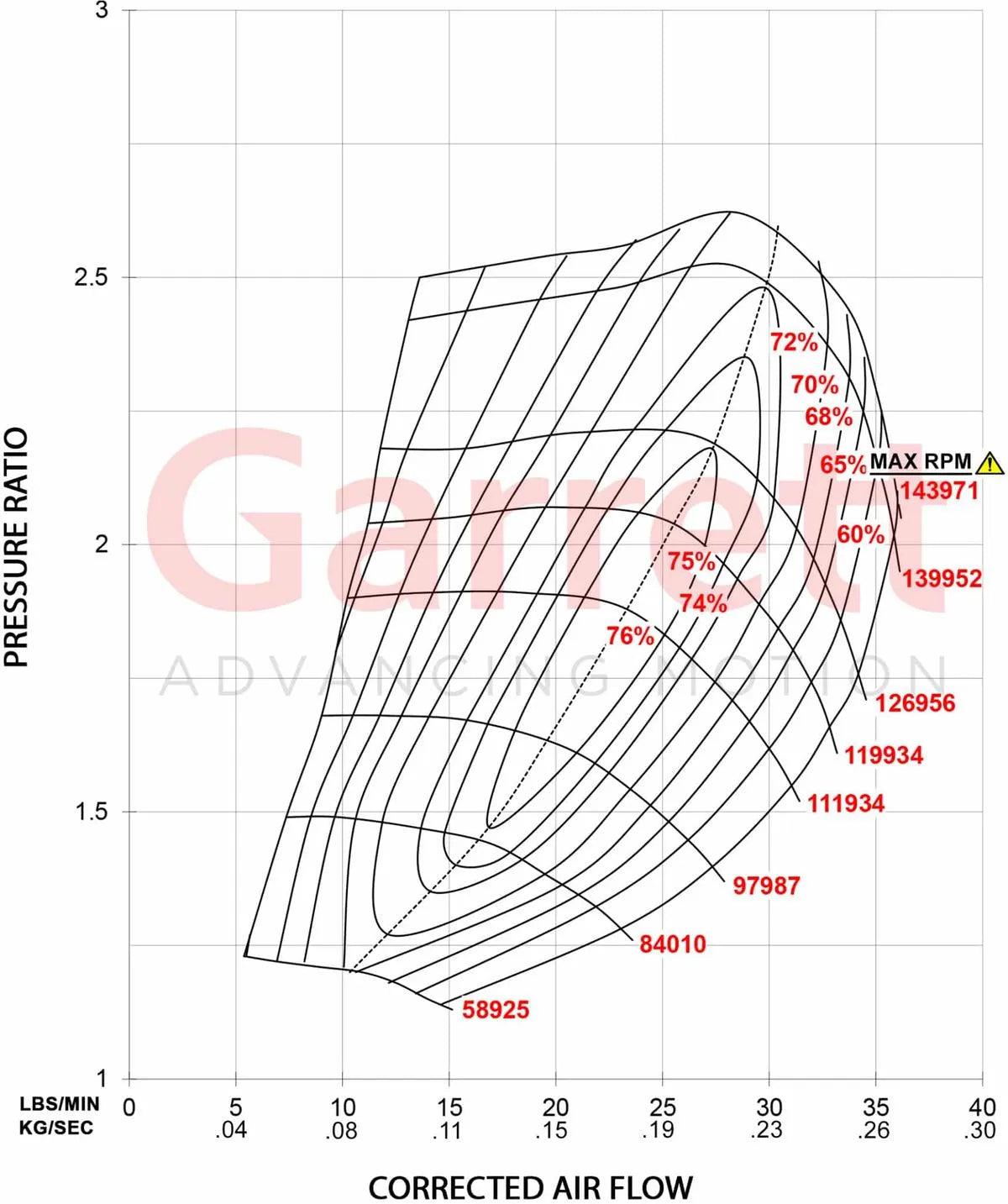

Performance Results Of This Product Are Highly Dependent Upon Your Vehicle's Modifications And Tuning/Calibration. The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower.

Engine Characteristics
Min HP - 250
Max HP - 360
Min Displacement (L) - 1.8
Max Displacement (L) - 3.0

Compressor Wheel Specs
Compressor Exducer (mm) - 60
Compressor Wheel Mat - Cast
Compressor A/R - 0.64

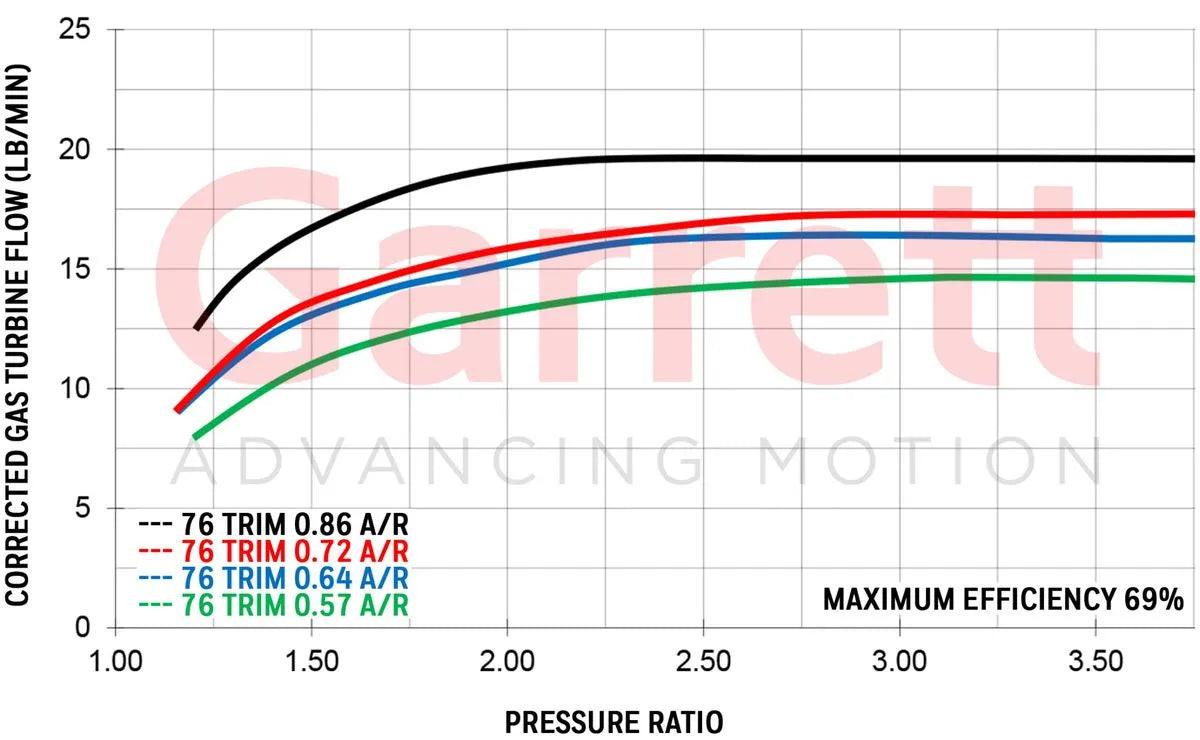

Turbine Wheel Specs
Turbine Inducer (mm) - 54
Turbine Exducer (mm) - 47
Turbine Trim - 76
Turbine Wheel Mat - Inconel

Product Line - GT
Frame Size - 28
Rotation - Standard
Cooling - Oil & Water Cooled
Wastegate - Internal
Bearing - Ceramic Dual Ball Bearing
