Hurricane Motorsport Universal Intercooler 600x300x102
Hurricane Motorsport Universal Intercooler 600x300x102
Hurricane Motorsport Universal Intercooler 600x300x102

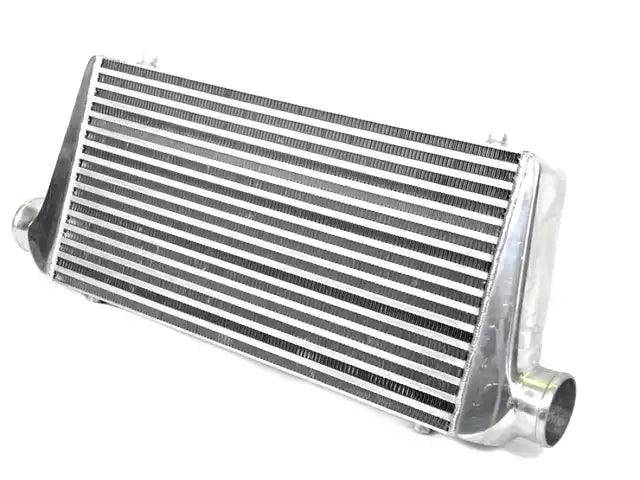

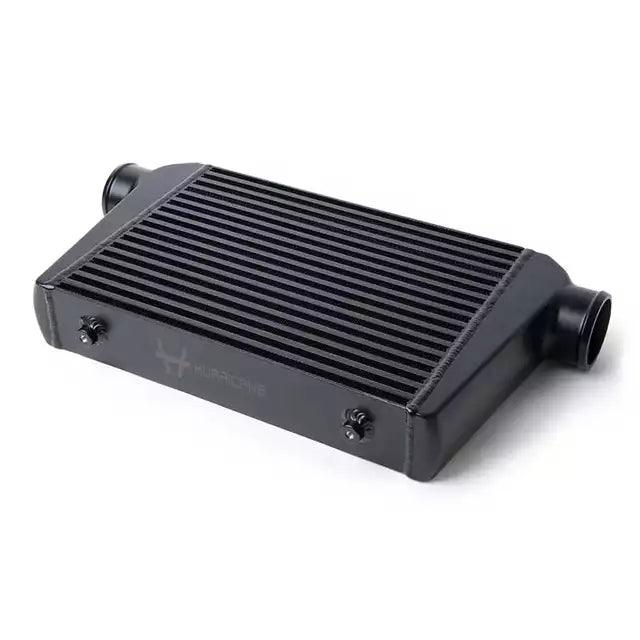

Aluminium intercooler
Used to effectively cool the intake air from turbo to engine. Also called FMIC (front mounted intercooler). One of the most important parameters for an efficient engine is low intake temperature. This can be achieved in many different ways and with an efficient intercooler / charge air cooler, you have come a long way. This intercooler is a combination of compact design and efficiency.
Intercooler core
Bar and plate construction that's widely used all over the world in applications from industry to motorsport. These cores have soft transitions that minimize pressure drop and uneven distribution of air throughout the intercooler core. The efficiency of these coolers is high! -You get a lot of cooling for your money!
End tanks
The end tanks is made of cast aluminium and designed to be as compact as possible with retained flow. The round shapes distribute the air to the core to obtaint maximum cooling efficiency. Robust construction that allows easy welding of own intercooler brackets or fittings for sensors and blow off valves.
Technical data:
Width: 780mm
Core: 600x300x102mm
Connections: 76mm (3")
Construction: Bar and plate
Material: Aluminium
Mounting: 4x M8 threads, two on top and two under
CC between mounting holes: 495mm
Benefits
Effectively cools the intake air from the turbocharger to the engine intakeProvides lower intake temperature for more power
Durable bar and plate intercooler core
Low pressure drop across inlet and outlet
Robust end tanks
Black design
Smart mounting points
Quality cooler from Hurricane Motorsport
