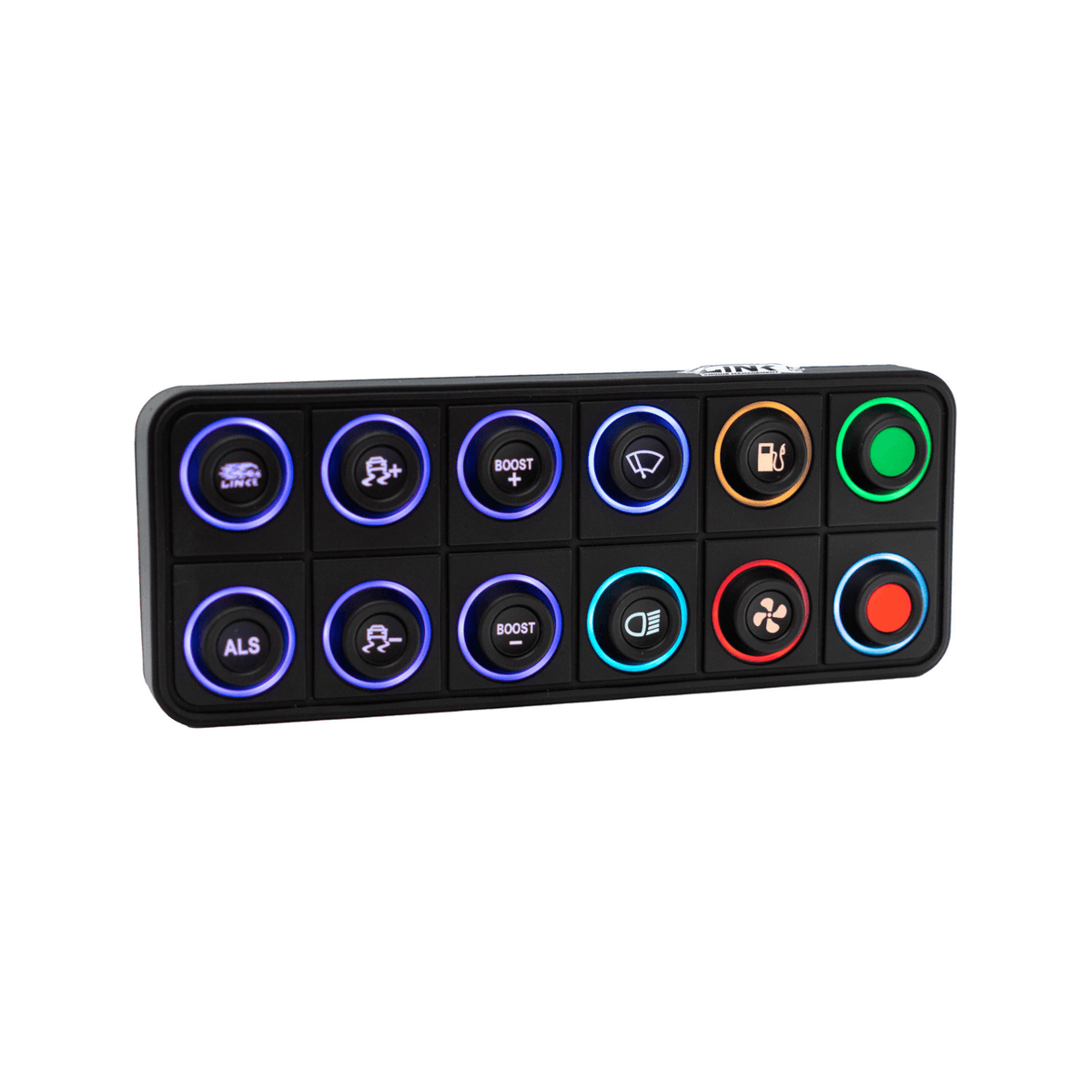

Link ECU 12 Button Can Keypad

Link ECU 12 Button Can Keypad

Regular price £324.00 GBP
Regular price £382.00 GBP Sale price £324.00 GBP
Sale Sold out
Tax included.

    Link CAN Keypad 12 button

    Rugged 12 key CAN Keypad with interchangeable 15mm inserts.

    Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups.
    The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations.
    Can be installed both inside and outside, perfect for street, track and off-road use.

    Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.


    • CAN Configurable with G4X PC Link – Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.
    • Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical.
    • IP67/IP69K Waterproof rating – Guaranteed to be dust tight
      and sealed against water immersion to a depth of 1 meter for up
      to 1 hour. The IP69K rating provides protection against high
      pressure water at high temperature spray downs.
    • Compatible with all G4X ECU’s. Built-in support from G4X PC Link vers 6.22 onwards

    Box Contents

    1 x 12 Button CAN Keypad
    1 x DTM4 Mating Connector Kit
    1 x Link Sticker
    1 x Keypad Button Insert – Link Logo


    Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low)
    Switch Life - 3 million operations
    CANopen Node ID – 0x15 (21)
    Default Baud Rate - 1000kbit/s
    Ingress protection Rating – IP67/IP69K
    Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
    UV Protection - UVB 400 hours
    Salt Spray Per - ASTMB117
    Dimensions – 181.5mm (W) x 70mm (H)

    Mounting Specs

    Mounting Stud Gap (Centre to Centre) 136.14mm
    Nuts thread: #10-32
    Maximum torque: 0.8Nm
