Link ECU G4X XtremeX Standalone Wire-In ECU
Includes taxes, duties, and fees globally.
Or 3 interest-free payments of £629.66
★★★★★ Verified
“Ordered at 9am, received at 9am the following day. A company that do as they say, and actually deliver in 24hrs.”
James, verified customer, Jan 2025
Check it fits before you buy
Send us your chassis code and we will confirm before you spend anything.
Ships today
In-stock parts ordered before 1pm are dispatched the same day.
We all get it wrong sometimes
Nobody is perfect. You can order the wrong thing and so can we. Whatever the issue, we put it right fast. Unsure? Email us and we will check the specs against your car.
We build these cars
Our team build and race in the motorsport and tuning scene, and our founder competes in pro drift in his own E46.
Full details
Link G4X XtremeX Engine Management
8x Fuel 8x IGN 2x Knock 1x E-throttle / Traction / Cruise

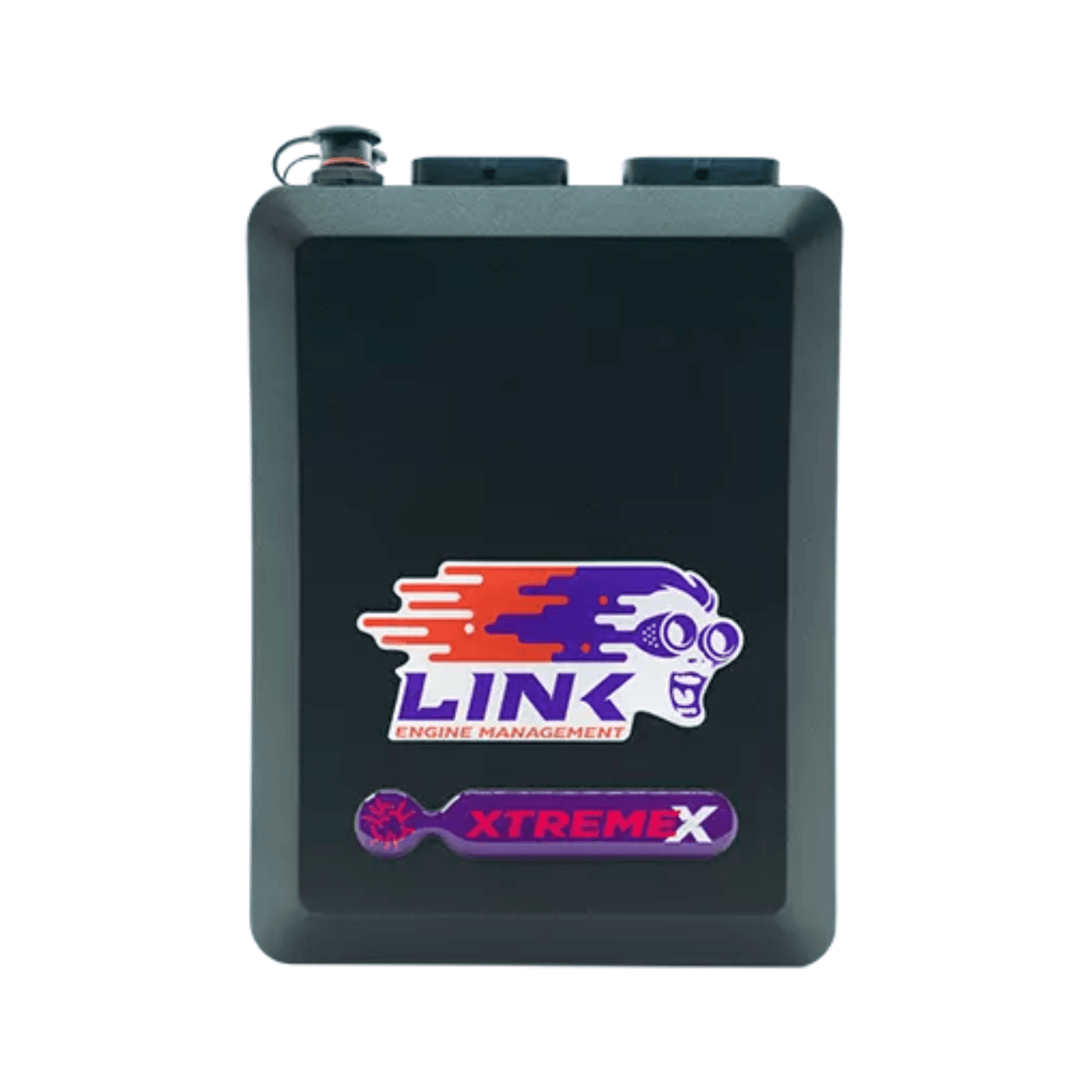

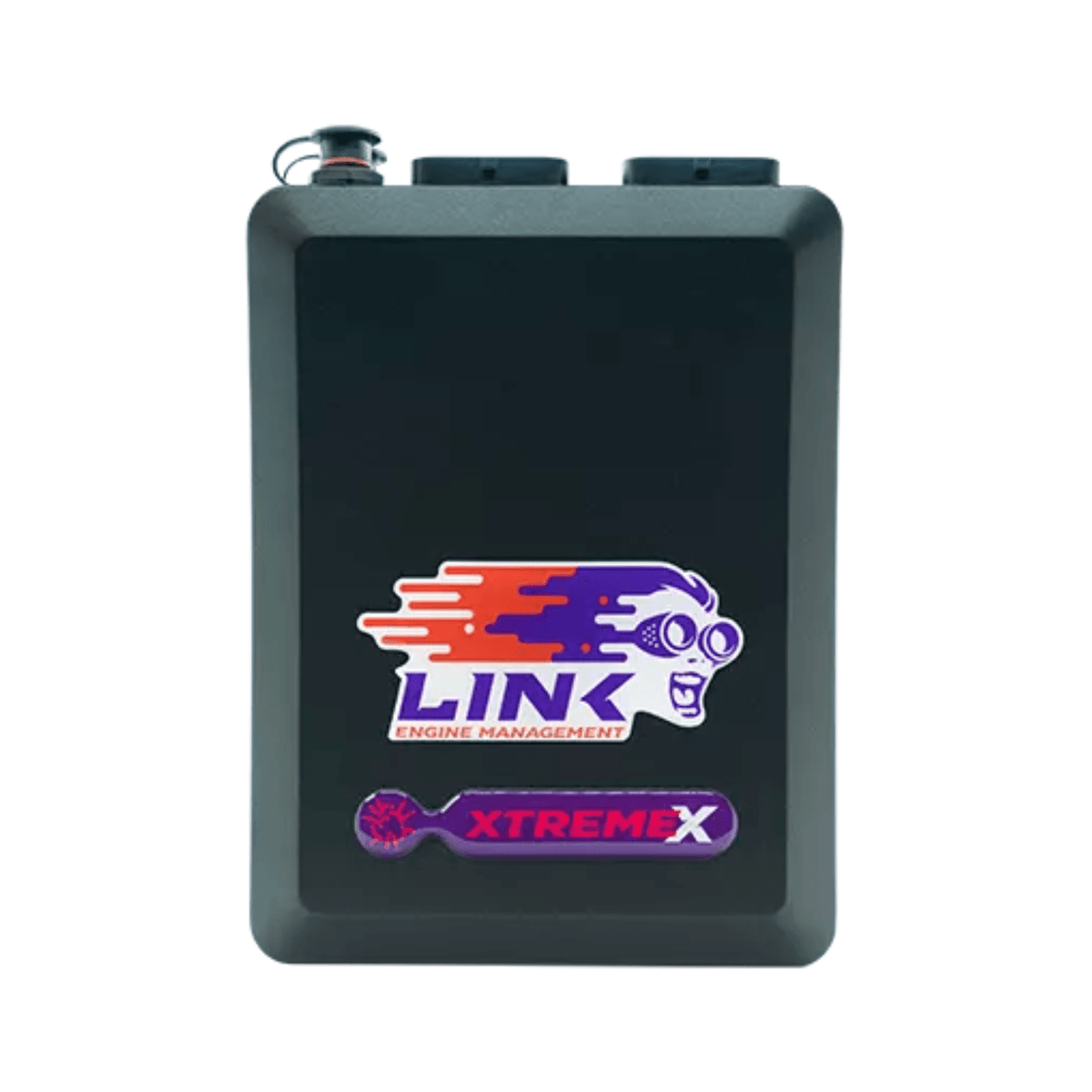

Link G4X XtremeX Engine Management ECU
The XtremeX has built in E-throttle and all the advanced features including Anti-lag, Cruise Control and Traction Control.
With 8 Injector drives and 8 ignition drives, the XtremeX can control up to 4 rotors or 8 cylinders with sequential injection and direct spark. The XtremeX is a great choice for professional level motorsport or more demanding road car applications.
Requires "A" & "B" Looms for installation.
If it is Onboard Digital Wideband Lambda Control you are after, consider the Fury.
Inputs
8/10* x Digital inputs
4 x Temperature inputs
11 x Analog inputs
2 x Trigger inputs
2 x Knock inputs
*2 inputs required when using 2nd CAN Bus
Outputs
8 x injection drives
8 x Ignition drivers
10 x Auxiliary outputs^
+5V Sensor power supply
+8V Sensor power supply
^unused fuel and ignition drives can be used as additional Aux outputs
Communications
2* x CAN bus
1x Serial (RS232) connection
1x USB tuning connection
Faster communications than G4+ models
512 Megabytes Data Logging
Physical
Dimensions: 185mm(L) x 130mm(W) x 40mm(H) (without looms)
Mass: 680grams
Advanced features not found on the Storm:
Fully programmable E-throttle control complete with capability of gear shift throttle blip and antilag.
Cruise control.
Two independent CAN modules.
30 general purpose tables (up from 20)
All Motorsport features including full gear shift control, cruise control, traction control, antilag and launch control.
Advanced closed loop lambda strategy and dual bank lambda control.
What's in the box?
Supplied with USB tuning cable and mounting bracket.
