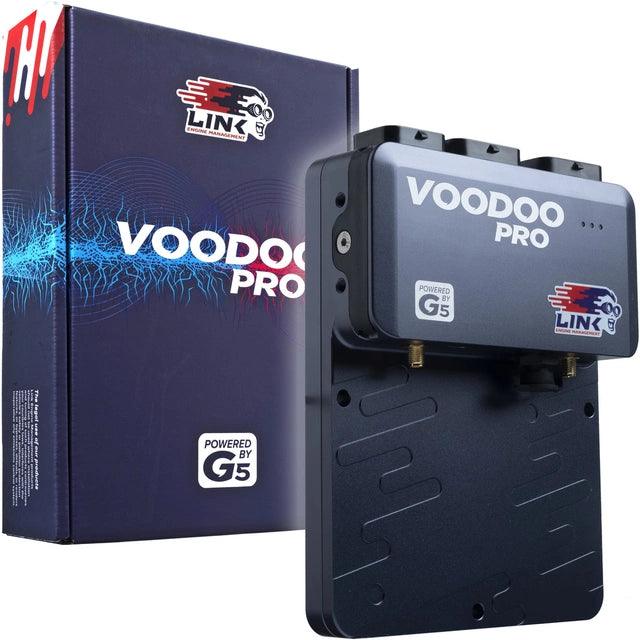

Link G5 Voodoo Pro ECU
The G5 Voodoo Pro is the perfect choice for professional level motorsport.
In the box
G5 Voodoo Pro ECU
USB-C Connection Cable
WiFi Antenna
4m GPS Antenna (Magnetic or Adhesive Mount)
USB-C and SMA Dust Covers
QuickStart Guide (A5)
Installer I/O table (A3)
Link stickers
Features
Built-in WiFi, with real-time PC Link connection
Built-in Global Positioning System (GPS) up to 50Hz
Dual onboard Digital Wideband Lambda controllers
Dual onboard E-throttle (Drive by Wire)
12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total)
Dual microcontrollers
Direct Injection (DI) on up to 12 injection drives
Link CAN Files - Create your own separate CAN files with additional streams and channels, which can be saved, locked and shared
Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software (G4X Map can also be loaded into a G5 Voodoo Pro)
Flexible mounting options - Fix to a face using the three top-down through-holes with M5 or 3/16 socket screws, or hang the ECU from a dash bar or similar using custom brackets and the four M4 side mounting points.
Note: Requires “A”, “B” & “E” connector kits (not supplied).
Inputs/Outputs
Control any engine with 2 cylinders, all the way up to 12 cylinders, thanks to:12 injector pins
8 ignition pins
4 injector/ignition dual role pins
Access up to 30 auxilary pins (when setup for a 4-cylinder sequential engine):8 dedicated auxiliary pins
4 shared e-throttle/H-Bridge pins
2 shared wideband heater pins
Up to 16 from spare injector and ignition drives
Any unused injector/ignition pins can be used as an auxiliary pin
All ignition and auxiliary pins are back feed protected.
14 analog inputs
10 digital inputs
4 temperature inputs
Dual knock inputs
2 trigger inputs
Dedicated ignition switch pin
2 x internal wideband lambda controllers
Dual e-throttle, with internal solid state throttle disconnect relays
5v sensor supply
CAN 1 input now supported via CAN connector
Communications
USB-C (cable included)
Connect directly to the ECU via built-in Wifi Access Point, or add it to an existing network (Antenna Included)
Dual CAN (CAN 1 on CAN connector, CAN 2 on header E)
GPS (antenna included)
It is now possible to connect to your ECU using a standard USB-C cable, or alternatively by using WiFi.
You can now access CANBUS 2 via its own dedicated pins in Header E freeing up two Digital Inputs.
GPS connectivity can be initialised by simply adding a GPS antenna.
Quickstart Guide
I/O Table
LED Explanation
Exploded View on Dimensions
