Link ECU Map Sensor 2.5 Bar

Link ECU Map Sensor 2.5 Bar

Regular price £95.00 GBP
Regular price £114.00 GBP Sale price £95.00 GBP
Sale Sold out
Tax included.

    Link ECU Map Sensor 2.5 Bar

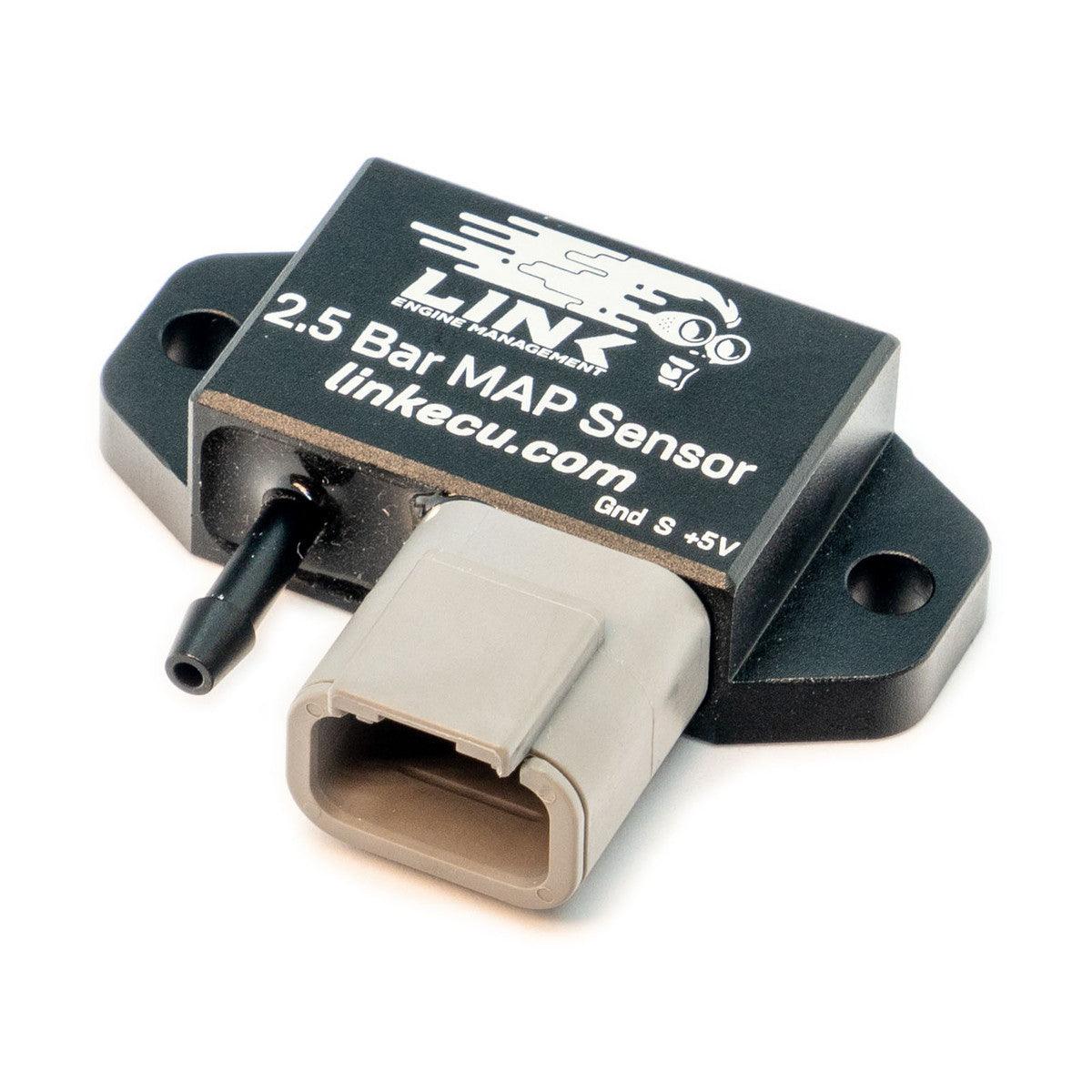

    The Link 2.5 Bar MAP sensor reads up to 2.5 Bar absolute pressure. This means that it is suitable for turbo or supercharged applications running up to 1.5 Bar (approx 22psi) of boost pressure. The wiring pinout for this sensor is marked directly on the sensor.

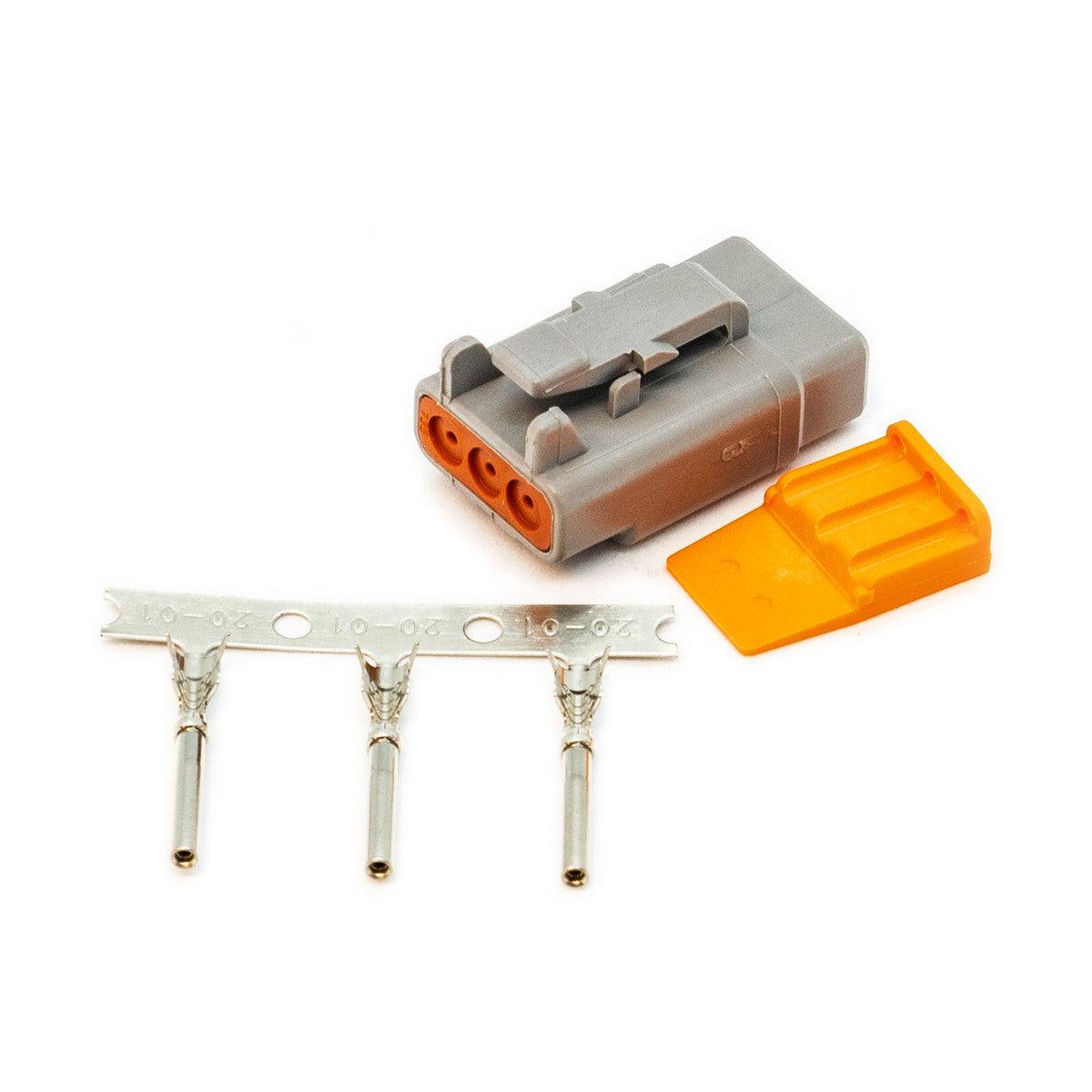

    Includes 3-pin Deutsch DTM connector kit
    Easy to mount via 2 bolt holes. Note that the sensor should be mounted higher than the intake manifold port that the hose connects to.
    Compact aluminium enclosure
    Mechanical connection via 4mm (3/16″) hose connector nipple.
    Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Link 2.5 Bar’
