Link ECU Map Sensor 8 Bar

Link ECU Map Sensor 8 Bar

Regular price £185.00 GBP
Regular price £220.00 GBP Sale price £185.00 GBP
Sale Sold out
Tax included.

    Link ECU Map Sensor 8 Bar

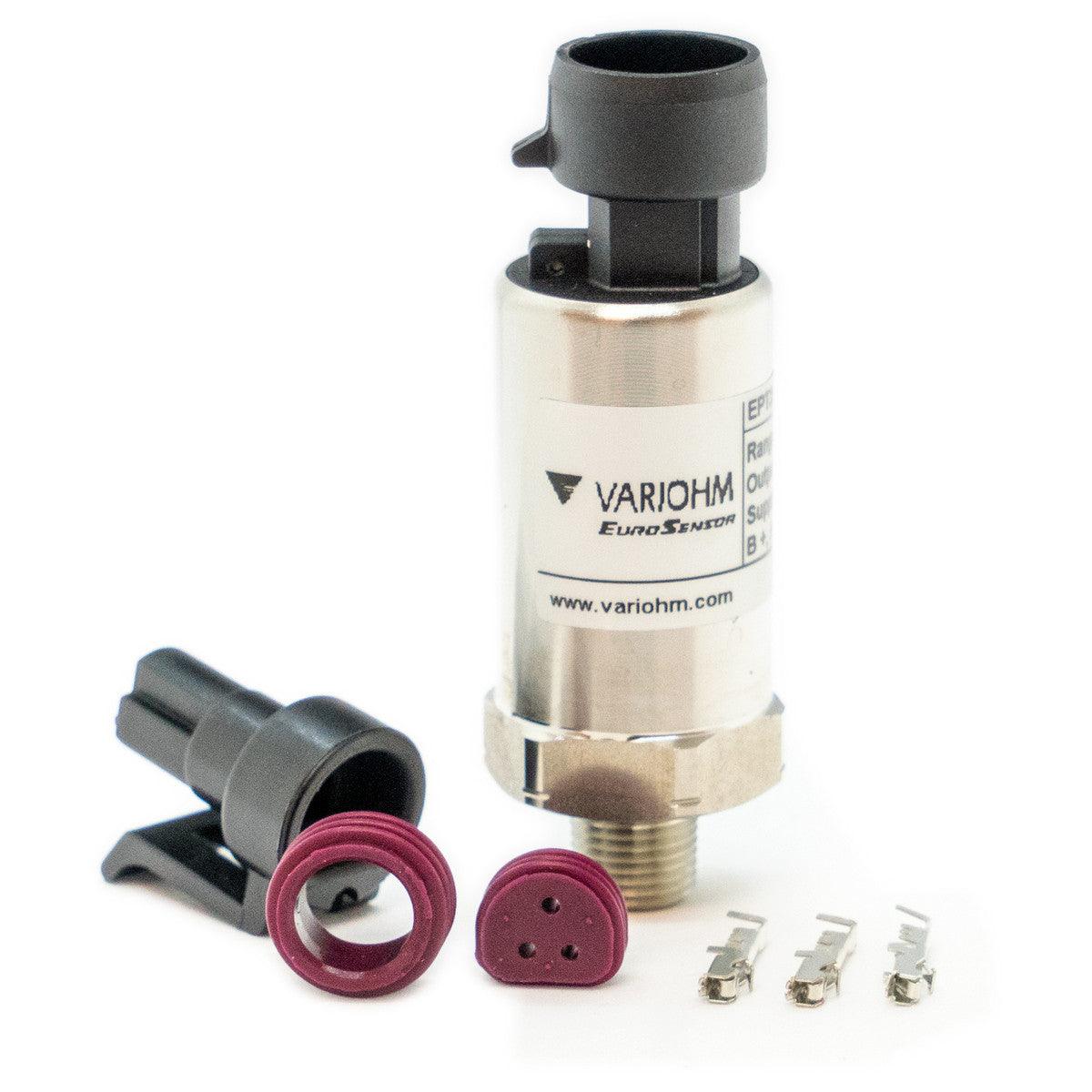

    The 8 Bar MAP Variohm Eurosensor reads up to 7 Bar absolute pressure.
    This means that it is suitable for turbo or supercharged applications running up to 7 Bar (or 101psi) of boost pressure.

    Includes Plug and Pins
    Push wire through connector; crimp on terminal; pull wire/terminal back into connector
    Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 8 Bar’

    Calibration - 0kpa = 0.5v, 800kpa = 4.5v
    PIN A = 0v
    PIN B = 5v
    PIN C = Signal
