Mishimoto BMW E46 M3 Oil Cooler Kit (2001-2006)

£870.00

Full details

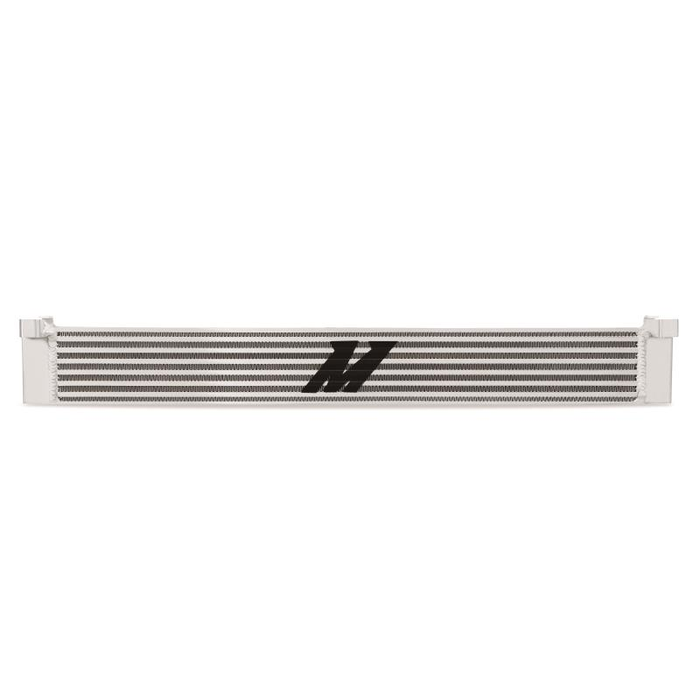

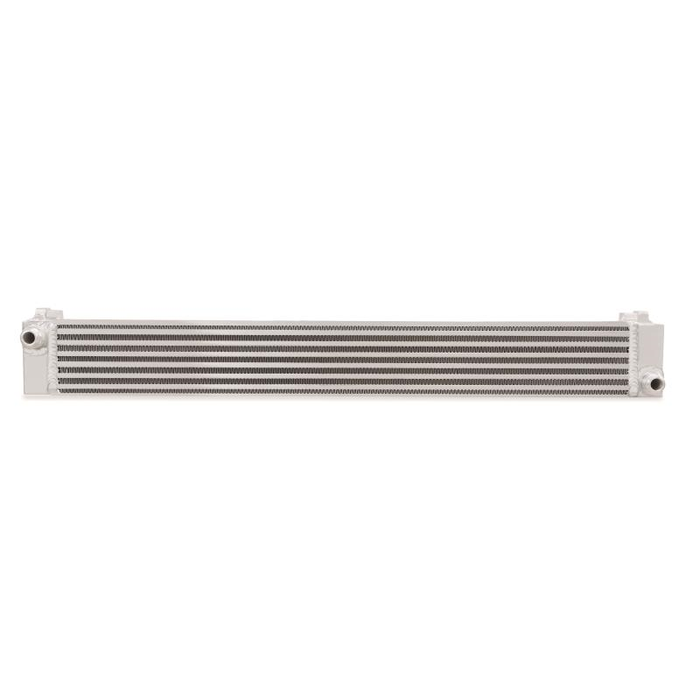

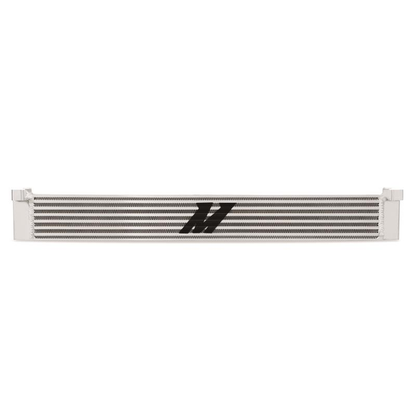

Mishimoto BMW E46 M3 Oil Cooler Kit (2001-2006)

Key Features

  • Direct fit for the BMW E46 M3
  • Reduces oil temperatures by 30 F (16.7 C)
  • 10 psi reduction in pressure loss
The S54 is an incredible feat of engineering. Smooth power delivery, individual throttle bodies, and an 8,000 rpm redline make for an unforgettable driving experience. As with any BMW, maintaining optimal oil temperatures is key to extending the life of your vehicle and ensuring that you're getting an unparalleled driving experience. As many of these vehicles see frequent track time, the team at Mishimoto decided to develop a performance oil cooler kit that would provide improved durability and deliver the power needed for track driving. The result: an extremely efficient core with a proven 30°F (16.7°C) drop in oil temperature. With an increase in core thickness of 110%, this oil cooler kit raises your oil capacity by 0.44 qt. The oil cooler end tanks, cast from a single piece of aluminium and TIG-welded to the core, have been designed for maximum reliability, giving you the confidence you need to push your E46 M3 to the limits.

This oil cooler kit is designed as a complete bolt-in fit, requiring no modification to work with the stock radiator or the Mishimoto BMW E46 Performance Aluminium Radiator. To ensure a complete direct-fit, Mishimoto engineers have designed a fully CNC-machined 6061 aluminium and 303 stainless steel BMW E46 Oil Line Fitting Kit, which makes the removal of the stock hard lines and installation of stainless steel braided lines a simple task.

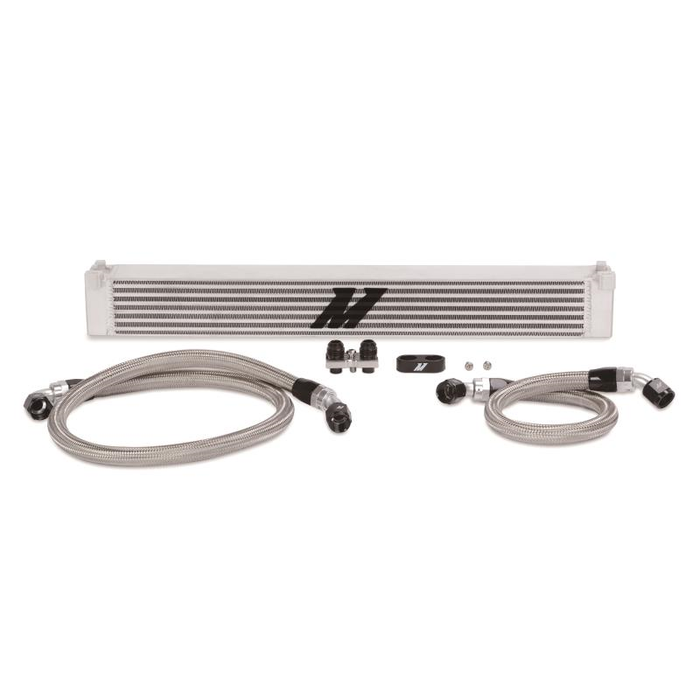

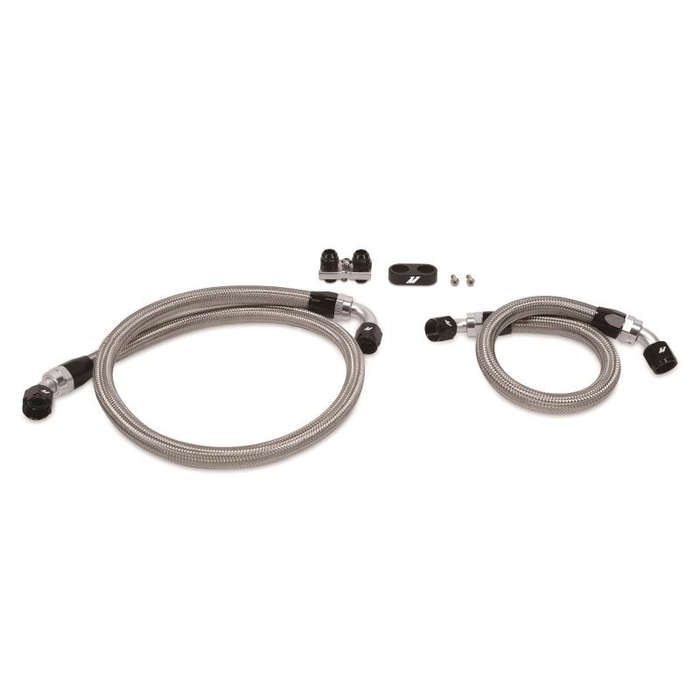

This kit includes pre-assembled stainless steel lines with -10AN fittings to help direct the oil to and from the cooler, as well as a black Mishimoto Oil Line Stay to keep your lines from rubbing. As with all our products, the Mishimoto E46 M3 Oil Cooler Kit includes the Mishimoto Lifetime Warranty.

Please note: Mishimoto fully inspects and cleans all products prior to packaging. However, it is recommended that customers flush the oil cooler with one quart of clean oil prior to installation to remove any debris accumulated during shipping. Please feel free to contact us at support@mishimoto.com if you have any questions.


                                      More Information

Inlet -10AN
Outlet -10AN
Core Length (in) 23.62
Core Height (in) 3.02
Core Thickness (in) 2.5
Overall Height (in) 26.1
Overall Length (in) 3.4
Overall Width (in) 4.3
Applications 2001-2006 BMW E46 M3
Engine Codes S54
Chassis Codes E46
Installation Notes 10 lb-ft for Oil Line Fitting Kit bolt.
Caution It is the installer's responsibility to check all line fittings and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
