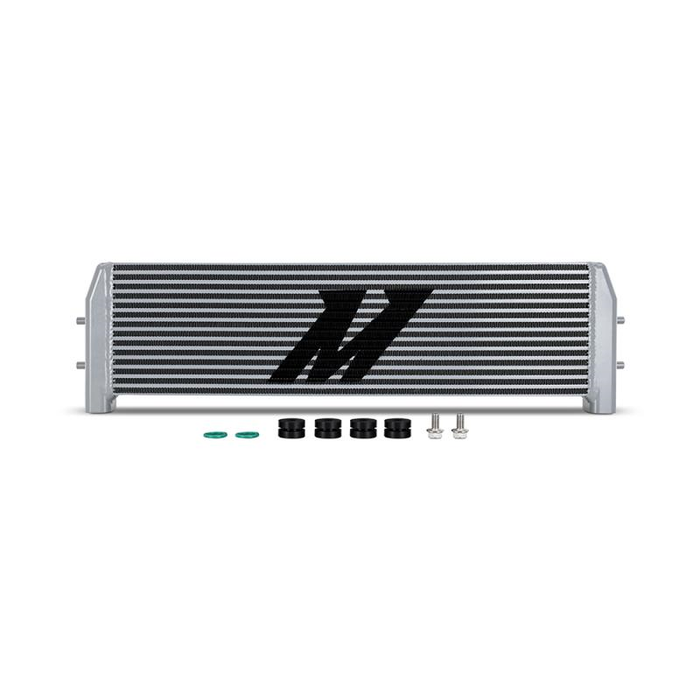

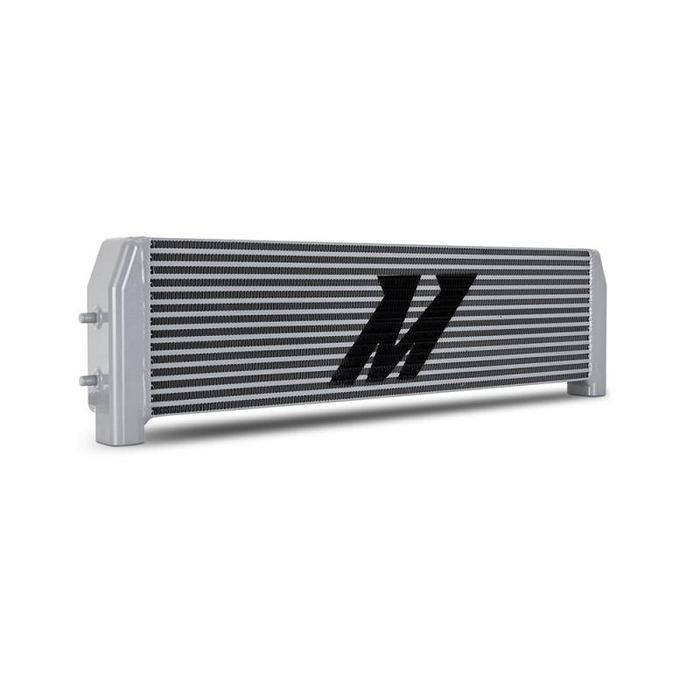

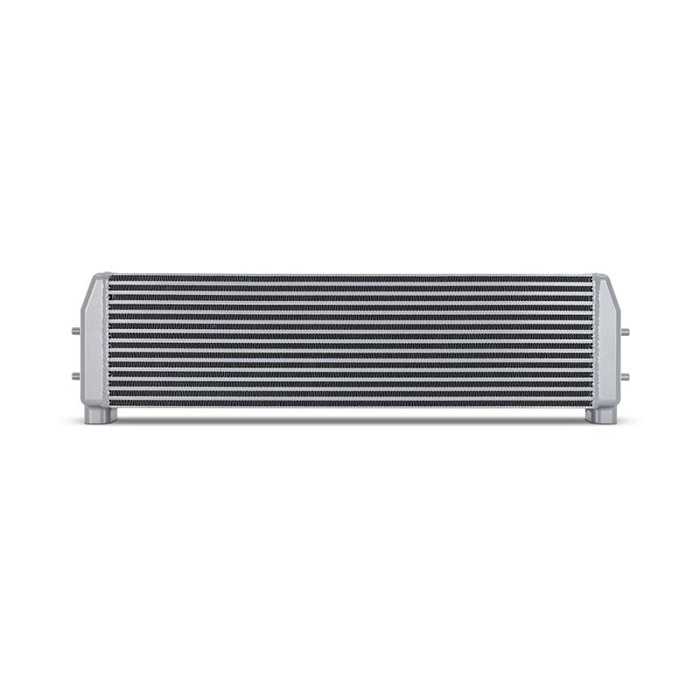

Mishimoto BMW M5/M6 Performance Oil Cooler (2012-2024)
Key Features
- Direct fit for 2012+ BMW M5/M6 models
- CNC-machined billet-aluminium end tanks provide improved durability over stock stamped tanks
- Robust bar-and-plate core resists damage from road debris and provides optimal cooling efficiency
The BMW M5 power and handling statistics are completely mind-blowing for a car tipping the scales at well over two tons. The S63 twin-turbo V8 is underrated from the factory and responds well to tuning and bolt on modifications. Calling it the ultimate super sedan would not do this car justice, it's just that good. But every amazing automobile must have an Achilles' heel, right? Some investigation into this model told us that enthusiasts were seeing elevated oil temperatures during track driving conditions. Our team set out to create a replacement, high-performance oil cooler that could handle the rigors of extreme driving conditions and the abuse of daily commuting.
The Mishimoto S63 M5/M6 oil cooler features extremely precise CNC-machined billet-aluminium end tanks which are professionally TIG-welded to our robust bar-and-plate core. Our strategically designed 55mm-thick core provides a massive 24% increase in core volume, and a 40% increase in external fin surface area. This added surface area promotes greater heat transfer, which directly impacts internal fluid temperatures. Our performance oil cooler is a complete bolt-on solution that includes everything needed for an easy installation such as hardware and replacement O-rings for the oil lines. Our heat exchanger is finished in a durable silver powder coat, providing both corrosion resistance and improved aesthetics.
Whether your M5 sees frequent track time or just the occasional back-road jaunt, upgrading the oil cooler is a great way to extend the life of your S63 and ensure maximum engine output when you need it most. As with all our BMW products, this oil cooler includes our signature Mishimoto Lifetime Warranty.
More Information
| Rows | 1 |
|---|---|
| Core Length (in) | 21.5 |
| Core Height (in) | 5.8 |
| Core Thickness (in) | 2.16 |
| Overall Height (in) | 2.95 |
| Overall Length (in) | 24 |
| Overall Width (in) | 2.36 |
| Applications | BMW M5 V8 (4.4) 2012-2024 BMW M6 V8 (4.4) 2012-2018 BMW M850i V8 (4.4) 2019-2024 BMW M8 V8 (4.4) 2023-2024 |
| Engine Codes | S63 |
| Chassis Codes | F10 F90 G90 G99 |
| Caution | It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team. |
