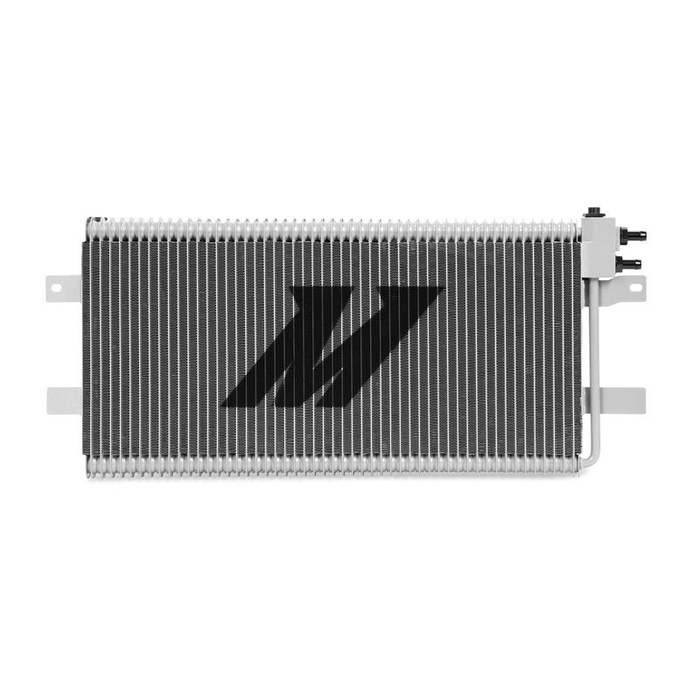

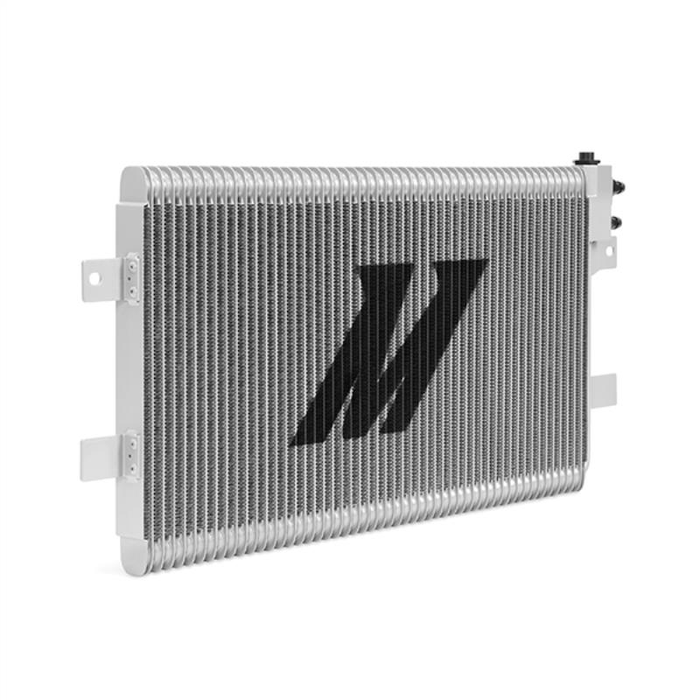

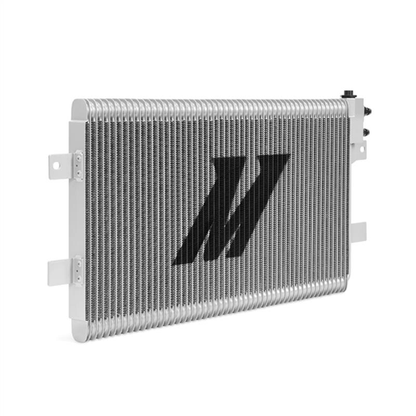

Mishimoto Dodge Ram 5.9L/6.7L Cummins Transmission Cooler (2003-2009)
Key Features
- Fits all 2003-2009 Dodge Ram 5.9L and 6.7L Cummins
- 212-percent Increase in core volume
- 244-percent Increase in fluid capacity
- Note: Coupons and discounts do not apply to items in pre-sale
There's no greater enemy for a transmission than heat. Whether your 2003-2009 Dodge Ram 5.9L/6.7L Cummins is a dedicated tow vehicle, hardworking fleet truck, or a daily driver with a liking for the drag-strip, you need to ensure that your transmission runs cool. Luckily, Mishimoto has developed a direct-fit transmission cooler to do just that. Our 2003-2009 Dodge Ram 5.9L/6.7L Cummins transmission cooler utilizes a stacked plate core for durable and powerful cooling. With a massive 212% greater core volume and 244% increase in fluid capacity, this trans cooler is a huge improvement over stock 2003-2009 Dodge Ram 5.9L / 6.7L Cummins transmission cooler.
The Mishimoto transmission cooler is not only larger than the stock cooler, but more reliable too. When the stock cooler's thermostat fails, it fails closed, bypassing the cooler and returning hot fluid to the transmission. Mishimoto has solved this common issue by making the thermostat in our 2003-2009 Dodge Ram Cummins transmission cooler fully serviceable and easily bypassed for constant cooling. A port located at the top of the cooler provides easy access to the thermostat for servicing in just a few minutes. Replacement thermostats can be purchased individually if needed; no more replacing the entire cooler if the thermostat fails. Owners in cold climates can still enjoy the fast warmup times that the thermostat provides, while owners in hot climates can choose to bypass the thermostat by replacing it with the supplied stainless-steel bypass plug.
To make this cooler even easier to install and service, Mishimoto saves you the hassle of removing seized fittings. The provided CNC-machined, stainless steel hose barb fittings let you cut to the chase, literally. These fittings and the supplied transmission cooler hose allow you to remove the quick-disconnect fittings and connect the stock soft-line to the Mishimoto cooler.
Like all Mishimoto products, this transmission cooler is backed up by our Lifetime Warranty with Accident Protection for worry free cooling as long as you own it.
More Information
| Rows | 48 |
|---|---|
| Core Length (in) | 26 |
| Core Height (in) | 10.94 |
| Core Thickness (in) | 0.87 |
| Applications | Applicable with 47RE, 48RE, and 68RFE Transmissions Dodge Ram 2500 I6 (5.9L) 2003-2007 Dodge Ram 2500 I6 (6.7L) 2007-2009 Dodge Ram 3500 I6 (5.9L) 2003-2007 Dodge Ram 3500 I6 (6.7L) 2007-2009 Dodge Ram 4500 I6 (6.7L) 2008-2009 Dodge Ram 5500 I6 (6.7L) 2008-2009 |
| Note | Patent #D912701 This kit requires cutting of the stock transmission cooler lines to remove the quick-disconnect fittings. Mishimoto provides CNC-machined stainless steel hose barb fittings to splice the supplied transmission cooler line with the stock soft lines. Please see installation instructions for more details. |
