Mishimoto Subaru WRX Front-Mount Intercooler Kit (2015+)
Includes taxes, duties, and fees globally.
Or 3 interest-free payments of £480.33
★★★★★ Verified
“Ordered at 9am, received at 9am the following day. A company that do as they say, and actually deliver in 24hrs.”
James, verified customer, Jan 2025
Check it fits before you buy
Send us your chassis code and we will confirm before you spend anything.
Ships today
In-stock parts ordered before 1pm are dispatched the same day.
We all get it wrong sometimes
Nobody is perfect. You can order the wrong thing and so can we. Whatever the issue, we put it right fast. Unsure? Email us and we will check the specs against your car.
We build these cars
Our team build and race in the motorsport and tuning scene, and our founder competes in pro drift in his own E46.
Full details
Mishimoto Subaru WRX Front-Mount Intercooler Kit (2015+)
Key Features
- Direct fit for the 2015-2021 Subaru WRX
- Will not fit right-hand drive (RHD) models unless the washer fluid bottle is removed or relocated

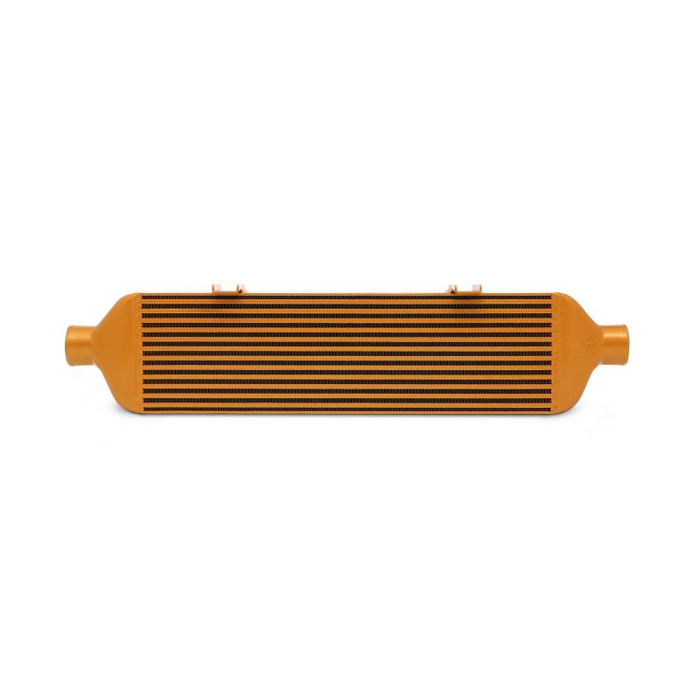

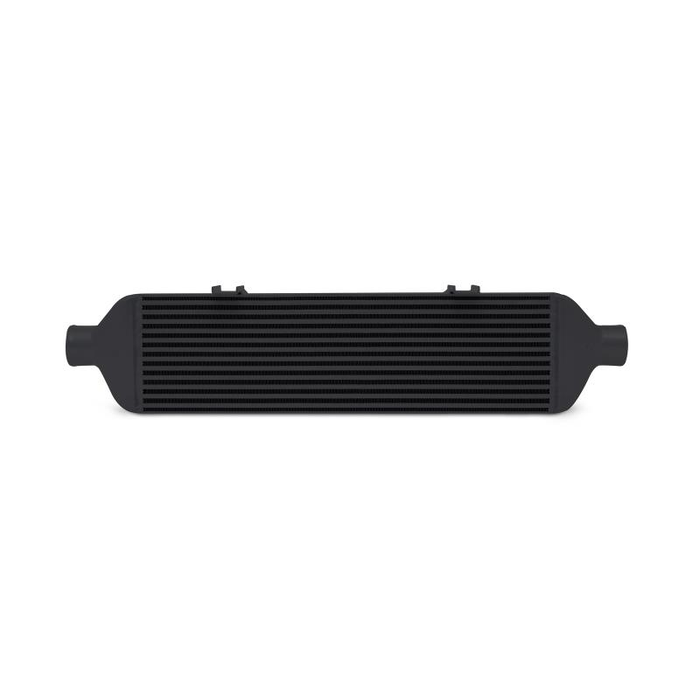

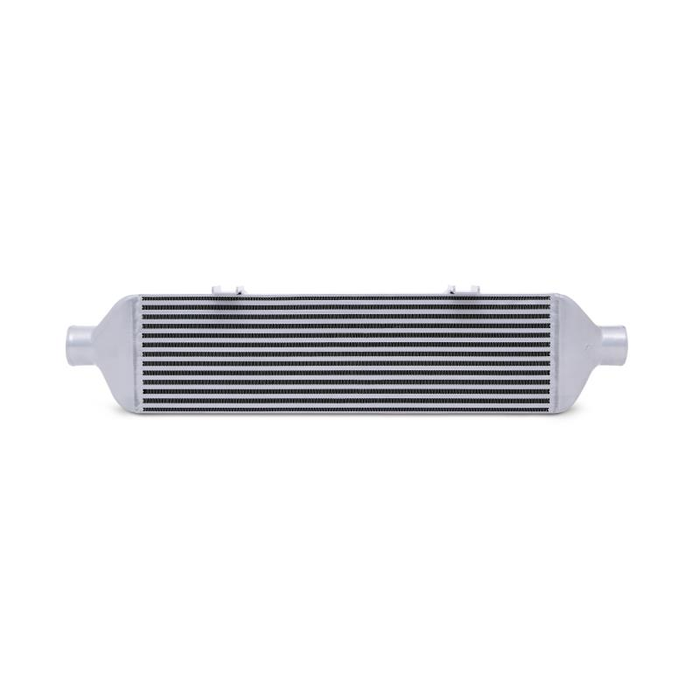

- 3.5" Thick intercooler design optimized for maximum flow
Here at Mishimoto, we've decided to expand our line of 2015-2021 WRX parts. Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto 2015-2021 WRX Front-Mount Intercooler Kit provides your 2015-2021 WRX with the ability to make the most horsepower and torque possible. This 2015-2021 WRX intercooler was designed with a large 28 intercooler core that provides the maximum cooling capability without excessive pressure drops that wear out any turbocharger over time. The Mishimoto 2015-2021 WRX front-mount intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends from cut-and-weld end tanks that disrupt airflow. The intercooler provides the best airflow and heat-exchange properties for those time-attack laps, or a 10-second blast down the quarter-mile.

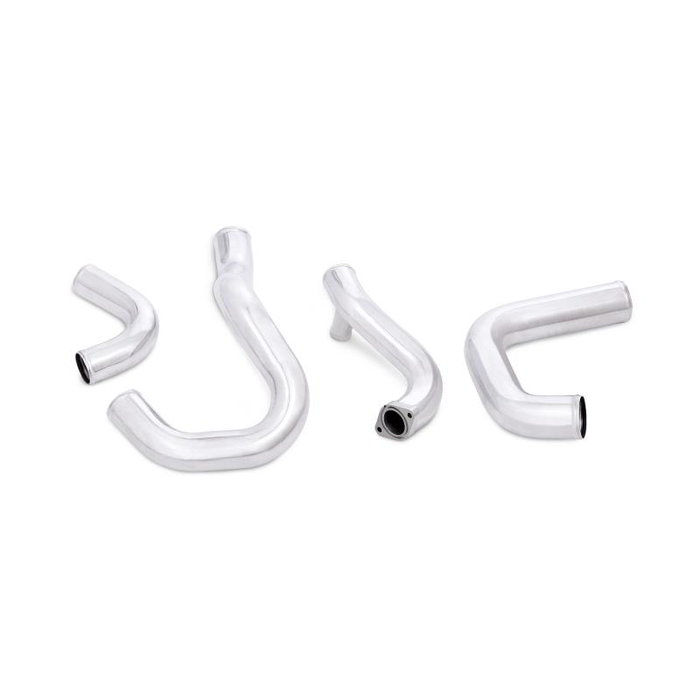

The Mishimoto Subaru WRX Front-Mount Intercooler also features four mandrel-bent aluminium pipes for optimum airflow. The hot-side pipes are 5.7 cm in diameter to keep airflow velocities high, giving your car an instant response without the excessive throttle lag that plagues many front-mount intercooler designs. The hot-side pipe also features a CNC-machined flange for a leak-free connection to the turbo. The cold side of the system features 6.35 cm to 6.9 cm mandrel-bent aluminium tubing for maximum airflow and to match the diameter of your throttle body.

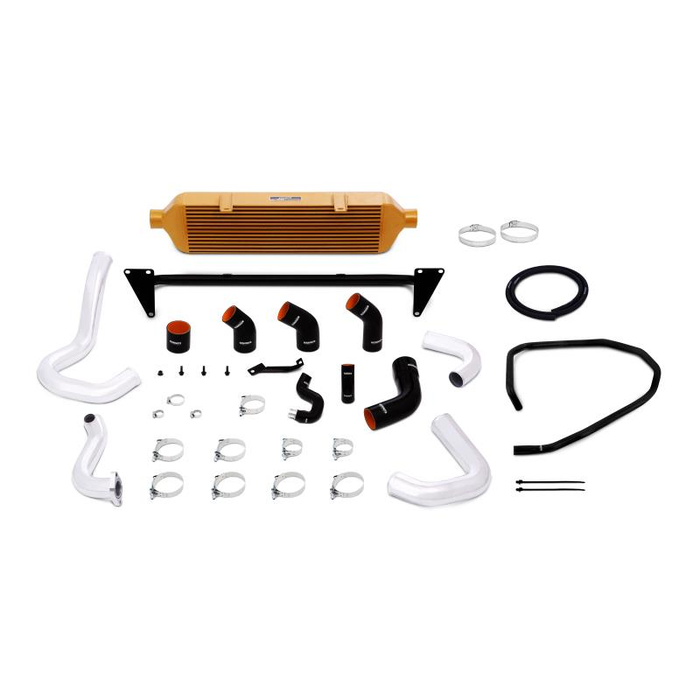

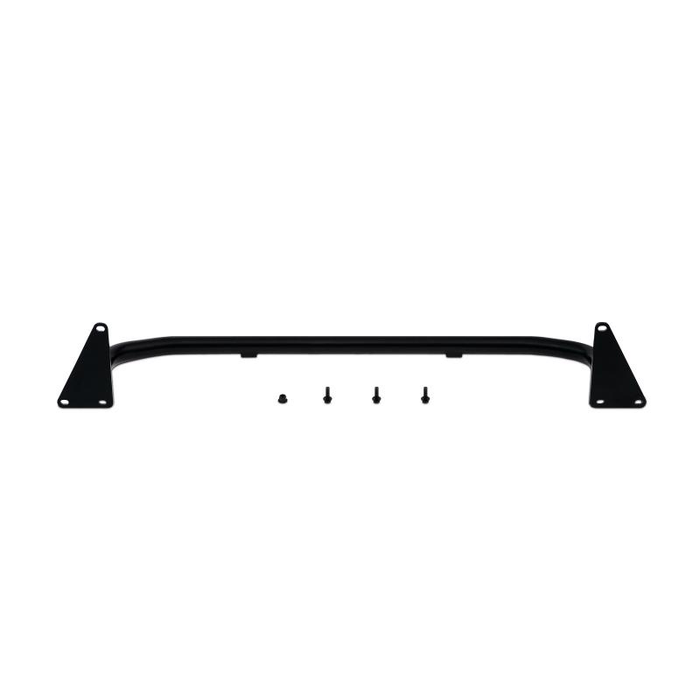

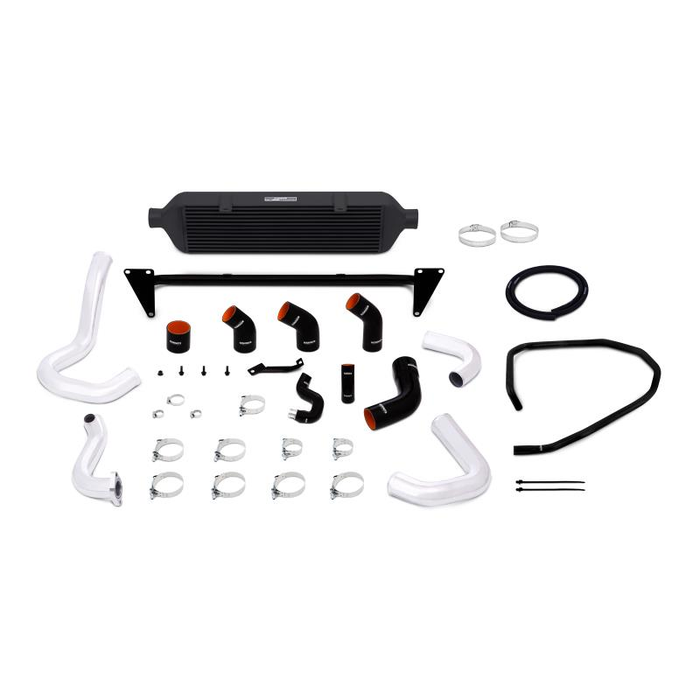

This 2015-2021 WRX front-mount intercooler kit contains everything needed for a worry-free installation, including an application-specific crash bar that both supports the intercooler and mounts to existing points on the vehicle. No cutting of the front bumper or drilling is required to install the crash bar and intercooler. The kit includes all necessary mounting brackets, including a new bracket for the air intake. Our 2015-2021 WRX front-mount intercooler kit also includes every coupler and clamp you need for a clean install, and complements the Mishimoto Subaru WRX Performance Air Intake for added cooling power.
Mishimoto tested this WRX intercooler on our Stage 2 265 whp 2015-2021 WRX to find significant drops in AITs (air intake temperatures), and it has also been flow tested to over 600 whp! The 2015-2021 WRX front-mount intercooler kit is available with either a Sleek Silver or Stealth Black cooler and, like all our 2015-2021 WRX parts, includes the Mishimoto Lifetime Warranty, ensuring superior Products quality and craftsmanship.
Worried that paint reduces performance? Check out our Painted Intercooler Engineering Report to learn how we debunked that myth!
More Information
| Applications | 2015-2021 Subaru WRX |
|---|---|
| Engine Codes | FA20DIT |
| Chassis Codes | VA |
| Note |
This kit does not fit with fog light equipped vehicles
Mishimoto recommends that this intercooler kit, not be used with the stock ECU programming. It is highly recommended that the customer be able to retune the vehicle's ECU after installing the intercooler kit. Power gains will vary depending on the size of the turbo, exhaust system, fuel system, and type of ECU tune that is applied to the vehicle. This kit is rated for approximately 600 whp during normal operating conditions. Maximum horsepower potential will be near 700 whp. Exceeding these horsepower or pressure limits could require a custom-size front-mount intercooler. This front-mount intercooler kit will not fit with the Mishimoto 2015+ WRX oil cooler kit This front-mount intercooler kit will not fit with the Mishimoto 2015+ WRX oil cooler kitThis kit is not compatible with some air-oil separator kits. |
| Maximum Recommended Boost Pressure (PSI) | 30 |
| Maximum Recommended Horsepower | 600 |
| Overall Length (in) | 37.7 |
| Overall Height (in) | 8.6 |
| Overall Width (in) | 5.4 |
| Core Type | Bar-and-Plate |
| Core Thickness (in) | 3.5 |
| Core Length (in) | 28 |
| Core Height (in) | 8.05 |
| Inlet (in) | 2.45 |
| Outlet (in) | 2.75 |
