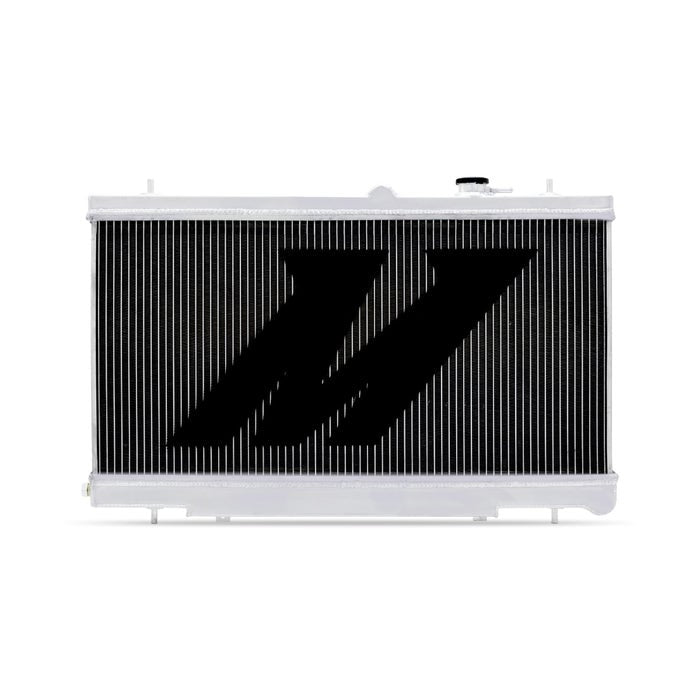

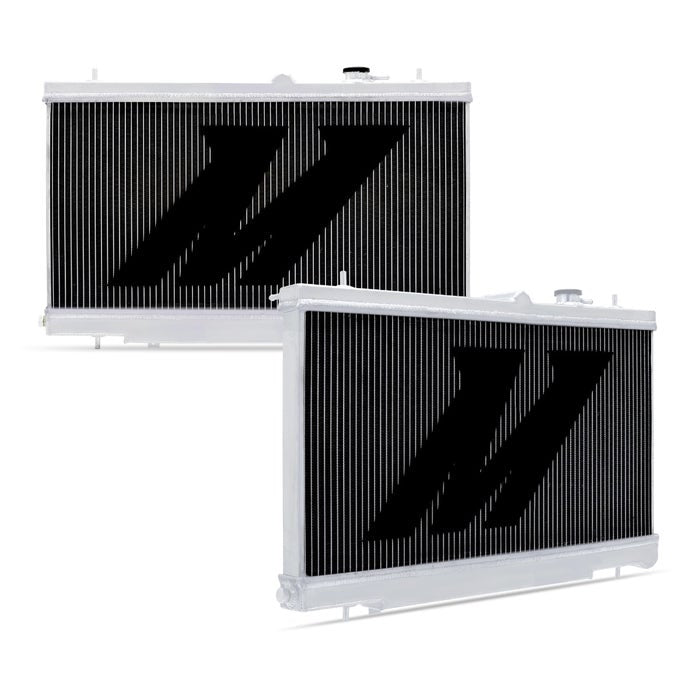

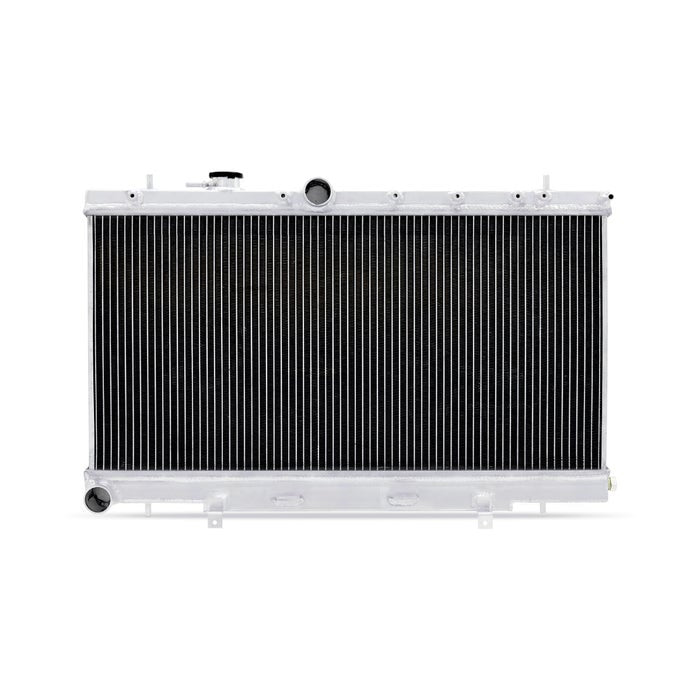

Mishimoto Subaru WRX/STI Aluminium Radiator (2001-2007)
Includes taxes, duties, and fees globally.
Or 3 interest-free payments of £106.00
★★★★★ Verified
“Ordered at 9am, received at 9am the following day. A company that do as they say, and actually deliver in 24hrs.”
James, verified customer, Jan 2025
Check it fits before you buy
Send us your chassis code and we will confirm before you spend anything.
Ships today
In-stock parts ordered before 1pm are dispatched the same day.
We all get it wrong sometimes
Nobody is perfect. You can order the wrong thing and so can we. Whatever the issue, we put it right fast. Unsure? Email us and we will check the specs against your car.
We build these cars
Our team build and race in the motorsport and tuning scene, and our founder competes in pro drift in his own E46.
Full details
Mishimoto Subaru WRX/STI Aluminium Radiator (2001-2007)
Key Features
- Full aluminium construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
- Manufactured with robust TIG-welded end tanks for improved strength and extended longevity
- 100% brazed aluminium core for maximum reliability
Whether you daily drive a stock STI or rallycross a modified WRX, an efficient cooling system is key to extending the life of your flat-four. The plastic end tanks of the stock radiator are especially prone to cracking from years of constant variation in temperature. A radiator failure can result in overheating, head gasket failure, and other engine damage that can quickly put an end to a fun day at the track. Protect your investment with the Mishimoto Performance Radiator, engineered specifically for the 2001-2007 Subaru WRX and STI. After identifying the radiator in these vehicles as a weak point, our engineers set out to provide an efficient, durable radiator that can take the abuse of competitive driving and provide the reliability you need for daily commuting.
The Mishimoto Subaru radiator features all-aluminium construction, which provides increased heat and pressure tolerance, improved heat dissipation, and improved cooling efficiency. The 100% brazed aluminium core and TIG-welded end tanks provide optimal durability and years of efficient and reliable service. This radiator is a complete bolt-in unit that replaces the factory radiator without requiring any modification to your Subaru. The Mishimoto Subaru Performance Aluminium Radiator includes a high-pressure 1.3 bar radiator cap. This cap effectively raises the boiling point of the coolant, thus providing a higher threshold for safe temperatures and resulting in a more efficient cooling system. Additionally, a second radiator cap is included for use on the expansion tank. This radiator provides a significant increase in coolant capacity, which allows for aggressive driving while retaining safe coolant temperatures. Keep your Subaru on the street and out of the shop with the Mishimoto Subaru WRX and STI Performance Aluminium Radiator. As with all our products, this radiator includes the Mishimoto Lifetime Warranty.
More Information
| Overall Length (in) | 28.4 |
|---|---|
| Overall Height (in) | 17.2 |
| Overall Width (in) | 2.15 |
| Core Length (in) | 27.24 |
| Core Height (in) | 13.54 |
| Core Thickness (in) | 1.65 |
| Fluid Capacity (gal) | 2.3 |
| Rows | 2 |
| Inlet (in) | 1.5 |
| Outlet (in) | 1.5 |
| Drain Plug Thread Size | M12 x 1.5 |
| DPI | 2703 |
| Applications | Saab 9-2X H4 (2.0L) 2005 Saab 9-2X H4 (2.5L) 2006 Subaru WRX H4 (2.0) 2002-2005 Subaru WRX H4 (2.5) 2006-2007 Subaru WRX STI H4 (2.5) 2004-2007 |
| Engine Codes | EJ205 EJ255 EJ257 |
| Chassis Codes | GD |
| Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit. |
| Coolant Capacity | 2.3 |
