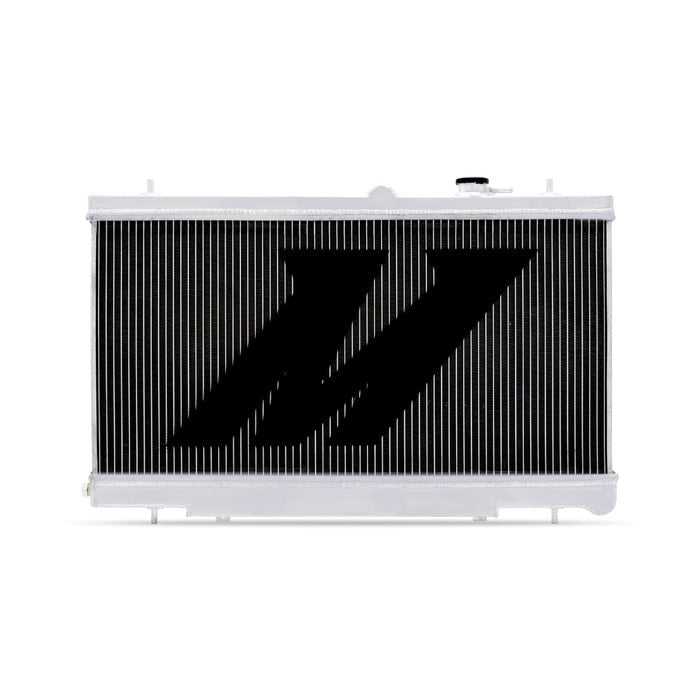

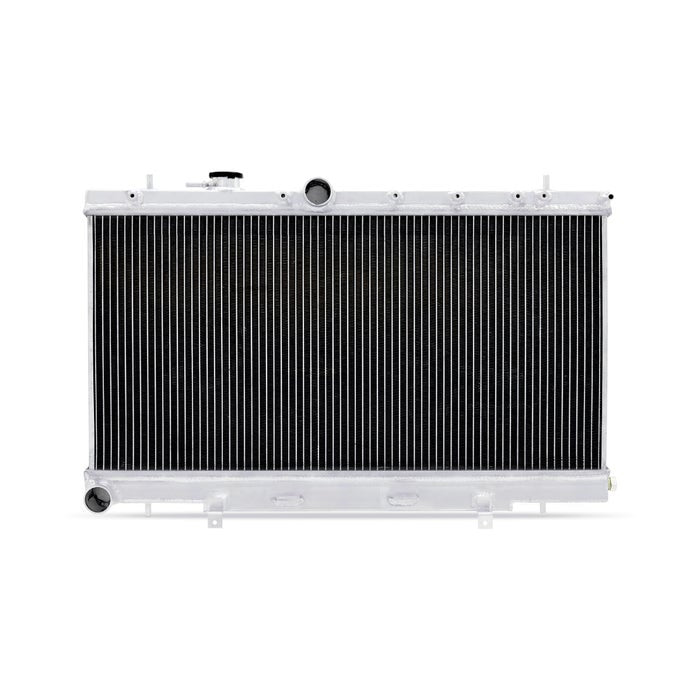

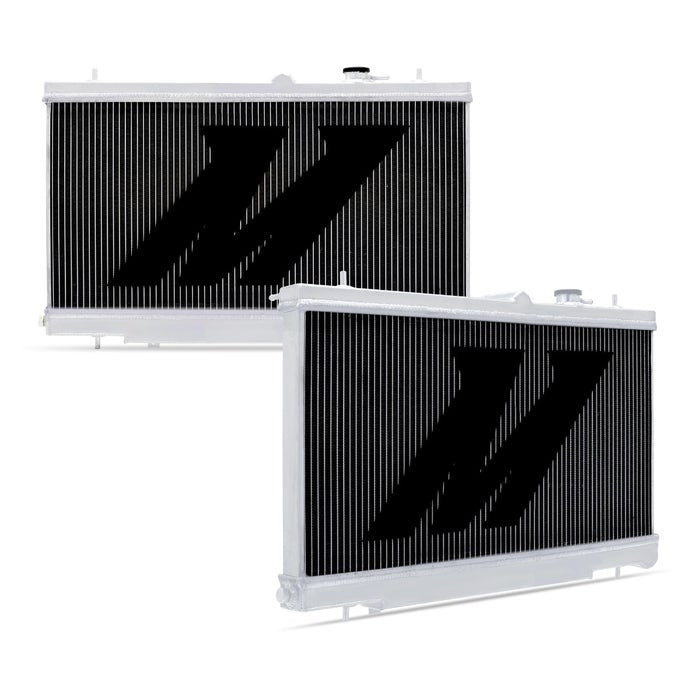

Mishimoto Subaru WRX/STI Aluminium Radiator (2001-2007)
Includes taxes, duties, and fees globally.
Or 3 interest-free payments of £135.60
★★★★★ Verified
“Ordered at 9am, received at 9am the following day. A company that do as they say, and actually deliver in 24hrs.”
James, verified customer, Jan 2025
Check it fits before you buy
Send us your chassis code and we will confirm before you spend anything.
Ships today
In-stock parts ordered before 1pm are dispatched the same day.
We all get it wrong sometimes
Nobody is perfect. You can order the wrong thing and so can we. Whatever the issue, we put it right fast. Unsure? Email us and we will check the specs against your car.
We build these cars
Our team build and race in the motorsport and tuning scene, and our founder competes in pro drift in his own E46.
Full details
Mishimoto Subaru WRX/STI Aluminium Radiator (2001-2007)
Key Features
- Large three-row aluminium core provides additional coolant capacity, substantial coolant surface contact, and optimal coolant temperatures even in the most demanding environments
- Full aluminium construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency · Manufactured with robust TIG-welded end tanks for improved strength and extended longevity
- Increased coolant capacity directly results in improved cooling efficiency
When properly maintained, the Subaru flat-four is well known for its substantial power and impressive reliability. Proper regulation of coolant temperature is key to extending the life of your EJ-powered Subaru. Highly modified turbocharger setups and aggressive driving can result in high temperatures, which increases wear on internal engine components. The X-Line Performance Aluminium Radiator is engineered specifically for the 2001-2007 Subaru WRX and STI and features a large three-row core and full aluminium construction. This design yields optimal temperatures even in the most demanding environments.
This radiator also features a 100% brazed aluminium core with TIG-welded end tanks for increased durability, longevity, and a substantial increase in coolant capacity. The large three-row core enhances surface contact, resulting in improved efficiency, improved heat transfer, and lower engine coolant temperatures for your Subaru. The Mishimoto Subaru WRX and STI radiator includes a high-pressure 1.3 bar radiator cap, which effectively raises the boiling point of coolant to create a safer and more efficient system. Additionally, a second radiator cap is included for use on the expansion tank. Included with this radiator is a Mishimoto magnetic drain plug that removes metal fragments circulating in the coolant system, thus further protecting your engine. Whether you are looking for a reliable stock replacement radiator or a heat exchanger efficient enough for track abuse, the Mishimoto Subaru WRX and STI X-Line Performance Aluminium Radiator is an ideal choice. As with all our products, this radiator is backed by the Mishimoto Lifetime Warranty.
More Information
| Overall Length (in) | 17.2 |
|---|---|
| Overall Height (in) | 28.4 |
| Overall Width (in) | 2.5 |
| Core Length (in) | 13.54 |
| Core Height (in) | 27.24 |
| Core Thickness (in) | 2 |
| Rows | 3 |
| Inlet (in) | 1.5 |
| Outlet (in) | 1.5 |
| Drain Plug Thread Size | M12 x 1.5 |
| DPI | 2703 |
| Applications | Saab 9-2X H4 (2.0L) 2005 Saab 9-2X H4 (2.5L) 2006 Subaru WRX H4 (2.0) 2002-2005 Subaru WRX H4 (2.5) 2006-2007 Subaru WRX STI H4 (2.5) 2004-2007 |
| Engine Codes | EJ205 EJ255 EJ257 |
| Chassis Codes | GD |
| Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit. |
