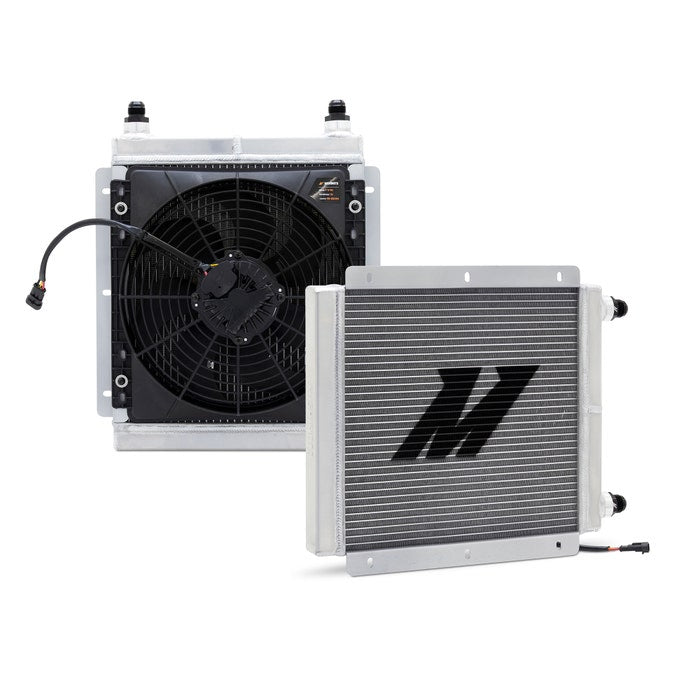

Mishimoto Universal Heat Exchanger Kit With Integrated 12" Brushless Fan
Key Features
- Universal design can be set up to cool EV applications, coolant, oil, and more

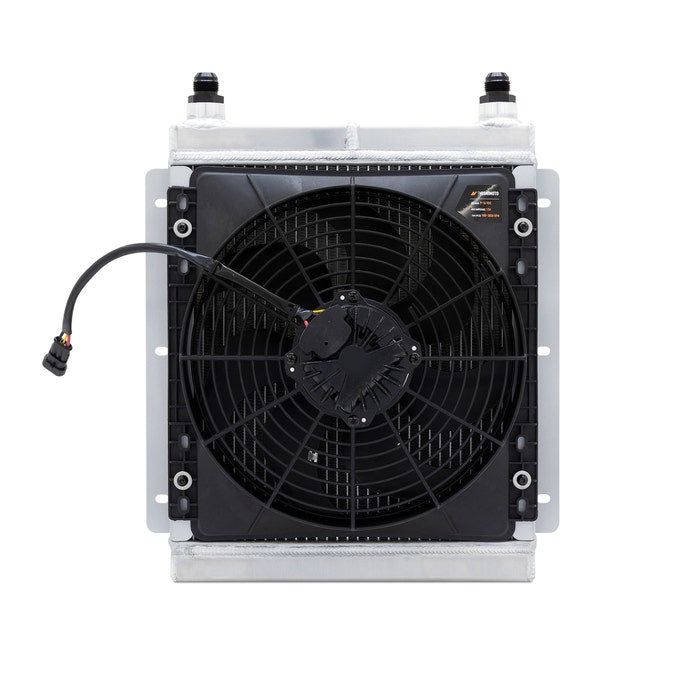

- Includes 12” brushless fan rated for 1177 CFM with integrated shroud for superior heat dissipation
- Compatible with our Universal PWM Fan Controller

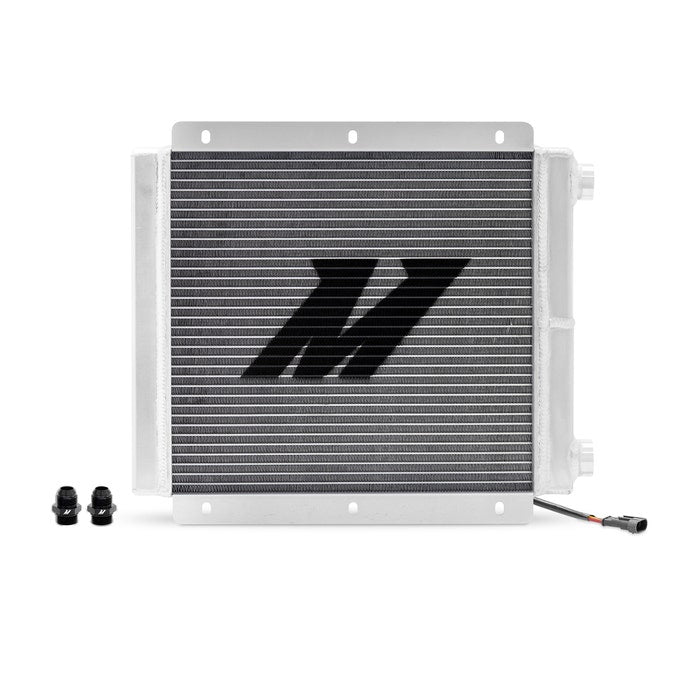

Handle your cooling needs with confidence using the Mishimoto Universal Heat Exchanger Kit. Designed to support a wide range of applications, this heat exchanger is the perfect solution for electric vehicle systems, coolant systems, oil cooling, and more. It features a high-efficiency tube-and-fin core engineered to handle high pressure while delivering reliable, long-term performance. A powerful 12” brushless fan rated for 1,177 CFM comes pre-mounted in an integrated shroud to ensure optimal airflow and superior heat dissipation in even the most demanding environments. This system is fully compatible with our Universal Fan Controller for precise thermal management. All necessary hardware and mounting brackets are included, and this heat exchanger comes back by the Mishimoto Lifetime Warranty, so you can buy with peace of mind.
More Information

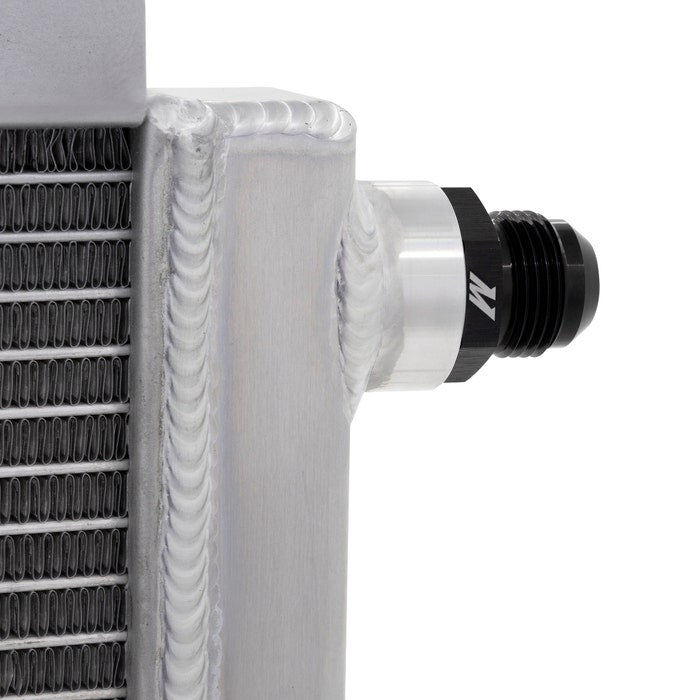

| Outlet | 1 1/16"-12 ORB |
|---|---|
| RPM | 900 - 3050 |
| CFM | 1177 |
| Amp Draw (Start) | 1 |
| Inlet | 1 1/16"-12 ORB |
| Amp Draw (Running) | 9.2 |
| Overall Length (in) | 18.1 |
| Overall Height (in) | 16.2 |
| Overall Width (in) | 3.76 |
| Core Construction | Tube-and-Fin |
| Core Length (in) | 14.2 |
| Core Height (in) | 13.7 |
| Core Thickness (in) | 1.9 |
| Rows | 34 |
| Note | 100psi working pressure |
| Max Amps | 12 |
| Voltage | 9-16 VDC |
