Nuke Performance Ferrari F430 F136 Fuel Rail
Includes taxes, duties, and fees globally.
Or 3 interest-free payments of £163.63
★★★★★ Verified
“Ordered at 9am, received at 9am the following day. A company that do as they say, and actually deliver in 24hrs.”
James, verified customer, Jan 2025
Check it fits before you buy
Send us your chassis code and we will confirm before you spend anything.
Ships today
In-stock parts ordered before 1pm are dispatched the same day.
We all get it wrong sometimes
Nobody is perfect. You can order the wrong thing and so can we. Whatever the issue, we put it right fast. Unsure? Email us and we will check the specs against your car.
We build these cars
Our team build and race in the motorsport and tuning scene, and our founder competes in pro drift in his own E46.
Full details

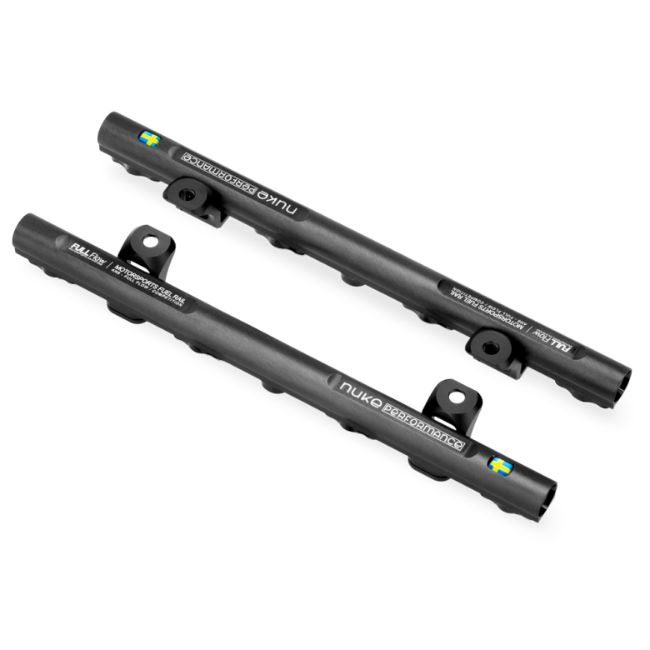

Nuke Performance Ferrari F430 F136 Fuel Rail
Nuke Performance fuel rail for the Ferrari 8cyl F430 F136 engine, oversized internals, lightweight design, and equipped with our unique injector safety clips.
The Ferrari 8cyl F430 fuel rail is delivered with brackets for the Ferrari V8 F430 F136 OEM intakes and allows you to go with AN fuel lines and aftermarket injectors for your Ferrari engine. A set of aftermarket fuel rails for a Ferrari engine is not something you see every day, but sometimes a customer request is to wild to not jump straight on.
Lightweight fuel rail that fits Ferrari F136 V8 OEM intake
To be used with Bosch EV14L type injectors
AN-8 ORB threads in both ends enable a high fuel flow
Delivered with brackets for easy mount to the OEM Ferrari intake
AN-6 ORB side outlet/inlet for optional applications
Safe for all types of fuels, including alcoholic fuels such as E85
The Nuke Performance's newest generation of fuel rails grants an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that fuel rails from Nuke Performance have become famous for, which grants a leakproof seal even during a crash where the fuel rail would get torn out of the intake manifold.
Perfect fitment for the Ferrari 8cyl F430 engine, delivered with the needed hardware to mount to the OEM intake.
The Nuke Performance Ferrari 8cyl F430 fuel rail is delivered with brackets for the F136 engine from Ferrari, used by Ferrari and Maserati.
Ferrari F430 2004-2009
Ferrari F430 Spider 2005-2009
Ferrari 430 Scuderia 2007-2009
Ferrari 430 Scuderia Spider 16M 2008-2009
Maserati F136 Granturismo 2007-2019
Maserati F136 Quattroporte V 2003-2012
AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters to choose from.
The fuel rail uses AN-8 ORB threaded fittings for each end and offers an additional side port with AN-6 ORB thread. We provide various fittings and our low-profile full-flow banjo fittings for a space-efficient installation.
AN-8 ORB main ports and AN-6 ORB side port
The fuel rail is delivered with two AN-6 ORB Plugs for the side port but the main port fittings are sold as accessories.
AN-8 ORB to AN-6 Male Part # : 700-04-104
AN-8 ORB to AN-8 Male Part # : 700-04-105
AN-8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB Plug Part # : 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129
All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
One distinctive feature of Nuke Performance is its use of injector safety clips, designed to uphold a flawless seal for injectors even under the strain of extreme fuel pressure.
Ensures a safe and secure seal even during extreme fuel demands
Whether during assembly, engine installation, or in the unfortunate event of an accident, these clips ensure the injectors remain securely attached to the rail. This design prevents any fuel spillage, even in scenarios where the fuel pump continues to run or there is residual pressure in the fuel system.
Designed, and developed in Sweden, guaranteeing the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Ferrari 8cyl F430 fuel rail is of the highest possible quality and has the same hallmark as all the other lightweight motorsports products from Nuke Performance. The parts from Nuke Performance are co-developed with worldwide motorsports teams making sure that functionality, as well as the design, meets the absolute highest standards, or even creating a standard of its own.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.
There is no substitute for the quality of Nuke Performance.
Nuke Performance Ferrari 8cyl F430 fuel rail Specifications:
For more information about specifications, view the product sheet.
| Delivered with brackets for |
Ferrari F430 2004-2009 Ferrari F430 Spider 2005-2009 Ferrari 430 Scuderia 2007-2009 Ferrari 430 Scuderia Spider 16M 2008-2009 Maserati F136 Granturismo 2007-2019 Maserati F136 Quattroporte V 2003-2012 |
| Injector type specification | Bosch EV14 L style |
| End inlet/outlet threads | AN-8 ORB (view assortment) * |
| Additional port thread | AN-6 ORB (view assortment) * |
| Length | 357.00mm (14.05") / each |
| Height | 32.00mm (1.25") |
| Weight | 320.00g (11.29oz) / each |
| Fuel compatibility | Petrol, Gasoline, Ethanol, E85, E100, Methanol |
| For motorsports use | YES |
| Part # | 120-12-101 |
| EAN | 7340209509380 |
* not included, make sure to select the needed fittings when placing an order
Nuke Performance Ferrari 8cyl F430 fuel rail includes:
2 x AN-8 ORB Full Flow fuel rail profile for Ferrari F430 engine
4 x Aluminum brackets for Ferrari F430 engine
2 x AN-6 ORB Plug
8 x Nuke Performance Injector safety clips
16 x MC6S M4x6mm stainless steel bolts
8 x K6S M6x10mm stainless steel bolts
Download Product Sheet (.pdf)
Accessories / Spare Parts
The fuel rail is delivered without fittings and injectors, these need to be purchased as accessories.
