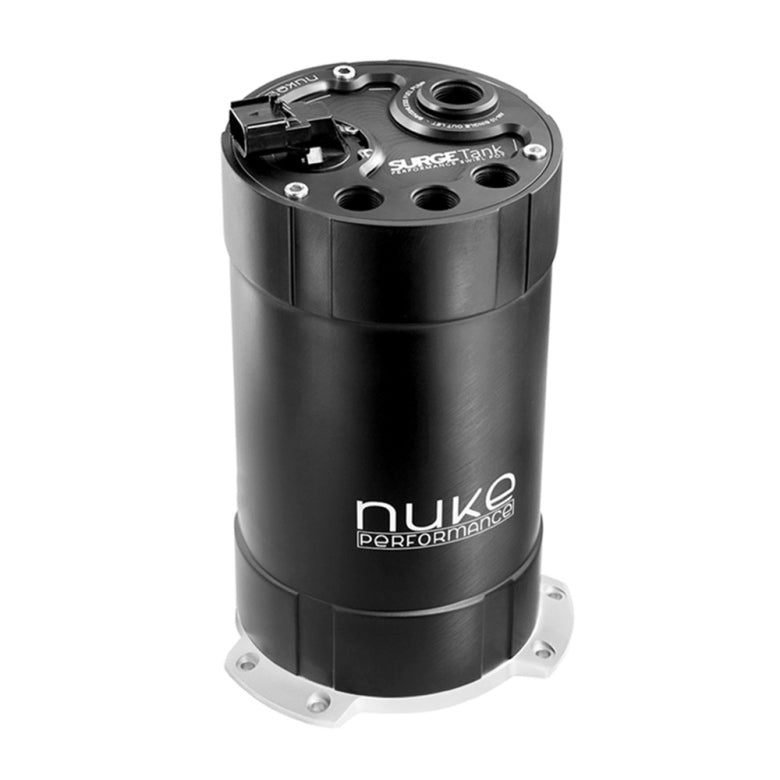

Nuke Performance Surge Tank Unit For Walbro Internal Pumps
The Nuke Performance popular 2nd generation Fuel Surge Tank, specially developed for use with brushless fuel pumps, such as Protec Cobra Compact and Deatschwerks DW440 Brushless.
This new updated version is the first of its kind specially developed and designed to mount a single or dual setup of in-tank brushless fuel pumps. A single oversized AN-10 ORB outlet lets you use a single fuel line straight out of the surge tank, even when using a dual internal setup.
An extremely lightweight motorsports surge tank
Fits a single or dual brushless in-tank fuel pumps
3.0 liter surge tank capacity
6-pin bulkhead electrical connector
Safe for all types of fuels, including E85 and E100
Single AN-10 ORB outlet, for a trouble-free installation
The Nuke Performance 2G fuel surge tank lets you combine two internal fuel pumps into one AN-10 outlet. This Fuel Surge Tank is able to deliver steady fuel flow even over 2000hp. This setup is everything you need to be combined into a space-efficient and power-efficient solution and design.
Accommodates single or dual internal high-pressure brushless fuel pumps, fewer amps, less heat, and colder fuel.

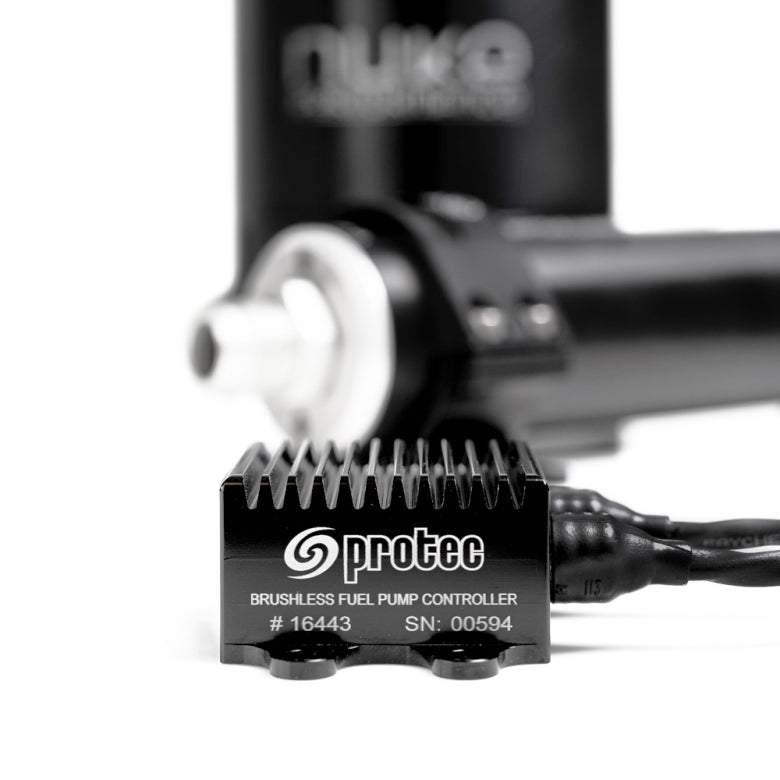

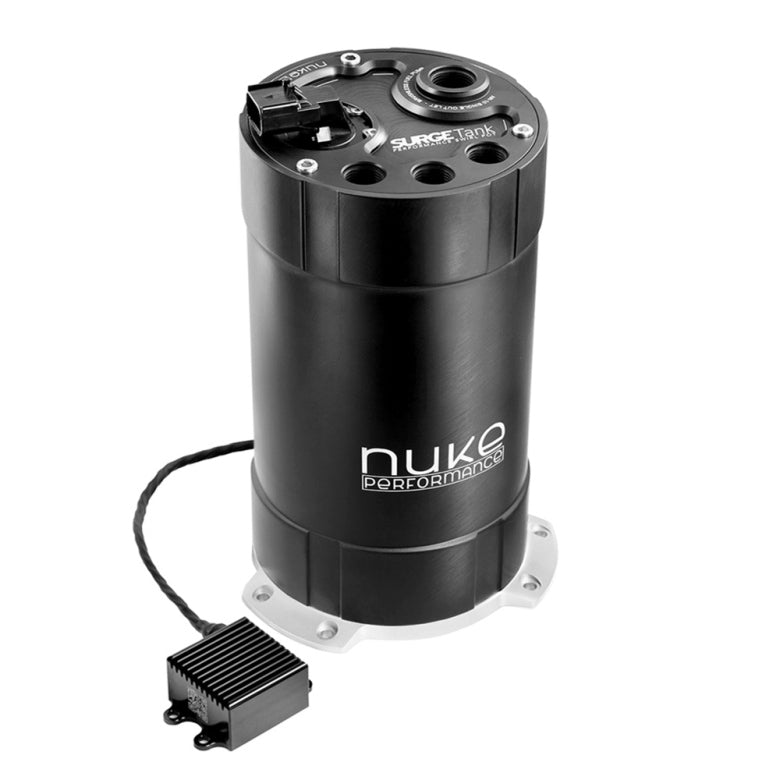

The Nuke Performance 2G Fuel Surge Tank 3.0 liter for brushless fuel pumps is designed to utilize one or two brushless fuel pumps within the surge tank while the controllers sit on the outside.
Less heat, fewer amps, lower fuel temperature
Control your fuel flow and pressure with PWM
The use of a 6-pin connector lets you use a single or dual brushless fuel pump with the classic Nuke Performance surge tank and is offered together with a range of brushless fuel pumps that suit our surge tank without any further modification.

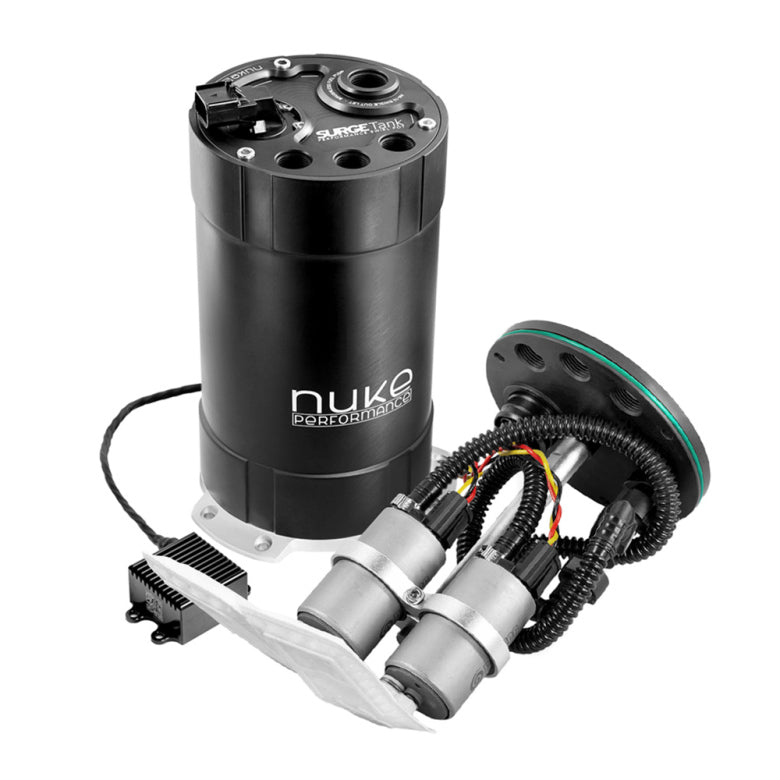

Fits a single or dual internal brushless fuel pump, mounted securely with the billet fuel pump bracket.
The fuel surge tank for brushless fuel pumps uses a billet internal fuel pump bracket and fits a single or dual brushless fuel pump. As brushless fuel pumps use more connectors this surge tank is equipped with a 6-pin bulkhead connector that lets you connect one or two brushless fuel pumps within the surge tank.
Fits 1-2 x Deatschwerks DW440, and the new extreme DW810
Fits 1-2 x Protec Cobra Compact brushless
Fits 1-2 x Most common 39mm OD fuel pumps
Safe for all types of fuel, including alcoholic fuels such as E85
The surge tank for brushless fuel pumps is developed for use with the Protec Brushless Cobra Compact and Deatschwerks DW440 Brushless fuel pumps. Combined with the Nuke Performance fuel pump mounting kits, setting up a high-performance fuel system has never been as easy.
DW440 Brushless 440 LPH (40 PSI, 13.8v), 620 LPH (40 PSI, 20v)
It also fits common 39-mm fuel pumps, but as these fuel pumps use more amps it's recommended to use one of the other surge tank models from Nuke Performance that is available with the fail-proof 6-mm connectors.
Why do I need a surge tank and how does a fuel surge tank work?
The 2G Fuel Surge Tank 3.0 liter for brushless fuel pumps works as a buffer so the fuel pumps are always supplied with fuel for high outputs as the return line from your engine routs straight back into the fuel surge tank, it stays full at all times, providing the fuel pumps with sufficient fuel at all times.
When using an external surge tank you minimize the risk of fuel starvation when running at a low fuel level and the fuel pumps experience fuel loss caused by intense driving. With this setup, you can rely on maximum fuel delivery, a safe solution for your engine, even when the conditions are as demanding as they get within motorsports. With this external surge tank, you are able to mount high-pressure in-tank fuel pumps without more extensive customization of your stock fuel tank and don't need to worry about failing fuel delivery.
For more info about how a fuel surge tank work, visit our FAQ (available here).
How do I mount the brushless fuel pumps within the Fuel Surge Tank?
The Fuel Surge Tank is delivered with everything you need to install the fuel pumps of your selection, but we recommend adding one of our fuel pump mounting kits for optimal functionality and for a trouble-free, and service-friendly installation. The fuel pumps are securely mounted within the surge tank in all conditions thanks to the billet fuel pump bracket and the included bracket inserts that let you install a wide variety of different fuel pumps into this versatile surge tank.
Our wide variety of fittings and fitment possibilities suits your every need for fuel delivery within an aftermarket fuel system.
The Nuke Performance 2G Fuel Surge Tank 3.0 liter for brushless fuel pumps is equipped with ORB threaded inlet and outlet ports. The AN-10 ORB outlet port and the AN-8 ORB inlet, return, and overflow ports let you choose from a wide range of different available ORB fittings. The use of the oversized, high-flow AN-10 ORB outlet combines the internal fuel pumps into one single fuel line and minimizes the need for external equipment, hoses, and fittings. Outlet, inlet, overflow, and return AN-6, AN-8, AN-10, and AN-12 fittings are sold separately as accessories.
Developed, designed, and made in Sweden with high demands from worldwide motorsports.
Developed and designed in Sweden, in-house by Nuke Performance. The 2G fuel surge tank lineup is of the highest possible quality and with the same hallmark as all the other lightweight motorsports products from Nuke Performance. The parts from Nuke Performance are co-developed with worldwide motorsports teams, making sure that functionality, as well as the design, meets the absolute highest standards, or even making its own standard.
There is no substitute for the quality of Nuke Performance.

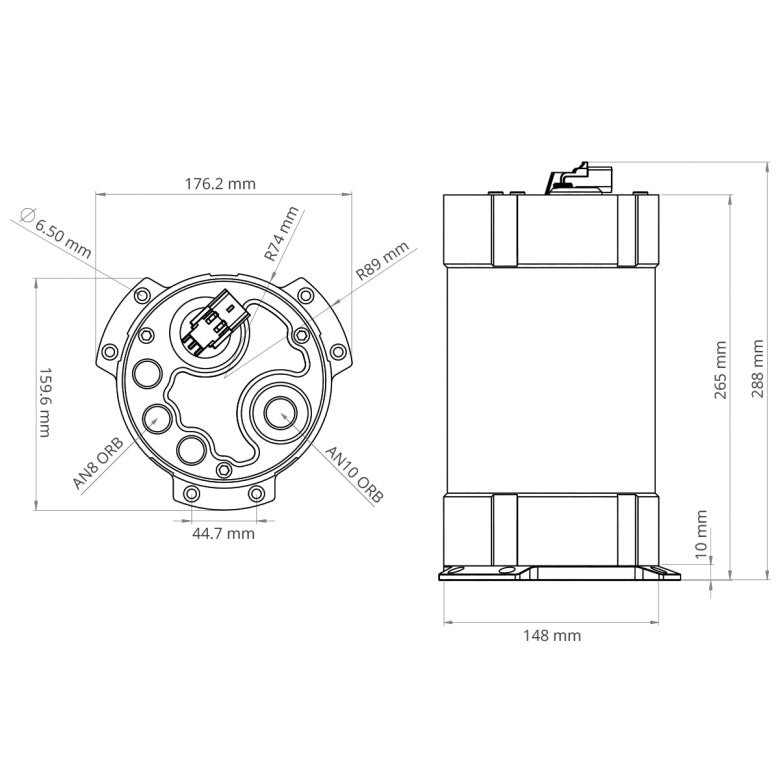

Fuel Surge Tank Specifications
For more information about functionality, view the FAQ guide.
| Part # | 150-01-401 |
| Length | 265mm (10.43”) |
| FST diameter | Ø 148mm (5.82”) |
| Bracket diameter | Ø 178mm (7.00”) |
| Mounting points | 3 x M6 (Ø 6.5 mm / 0.25") |
| Surge tank volume | Approximately 3.0 liter (0.79 gallons) |
| Weight | 2780g (6.12lb) |
| Fits # of high-pressure pumps | 1-2 x brushless in-tank fuel pumps |
| Outlet port, thread | AN-10 ORB |
| Inlet / Return / Overflow | AN-8 ORB |
| Fits fuel pump diameters | 39mm / 42mm / 46mm * |
| Electrical connector | 6-pin bulkhead connector |
| - connector points | x6 (max ≈30 ampere / each **) |
| Fuel compatibility | Gasoline, Petrol, Methanol, Ethanol, E85 |
| For motorsport use | YES |
| EAN | 7340209505993 |
* included bracket inserts for different-sized fuel pumps
** for reference only
Fuel Surge Tank for brushless fuel pumps includes:
1 x 3.0 liter fuel surge tank

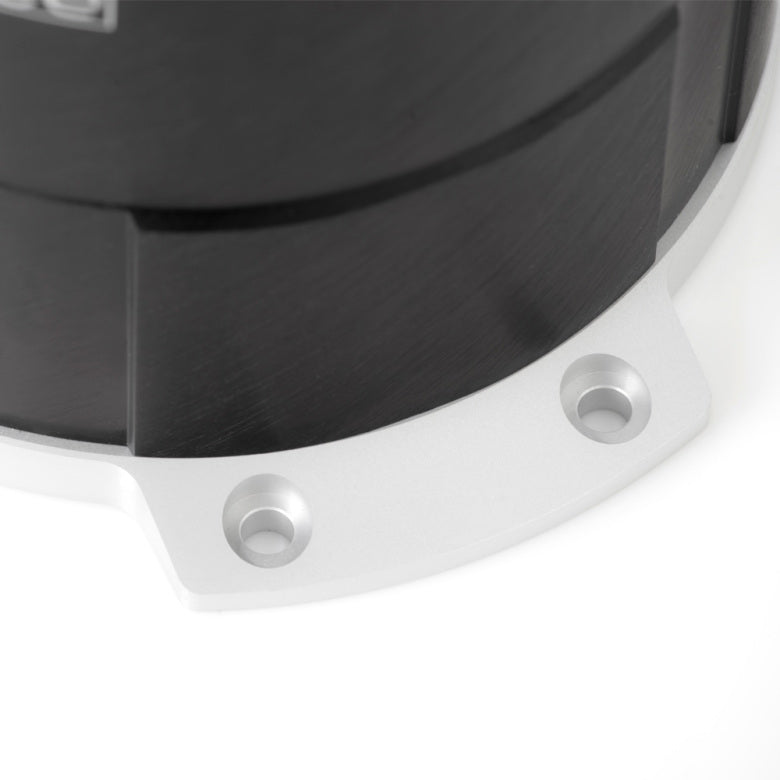

1 x 6 bolt pattern aluminum mounting bracket
1 x Billet aluminum mounting bracket for 1-2 x fuel pumps
1 x 6-pin male bulkhead connector
2 x 6-pin female connectors
2 x 42mm bracket inserts for 42mm diameter fuel pumps
2 x 39mm bracket inserts for 39mm diameter fuel pumps
2 x 1/4 BSPP to 8mm Barb (fuel hose) fitting
1 x 1/4 BSPP Plug (for single fuel pump use)
Accessories / Spare Parts
Assembly documentation (.pdf)
FAQ - How does a Fuel Surge Tank work?
No fuel pumps are included with the Fuel Surge Tanks
The Nuke Performance fuel surge tanks are delivered without fuel pumps, if needed you select the preferred fuel pumps in our selection menu or see the fuel pumps bellow
