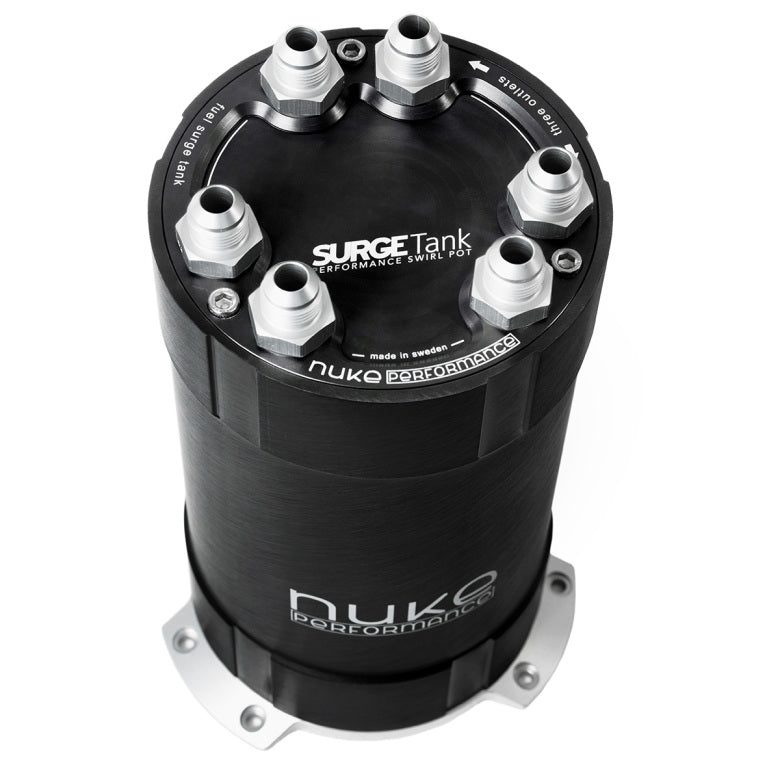

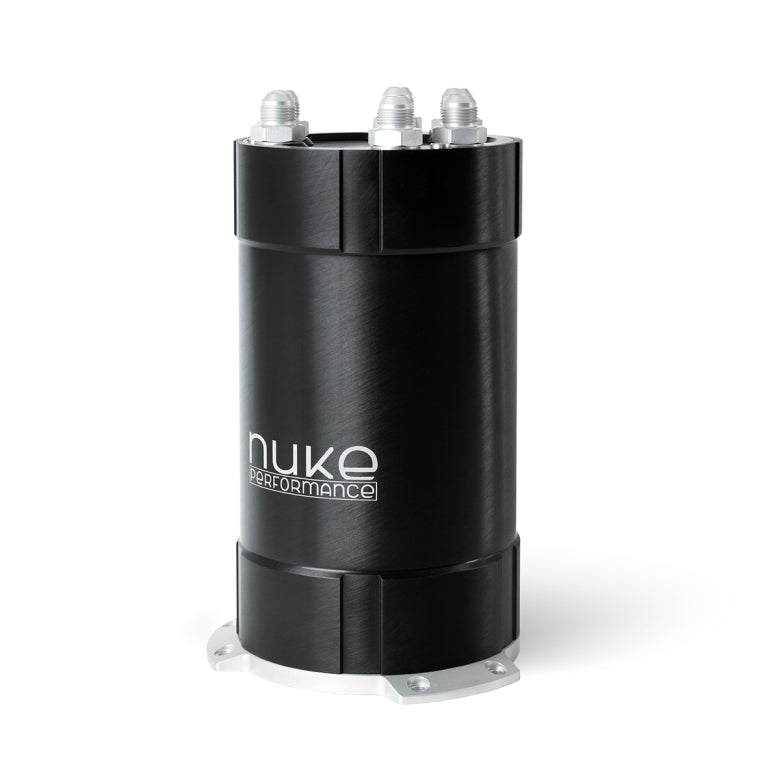

Nuke Performance Surge Tank Unit For External Pumps - 3L
The 2nd generation Nuke Performance 3.0 liter Fuel Surge Tank for external fuel pumps, now with three outlets for up to three external fuel pumps. Top-quality combined with outstanding performance.
This new updated version is developed and designed to handle up to three external fuel pumps, each with separate fuel supply from the surge tank where every fuel pump uses its own AN-8 outlet that lets you choose from various setups.
Lightweight motorsports surge tank
For a single, dual or triple high-pressure fuel pump
Every fuel pump has its own AN-8 surge tank outlet
3.0 liter surge tank capacity
Made in Sweden
100% Safe for all type of fuels
Delivered with AN-8 to AN-8 Male fittings
With the ability to mount up to three external high-pressure fuel pumps, this over-sized fuel surge tank is ready to deliver steady fuel flow for all setups even over 1800hp. This new version is able to handle three individual external fuel pumps with its 3 x AN-8 (3/4 UNF) outlet fittings.
Choose between single, dual or triple external fuel pump setup
Run one, two or three external fuel pumps with full fuel supply from this oversized 3.0 liter surge tank. All three fuel pumps get its fuel from the bottom of the surge tank with the internal fuel pickup pipes. Designed and manufactured to handle extreme amounts of power with the same hallmark as all of Nuke Performance products.
For popular external in-line fuel pumps
This is a perfect solution to use in combination with external high-pressure fuel pumps such as Deatschwerks DW250il, Deatschwerks DW350il, Bosch 044, AEM 400L, AEM 380L, Aeromotive A750, and many more. This fuel surge tank is also the perfect solution for those who run a mechanical fuel pumps or an in-line brushless fuel pump from Aeromotive, Protec, Fuelab and many more, that is mounted in-line.
High flow thanks to it over-sized AN-8 outlets for all needs
The 2G Fuel Surge Tank 3.0 liter for external fuel pumps uses 6x AN-8 (3/4 UNF) ports and is delivered with 6 x AN-8 (3/4) to AN-8 Male fittings and 2 x AN-8 (3/4 UNF) Plugs (for those two choose to run one or two external fuel pumps). With this setup, you are able to deliver extreme fuel flow to your engine and thanks to the fuel surge tanks over-dimensioned 3.0 liter design you will have enough fuel at all conditions and at all times.
The 2G Fuel Surge Tank 3.0 liter for external fuel pumps works as a buffer so the fuel pumps are always supplied with fuel for high outputs as the return line from your engine routs straight back into the FST, it stays full at all times.
Mount your fuel pumps with the Nuke Performance brackets
The lightweight universal brackets from Nuke Performance fits most external fuel pumps and is delivered with 60mm inserts for fuel pumps such as Bosch 044, Deatschwerks 250il, Deatschwerks 350il, AEM 380 LPH and many more fuel pumps in the same size. There is also a 55mm and a 43mm insert available as accessories for other in-line fuel pumps such as the popular Ti Automotive Walbro GSL392. The bracket is available in a single and dual version and is extremely lightweight and let you rely on your installation when pushing your car beyond known limits.
How does a fuel surge tank work and how does it flow?
Your stock fuel pump or your aftermarket lift fuel pump within your stock fuel tank or your aftermarket fuel cell functions as a pickup fuel pump that fills the surge tank and ensures that there its full of fuel to maximize fuel flow and minimize the risk of starvation that can seriously harm your in-line fuel pumps and your engine. For more information, visit our guide that explains it even more.
Available in various setups to fill your every possible need
Our Fuel Surge Tank is available in several different setups, each one designed to perform to the maximum. It comes with a billet aluminum mounting bracket with a six-bolt pattern making a secure fitment in any installation. They are available for external fuel pumps but also for internal in-tank fuel pumps. Depending on which setup you choose they come with a various number of electrical connects, but regardless of the model, it is always equipped with our over-dimensioned electrical connectors that can manage x10 the current used. The Surge Tanks for external fuel pumps is available in two sizes, a 3.0 liter version and a smaller 2.0 liter version to suit installations where space is an issue.
Delivered with 6 x AN-8 fittings and plugs for all setups possible
Delivered with a billet aluminum mounting bracket for effortless mounting and 6 x AN-8 (3/4 UNF) to AN-8 Male fittings and 2 x AN-8 (3/4 UNF) Plugs to use when running 1 or 2 fuel pumps and want to block the left-over outlets. Other sized fittings are sold separately as accessories.
Developed with high demands from motorsports
Co-developed with worldwide motorsports teams, this fuel surge tank is set to perform under all conditions and for any horsepower requirement. Used in all type of motorsports such as drag racing, drifting, GR racing, time attack and rally where external fuel pumps are very popular thanks to its easy serviceability. Designed to stand up to the destructive properties of alcohol fuels, including methanol and ethanol.
Made in Sweden, guaranteeing the highest possible quality
The 2G Fuel Surge Tank 3.0 liter for external fuel pumps are developed, designed and manufactured by Nuke Performance for the highest possible quality and with the same hallmark as all the other parts in the lightweight motorsports range. There is no substitute for the quality of Nuke Performance!
Fuel Surge Tank for external fuel pumps includes:
1 x 3.0 liter fuel surge tank
1 x 6 bolt pattern aluminum mounting bracket
6 x AN-8 (3/4 UNF) to AN-8 Male fittings
2 x AN-8 (3/4 UNF) Plugs

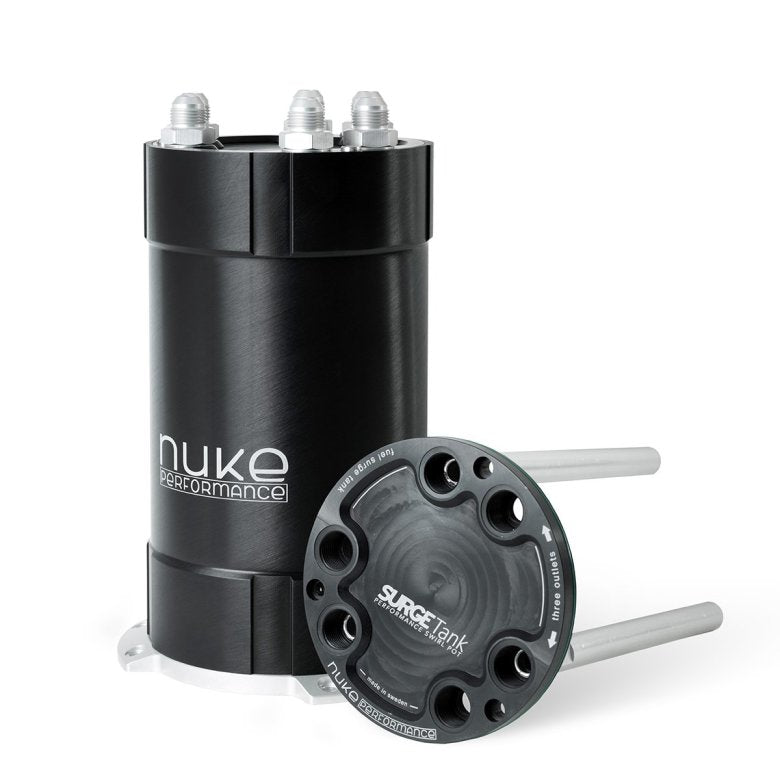

3 x internal fuel pickup pipes

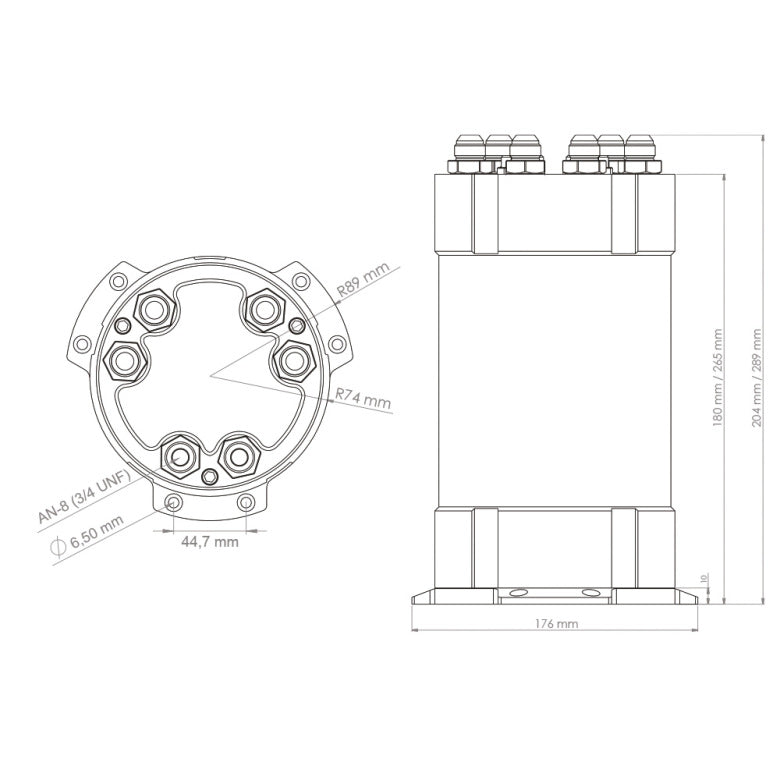

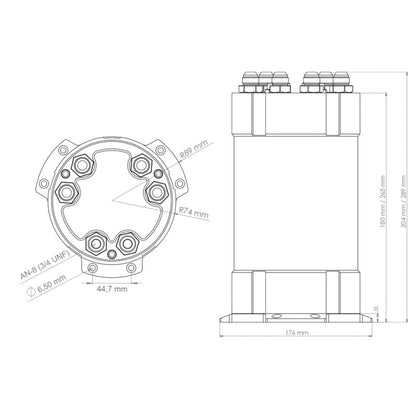

Fuel Surge Tank Specifications
For more information about functionality, view the FAQ guide.
| Part # | 150-01-204 |
| Length | 265mm (10.43”) |
| FST diameter | Ø 148mm (5.82”) |
| Bracket diameter | Ø 178mm (7.00”) |
| Mounting points | 6 x M6 (Ø 6.5 mm / 0.25") |
| Weight | 2880g (6.12lb) |
| Outlet thread | AN-8 (3/4 UNF) |
| Inlet thread | AN-8 (3/4 UNF) |
| Return thread | AN-8 (3/4 UNF) |
Accessories / Spare Parts
Assembly documentation (.pdf)
FAQ - How does a Fuel Surge Tank work?
Combine your fuel pumps, fuel filters or in combination into a single fuel line with our lightweight, secure and hassle-free Fuel Log 4P Collectors. Works perfectly together with the Dual Universal Bracket.
Collector for 2 x Bosch 044 Part # : 100-10-202
Collector for 2 x Walbro GSL392 Part # : 100-10-203
Collector for 2 x Nuke Fuel Filter Part # : 100-10-206
Collector for 1 x Bosch 044 and 1 x Nuke Fuel Filter Part # : 100-10-204
Collector for 1 x Walbro GSL392 and 1 x Nuke Fuel Filter Part # : 100-10-205
