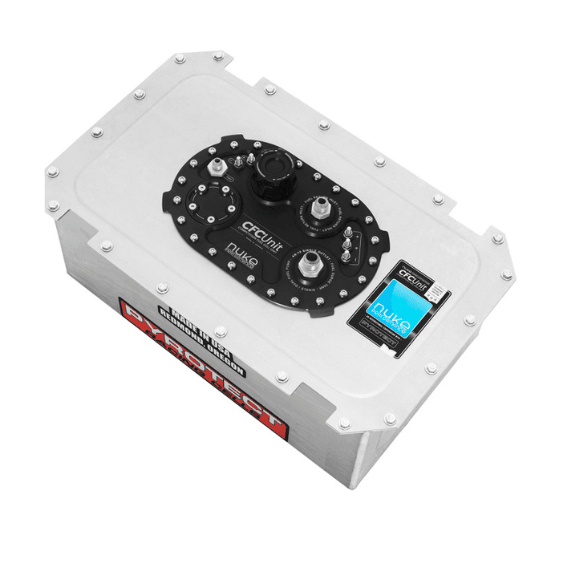

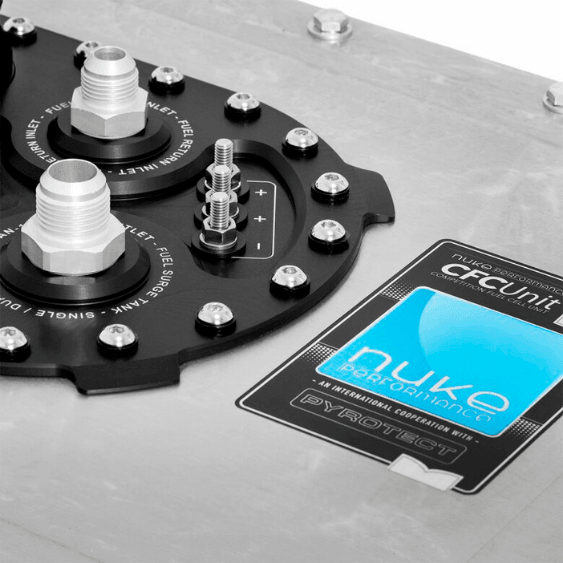

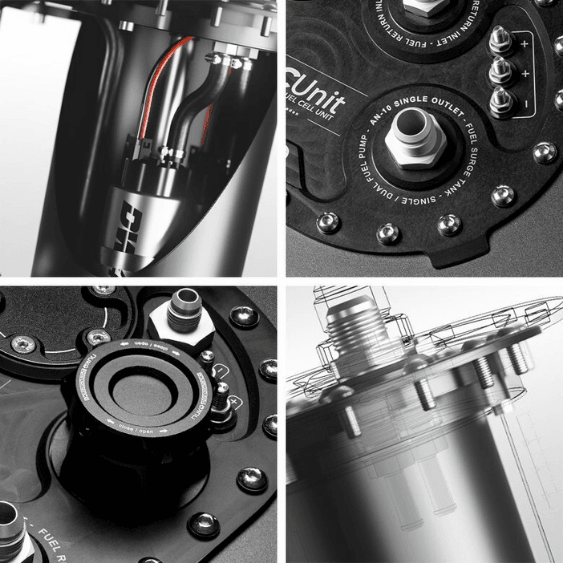

NUKE Pyrotech 23L Fuel Cell With Integrated CFC Surge Tank

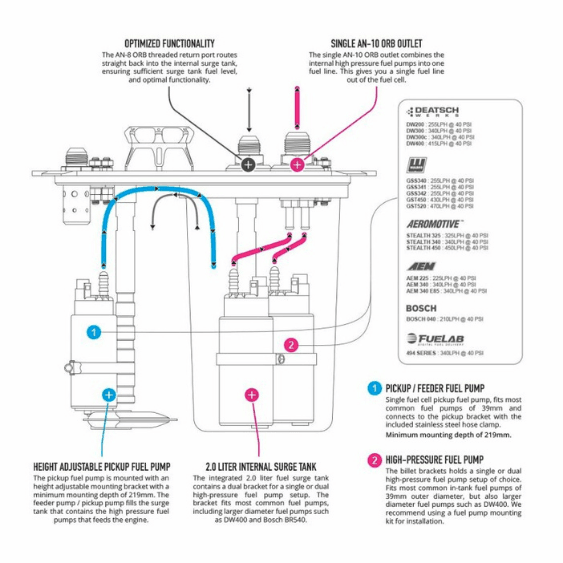

Pyrotect Elite fuel cells are light and FIA / FT3 Approved for all motorsport. Comes with Nuke Performance CFC unit. This is the most efficient and light solution on the market.

CLICK HERE FOR FUEL PUMPS

Length: 406mm (16'')
Depth: 308mm (12,12'')
Height: 219mm (8,62)

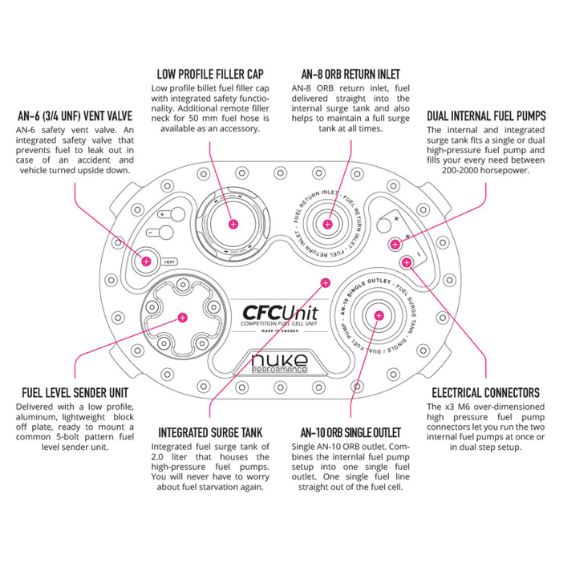

Pyrotect Elite Fuel Cell contains:
1x Fuel cell in aluminium

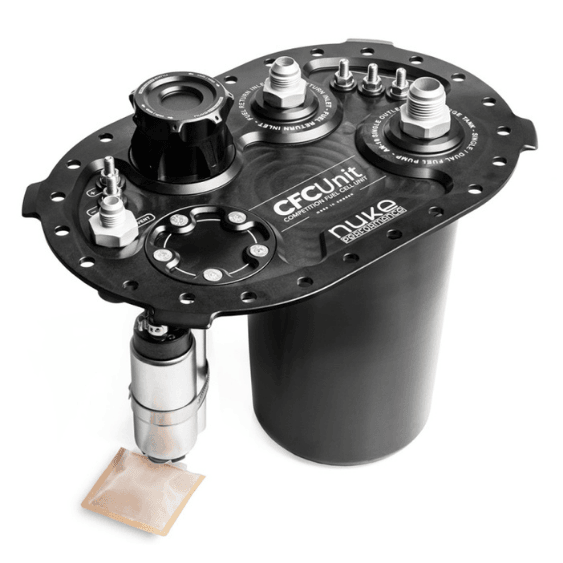

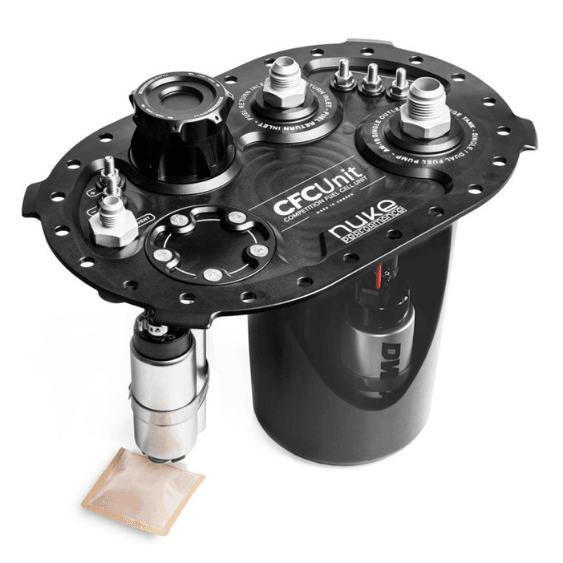

1x Nuke Performance CFC Unit
2x 1/4" BSPP - 8mm hose connection
1x 1/4" BSPP plug (to use if only using one high pressure fuel pump)
2x 39mm inserts for high pressure fuel pump bracket
1x 24 bolt Viton gasket (Safe for alcohol containing fuel)
1x Low-profile adapter for hose for fuel filling
1x Double billet adjustable fuel pump bracket
1x AN8 (3/4 UNF) to AN-6 male roll over valve
1x FLS spacer for fuel level gauge
24x 1/4-28 UNF x1 bolts with nylon washers

Outlet: AN10
Return: AN8
Vent valve: AN8

Made to order, up to three weeks delivery time after ordering.

*FIA Approved*
