PMC 1JZ 2JZ - BMW gearbox adaptor kit with Tilton Clutch
PMC Motorsport Lightweight custom aluminium flywheel Toyota JZ 1JZ 2JZ - BMW M50 M52 M54 ZF ZF310 ZF320 S5D-250 M57 GS5-39DZ S50 S52 S54 Getrag 420G - 184mm 7.25" Twin Plate.
This Kit allows you to pair your BMW M57 330D/530D Gearbox to a 1JZ OR 2JZ engine while using a Tilton Step twin or triple plate clutch set.

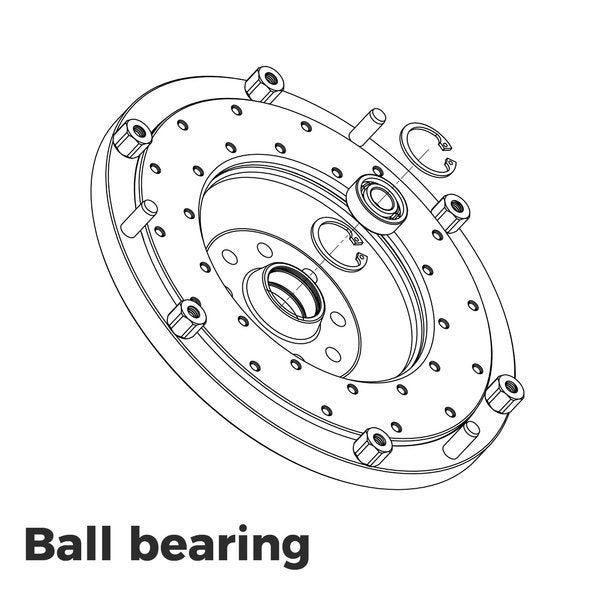

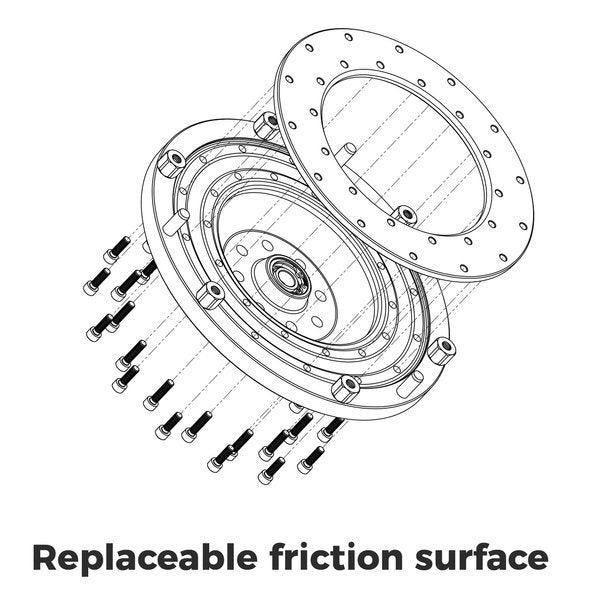

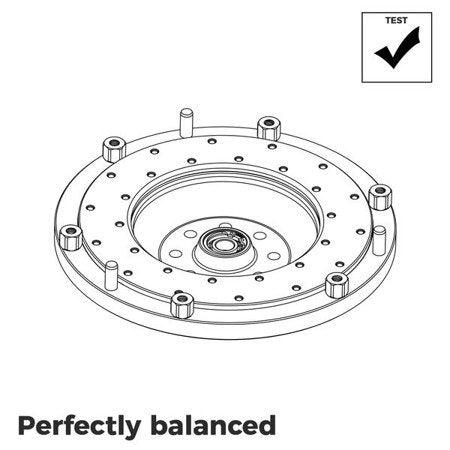

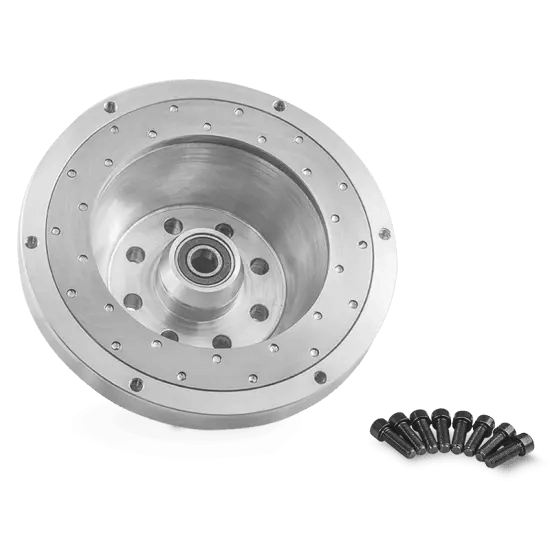

Custom aluminium flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the BMW Getrag / ZF manual gearbox

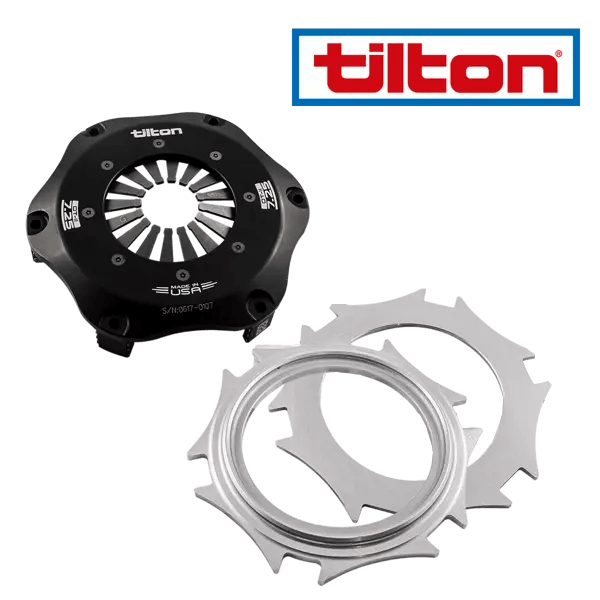

Tilton 7.25" Twin plate clutch kit
The OT Range of racing clutches from Tilton are designed to offer a high level of strength and be very lightweight, all built into a compact design. Due to the "Lug" drive design, the clutch is able to run cleanly, minimizing dust build up, as well as cooler thanks to an open design that allows hot air to escape and cooler air to flow through. Unique to Tilton clutch covers are hardened steel thrust buttons which provide the pressure and floater plates a smooth and durable surface to slide against.
Tilton's sintered clutches are widely used in top levels of motorsport including NASCAR, ALMS and many other racing series throughout the world. With the detailed information and testing that these demanding environments provide, Tilton have been able to refine and hone their range of clutches to best meet the increasing demands of high level motorsport, while bringing the increase in technology to all applications right through to club level.

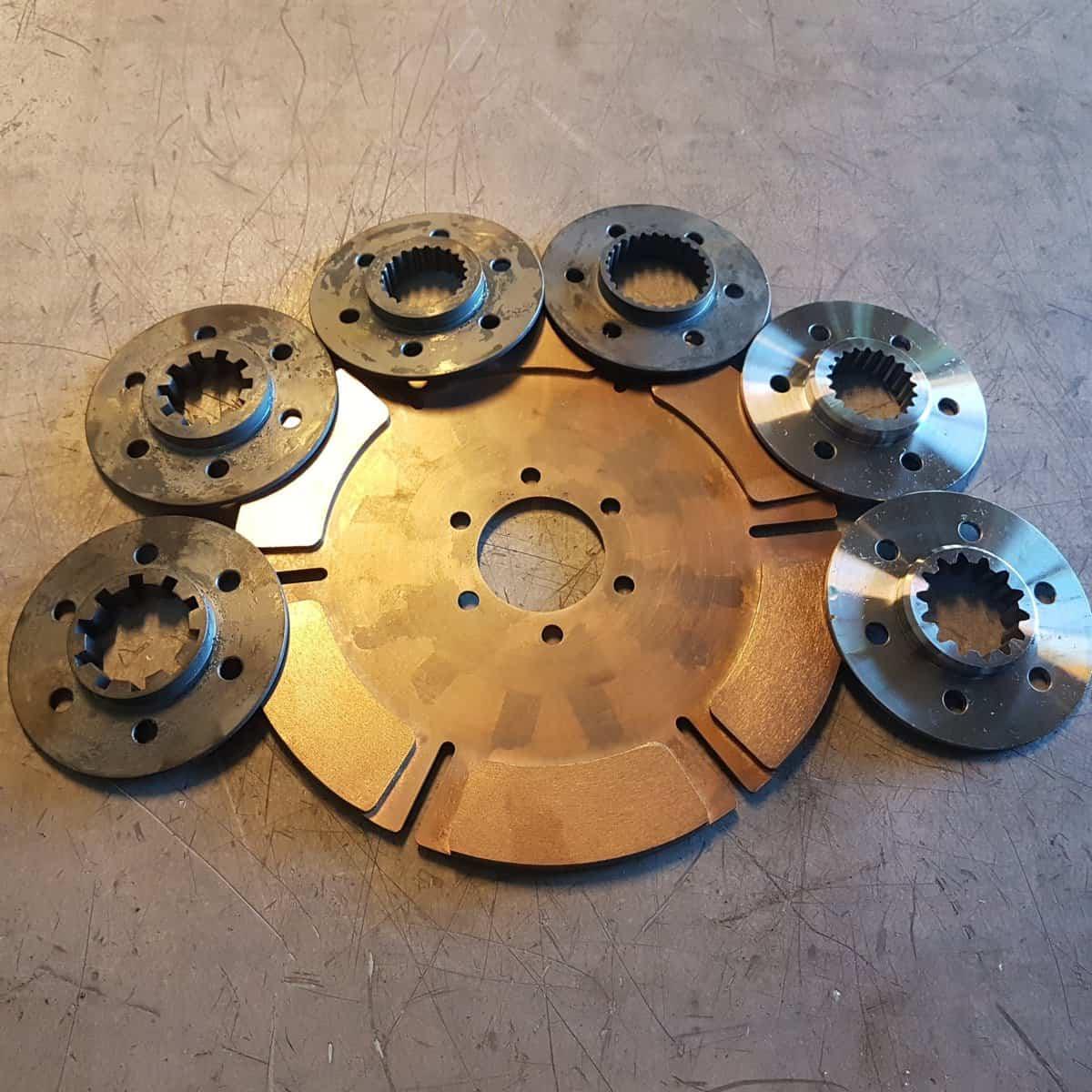

There is a wide range of plates and spline sizes available to suit the most popular applications.

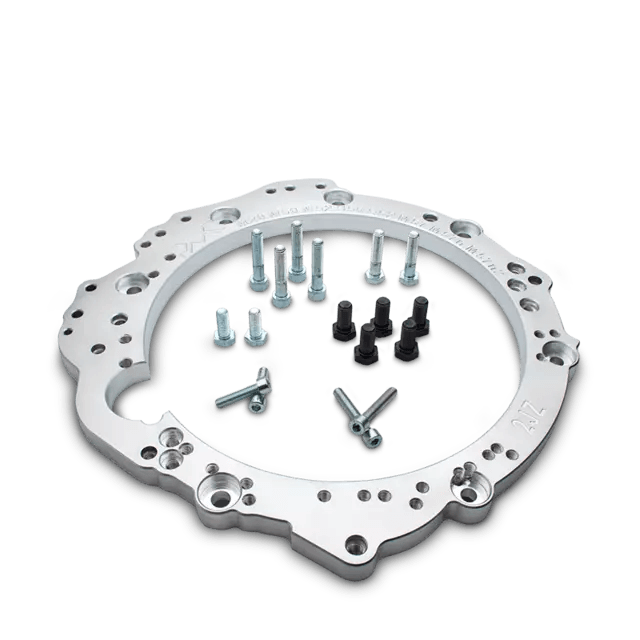

ADAPTER PLATE TOYOTA JZ 1JZ 2JZ
PMC adapter plate (gearbox adapter / transmission adapter) for Toyota JZ 1JZ 2JZ engine - manual BMW M20 - M57N2 gearbox
The adapter plate is designed for Toyota JZ series engines with BMW M20-M57 gearboxes conversion. Our solution gives an opportunity to use very durable, and accessible BMW gearboxes.
It is great for both hobbyists and professionals wanting to change an automatic to manual transmission in a daily car or use in motorsport.
Due to measurements, our parts (gearbox adapters and custom flywheels) prevents damage to the clutch improper alignment of the engine and transmission.
The kit includes:
Aluminium adapter plate
All bolts required to assemble your engine and gearbox
Toyota Engine list:
1JZ-GE / 1JZ-GTE / 1JZ-FSE
2JZ-GE / 2JZ-GTE / 2JZ-FSE
BMW manual gearboxes list:
BMW M20
BMW M50, S50 S5D-250 / ZF-310 S5D-310
BMW M52, S52 E36 M3 5-speed ZF-320 S5D-320
BMW M54, S54 E46 M3 6-speed Getrag 420 226.0.0440.97 / E36 M3 Getrag 420 226.0.0161.91
BMW M57 Diesel (5 speed) GS5-39DZ e39 530D 525D, e46 330D1434256 ZF 1065401011
BMW M57N M57N2 Diesel (6 speed) GS6-53DZ HGD ZF 1067401060 1067401016 / HGU ZF 1067401116 e60/e61 530D 525D e90/e91/e92/e93 325D 330D
PMC Adapter Plate is designed, produced and tested in EU.
The top quality is assured by use certified the EU materials, CNC machining park and high technology measuring arms in the designing process.
Why is it worth choosing gearboxes from BMW?
- Availability and price. Millions of cars produced and their worldwide availability guarantee the availability of spare parts. Parts as well as complete gearboxes are easily available at dealerships and on the aftermarket.
- Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used in both amateur and professional motorsport for many years. They can hold a very high torque(some models 1000Nm+), while guaranteeing high reliability. They are ideal for SWAP in high-power cars intended for everyday use. (Daily)
Why choose PMC Motorsport parts and adapters?
- Experience. Thousands of manufactured adapters and satisfied customers around the world. Our adapters are used both in Daily cars and in professional motorsport projects.
- Professionalism. From design to implementation, our parts go a long way. Each element for which we produce parts has been measured by us with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems in its use. For our production, we use only certified materials from reliable suppliers. We have a modern park of CNC machines and experienced employees.
- Quality. From the beginning, we focus on the quality of the parts we manufacture. After each stage of production, the element is inspected. Each component we manufacture is engraved with the production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
- Perfect alignment - our adapters guarantee a perfect fit of the engine and gearbox
- Made in EU. All our production and design departments are located in the European Union
- Help in choosing and After-sales support. Our team will help you choose the right product. And in case of doubt during installation, he will provide technical support. You can contact us via Facebook, Instagram, and email: inquiries@cdmsport.life
