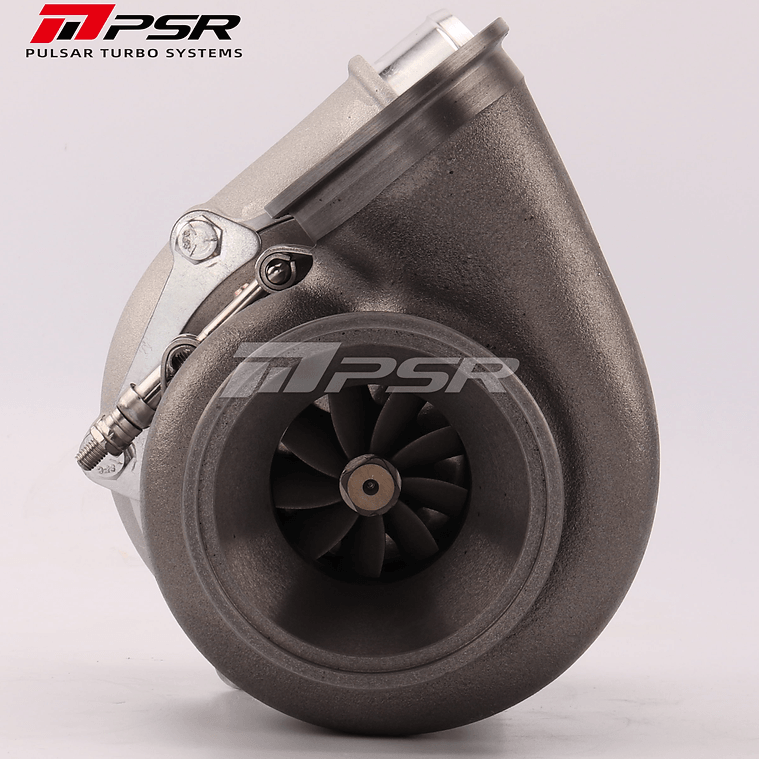

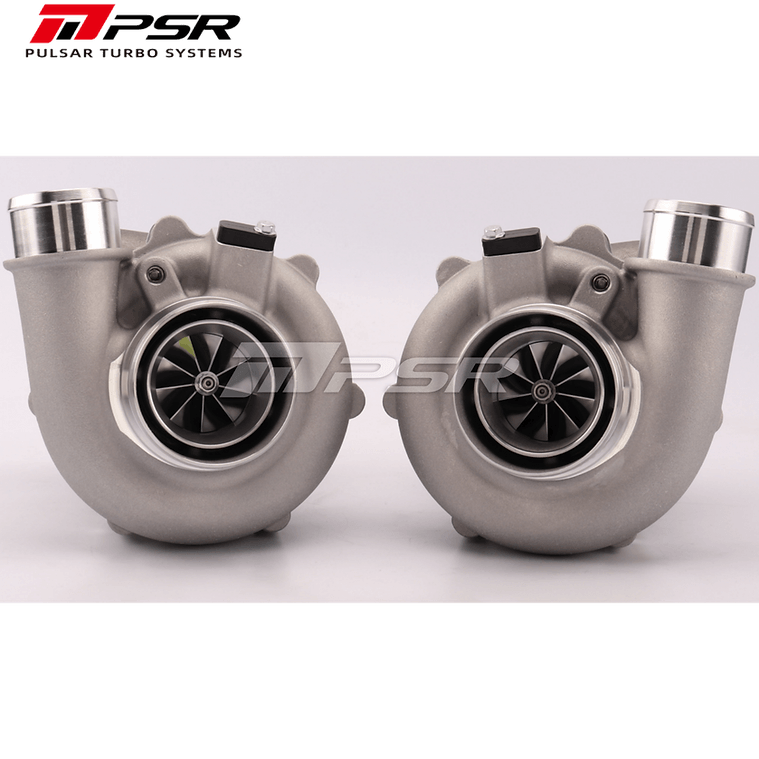

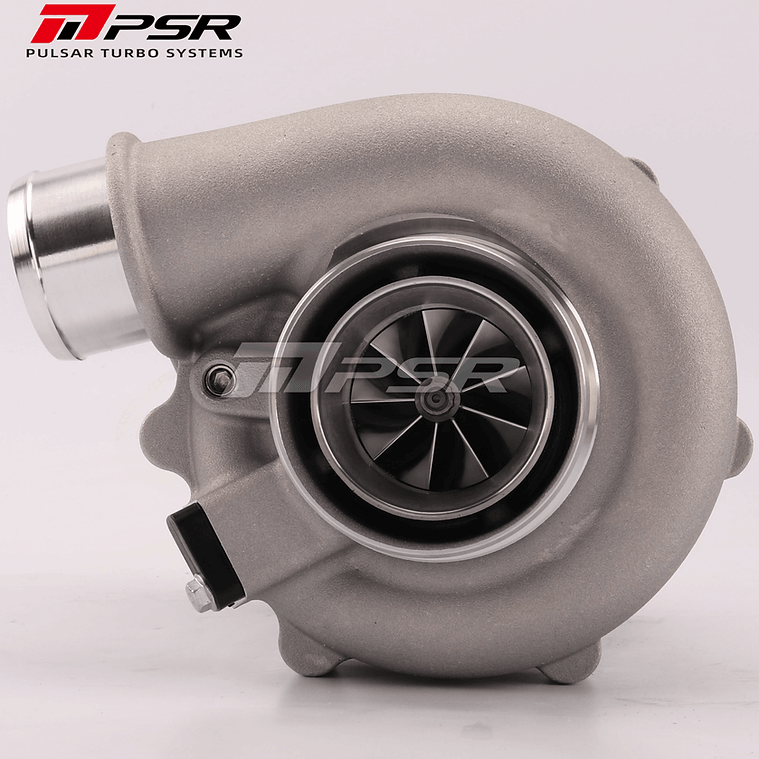

Pulsar PSR4849G 25-550 External Wastegate Reverse Rotation

Pulsar PSR4849G 25-550 External Wastegate Reverse Rotation

Regular price £924.58 GBP
Regular price £896.99 GBP Sale price £924.58 GBP
Sale Sold out
Tax included.

Reverse rotation units are special order and not returnable in case of mistaken orders.

Please make sure its the correct unit.

Reverse Rotation Pulsar PSR4849G

  • Please note, T51R housing option requires an extra 7 days handling time
  • Recommended displacement 1.6 to 3.0 litres with power outputs up to 550hp possible.
  • Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.
  • 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
  • 9 Blade G-Aero Inconel 713c Turbine Wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
  • 0.72 T3 or T25 option is supplied with a V band adapter as shown in the image



It's strongly recommended to run water cooling to aid reliability.

SPEC

Compressor Wheel: 54*67mm

Turbine Wheel: 54*49mm

Compressor Inlet: 3″ Hose

Compressor Outlet: 2″ Hose

Turbine Inlet: 2.5″ V-Band

Turbine Outlet: 3″ V-Band

Water Ports: -6AN

Oil Feed: -4AN to the Oil Restrictor

Oil Drain: Std T3 Oil Drain Flange

T25 and T3 Option will be supplied as a V band housing and adapter.
