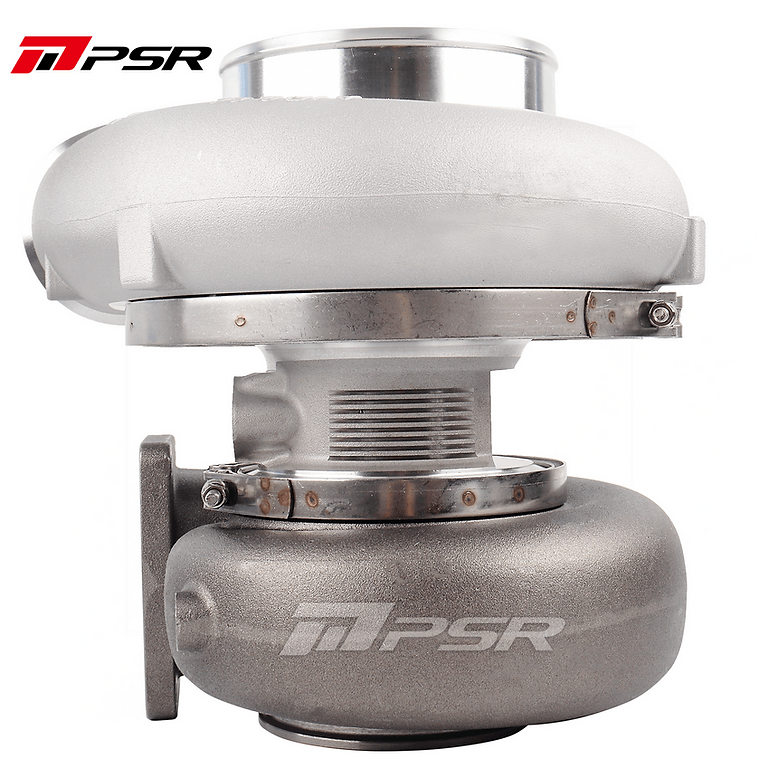

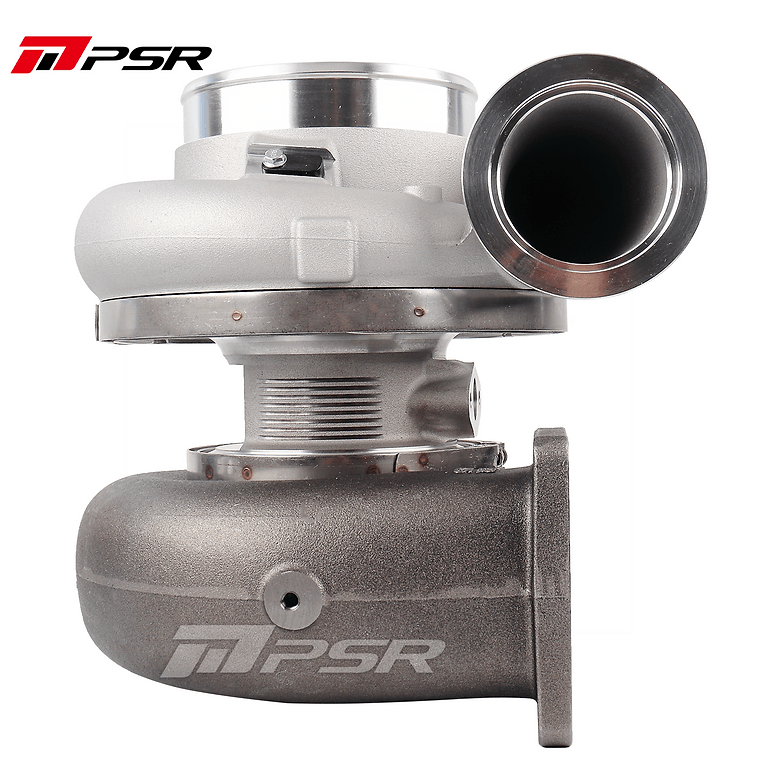

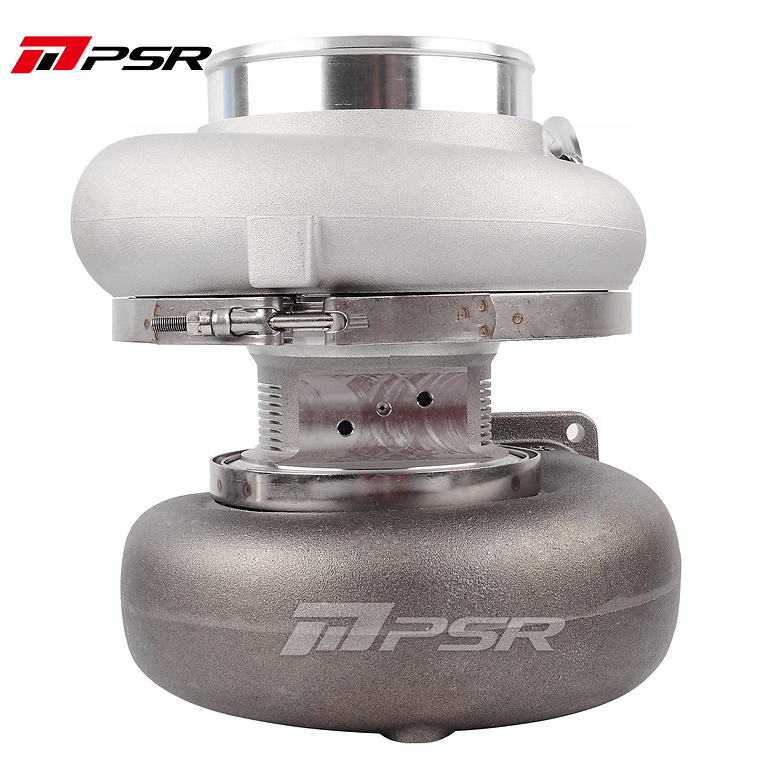

Pulsar PSR8894G 50-1900 External Wastegate

PSR8894G / 50-1900

• Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing  shaft motion

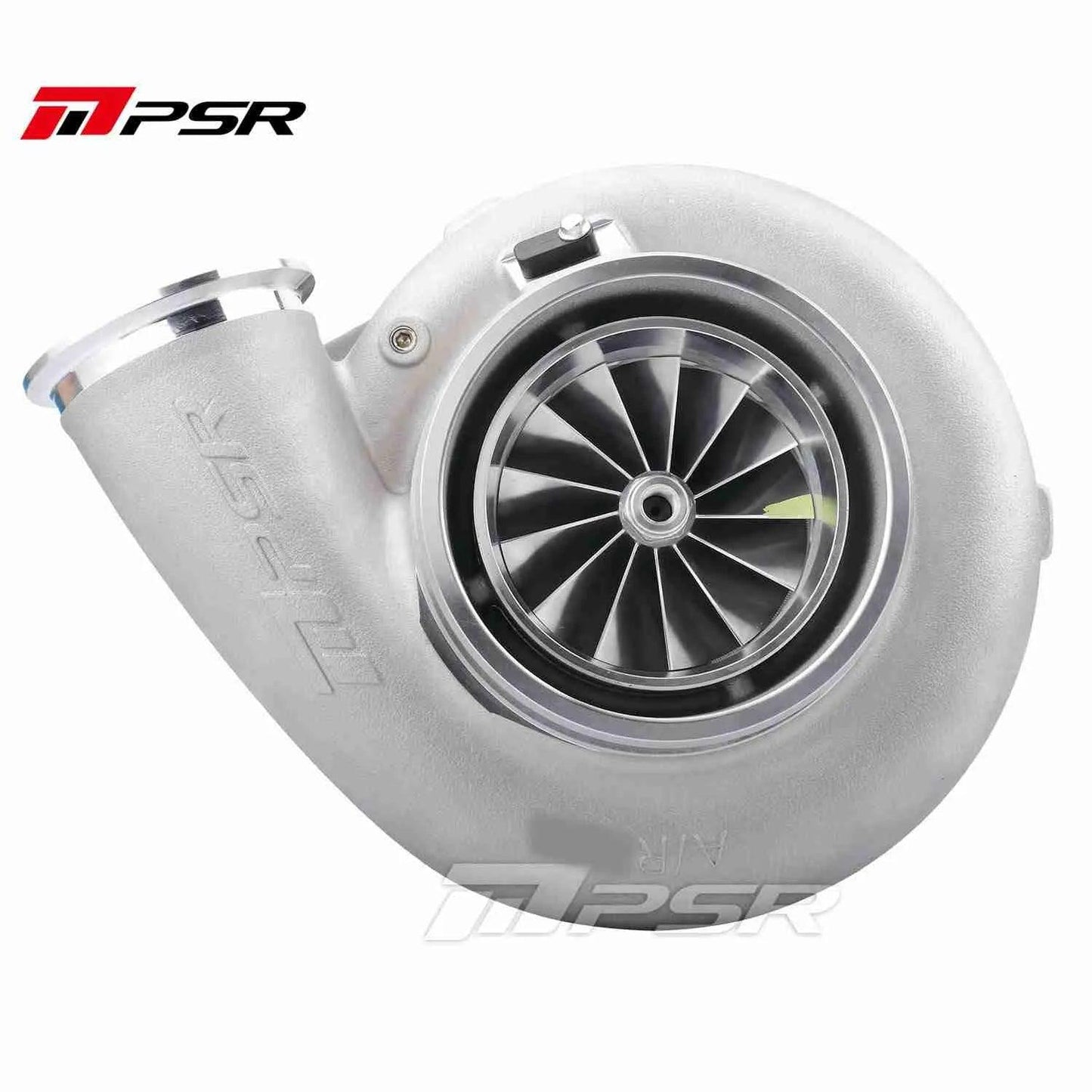

• 13 Blade PTG-Aero billet compressor wheel 88mm inducer and 120mm exducer produces up to 1900 hp
• 9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow
• Fin-cooled aluminum center housing to reduce weight
• Anti-surge ported-shroud compressor inlet with integrated speed sensor port.
• Included Hardware:
• 4” flange kit for Compressor outlet,
• T6 Gasket for T6 flange housings
• 3.5” inlet flange kit for dual v band Turbo.
•  5” turbine outlet flange kit.

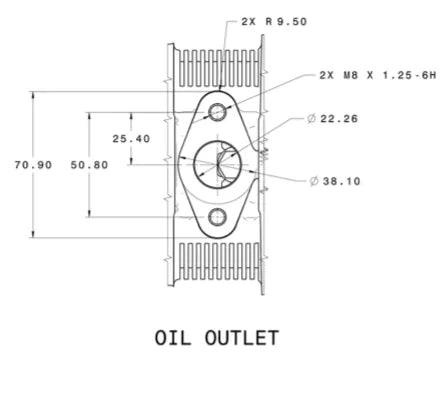

• Oil Drain Fitting kit

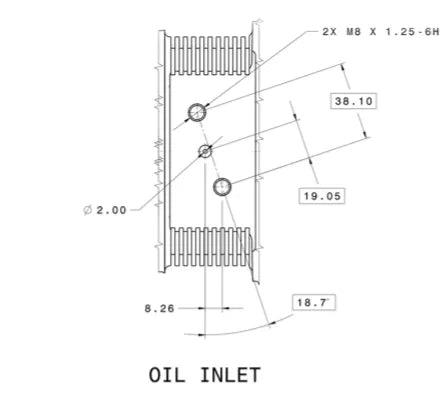

• **Oil Feed Fitting needs to be bought separately** Available here: Oil Feed

SPEC​​​​​​​

• Compressor Wheel: 88.5*120*127.93mm, 13 Blade
• Turbine Wheel: 99*94mm
• Compressor Inlet: 6” Hose
• Compressor Outlet: 4” V-band
• Compressor Housing A/R: 0.88

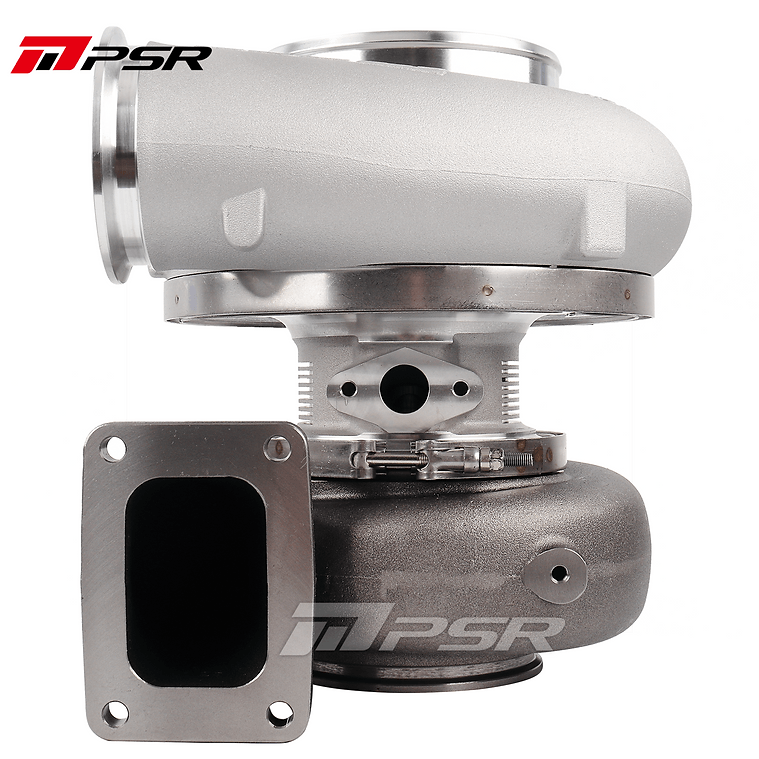

• Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
• Turbine Outlet: 5” V-Band
• Turbine Housing A/R: 1.08/1.23
