Pulsar PTX3076R Gen 2

Pulsar PTX3076R Gen 2

£648.58 GBP
£648.58 GBP £648.58 GBP
Sale Sold out
Tax included.

Pulsar PTX3076R Gen 2

  • Please note, T51R housing option requires an extra 7 days handling time
  • Recommended displacement 1.8 to 3.0 litres with power outputs up to 700hp possible.
  • Dual Ceramic Ball Bearing System
  • 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 10 Blade Turbine Wheel
  • Gen2 Cover Integrated with the Speed Sensor Port
  • 0.83 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option

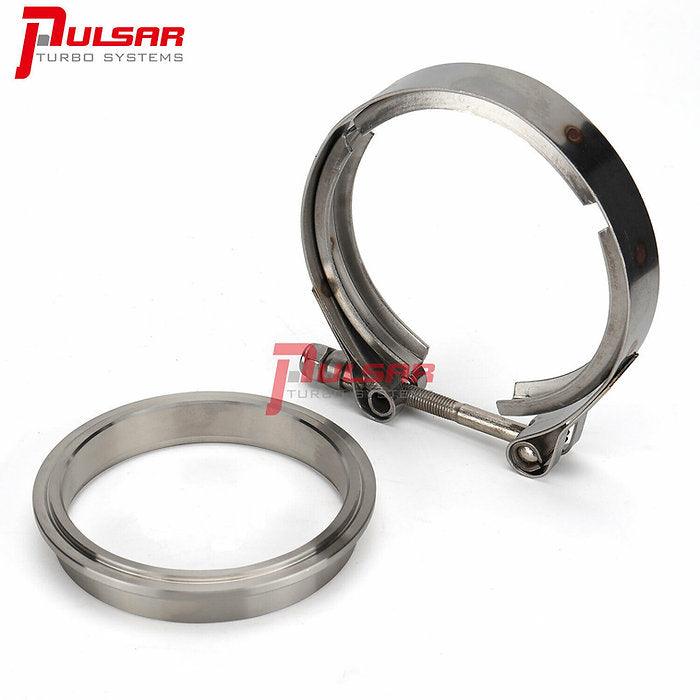

  • V-Band Flange kit(s) for the exhaust housing included
  • Max Air Flow rate: 65 lb/min, rated @ 750 FWHP
  • Supplied with manifold to turbine gasket and 5 bolt gasket (where applicable). Oil feed restrictor supplied (where applicable).
  • Wastegate actuator supplied on internally gated units with compressor housing.

SPEC

  • Compressor Wheel: 58*76mm
  • Turbine Wheel: 60*55mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2″ Hose
  • Turbine Inlet: T3, T4 or 2″ V-Band
  • Turbine Outlet: 3″ V-Band(3.55″OD)
  • Oil Feed: -4 AN  Oil Restrictor connection.
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5

It's strongly recommended to run water cooling to aid reliability.
