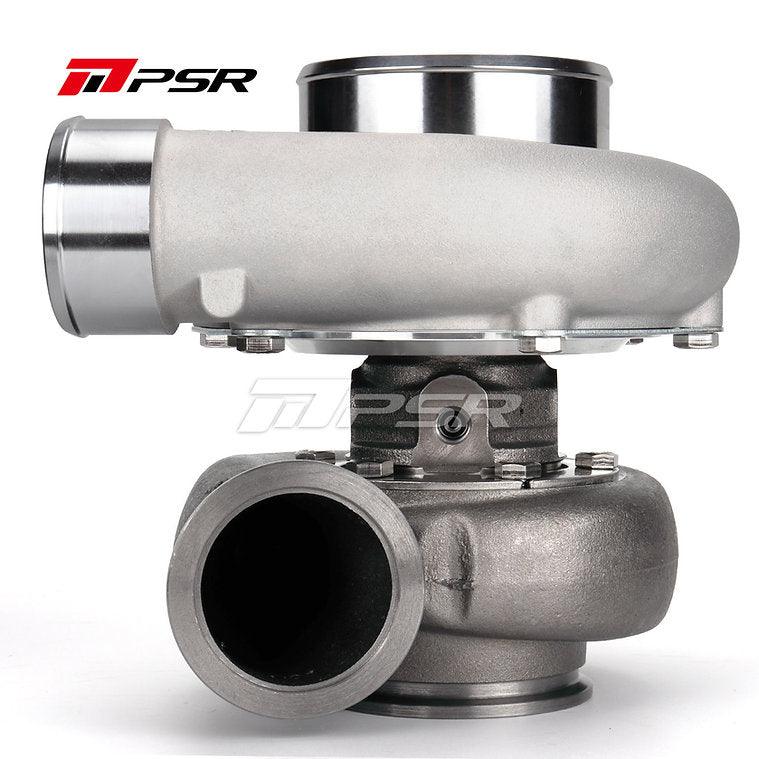

Pulsar GTX3584R Gen 3

Pulsar GTX3584R Gen 3

Regular price £816.50 GBP
Regular price £816.50 GBP Sale price £816.50 GBP
Sale Sold out
Tax included.

Pulsar GTX3584R Gen 3

  • Please note, T51R mod housings require an additional 7 days handling.
  • Recommended displacement 2.0 to 5.0 litres with power outputs up to 1000hp possible.
  • Dual Ceramic Ball Bearing System

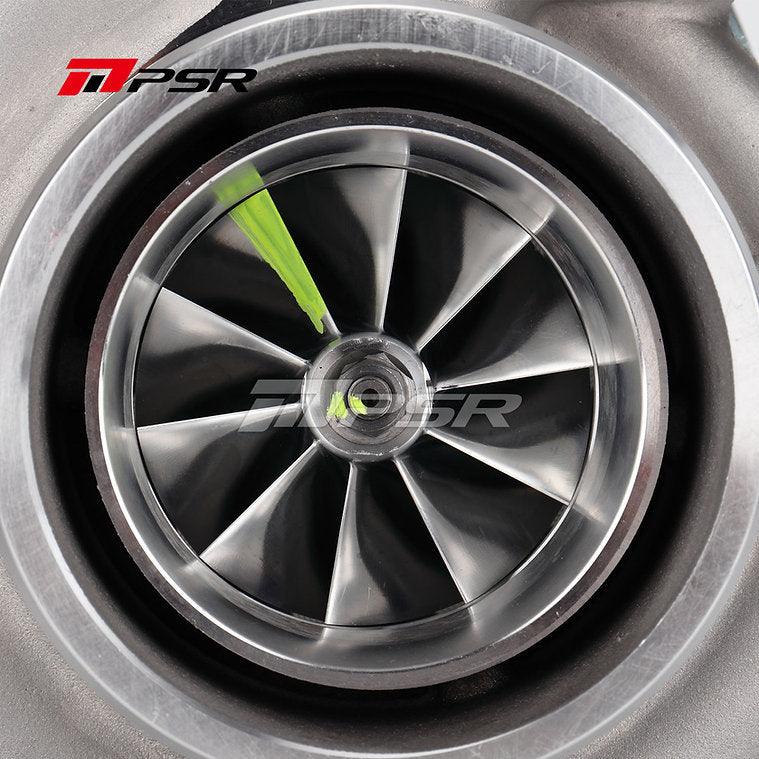

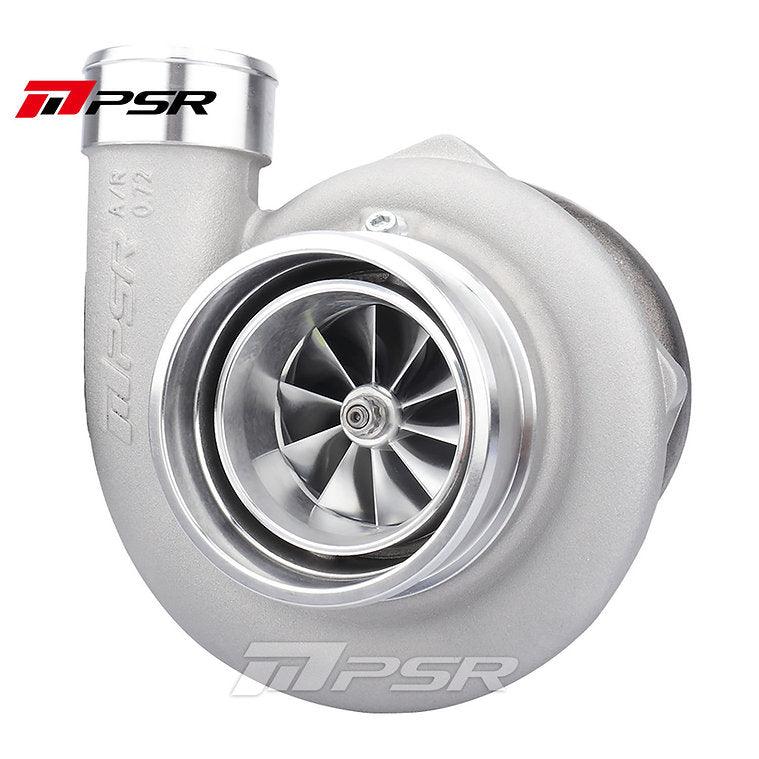

  • 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

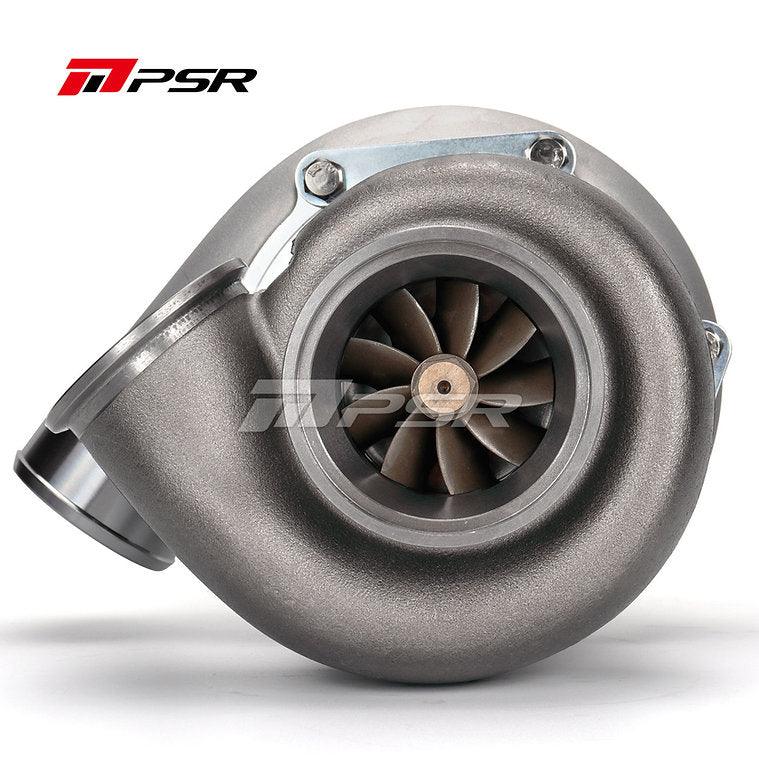

  • Inconel 713c 10 Blade Turbine Wheel for increased output

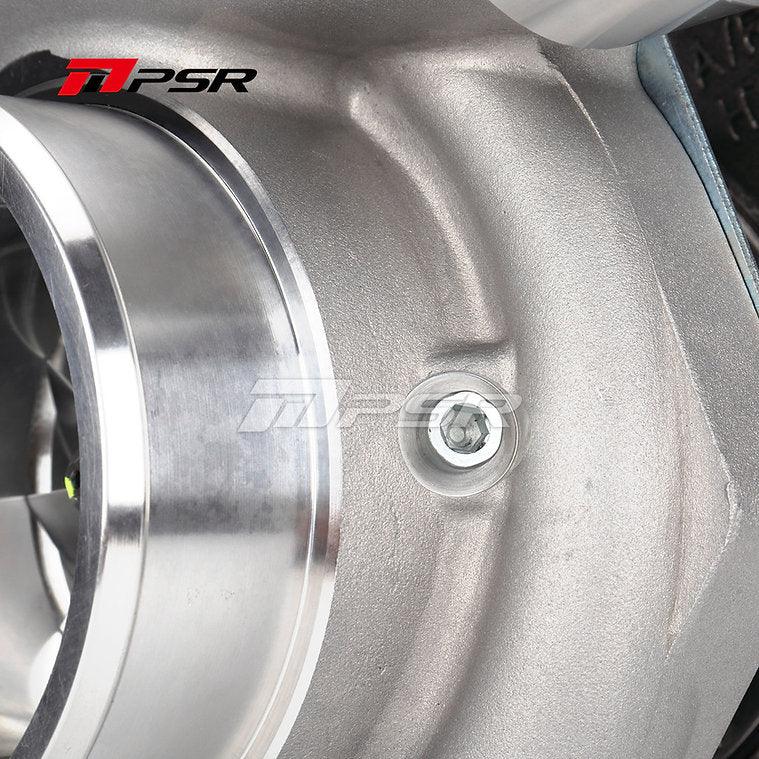

  • Cover  with integrated  Speed Sensor Port
  • 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings available.

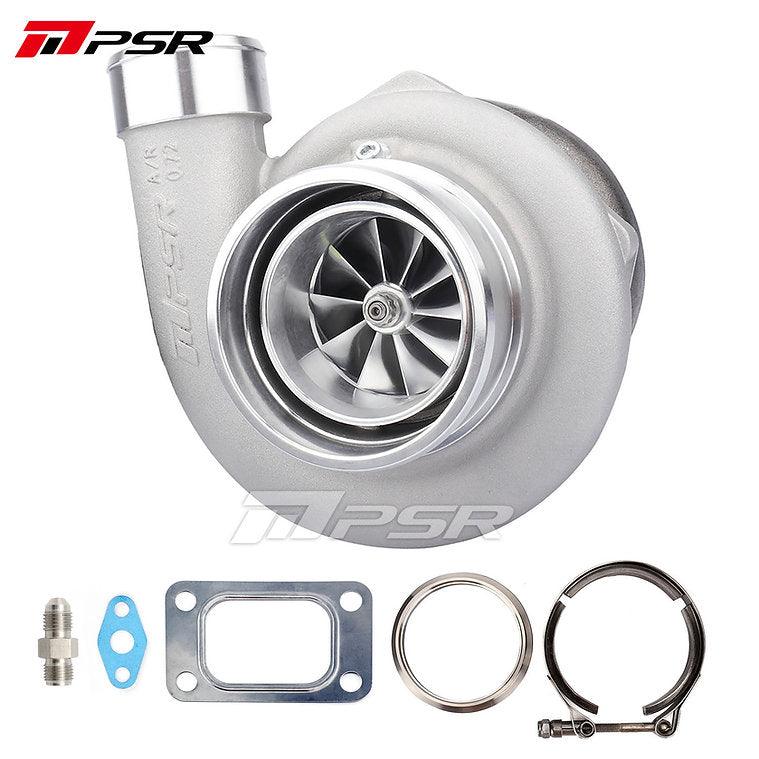

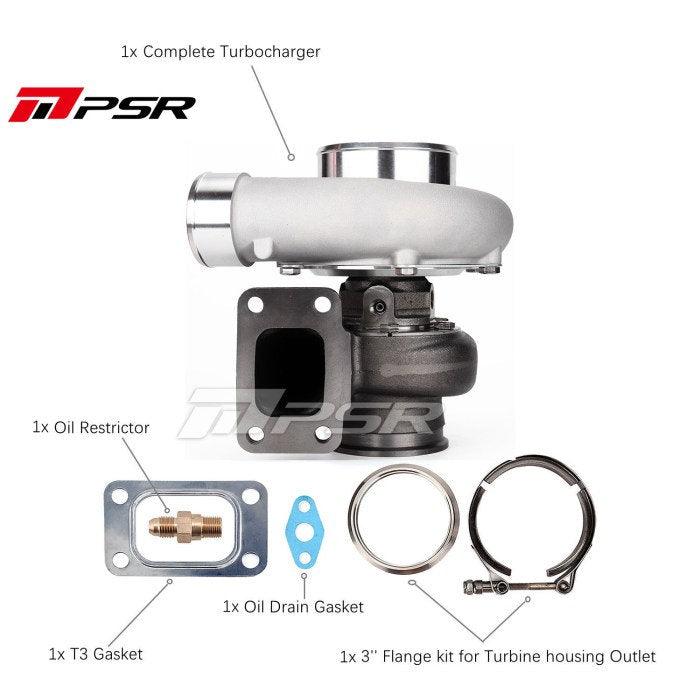

  • V-Band Flange kit(s) for the exhaust housing included
  • Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP

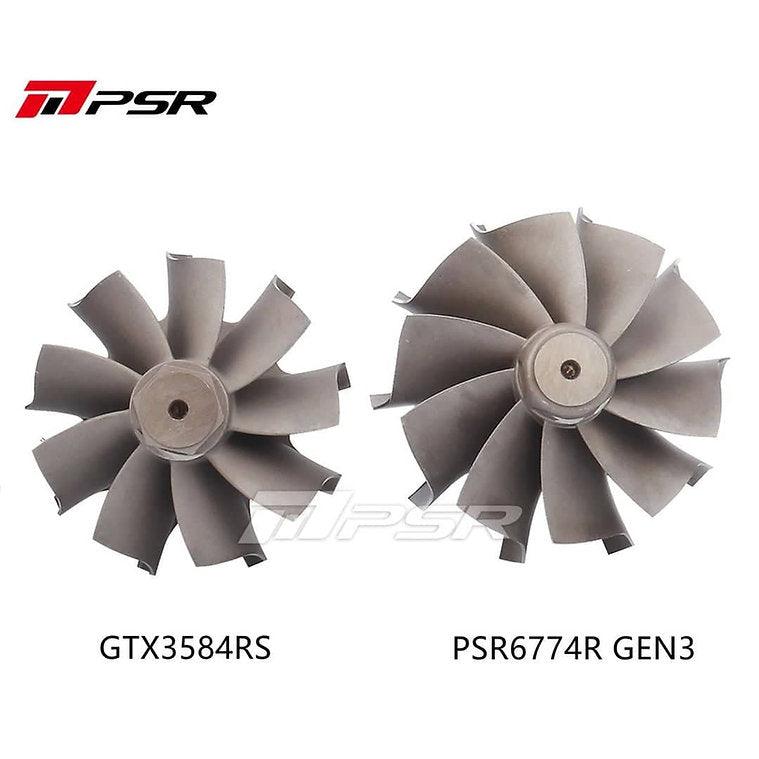

  • Larger Turbine Wheel for Higher flow
  • Approx 60 to 100 hp increase over Gen 2 version.


SPEC

  • Compressor Wheel: 67*84mm
  • Larger Turbine Wheel: 74*66mm
  • Compressor Inlet: 4.0” Hose

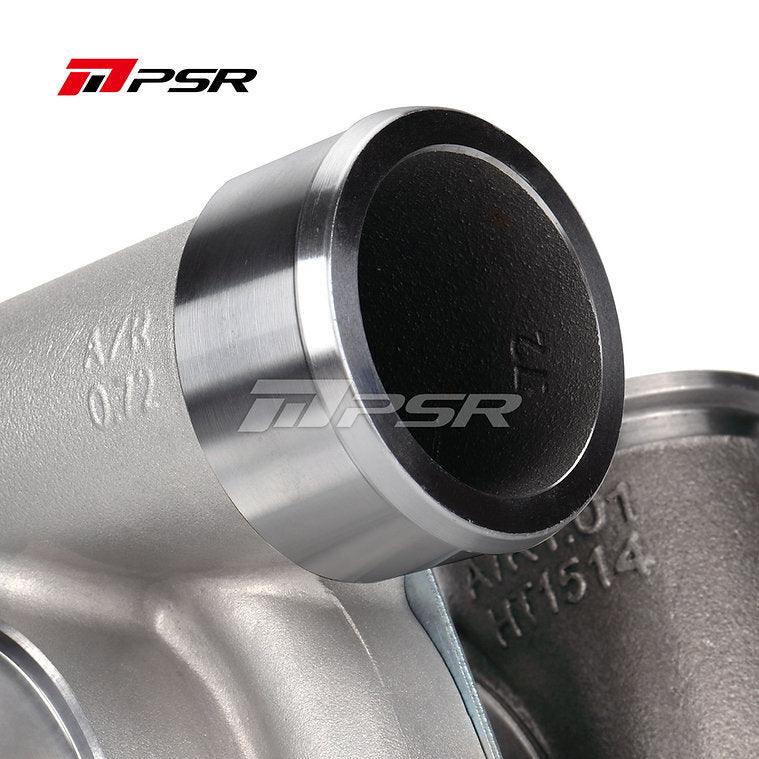

  • Compressor Outlet: 2.5” Hose

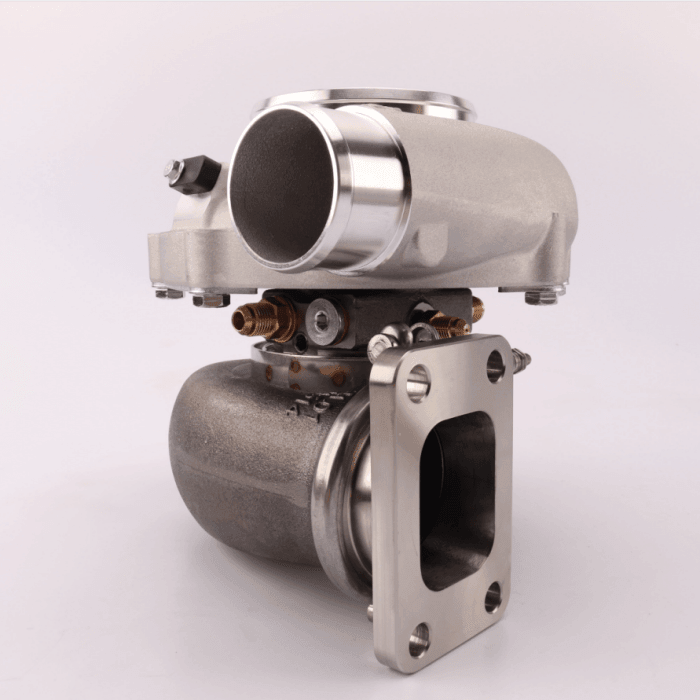

  • Turbine Inlet: T3, T4, or 2.5″ V-Band

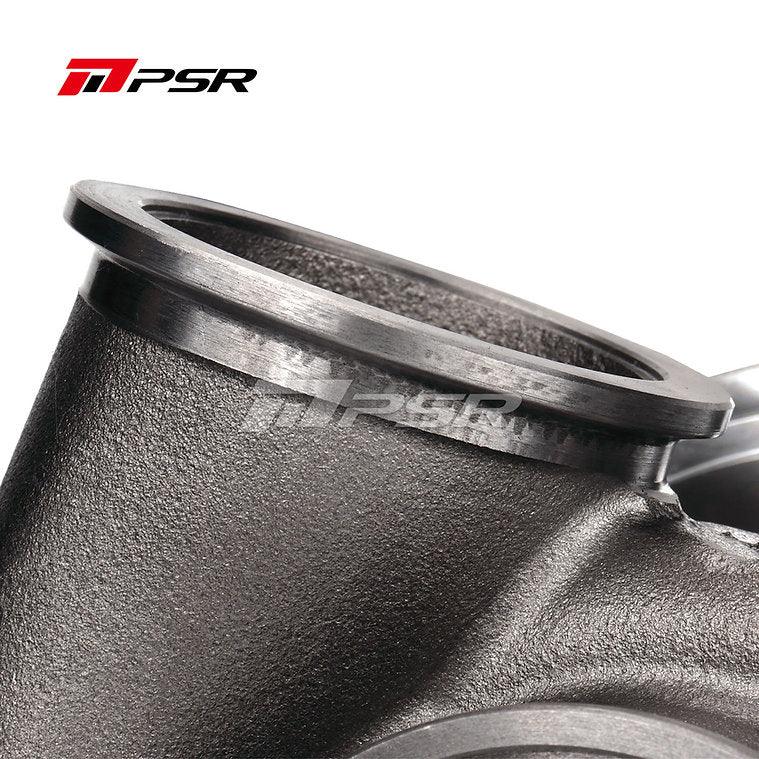

  • Turbine Outlet: 3″ V-Band (3.55″OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5

It's strongly recommended to run water cooling to aid reliability.
