Quartermaster 7.25" 184mm Twin Plate Clutch Kit

Quartermaster 7.25" 184mm Twin Plate Clutch Kit

Regular price £419.99 GBP
Regular price Sale price £419.99 GBP
Sale Sold out
Tax included.

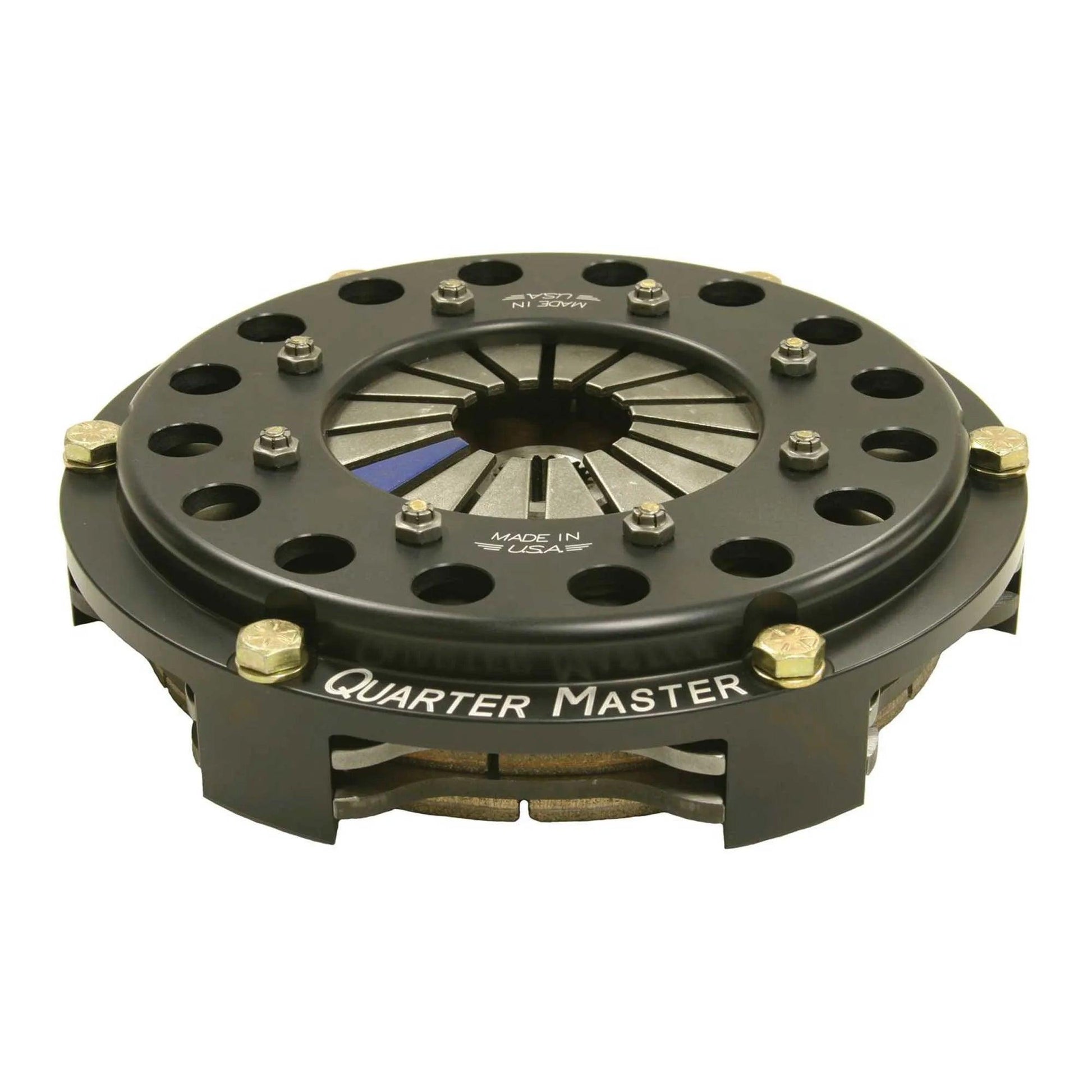

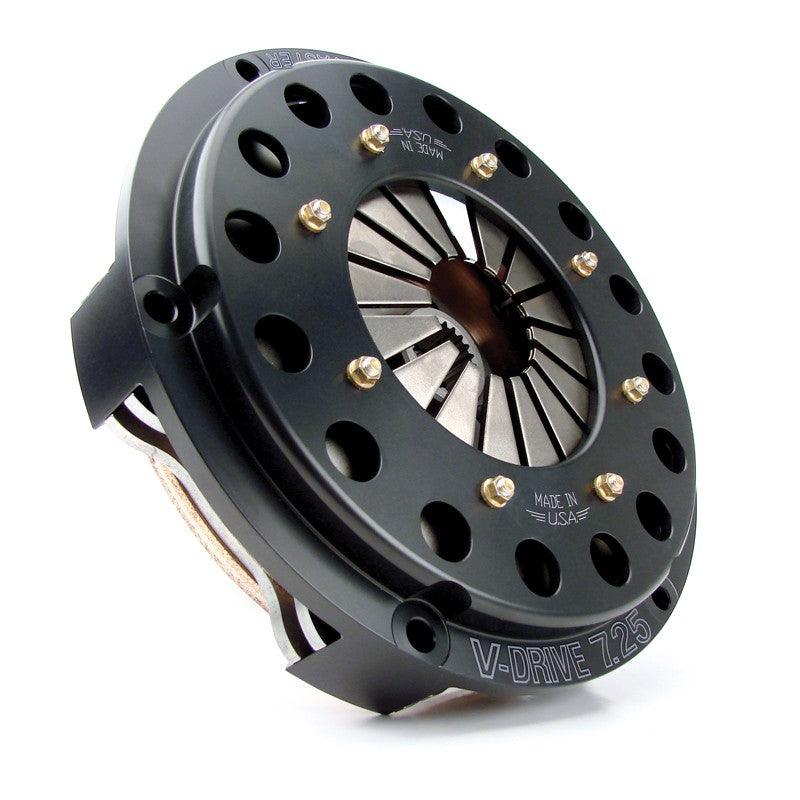

Quarter Master 2-disc Pressure plate 184mm (875nm)

Quarter master clutches are a reputable worldwide clutch development company from the USA whom have products being used at the top level of various motorsport forms including rallying, drifting and GT racing. Their products are developed and manufactured with the highest degree of consideration and quality.

This Quarter Master Pressure Plate is designed for use with a 184mm sinter disc that has a thickness of 2.6mm.

Select the correct disc spline for your car from the dropdown menu.

The clutch can handle torque up to approximately 875nm.

Please note that you will need ensure that it is compatible with the flywheel you plan to use.

Fitment

The bolt pattern is the standard bolt pattern used on multi plate clutches such as Tilton and Tenachi

The flywheel must have a friction surface for the clutch disc with a:

minimum outer diameter of 184mm or greater

maximum inner diameter of 135mm or less.

This pressure plate will act as a direct replacement for the Tilton OT-II Series Step pressure plate.

It is also common practice to drill a new bolt circle on your flywheel to suit the clutch if your current flywheel has a different PCD.

NOTE
Be sure to check that the clutch discs can move freely without any obstructions from the flywheel bolts or other components.
