CDMSPORT

Samsonas BMW M3 E36/E46 to fit into ZF S5D Dogbox Kit

Samsonas BMW M3 E36/E46 to fit into ZF S5D Dogbox Kit

Regular price £3,999.99 GBP
Regular price £4,199.99 GBP Sale price £3,999.99 GBP
Sale Sold out
Tax included.

**Speacial order. For acurate price please contact us**



 If you want maximum performance and reliability from your drive-train, look no further than the world renowned Samsonas transmission.

This gear kit is designed for BMW M3 E36/E46 or other 6 Cylinder/V8 engine in 4 or 5 speed ratio versions.

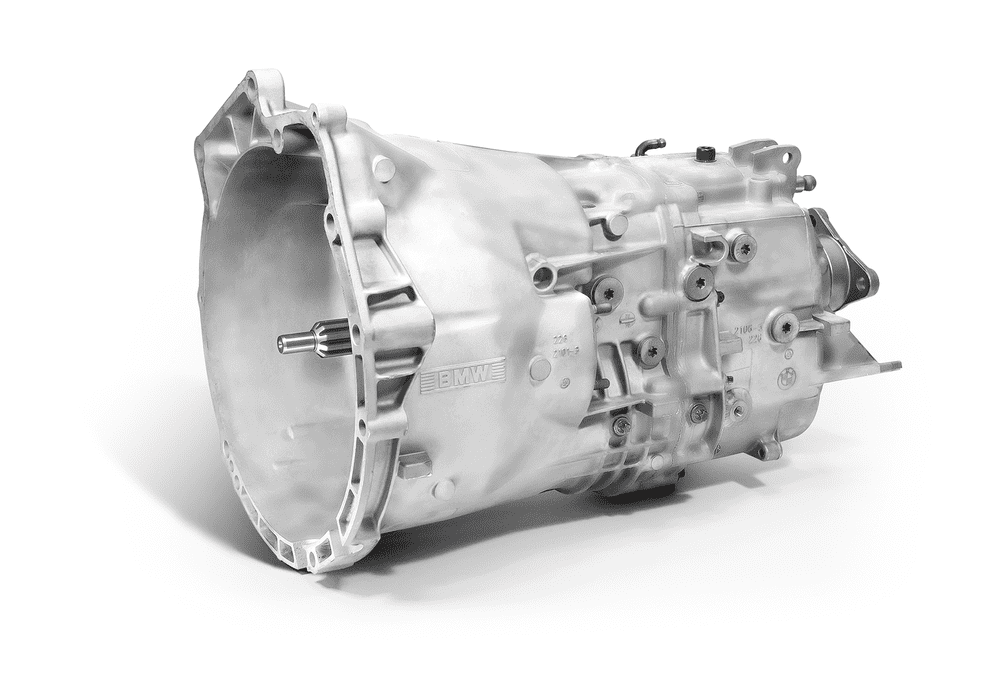

For 6 speed ratio version, an aluminium plate with NJ207 bearings makes this gearbox 52mm longer than stock ZF S5D and 50mm shorter than 6 speed Getrag S6S. Middle plate with bearings to connect shafts, new surface and profile big teeth, clutch shaft made from special driveshaft steel and additional transfer gears to adjust your top speed makes this gearbox one of our best products for your BMW.

It also can be used in drag race, rally cross, hill climb, street racing, turbo charged cars and other disciplines

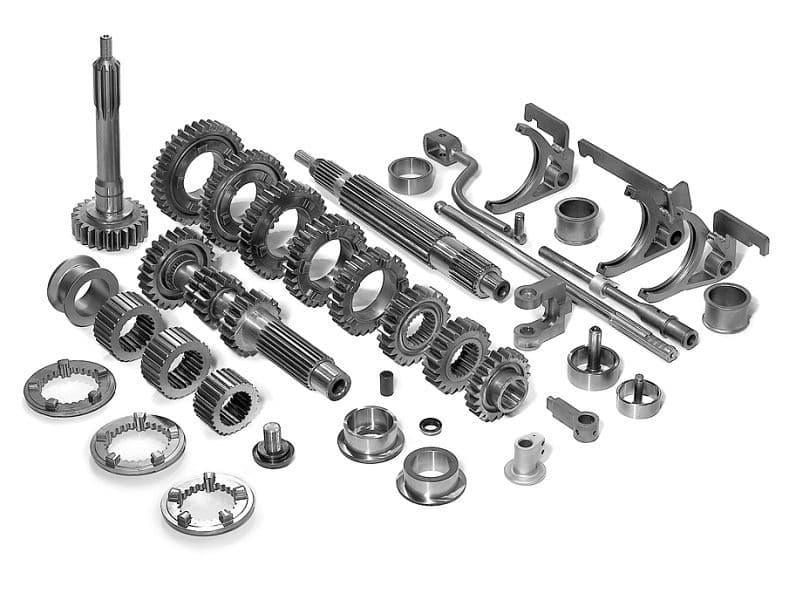

Kit Contains:

  • New type straight cut and special profile teeth for minimum rolling resistance and maximum strength;
  • Special design 5 dogs to make gear shifting on high revs easy and smooth.
  • All selectors, shifting fingers, protections, forks, rods are made from billet steel for maximum reliability.
  • Gears of highest quality and forged steel.



Kit Contains:

  • New type straight cut and special profile teeth for minimum rolling resistance and maximum strength;
  • Special design 5 dogs to make gear shifting on high revs easy and smooth.
  • All selectors, shifting fingers, protections, forks, rods are made from billet steel for maximum reliability.
  • Gears of highest quality and forged steel.



Available Ratios:

      4 Speed Ratios

  1. 2.615
  2. 1.938
  3. 1.563
  4. 1.316

      5 Speed Ratios

  1. 2.400  2.067  2.643
  2. 1.789  1.600  1.850
  3. 1.429  1.300  1.300
  4. 1.174  1.110  1.110
  5. 1.000  1.000  1.000

      6 Speed Ratios

  1. ​​​​​​2.500  2.500
  2. 1.800  2.000
  3. 1.438  1.500
  4. 1.235  1.177
  5. 1.111  1.000
  6. 1.000  0.870

      Drift/Drag Ratios

  1. 2.900
  2. 1.800
  3. 1.294
  4. 1.000
  5. 0.800

      Transfer Gears

  1. 0.870  1.190
  2. 0.941  1.250
  3. 1.000  1.350
  4. 1.090  1.400
  5. 1.150  1.500
