Wiseco Toyota 2JZ Forged Engine Kit ZRP Rods & Wiseco Pistons 86.5mm 9.5:1
Wiseco Toyota 2JZ Forged Engine Kit ZRP Rods & Wiseco Pistons 86.5mm 9.5:1
Couldn't load pickup availability

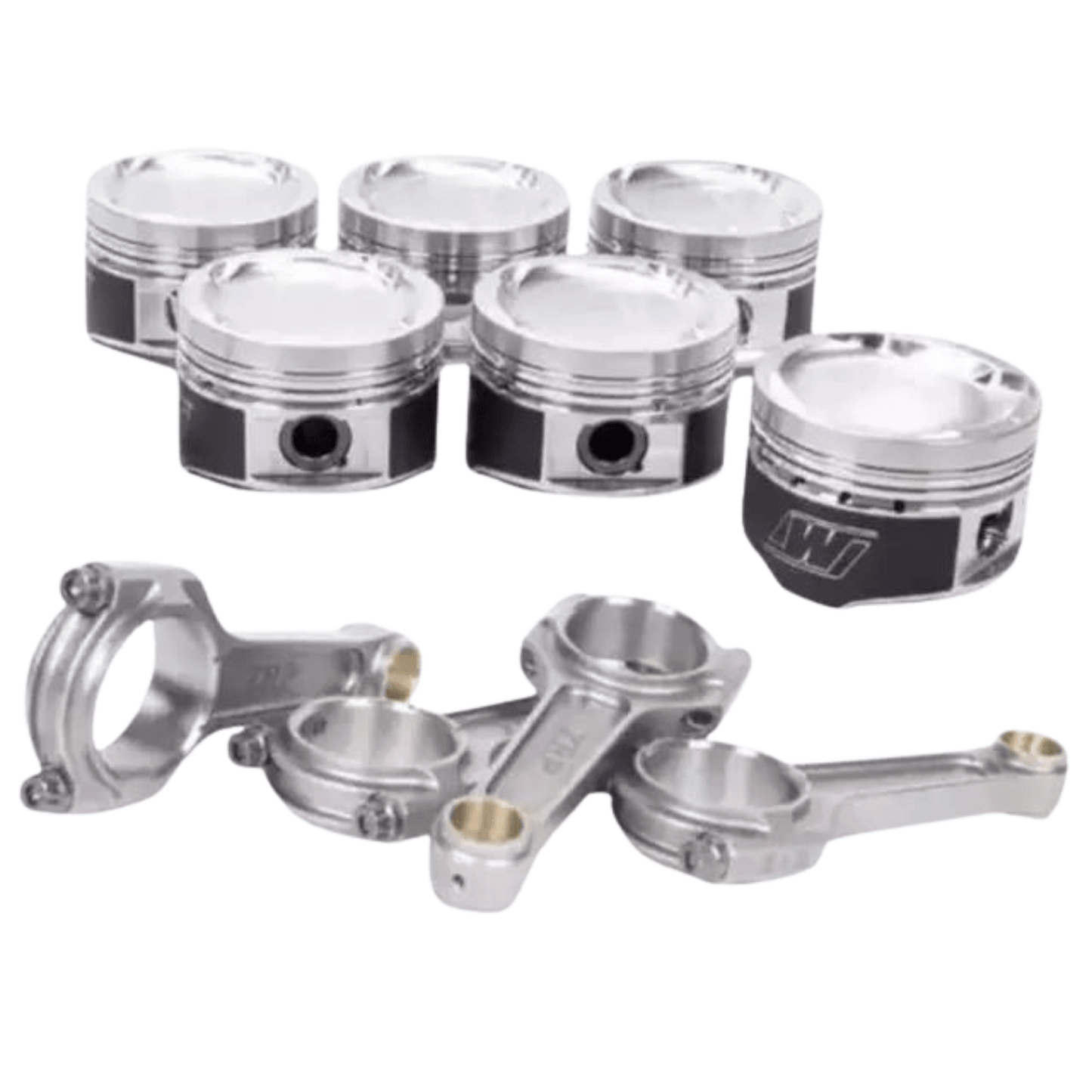

Wiseco/ZRP Pistons+Connecting Rods Toyota Supra 2JZ (9.5:1) Heavy Duty (86.50mm)
Toyota 2JZGTE 3.0L 24V • Supra 1993-98 • HD2 Asymmetric Skirt w/ Lateral Gas Ports • .200” Wall Pins
Kit Part #: K677M865AP
Bore mm / Inch: 86.50 / 3.405
Over-size: 0.020
Stroke: 3.386, 86mm
Rod: 5.590, 142mm
Comp Ht: 1.338, 34mm
Head cc’s: 45cc
Volume: -5.3cc
Gasket Thickness: .056, 1.42mm
Deck Clearance: .001, .02mm
Block Ht: 8.662, 219mm
Compression Ratio: 9.6
Pin Part # Included: S796 22mm - .866 x 2.250
Ringset Included: 8650XX
Avg: Wt: 360
Foot-note: 1
