Turbosmart Electronic Wastegate Controller

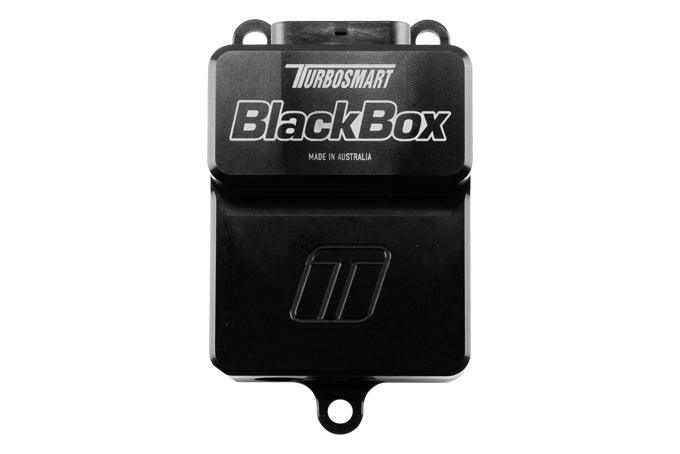

BlackBox by Turbosmart is a dedicated Electronic Wastegate Controller which can be used in cooperation with a range of Factory, Aftermarket and Motorsport ECU’s. The BlackBox provides protection from the current demands and translation of basic as well as more advanced boost control strategies into a gate position and can be used on single, or twin electronic wastegate systems for the ultimate in boost control.
Features
Dual Channel High Current H-Bridge Outputs
2 x Wastegate Valve Position Inputs (0-5v)
2 x Wastegate Temperature Inputs (0-5v)
2 x Frequency Inputs (Advanced Wastegate Position Encoder)
PWM Target Position Input
Analog 0-5v Position Target
CAN Bus Position Demand Target
CAN Bus Valve Area Target
CAN Bus Programmable PID Mode Option
Factory Loaded PID Calibration for all Turbosmart eGates
Internal Over-Current Protection
Internal Over-Temp Protection
Auto Position Calibration
Anodized Aluminium Housing
34 Pin Superseal Connector
Pinnout:
1: 12V Supply Positive Battery Power Supply 1/4*
2: 12V Supply Positive Battery Power Supply 2/4*
3: Output 1+ve eGate 1 Positive Power Supply 1/2* eGate 1 Red Larger Gauge Motor Wire
4: Output 1+ve eGate 1 Positive Power Supply 2/2* eGate 1 Red Larger Gauge Motor Wire
5: Output 1-ve eGate 1 Negative Power Supply 1/2* eGate 1 Black Larger Gauge Motor Wire
6: Output 1-ve eGate 1 Negative Power Supply 2/2* eGate 1 Black Larger Gauge Motor Wire
7: Output 2 +ve eGate 2 Positive Power Supply 1/2* eGate 2 Red Larger Gauge Motor Wire
8: Output 2+ve eGate 2 Positive Power Supply 2/2* eGate 2 Red Larger Gauge Motor Wire
9: Output 2-ve eGate 2 Negative Power Supply 1/2* eGate 2 Black Larger Gauge Motor Wire
10: 12V Supply Positive Battery Power Supply 3/4*
11: 12V Supply Positive Battery Power Supply 4/4*
12: NC No Connection
13: 5.0V Supply 5V Sensor Supply eGate/s Red Wire
14: 0V AN Ref** 0V Sensor (Do NOT connect with Chassis GND) eGate/s Black Wire
15: CAN 1 HI CAN 1 High
16: CAN 1 LO CAN 1 Low
17: Output 2-ve eGate 2 Negative Power Supply 2/2* eGate 2 Black Larger Gauge Motor Wire
18: Power Ground Negative Battery Power Supply
19: AV1 Analog Voltage 1 eGate 1 White Position Sensor
20: AV2 Analog Voltage 2 eGate 2 White Position Sensor
21: NC No Connection
22: NC No Connection
23: FREQ IN 1 ECU eGate 1 PWM Input
24: NC No Connection
25: Power Ground Negative Battery Power Supply
26: Power Ground Negative Battery Power Supply
27: AV5 eGate 1 Enable Switch Voltage
28: AV6 eGate 2 Enable Switch Voltage
29: AV7 Analog Voltage 7 eGate 1 Yellow Temperature Sensor
30: AV8 Analog Voltage 8 eGate 2 Yellow Temperature Sensor
31: NC No Connection
32: FREQ IN 4 ECU eGate 2 PWM Input
33: 0V FREQ REF** 0V Frequency (Do NOT connect with Chassis GND)
34: Power Ground Negative Battery Power Supply
