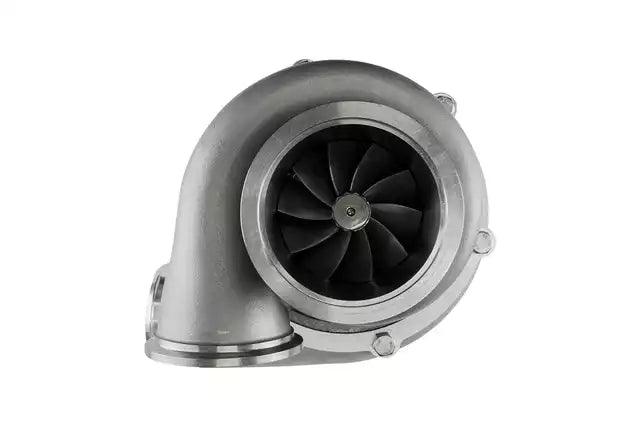

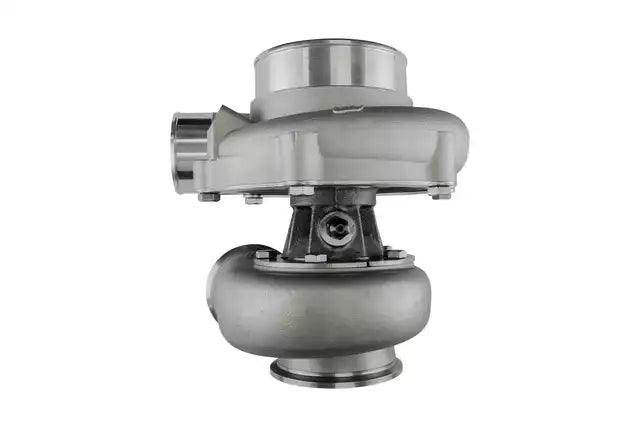

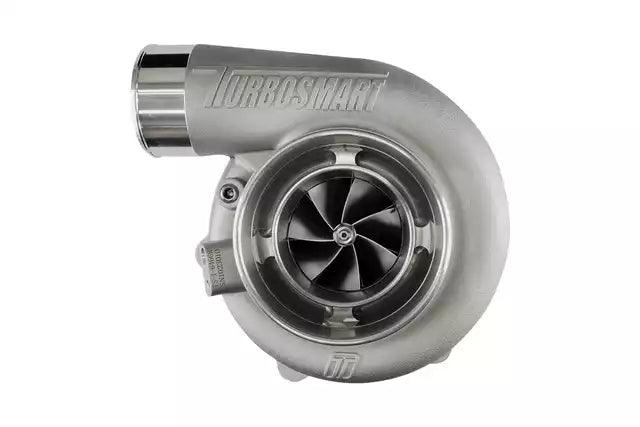

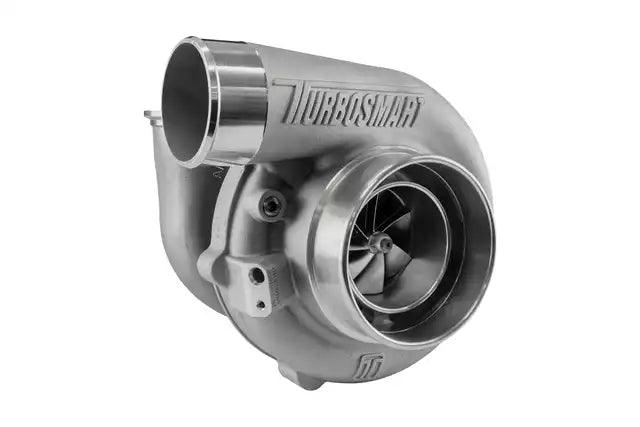

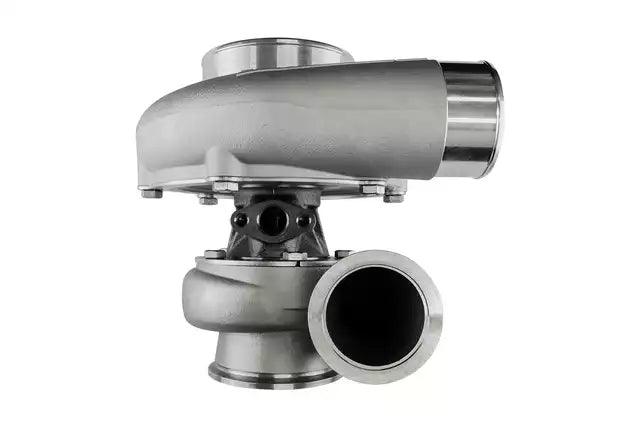

Turbosmart TS-1 6466 Performance Turbocharger 0.82AR V-BAND Housing Reverse Rotation

Turbosmart TS-1 6466 Performance Turbocharger 0.82AR V-BAND Housing Reverse Rotation

Regular price £2,095.00 GBP
Regular price £2,267.94 GBP Sale price £2,095.00 GBP
Sale Sold out
Tax included.

Turbosmart TS-1 Performance Turbo 6466 V-Band 0.82AR (Reversed Rotation)

The TS-1 series are oil cooled turbochargers with lightweight stainless steel investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.

The low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique T14 Inconel turbine wheel to ensure power at high loads and flow is maintained.

Characteristics
High transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight cast turbine housing in stainless steel 310s
Lightweight aluminum compressor covers
CFD driven designed housing for optimal AR and flow
T14 Inconel turbine wheel for extreme EGT
VSR balanced
Proprietary dual ceramic bearing system
Integrated iron back plate on the center casing

Specifications
Compressor inlet: 4 in / 101.6 mm
Compressor inducer: 64mm
Turbine inlet: V-band (2.25 inches)
Turbine extractor: 66mm
Turbine AR: 0.82
Turbine outlet: V-band (3.00 inches)
Weight: 6.06 kg / 13.3 lbs
AN4 oil supply

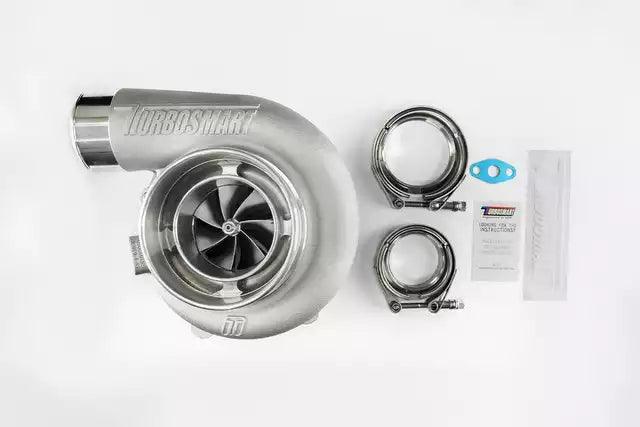

Comes in the box:
1 x Turbosmart Performance turbocharger
2 x welding flanges (turbine inlet and outlet)
2 x V-band clamps (turbine inlet and outlet)
1 x Oil Drain Gasket

Installation guide
