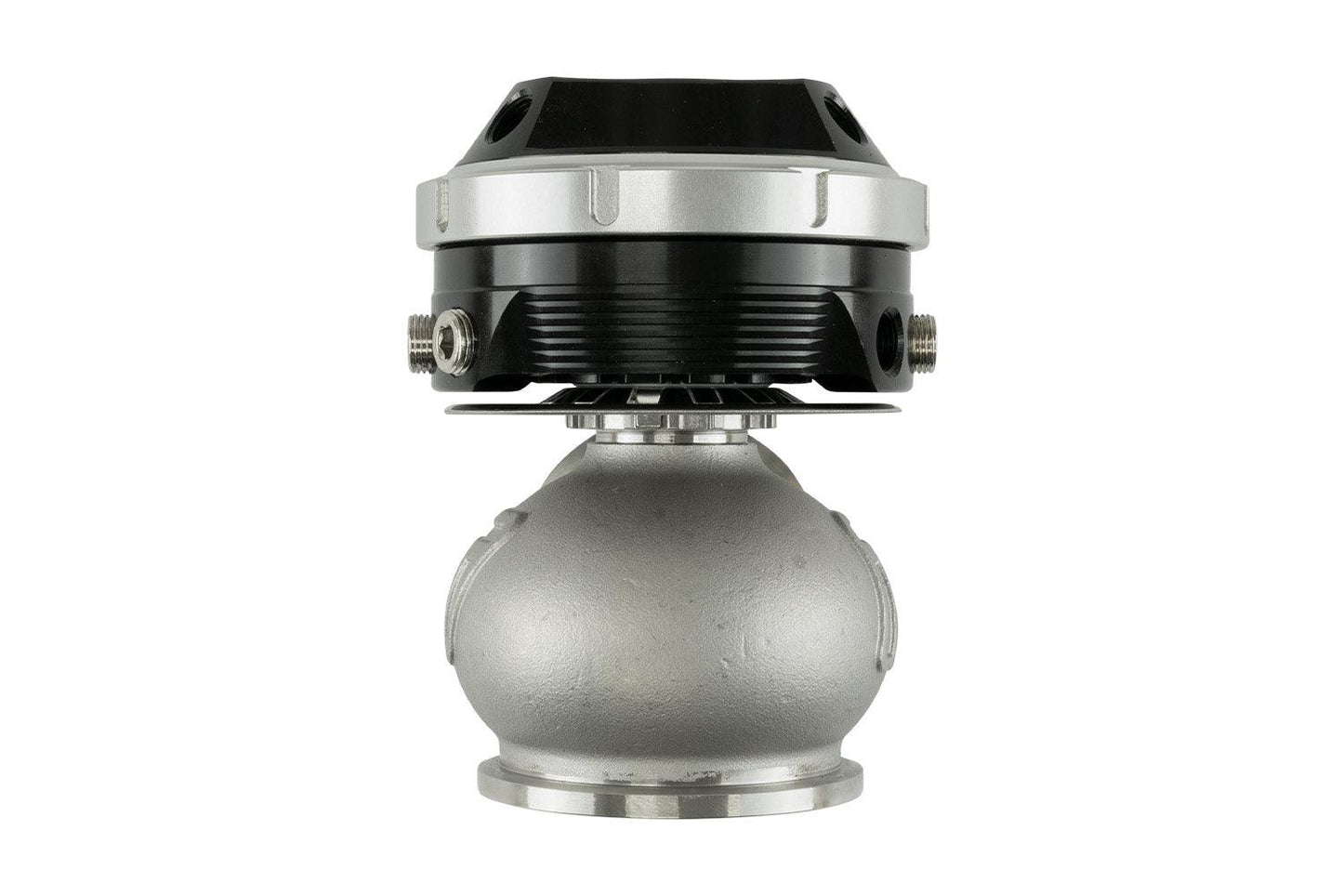

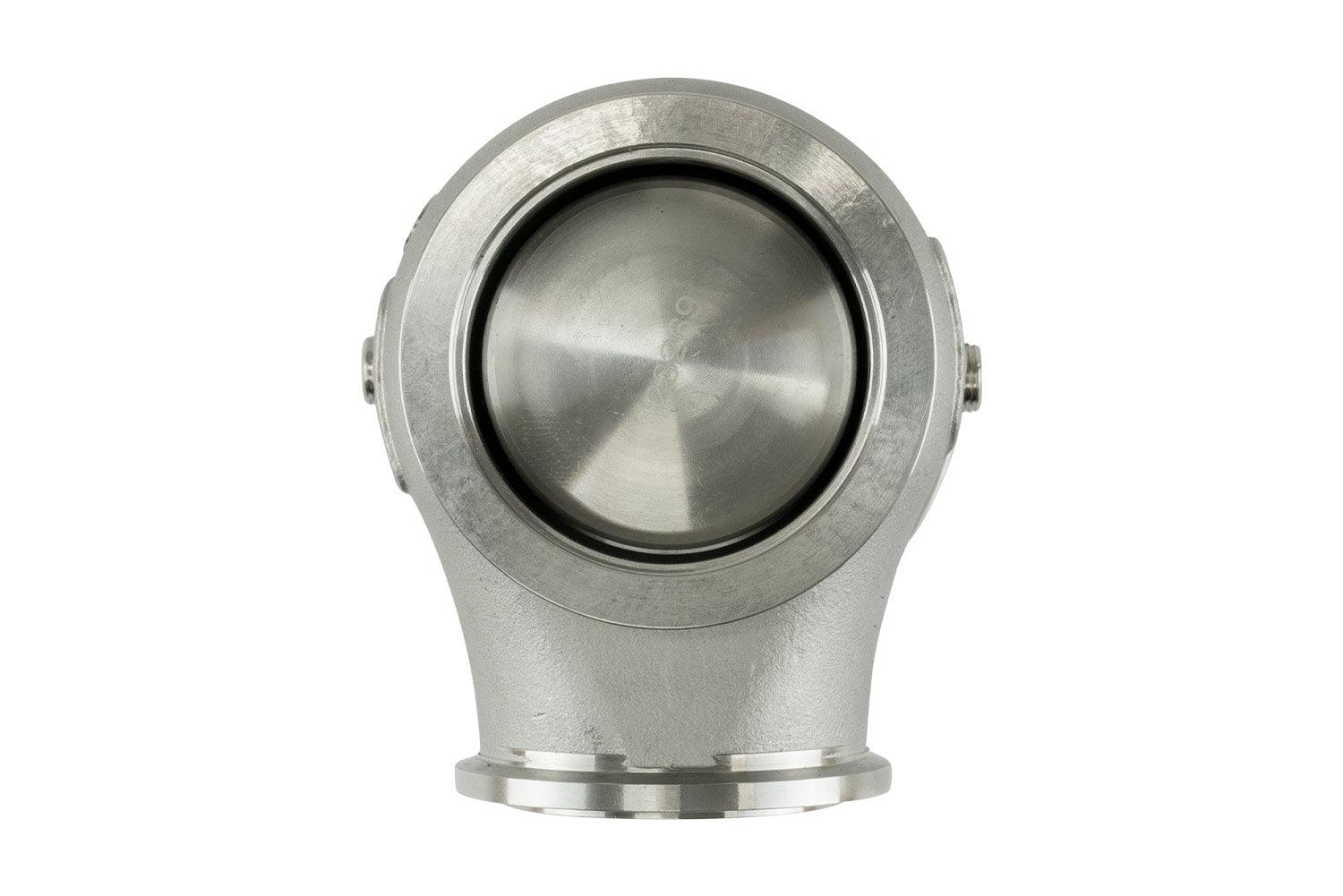

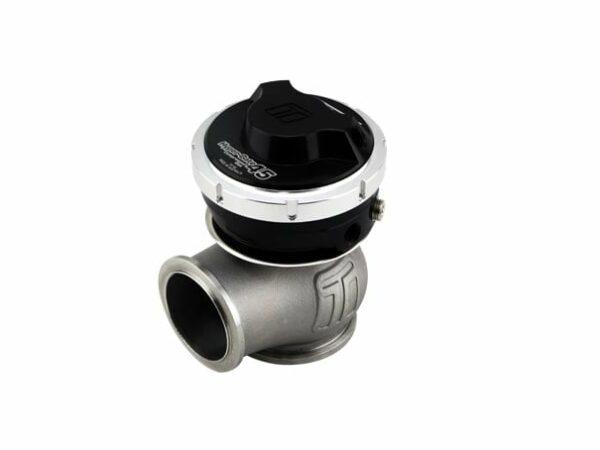

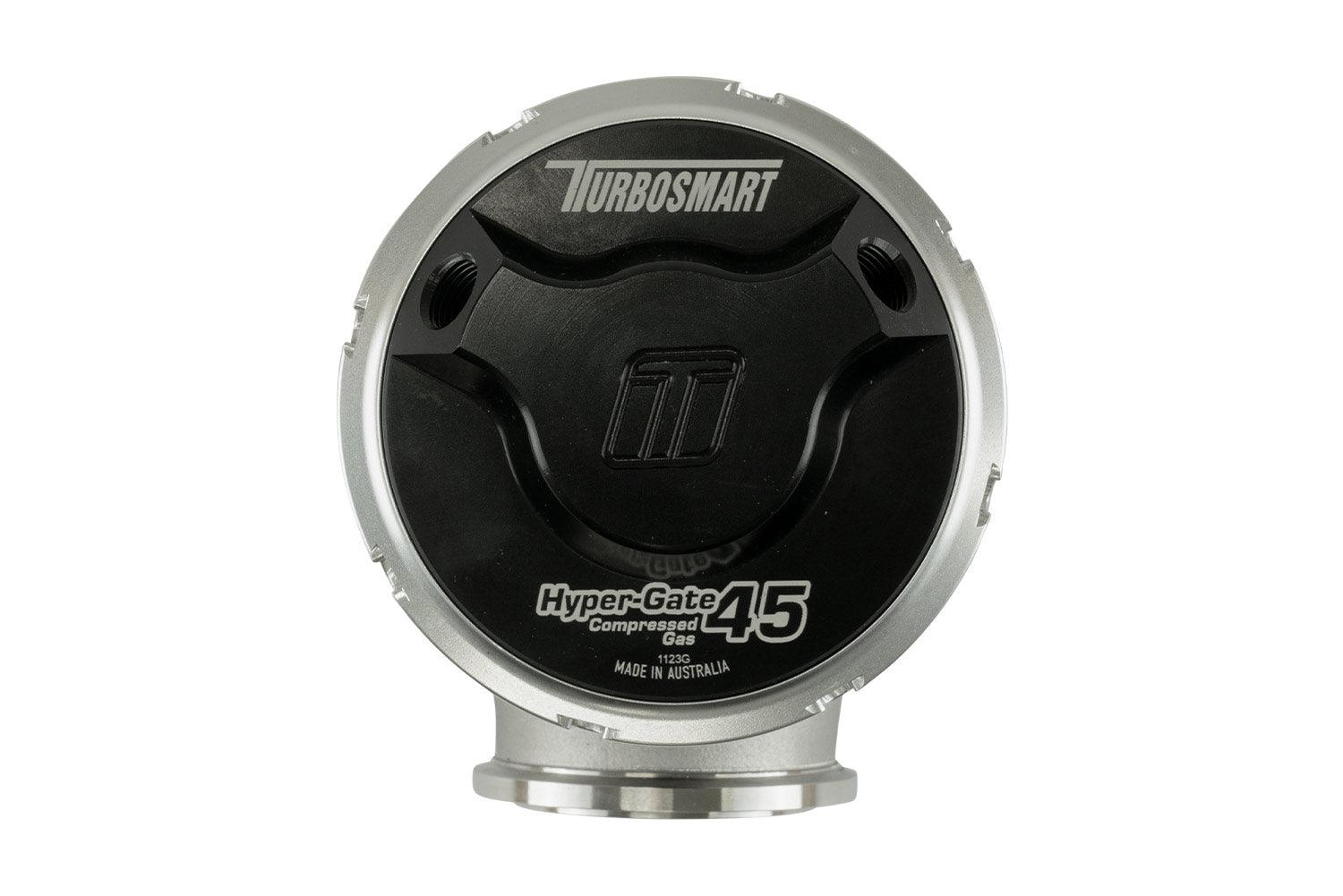

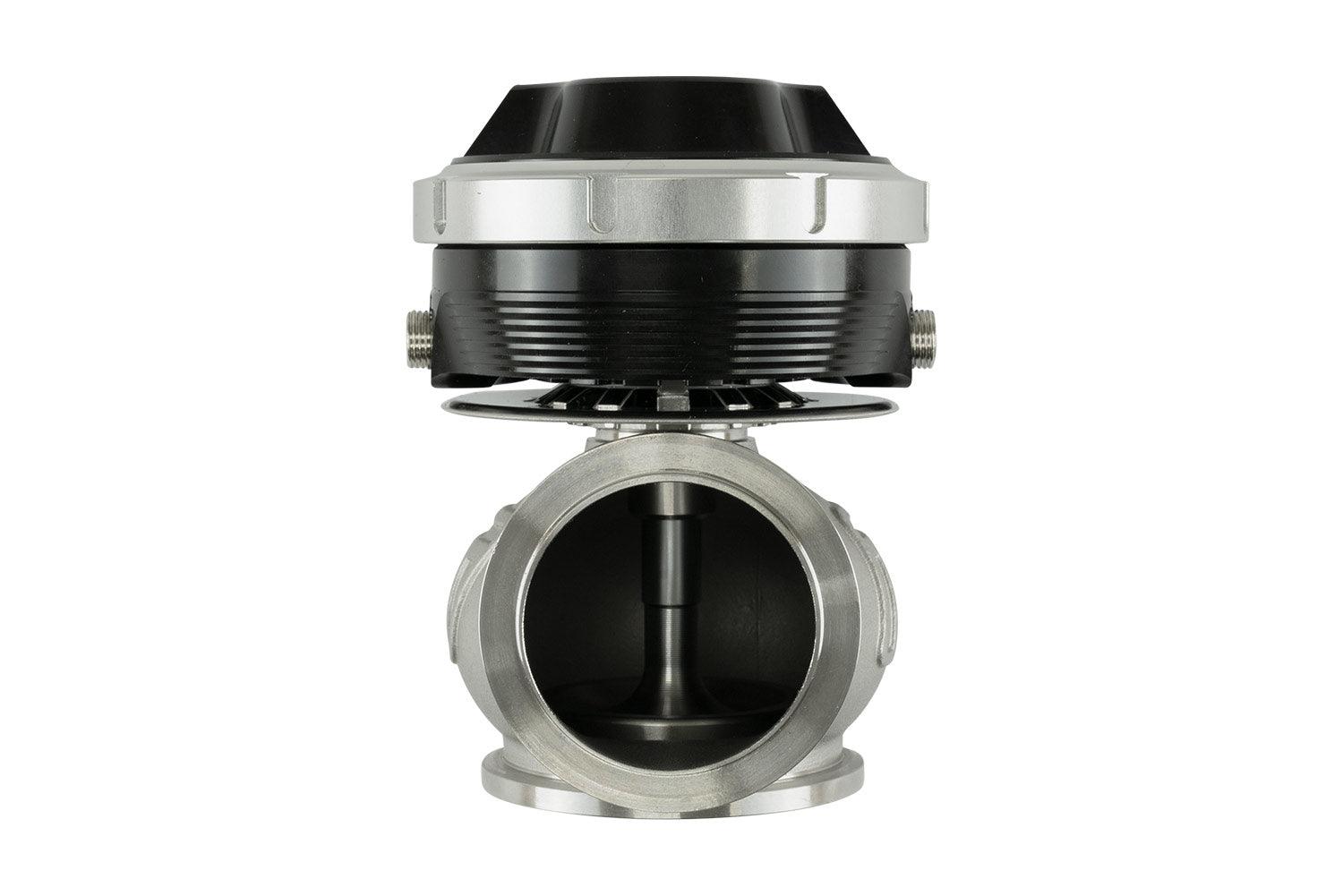

Turbosmart 45mm GEN-V HyperGate Wastegate (CG/CO2)

Turbosmart 45mm GEN-V HyperGate Wastegate (CG/CO2)

Regular price £509.00 GBP
Regular price £509.00 GBP Sale price £509.00 GBP
Sale Sold out
Tax included.
icon 2
John , Anthony & 1000+ others trust our approved parts on their builds!
  • Express Shipping

  • 30 days returns

  • Expert Support

Pay In Instalments!

At checkout you can choose Klarna or Paypal Finance to help spread the cost!

Will It Fit My Pride & Joy?

If you are unsure if something fits or which option is best for your application, that blue chat box on the bottom right hand side will direct you to one of our amazingly talented team members who are more than happy to discuss your car!

Be careful, the passion might take over and they'll ask for pictures of your build!

We at CDMSport are veterans when it comes to car knowledge.

We have our own race team, workshop and everyone here is a genuine experienced petrol head!

In addition to everyone on the team having fantastic overall knowledge & experience, we have dedicated specialists for your questions on the more technical stuff such as engine components or electronics.

Lightspeed Shipping & Easy Returns!

Crazy Fast Shipping

We pride ourselves in fast shipping and unparalleled after sales support.

All international orders will be delivered without import tax/duty as we have this all pre-paid for you. (this only applies to standard shipping methods. Some countries may charge import VAT on Express shipments)

We aim for same Day dispatch before 1PM on all in stock Items. But this isnt always possible during busy periods so please allow for next day dispatch when you are time sensitive.

If something you ordered is not in stock, we will email you and notify you of the new ETA.

UK & Ireland Delivery is usually next day delivery but can take 1-3 days.

Europe is 1-5 days.

Rest of world is 3-5 days.

Shipping times above are based on the express shipping option selected at checkout.

Hassle Free Returns

As car enthusiasts we understand the importance of flexibility on returns.

All stock items have a 30 day return period where you will be issued a full refund for the parts.

If you order the incorrect part, we will do our best to assist you in getting the correct part as soon as possible for as little money as possible. It happens, we have been there!

This is why we are one of the worlds leading aftermarket car parts brands. We are enthusiasts and we know what's important to our community CDMSport car enthusiasts!

Turbosmart 45mm GEN-V HyperGate Wastegate (CG/CO2) - 5PSI

The GenV HyperGate45 Compressed Gas external wastegate is a cost-effective, high-performing external wastegate designed for control strategies that actively bias the top chamber with high pressure for large boost bandwidth operation, such as CO2 drag racing or compressed air WRC applications.

The Compressed Gas range features an inverted diaphragm to maximize diaphragm life from high-pressure CO2 or compressed air systems.

The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In

Black, Blue

Wastegate Position Sensor Version and Upgrade

Features

Class Leading, Thermal Performance

Class Leading, CFD, and Validated Flow Performance

Class Leading Fatigue Resistance

Nitronic 60 Valve Guide and High Temp 347 SS Body

17/7 PH Stainless Steel Springs

Liquid Actuator Cooling Option

Strap Type V-band clamps

User Adjustable Actuator Position

Modular Design for Actuator Interchangeability

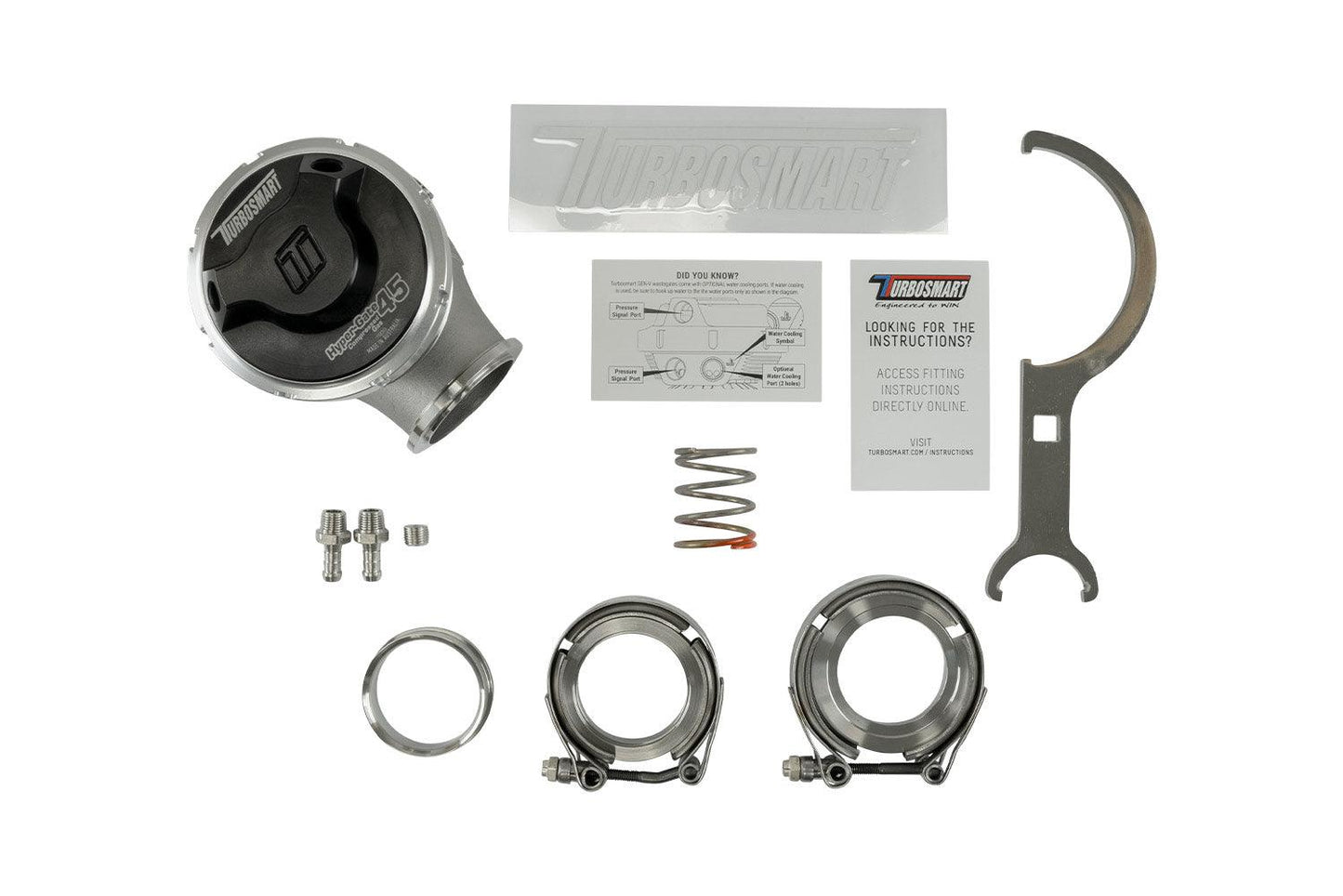

SUPPLIED WITH

GenV Wastegate unit

All Springs Included in Box

Wastegate Pre-fitted as Per Description

GenV SS316 Valve seat

GenV Inlet and Outlet V-Band Clamps

GenV Inlet and Outlet Flanges

Mounting Bolts and Nuts

Collar tool (master/slave)

4 x 1/8” NPT plugs (1x installed)

2 x 1/8” NPT nipples

Turbosmart Decal
