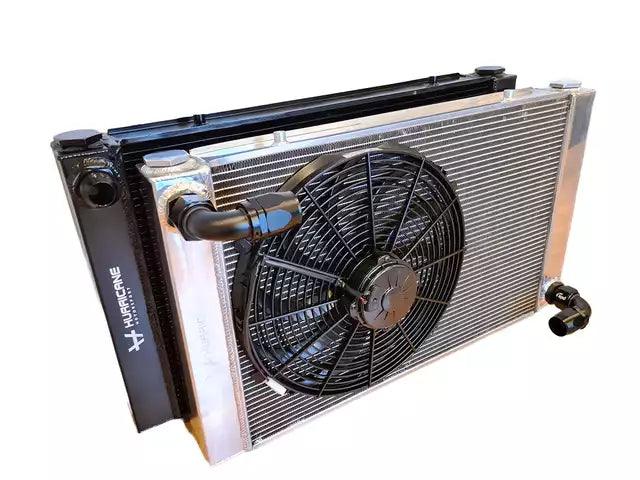

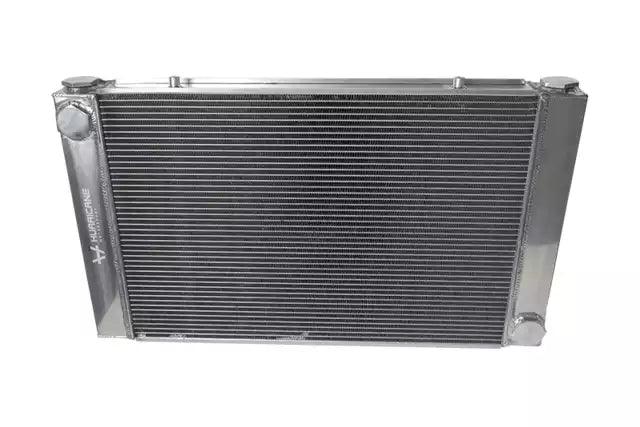

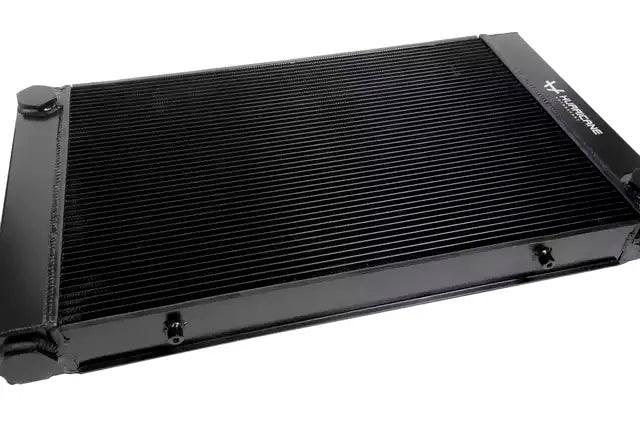

Hurricane Motorsport Universal High Flow Drift Race Radiator AN20 Fittings/Push On Fittings 580x460x80

Hurricane Motorsport Universal High Flow Drift Race Radiator AN20 Fittings/Push On Fittings 580x460x80

Regular price £349.99 GBP
Regular price £409.99 GBP Sale price £349.99 GBP
Sale Sold out
Tax included.

Hurricane Motorsport

Radiator High flow AN20 Universal 580x460x80

Universal high-flow water cooler from Hurricane motorsport with AN20 connections in each corner to fit your installation optimally.

-Adapt the water cooler to your build and not the other way around!

  • AN20 connections (internal thread)
  • Adjustable connection size
  • Adaptable placement of connections
  • Hose or AN connections, or both
  • Fits both US / Japan boiling systems and header tank systems
  • Extreme cooling capacity with modern cross-flow design
  • Connections placed both at the top and bottom

This water cooler from Hurricane Motorsport takes your cooling system to new levels where you adapt the radiator to your build and not the other way around. This universal cooler has connections that allow you to get the connections exactly as you want.

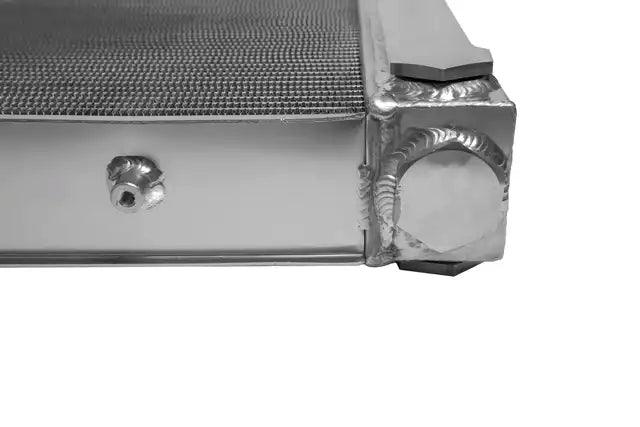

Location of connections
Top right or top left, bottom right or bottom left? -You choose!. With AN20 connections, you have the opportunity to choose the largest or the smallest connection you can imagine. Everything from small to large hose connections and AN connections will fit from now on. No welding or modification needed. everything is threaded on smoothly with o-ring seal adapters.

Type of connections
38mm hose connection, 40mm hose connection, AN fittings or mixed?
The type of connection is also completely flexible. The four AN20 fittings allow you to freely choose which connections to use.
AN fitting inlet and hose connection outlet or vice versa. Everything is flexible with adapters, no welding or modification is needed. Everything is adapted with with o-ring seal fittings.

CLICK HERE FOR AN20 HOSE FITTINGS

Boiling systems and header tank systems
Regardless of whether you use a cooling system with Boiling system or a header tank system, this water cooler works as you have two AN20 connections that fit both systems.
Choose adapter with return hose to fit systems with header tanks or choose an adapter radiator cap to fit your boiling system. No modification is needed, and everything can easily be threaded in place.

Dimensions (without connections):
Width: 58cm
Height: 46cm
Thickness: 8cm

Weight 4.5 kilos without connections.
