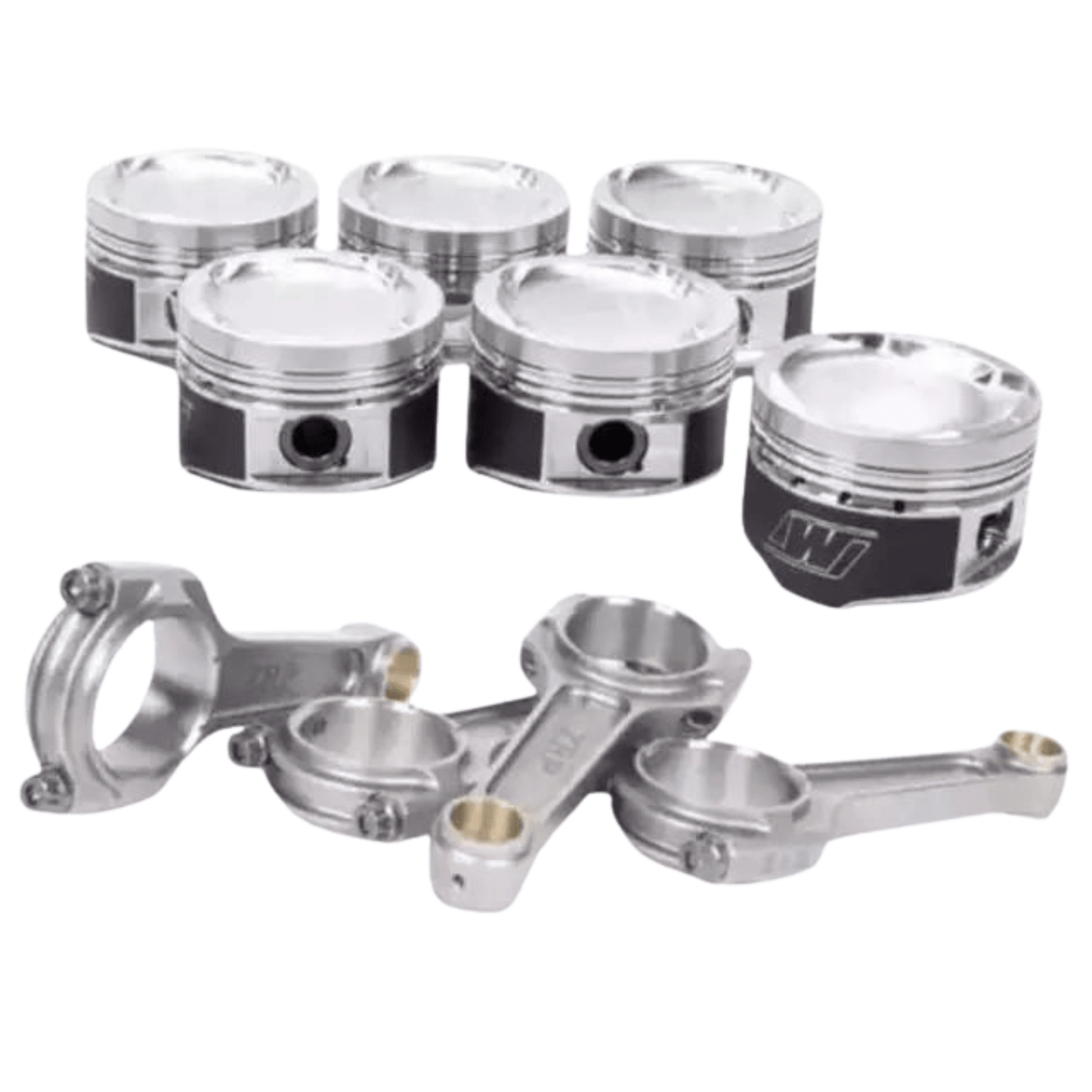

Wiseco Toyota 2JZ Forged Engine Kit ZRP Rods & Wiseco Pistons 86mm 9.5:1

Wiseco Toyota 2JZ Forged Engine Kit ZRP Rods & Wiseco Pistons 86mm 9.5:1

Regular price £1,749.99 GBP
Regular price £2,050.00 GBP Sale price £1,749.99 GBP
Sale Sold out
Tax included.

Wiseco/ZRP Pistons+Connecting Rods Toyota Supra 2JZ (9.5:1) Heavy Duty (86mm)

Toyota 2JZGTE 3.0L 24V • Supra 1993-98 • HD2 Asymmetric Skirt w/ Lateral Gas Ports • .200” Wall Pins

Kit Part #: K677M86AP
Bore mm / Inch:
86.00 / 3.386
Over-size:
Std.
Stroke:
3.386, 86mm
Rod:
5.590, 142mm
Comp Ht:
1.338, 34mm
Head cc’s:
45cc
Volume:
-5.3cc
Gasket Thickness:
.056, 1.42mm
Deck Clearance:
.001, .02mm
Block Ht:
8.662, 219mm
Compression Ratio:
9.5
Pin Part # Included:
S796 22mm - .866 x 2.250
Ringset Included:
8600XX
Avg: Wt:
365
Foot-note:
1
