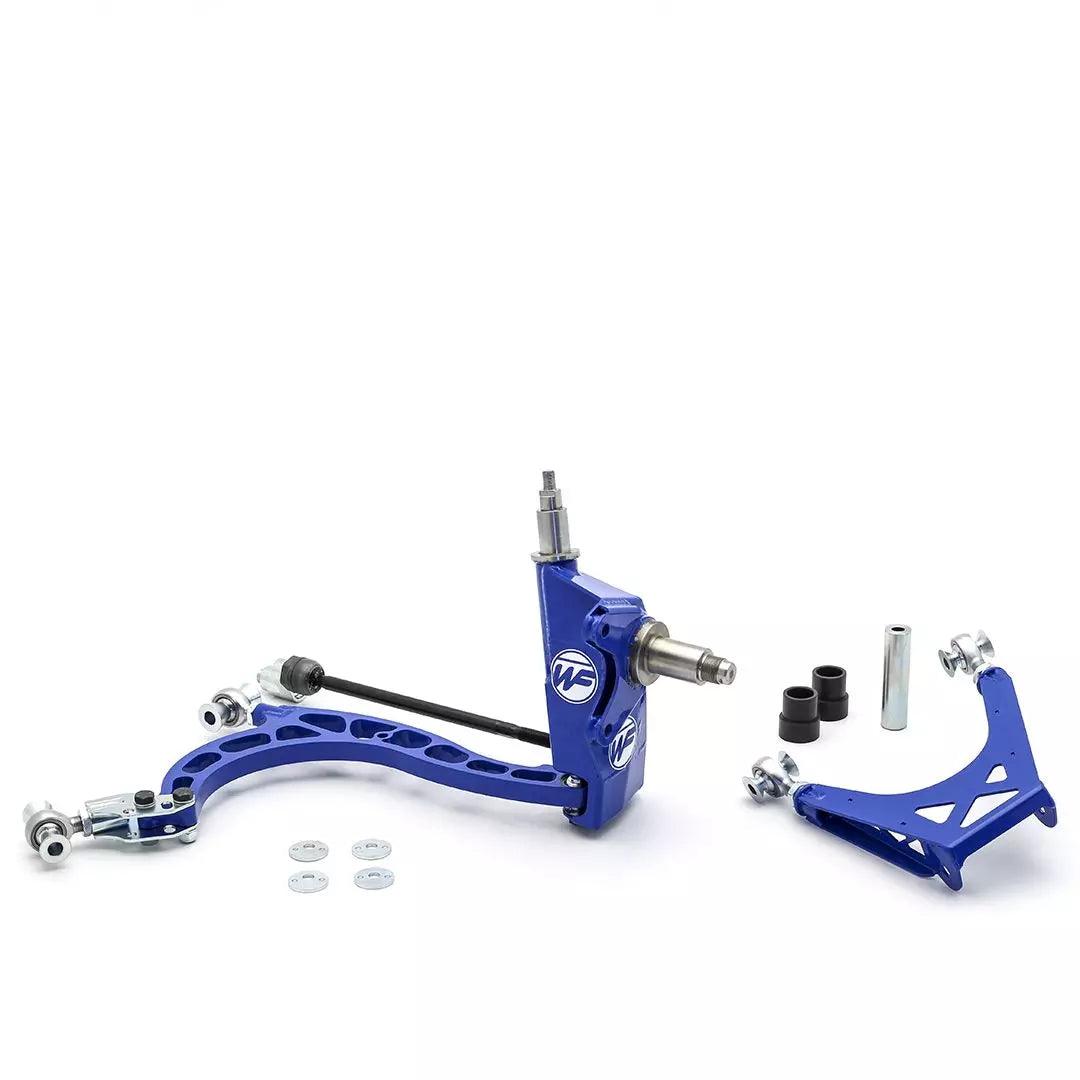

Wisefab Nissan Skyline R33 GTST Steering Angle Kit

Wisefab Nissan Skyline R33 GTST Steering Angle Kit

£1,953.00 GBP
£1,953.00 GBP £1,953.00 GBP
Sale Sold out
Tax included.

Pay In Instalments!

At checkout you can choose Klarna or Paypal Finance to help spread the cost!

Lightspeed Shipping & Easy Returns!

Crazy Fast Shipping

We pride ourselves in fast shipping and unparalleled after sales support.

All international orders will be delivered without import tax/duty as we have this all pre-paid for you.

We aim for same Day dispatch before 3PM on all in stock Items.

If something you ordered is not in stock, we will email you and notify you of the new ETA.

UK & Ireland Delivery is 24hour.

Europe is 1-4 days.

Rest of world is 3-5 days.

Shipping times above are based on the express shipping option selected at checkout.

Hassle Free Returns

As car enthusiasts we understand the importance of flexibility on returns.

All stock items have a 30 day return period where you will be issued a full refund for the parts.

If you order the incorrect part, we will do our best to assist you in getting the correct part as soon as possible for as little money as possible. It happens, we have been there!

This is why we are one of the worlds leading aftermarket car parts brands. We are enthusiasts and we know what's important to our community CDMSport car enthusiasts!

Will It Fit My Pride & Joy?

If you are unsure if something fits or which option is best for your application, that blue chat box on the bottom right hand side will direct you to one of our amazingly talented team members who are more than happy to discuss your car!

Be careful, the passion might take over and they'll ask for pictures of your build!

We at CDMSport are veterans when it comes to car knowledge.

We have our own race team, workshop and everyone here is a genuine experienced petrol head!

In addition to everyone on the team having fantastic overall knowledge & experience, we have dedicated specialists for your questions on the more technical stuff such as engine components or electronics.

  • 65 degrees of lock, parallel steering.
    You can tune your steering geometry either towards positive or negative Ackermann in just a few minutes even at trackside without messing up an alignment.
    Ackermann adjustment kit included.
  • Adjustable lock stopper.
  • One piece design.
    Lower 2 piece arm is replaced with one piece design to increase system stiffness that is needed for high lock.
  • Higher roll center (RC).
    On Wisefab Nissan R-chassis knuckle, both joints are dropped, which brings the front RC up on lowered car, providing higher roll and better camber gain.
  • Very good camber control and minimal bump steer with high steering angles
    On drift cars the dynamic camber and bump steer is much more important than static. With Wisefab kinematics we have assured that the camber would provide very good front grip and bump steer is minimal at all the range of steering.
  • Steering jacking control.
    During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have changed the geometry so that it doesn't cause any handling issues.
  • Consistent and predictable self-alignment torque.
    Caster is not the only important parameter to provide sufficient self-alignment torque especially at high lock. It's the combination of different parameters to maintain consistent trail and self-alignment torque. With our setup the steering wheel turns always to the direction of movement and doesn't get stuck at full lock.

Kit includes:

  • Pre-set upper and lower control arms.
  • Knuckles with hardware.
  • Assembeled tie rods.
  • Installation guide.



Other components, packaging and clearance.

  • Requires S14 hubs.
  • This kit assumes car to have coilovers to have enough clearance.
  • Ride height is designed to be ~80mm from front subframe to ground.
  • Dependent on rim width and ET, wider fenders or fender flares would be needed.
  • Inner wheel wells do not need to be modified with tire diameter up to 635mm (225/45R17, 235/40R17, 235/35R18, 255/30R18 etc).
  • Minimum rim diameter is 17".
  • Recommended backspacing is ~135mm (7" ET45; 8" ET35; 9" ET20). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used.
  • The kit is designed and manufactured the way that after installation and toe adjustment it's ready to use right away.

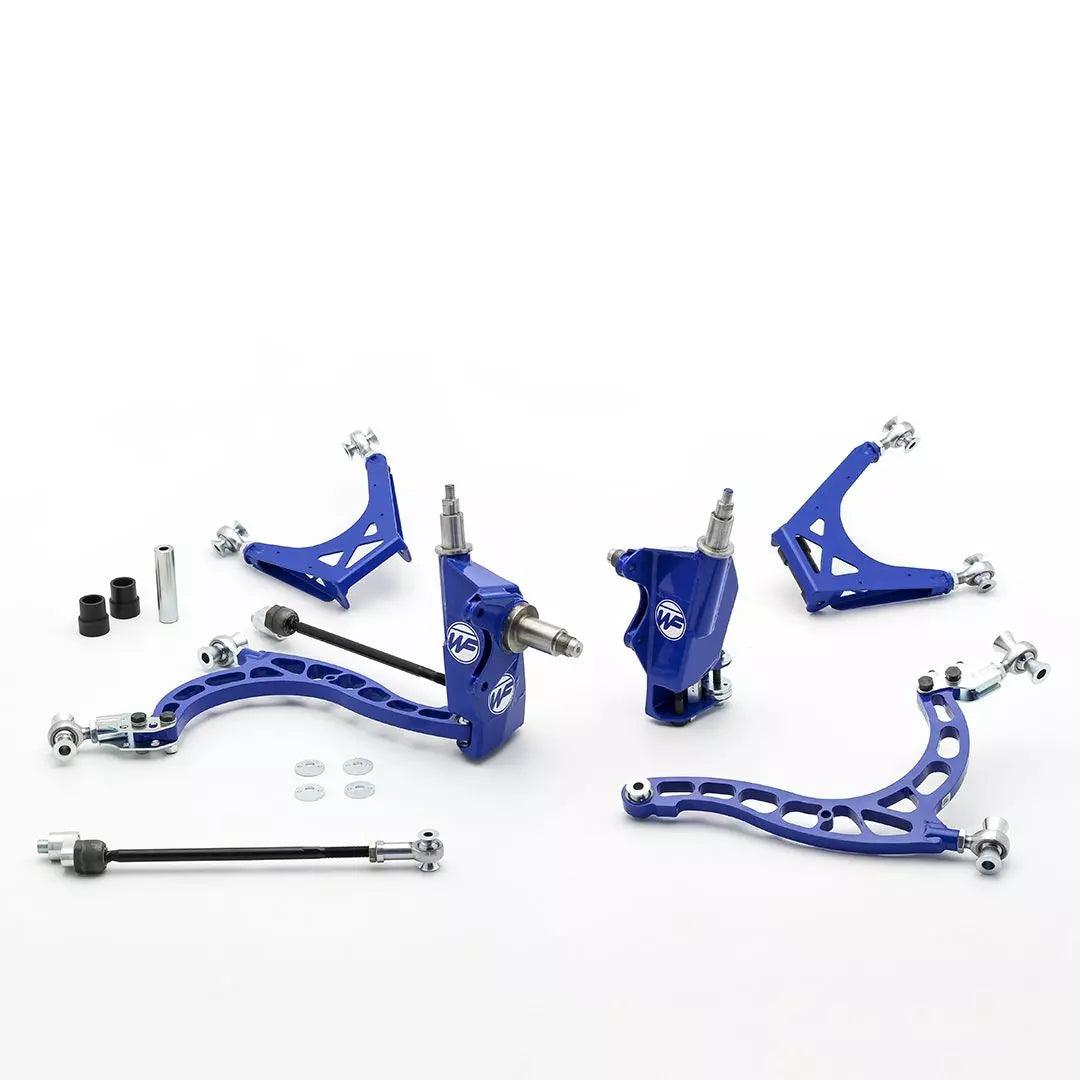

Wisefab Nissan R33 GTST Skyline Drift angle Suspension kit

The kit includes
2x Hub Knuckles
2x One piece Lower Arm/Tension Rod
2x Upper Arms
2x Tie Rods
2x Offset Rack Spacers
2x Tie Rod Ends
1x Ackerman Adjust Kit

Please Note: Requires S14 Wheel Bearings / Hubs

Please Note: Requires S14/15 Wheel Bearings as the standard R-chassis hub / bearing setup is really overcomplicated.

This kit does not fit GTR or any other 4WD models.

Nissan Skyline R33 Angle kit has the OEM upper control arms replaced with Wisefab upper control arms for better kinematics and to avoid rubbing issues at full lock. Lower control arms are suitable for S and R-Chassis. The new lower control arms are easy to adjust. Knuckle has Ackermann adjustment built in. Adjusting Ackermann setup you can achive maximum sideways grip. All the metal components on Wisefab Nissan Skyline R33 front suspension are from high strength steel, including sheet metal components, tube ends and rod end housings. Rod ends and spherical bearings are used, no rubber bushings.

Want to know how does Wisefab Lock kit fits your driftcar check below the link CHECK FITMENT or here!

Here is our recommended alignment parameters:
Toe in/out: If Ackermann is 0 or negative then toe is 2mm out. If Ackermann is positive then toe is 0
Camber: -4,5 +/-0,5
Caster: 4,3 +/-0,5

By installing Nissan S14 rear subframe to your Nissan Skyline you can install the Wisefab Nissan S14 Rear Suspension kit. to your Nissan Skyline



View full details
