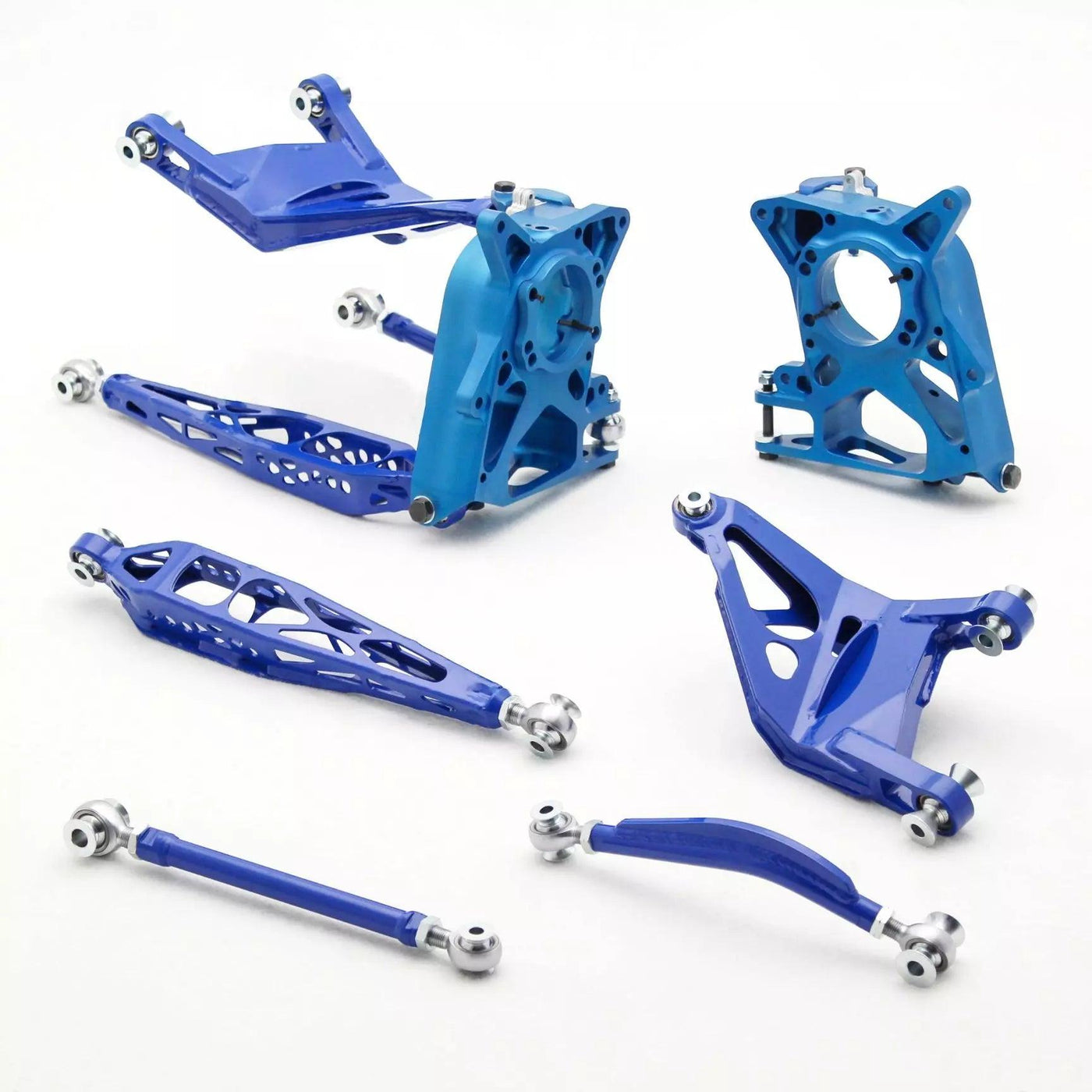

Wisefab Subaru BRZ Rear Suspension Drop Knuckle Adjustable Arm Kit

Wisefab Subaru BRZ Drift angle Suspension kit

• As used on many competition-winning Subaru BRZs around the world.

  The Subaru BRZ rear V2 kit is made of high strength steel. It is a bit heavier than the V1 kit, but it is stronger, stiffer and has more adjustment options and improved features.

  Subaru BRZ is a well designed car for enthusiast drivers. The car performs well on the streets and can be driven fast on a race track. If the focus is more towards performance, then the car will drive even better with lowered ride height, but then the factory designed kinematics won’t work as they are supposed to. Wisefab suspension kit brings the roll center, bumpsteer, anti-squat and camber curve back to normal range, provides better roll stiffness, handling and grip.





  • All knuckles, links and arms are made of high strength steel
  • CrMo rod ends and sphericals used instead of rubber bushings
  • Adjustable shock motion ratio
  • Shock motion ratio can be adjusted by changing the shocks position on the arm. It can be done quickly and has the effect of changing the springrate. This means that understeer or oversteer can be removed within a few minutes
  • Easy camber adjustment
  • Easy bump steer adjustment

  Kit includes:

  • Pre-set suspension arms
  • Knuckles with hardware
  • Installation guide

  Other information:



  • Track 40mm (20mm per side) wider than original. Please check the halfshaft length!
  • This kit assumes coilovers
  • Original wheel speed sensor can be used
  • Possibility to use with OEM bearing/hub, Nissan S-chassis bearing/hub or Lexus IS (XE20) bearing/hub
  • Minimum rim size is 17“
