CDMSPORT

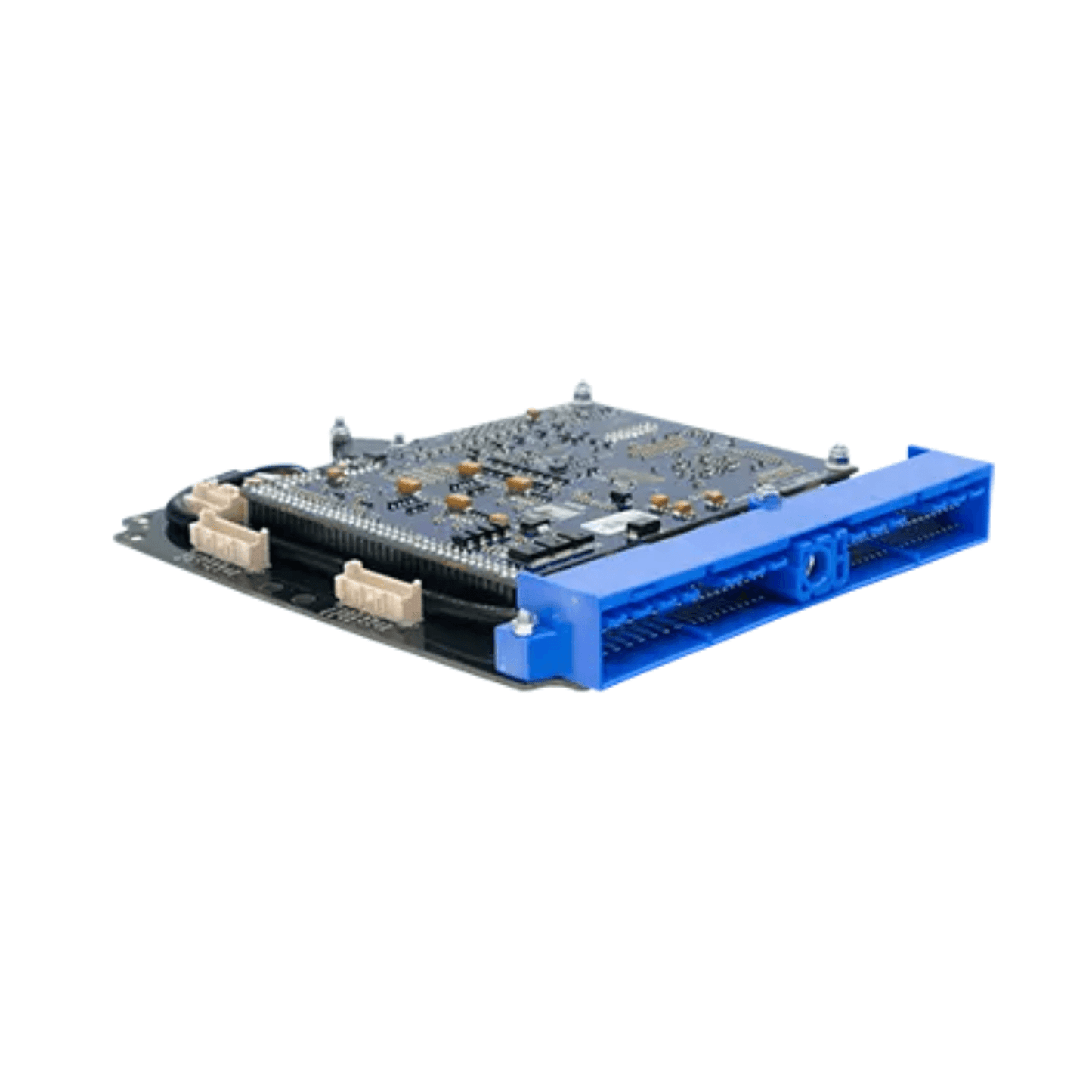

Link ECU Nissan 300ZX Z32 Engine management

Link ECU Nissan 300ZX Z32 Engine management

Regular price £1,325.00 GBP
Regular price £1,555.00 GBP Sale price £1,325.00 GBP
Sale Sold out
Tax included.

Our Link ECU Plug In Bundle

If you purchase a Link plug in ECU, IAT sensor & Link Expansion cable which are linked in the compatible products section, you will get £20 of each! Please note these are a REQUIRMENT for any Link Plug in ECU.



Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

The N300X ECU is Designed to suit the VG30DET engine.

  • Please check your connector matches the header in the listed photo before purchasing.
  • This ECU works for manual transmissions only.
  • Includes an onboard 4 bar or 7 bar MAP sensor.
  • Most factory features are supported.
  • It is highly recommended to fit an IAT sensor with this model.
  • Check the features tab for I/O expansion options.
  • This ECU will need a modification before E-Throttle is usable.

G4X PlugIn Key Features (where applicable)

Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 mega bytes data logging memory
Staged injection
Knock with "windowing"

I/O Expansion Options

The following expansion connector inputs/outputs are provided:
Expansion connector 1
Gnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
DI5                Digital Input
DI6                Digital Input
An Volt 8        Analog 0-5V input
An Volt 2        Analog 0-5V input
An Temp 3        Temperature sensor input
An Temp 4        Temperature sensor input

Expansion connector 2
Gnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
Ign 7                Ignition 7 Auxiliary Output
Ign 8                Ignition 8 Auxiliary Output
DI 9                Digital Input
DI 10                Digital Input
An Volt 10        Analog 0-5V input
Aux 11                Auxiliary Output 11

Suitable applications:
Z32 300ZX VG30DE
Z32 300ZX VG30DETT

Download manual here

Download full G4X specifications here.
