Link ECU Nissan Skyline RB20 RB25 RB26 Engine management G4X Plug In ECU

Link PnP ECU - Nissan GTR R34 & GTS R32-R33

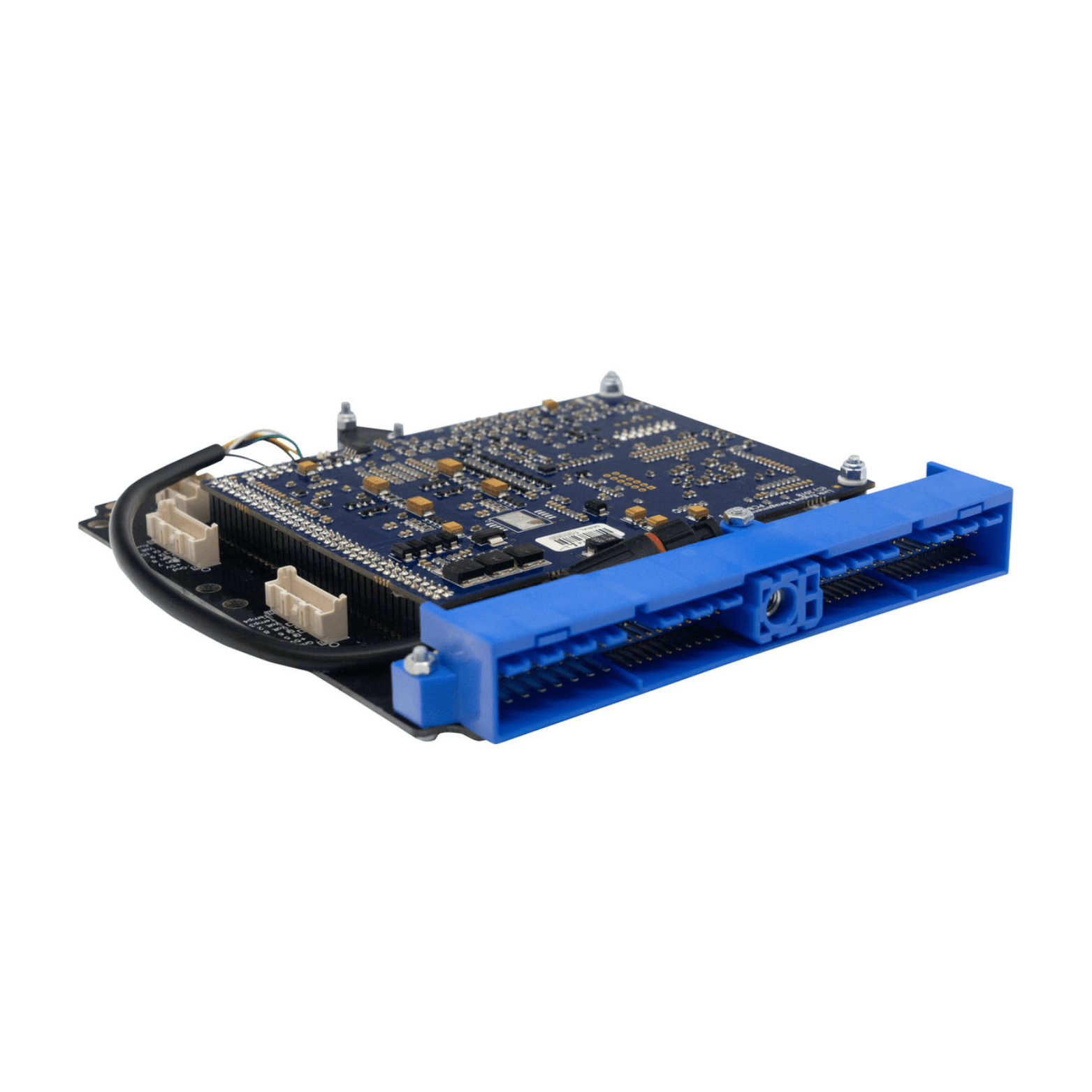

The NGTRX is Designed to suit the blue plug Nissan RB engine.

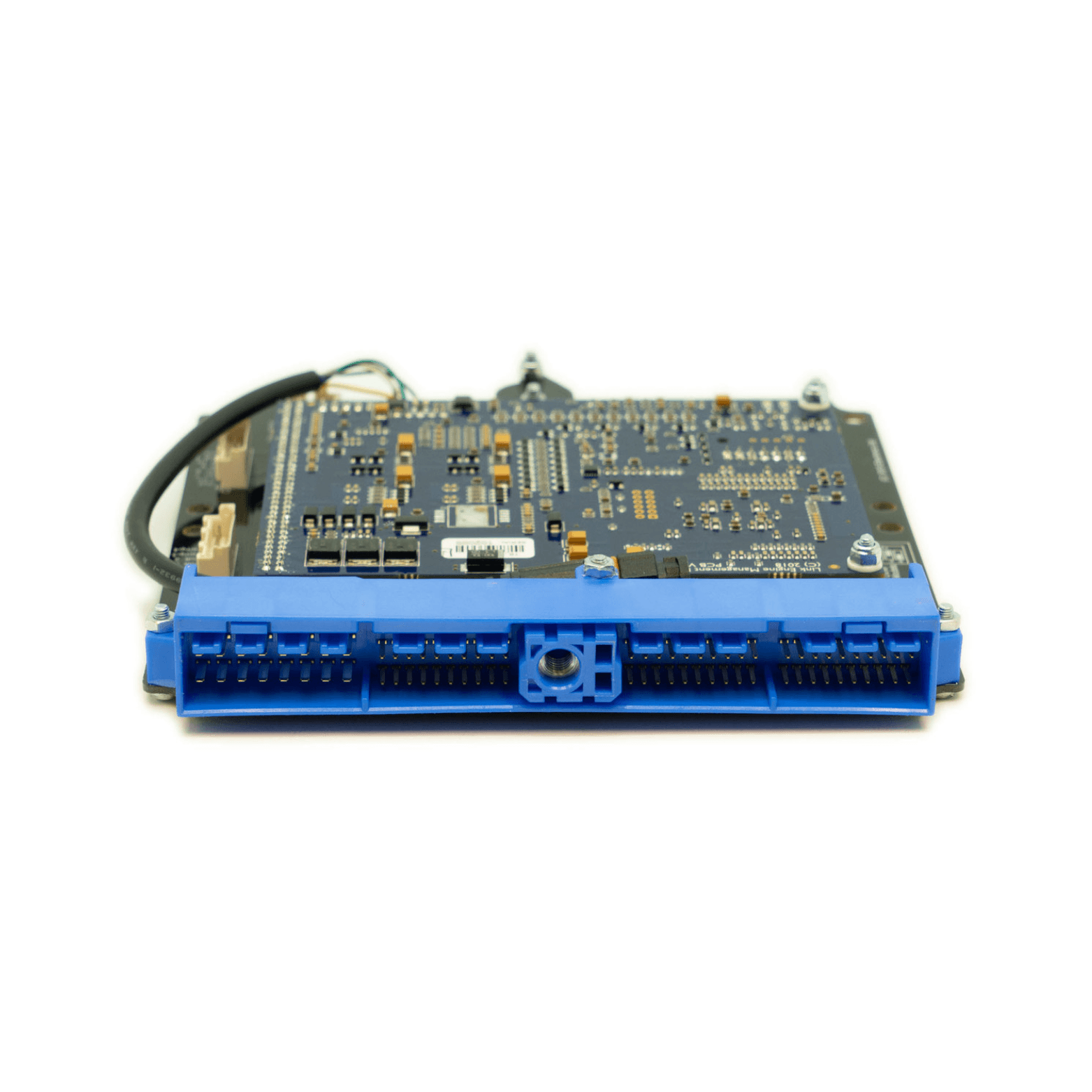

Please check your connector matches the header in the listed photo before purchasing.
This ECU works for manual transmissions only.
This model includes an onboard 4 bar or 7 bar MAP sensor.
Most factory features are supported.
Check the features tab for I/O expansion options.
This ECU will need a modification before E-Throttle is usable.

Suitable applications

• RB26DETT engines found in R32, R33, R34 Skyline GTRs and Autech 260RS Stageas
• RB20DE engines found in R32 & R33 Skylines, A31 Cefiros
• RB20DET engines found in R32 Skylines (incl 4wd), A31 Cefiros and C33 Laurels. – Injector 4&6 need swapping
• RB25DE engines found in R32 & R33 Skylines, C33 & C34 Laurels and A31 Cefiros.
• RB25DET engines found in R33 Skylines (incl 4wd) and C34 Laurels
• RB30DE/DET/DETT engines made using Non Neo heads and blue plug looms

G4X PlugIn Key Features (where applicable)

Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction

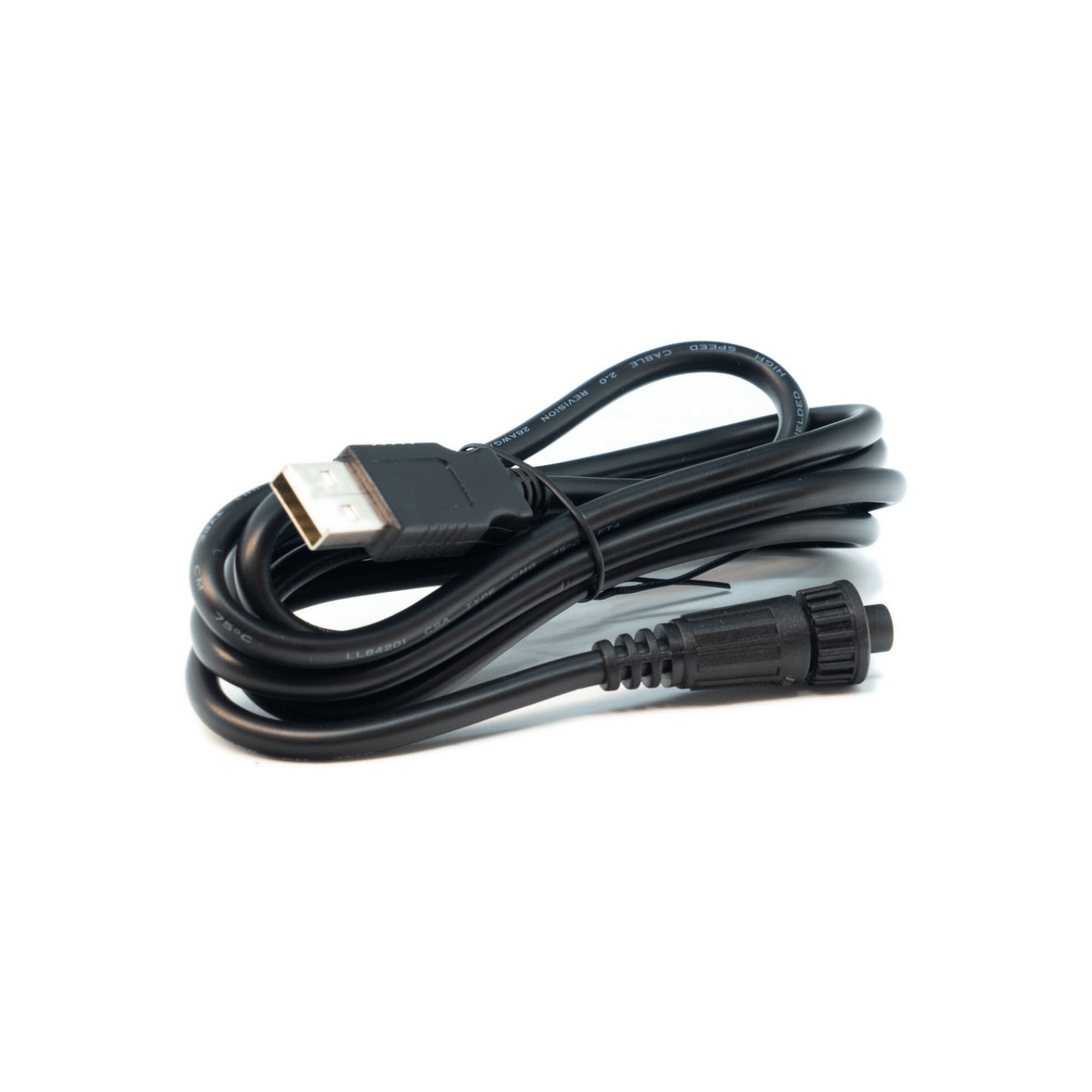

USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 mega bytes data logging memory
Staged injection
Knock with "windowing"

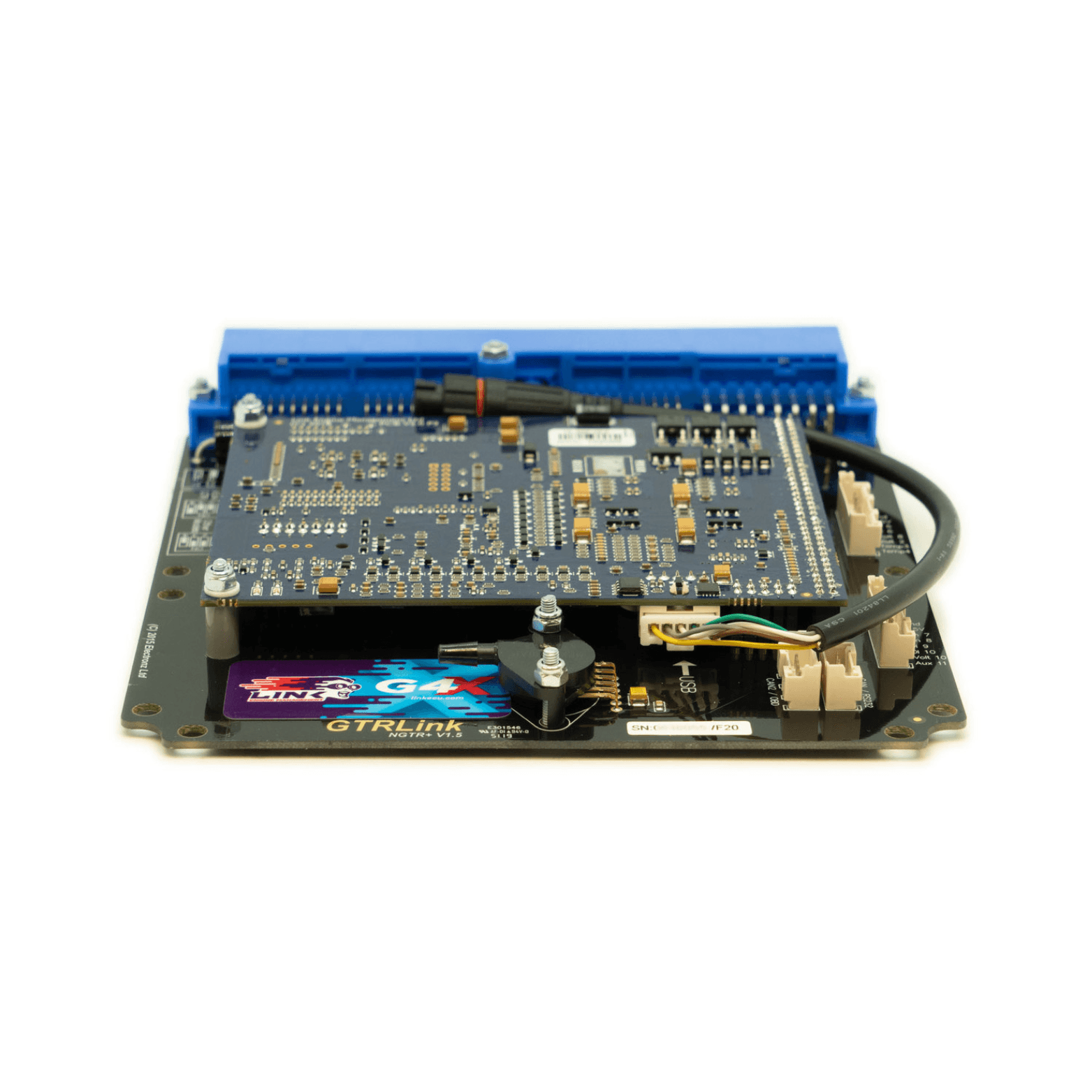

I/O Expansion Options

The following expansion connector inputs/outputs are provided:
Expansion connector 1
Gnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
DI5                Digital Input
DI6                Digital Input
An Volt 8        Analog 0-5V input
An Volt 2        Analog 0-5V input
An Temp 3        Temperature sensor input
An Temp 4        Temperature sensor input

Expansion connector 2
Gnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
Ign 7                Ignition 7 Auxiliary Output
Ign 8                Ignition 8 Auxiliary Output
DI 9                Digital Input
DI 10                Digital Input
An Volt 10        Analog 0-5V input
Aux 11                Auxiliary Output 11
