PMC Motorsport Toyota 1JZ 2JZ Flywheel for Tilton Twin plate clutch on BMW M57 530d 330d Gearbox GS539DZ

PMC Motorsport Toyota 1JZ 2JZ Flywheel for Tilton Twin plate clutch on BMW M57 530d 330d Gearbox GS539DZ

Regular price £490.00 GBP
Regular price £550.00 GBP Sale price £490.00 GBP
Sale Sold out
Tax included.

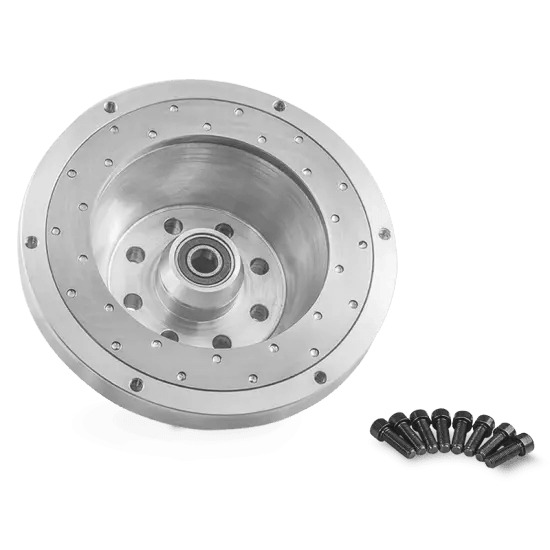

PMC Motorsport Lightweight custom aluminum flywheel Toyota JZ 1JZ 2JZ - BMW M50 M52 M54 ZF ZF310 ZF320 S5D-250 M57 GS5-39DZ S50 S52 S54 Getrag 420G - 184mm 7.25" STEP



This Flywheel allows you to pair your BMW M57 330D/530D Gearbox to a 1JZ OR 2JZ engine while using a Tilton Step twin or tripple plate clutch set.

Click here for Tilton Clutch

Click here for Adaptor Plate

Custom aluminum flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the BMW Getrag / ZF manual gearbox

  • Needs the PMC Motorsport gearbox adapter plate

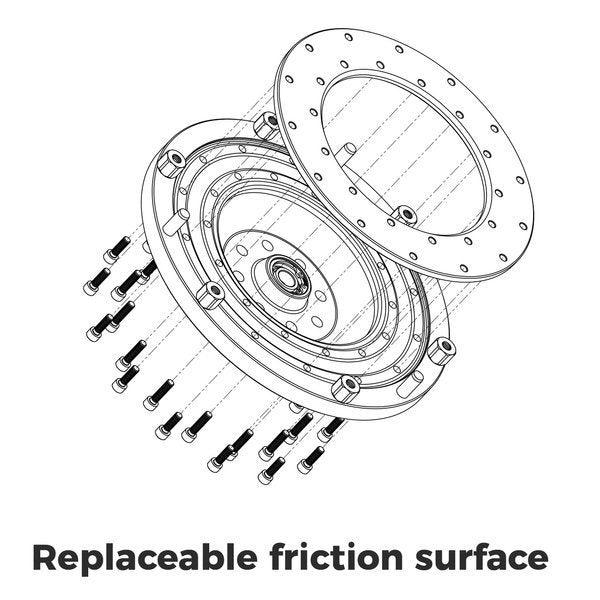

  • Replaceable cast iron friction surface

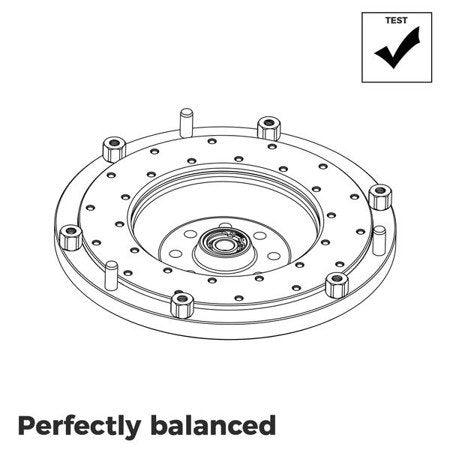

  • The flywheel is balanced prior to shipment



Why is it worth choosing gearboxes from BMW?

  • Availability and price. Millions of cars produced and their worldwide availability guarantee the availability of spare parts. Parts as well as complete gearboxes are easily available at dealerships and on the aftermarket.
  • Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used in both amateur and professional motorsport for many years. They can hold a very high torque(some models 1000Nm+), while guaranteeing high reliability. They are ideal for SWAP in high-power cars intended for everyday use. (Daily)



Why choose PMC Motorsport parts and adapters?

  • Experience. Thousands of manufactured adapters and satisfied customers around the world. Our adapters are used both in Daily cars and in professional motorsport projects.
  • Professionalism. From design to implementation, our parts go a long way. Each element for which we produce parts has been measured by us with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems in its use. For our production, we use only certified materials from reliable suppliers. We have a modern park of CNC machines and experienced employees.
  • Quality. From the beginning, we focus on the quality of the parts we manufacture. After each stage of production, the element is inspected. Each component we manufacture is engraved with the production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
  • Perfect alignment - our adapters guarantee a perfect fit of the engine and gearbox
  • Made in EU. All our production and design departments are located in the European Union
  • Help in choosing and After-sales support. Our team will help you choose the right product. And in case of doubt during installation, he will provide technical support. You can contact us via Facebook, Instagram, and email: inquiries@cdmsport.life




Engine list:

  • Toyota 1JZ (non VVT-i / VVT-i version)
    • Toyota 1JZ-FSE
    • Toyota 1JZ-GE
    • Toyota 1JZ-GTE
  • Toyota 2JZ (non VVT-i / VVT-i version)
    • Toyota 2JZ-FSE
    • Toyota 2JZ-GE
    • Toyota 2JZ-GTE

Gearbox list (Petrol):

  • BMW GETRAG S5D-250G S5D250 5-speed
    • BMW E36 M50 M52 320i 323i 325i 323ti 325is
    • BMW E34 M50 520i 525i
    • BMW E39 M52 M54 520i 523i 525i
    • BMW E46 M52 M54 M56 320i 323i 325i
    • BMW Z3 2.0 2.5 2.2i
  • BMW ZF (ZF Friedrichshafen) S5D-310 ZF 310 / ZF310 S5-31 5-speed
    • BMW E34 525i USA
  • BMW ZF (ZF Friedrichshafen) S5D-320 ZF 320 / ZF320 S5-32 5-speed
    • BMW E36 328i M3 3.2 M3 323i
    • BMW E38 728i
    • BMW E39 528i 530i 523i 525i
    • BMW E46 328i 330i
    • BMW Z3 2.8 3.0 M 3.2 S54
  • BMW S50 E36 M3 GETRAG 420 TBAB 226.0.0161.91 6-speed
  • BMW S54 E46 M3 GETRAG 420 TBAI 226.0.0440.97 6-speed

The flywheel does not fit the BMW M54 GS6-37BZ 6-speed gearbox

Gearbox list (Diesel):


  • BMW ZF (ZF Friedrichshafen) M57 Diesel ZF GS5-39DZ THBA THBM THBG THBK THBC 5-speed 23 00 7 501 342 / 23 00 7 508 772 /  23 00 7 518 077 / 23 00 1 434 505
    • BMW E39 530D 525D
    • BMW E46 330D 1434256 ZF 1065401011






Manual

  • Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
  • The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 24mm position
  • Replace the original custom pivot pin with the one from the kit
  • Guide tube shortening required BMW OEM 23 11 7 501 71









 Made in EU

 ISO certificate




Engine:
Toyota JZ 1JZ 2JZ
Gearbox:
BMW GETRAG S5D-250 M50 M52 M54 5-speed
,
BMW ZF S5D-310 ZF-310 / M50 5-speed
,
BMW ZF S5D-320 ZF-320 / M52 / M54 / E36 M3 5-speed
,
BMW E36 M3 GETRAG 420 TBAB 6-speed
,
BMW E46 M3 GETRAG 420 TBAI 6-speed
,
BMW E39 530D M57 ZF GS5-39DZ 5-speed (DIESEL)
,
BMW E39 525D M57 ZF GS5-39DZ 5-speed (DIESEL)
,
BMW E46 330D M57 ZF GS5-39DZ 5-speed (DIESEL)
CLUTCH SET
Flywheel Type:
Ultralight Race 184mm / 7.25"
Diameter:
184mm / 7.25"
Recommended clutch pressure plate:
Tilton OT-II Cerametallic Pressure Plate 7.25" 66-302 xxx Twin disc STEP
,
Tilton OT-II Cerametallic Pressure Plate 7.25" 66-003 xxx Triple disc STEP
Clutch disc required:
BMW M50 M52 M54 5-speed 23x29-10N [184mm 7.25"]
,
BMW E36 M3 GETRAG 420 TBAB 6-speed 23x29-10N [184mm 7.25"]
,
BMW E46 M3 GETRAG 420 TBAI 6-speed 28X35-10N [184mm 7.25"]
,
BMW ZF GS5-39DZ 5-speed 28X35-10N [184mm 7.25"]
Release bearing required:
Dedicated to your gearbox
Clutch fork required:
Dedicated to your gearbox
Starter required:
Toyota JZ (OE) not included
Flexplate / ring gear required:
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate
ADDITIONAL INFORMATION
Flywheel weight:
2.80 kg / 6.17 lbs
Moment obrotowy dokręcania:
74Nm + klej
Replaceable friction surface:
Yes
Set includes:
Clutch cover - pressure plate bolts kit
,
Crankshaft bolts kit
,
Flywheel centering sleeve
,
Custom Clutch fork pivot pin / Ball - 34.5mm - replacement OE 21 51 1 223 328
Material:
Aluminium
,
Żeliwo
Gearbox adapter required:
F0BMW-JZ
Product sales codes included:
K0M50-TS-JZ (1602)
